* Processor: NXP i.MX8M Mini. Quad-core Cortex-A53 @ 1.8GHz + Cortex-M4F @ 400MHz
* RAM: 1GB/2GB/4GB
* Storage: 8GB/16GB/32GB/64GB/128GB
* Pin out: 4x UART, USB Host, 2x USB2.0 OTG, MIPI CSI, MIPI DSI, GbE, PCIe2.1, SD, JTAG, I2C, SPI, SPDIF, SAI, GPIO, etc.
* Operating system: Linux 4.14
* Dimensions: 67.6 x 34.3 mm
* Connectors: 200-pin SODIMM edge connector

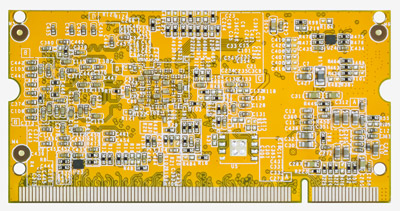

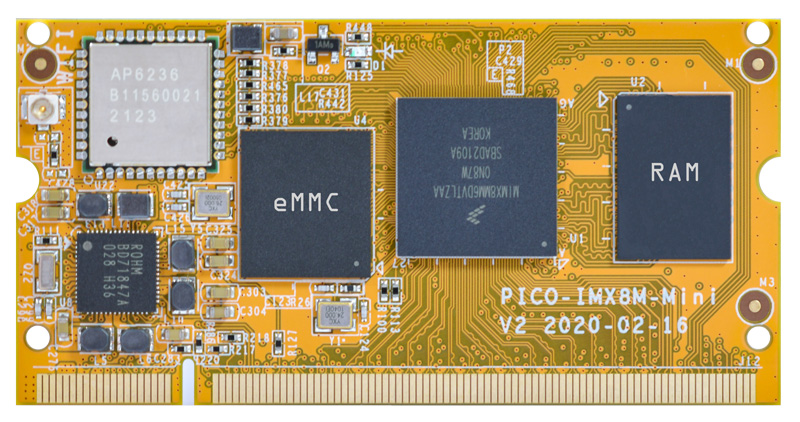

The Boardcon PICO-IMX8M-MINI is a SO-DIMM200 system on module based on NXP's quad-core, 1.8GHz i.MX8M Mini SoC. It comes with 2GB RAM and 8GB eMMC, and integrates WiFi, and BT connectivity, multiple USB and UART ports plus GPIO lines, and MIPI-DSI and MIPI-CSI display interfaces.

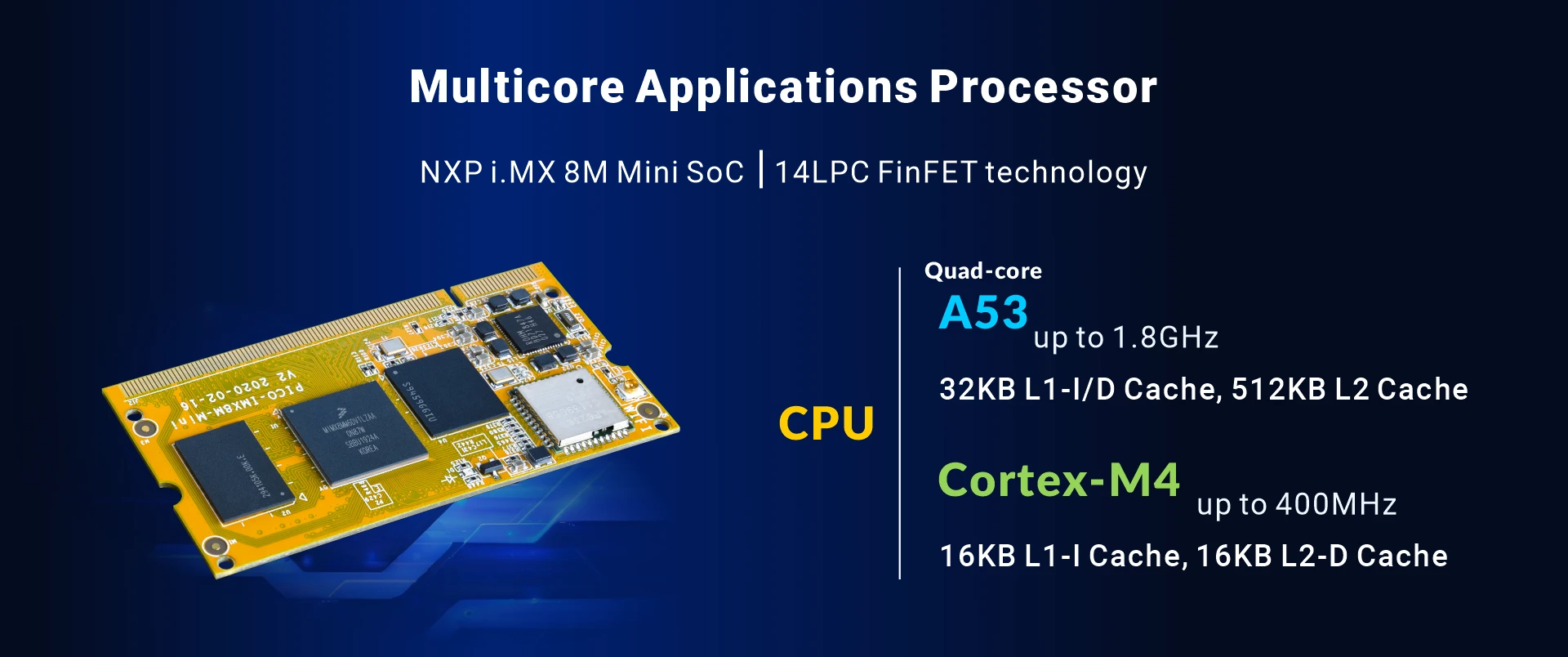

The i.MX 8M Mini is NXP’s first embedded multicore applications processor built using advanced 14LPC FinFET process technology, providing more speed and improved power efficiency. With powerful multimedia abilities and a range of connectivity features – Boardcon i.MX8M Mini SOM is ideal for Advanced graphics, machine vision, and other multimedia applications.

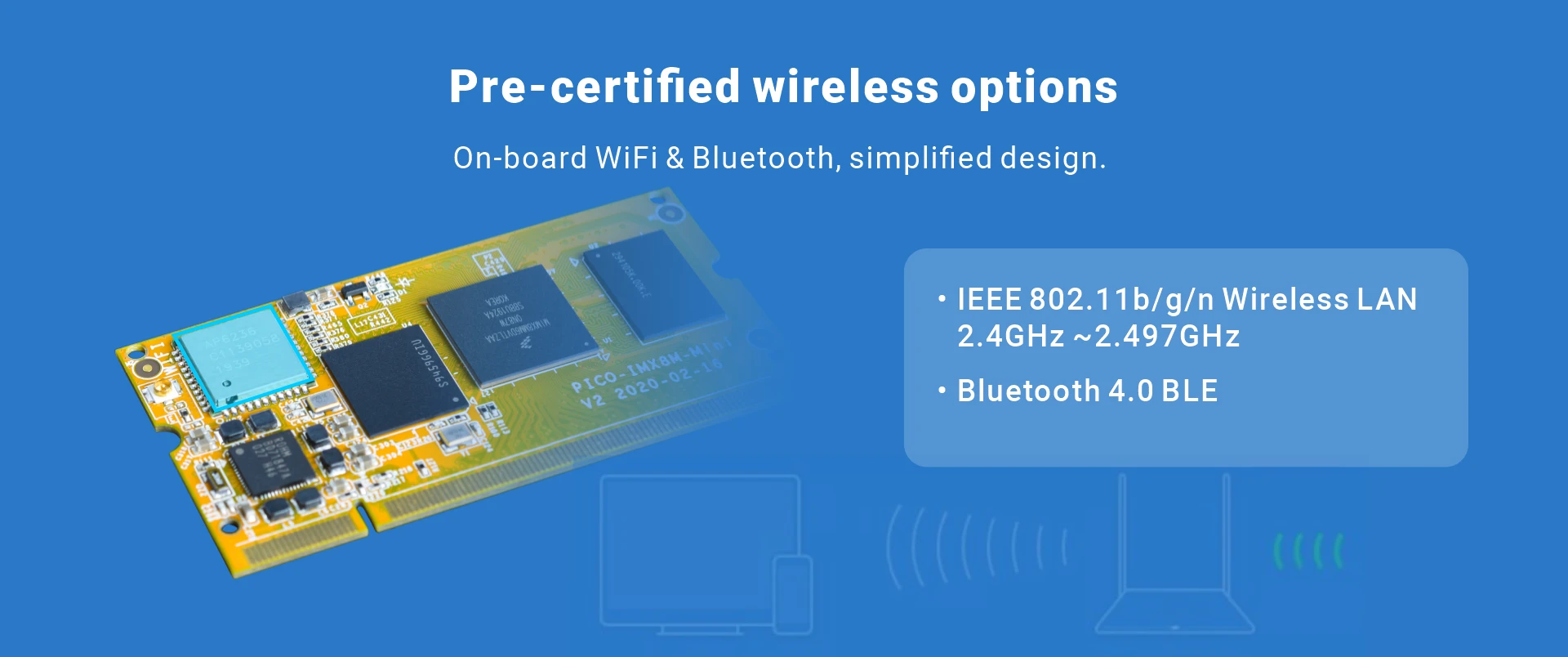

Specifications | |
---|---|
SoC | NXP i.MX8M Mini. Quad-core Cortex-A53 core @ 1.8GHz + Cortex-M4F @ 400MHz |
GPU | GCNanoUltra for 3D acceleration, GC320 for 2D acceleration |
Memory | 1GB/2GB/4GB LPDDR4 |
Storage | 8GB/16GB/32GB/64GB/128GB eMMC |
Supply Voltage | 5V |
Pin out | 4x UART, USB Host, 2x USB2.0 OTG, MIPI CSI, MIPI DSI, GbE, PCIe2.1, SD, JTAG, 3x I2C, 2x SPI, SPDIF, 3x SAI, GPIO, etc. |
WiFi&Bluetooth | Certified 802.11b/g/n WiFi module, Bluetooth 4.0 |
Dimensions | 67.6 x 34.3 mm |
Layer | 6 |
Connectors | 200-pin SODIMM edge connector |
Application | Advanced graphics, machine vision, and other media applications |
Development Board | EM-IMX8M-MINI |

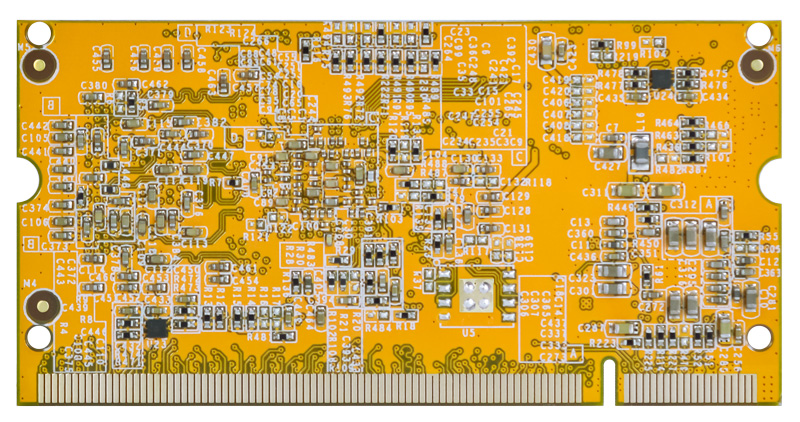

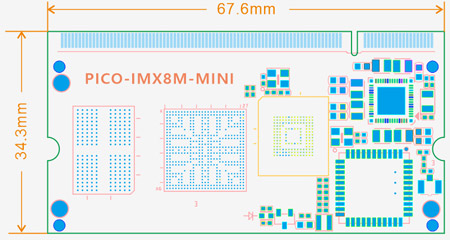

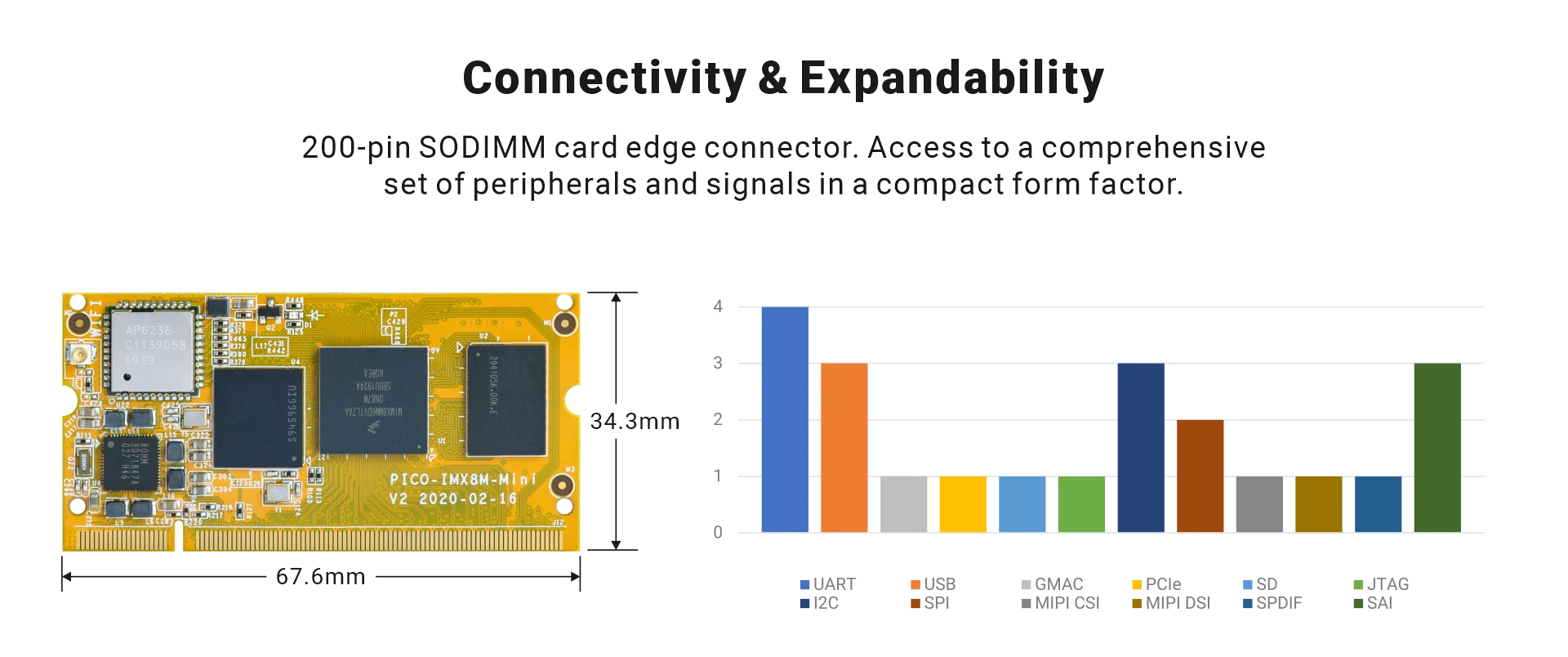

PCB Dimension

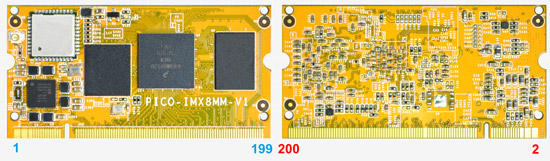

Pin Definition
Pin | Signal | Pin | Signal | Pin | Signal | Pin | Signal |
---|---|---|---|---|---|---|---|
1 | GND | 101 | GND | 2 | GND | 102 | SD2_DATA1 |
3 | GND | 103 | PCIE_RXP | 4 | GND | 104 | SD2_DATA2 |
5 | GND | 105 | PCIE_RXN | 6 | GND | 106 | SD2_DATA3 |
7 | VSYS_5V | 107 | GND | 8 | VSYS_5V | 108 | SD1_STROBE |
9 | VSYS_5V | 109 | CSI_DP3 | 10 | VSYS_5V | 110 | BOOT_MODE1 |
11 | VSYS_5V | 111 | CSI_DN3 | 12 | VSYS_5V | 112 | BOOT_MODE0 |
13 | GND | 113 | GND | 14 | GND | 114 | JTAG_TMS |
15 | GND | 115 | CSI_DP2 | 16 | GND | 116 | JTAG_TDO |
17 | VDD_1V8 | 117 | CSI_DN2 | 18 | VDD_1V8 | 118 | JTAG_TDI |
19 | VDD_1V8 | 119 | GND | 20 | VDD_1V8 | 120 | JTAG_TCK |
21 | GND | 121 | CSI_CKP | 22 | GND | 122 | JTAG_nTRST |
23 | VDD_3V3 | 123 | CSI_CKN | 24 | VDD_3V3 | 124 | CLKOUT1 |
25 | VDD_3V3 | 125 | GND | 26 | M.2_32K_OUT | 126 | CLKOUT2 |
27 | SAI1_TXD7 | 127 | CSI_DP1 | 28 | SAI1_TXD6 | 128 | CLKIN1 |
29 | SAI1_TXD5 | 129 | CSI_DN1 | 30 | SAI1_TXD4 | 130 | CLKIN2 |
31 | SAI1_TXD3 | 131 | GND | 32 | SAI1_TXD2 | 132 | ONOFF |
33 | SAI1_TXD1 | 133 | CSI_DP0 | 34 | SAI1_TXD0 | 134 | USB2_VBUS |
35 | GND | 135 | CSI_DN0 | 36 | SAI1_TXC | 136 | USB1_VBUS |
37 | SAI1_RXC | 137 | GND | 38 | SAI1_TXFS | 138 | USB2_ID |
39 | SAI1_RXFS | 139 | DSI_DP3 | 40 | GND | 140 | USB1_ID |
41 | SAI1_RXD7 | 141 | DSI_DN3 | 42 | SAI1_RXD6 | 142 | UART4_TXD |
43 | SAI1_RXD5 | 143 | GND | 44 | SAI1_RXD4 | 144 | UART4_RXD |
45 | SAI1_RXD3 | 145 | DSI_DP2 | 46 | SAI1_RXD2 | 146 | UART1_RTS |
47 | SAI1_RXD1 | 147 | DSI_DN2 | 48 | SAI1_RXD0 | 148 | UART1_CTS |
49 | SAI5_RXFS | 149 | GND | 50 | GND | 150 | UART2_TXD |
51 | DM_CLK | 151 | DSI_CKP | 52 | PDM_DATA2 | 152 | UART2_RXD |
53 | SAI5_MCLK | 153 | DSI_CKN | 54 | PDM_DATA3 | 154 | UART1_TXD |
55 | PDM_DATA1 | 155 | GND | 56 | GND | 156 | UART1_RXD |
57 | GND | 157 | DSI_DP1 | 58 | PDM_DATA0 | 158 | I2C4_SCL |
59 | SYS_nRST | 159 | DSI_DN1 | 60 | SAI1_MCLK | 160 | I2C4_SDA |
61 | GND | 161 | GND | 62 | GND | 162 | I2C3_SCL |
63 | ENET_TXC | 163 | DSI_DP0 | 64 | ENET_TX_CTL | 164 | I2C3_SDA |
65 | GND | 165 | DSI_DN0 | 66 | ENET_TD0 | 166 | I2C2_SCL |
67 | ENET_TD1 | 167 | GND | 68 | ENET_TD2 | 168 | I2C2_SDA |
69 | ENET_TD3 | 169 | UART3_RXD | 70 | ENET_RX_CTL | 170 | ECSPI2_MOSI |
71 | ENET_RXC | 171 | UART3_TXD | 72 | GND | 172 | ECSPI2_MISO |
73 | ENET_RD0 | 173 | UART3_CTS | 74 | ENET_RD1 | 174 | ECSPI2_SCLK |
75 | PMIC_ON_REQ | 175 | UART3_RTS | 76 | ENET_RD2 | 176 | ECSPI2_SS0 |
77 | GND | 177 | GND | 78 | ENET_RD3 | 178 | SAI3_TXD |
79 | USB2_DP | 179 | SAI3_TXC | 80 | ENET_MDC | 180 | SAI3_TXFS |
81 | USB2_DN | 181 | SAI3_RXD | 82 | ENET_MDIO | 182 | SAI3_MCLK |
83 | GND | 183 | SAI3_RXC | 84 | GND | 184 | GPIO1_IO13 |
85 | USB1_DP | 185 | SAI3_RXFS | 86 | GND | 186 | GPIO1_IO10 |
87 | USB1_DN | 187 | GPIO1_IO15 | 88 | SD2_nCD | 188 | GPIO1_IO12 |
89 | GND | 189 | GPIO1_IO14 | 90 | SD2_WP | 190 | GPIO1_IO08 |
91 | PCIE_CLKP | 191 | GPIO1_IO05 | 92 | SD2_CMD | 192 | GPIO1_IO11 |
93 | PCIE_CLKN | 193 | GPIO1_IO07 | 94 | SD2_CLK | 194 | GPIO1_IO01 |
95 | GND | 195 | GPIO1_IO09 | 96 | SD2_nRST | 196 | SPDIF_EXT_CLK |
97 | PCIE_TXP | 197 | GPIO1_IO06 | 98 | GND | 198 | SPDIF_RX |
99 | PCIE_TXN | 199 | GND | 100 | SD2_DATA0 | 200 | SPDIF_TX |
OS | Item | Feature | Description |
---|---|---|---|
Linux4.14.98 | Bootloader | Boot | u-boot 2018.03 |
Boot mode | Boot from eMMC | ||
Download | Download via USB OTG | ||
Kernel | Version | Linux 4.14.98 | |
File system format | Default support ext2, ext3, ext4, fat, jeffs2, UBIFS, nfs, etc. Boardcon only provides ext4, R/W file system. | ||
LED | Support | ||
Serial | Support | ||
RTC | Support | ||
Ethernet | 10/100M Ethernet Support | ||
CAN | Support | ||
RS485 | Support | ||
WIFI | Support | ||
USB host | Support | ||
USB OTG | Support | ||
LCD | Support | ||
TOUCH | Touchscreen. Support | ||
eMMC | Support | ||
MMC/SD | MMC mode. Support | ||
GPIO | Support | ||
Audio I/O | Support | ||
Embedded GUI | Qt/Embedded | qt 5.0 | |
File system | TCP/IP | TCP/IP protocol | |
Network ping | Check the network | ||
Ifconfig, route | For network configuration and related service application | ||
Basic tool | linux common cammands | cat, chmod, echo, free, init, kill, ls, mkdir, mount, ps, reboot, rm, yes, insmod, lsmod, rmmod, dd, df, aplay | |
Tools | DNW, CRT, uuu.rar |
Datasheet |
|
|
Reference Manual |
|
Tools |
|
|
