CM3588

* Processor: Rockchip RK3588. 4x Cortex-A76 cores @ 2.4GHz + 4x Cortex-A55 cores @ 1.8GHz
* NPU: 6 TOPS
* RAM: 8GB/16GB
* Storage: 32GB/64GB/128GB/256GB

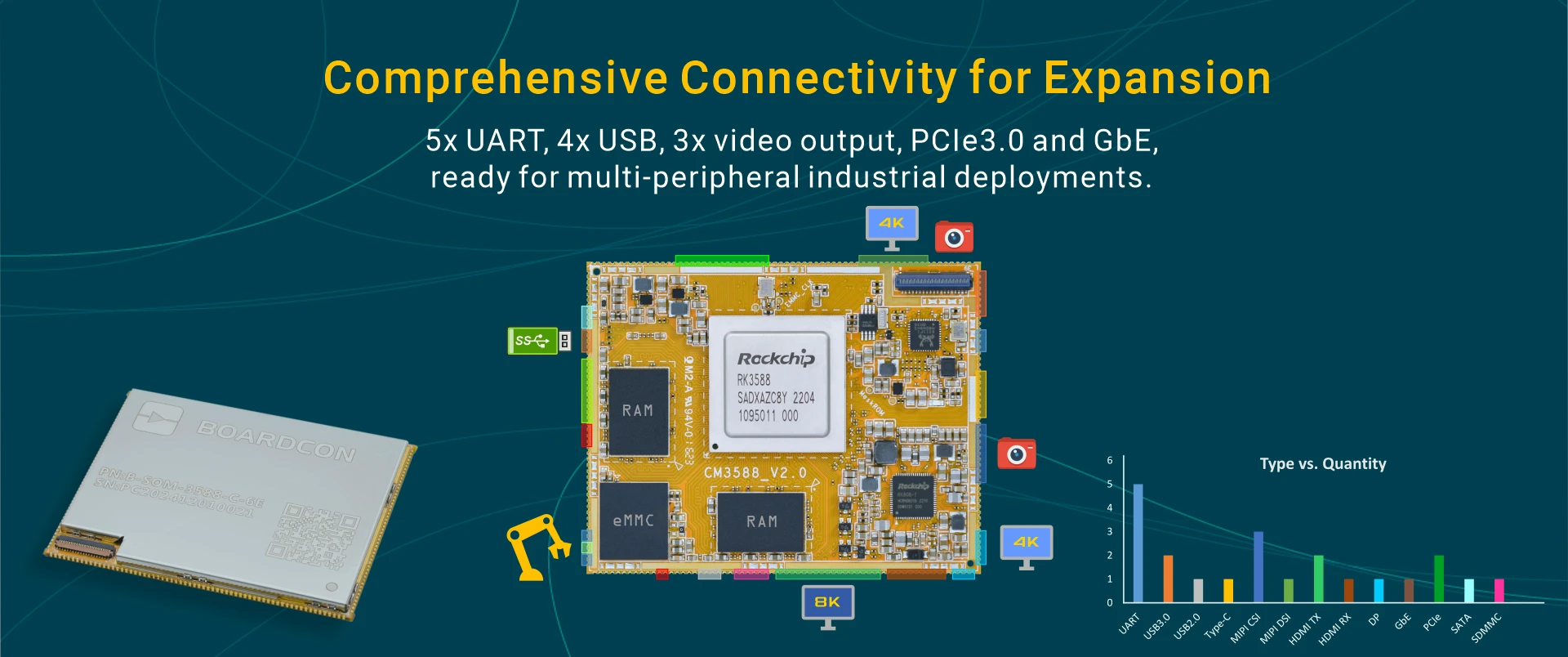

* Pin out: 5x UART, USB3.0 HOST, 2x USB2.0 HOST, 2x Type-C, 2x MIPI CSI, MIPI DSI, MIPI DPHY, 2x HDMI TX, HDMI RX, DP, GbE, PCIe3.0/2.1, SATA, SDMMC, SDIO, PWM, SPI, CAN, SPDIF, ADC, I2C, I2S, PDM, GPIO, etc.
* Operating system: Android 14, Debian 12, Buildroot

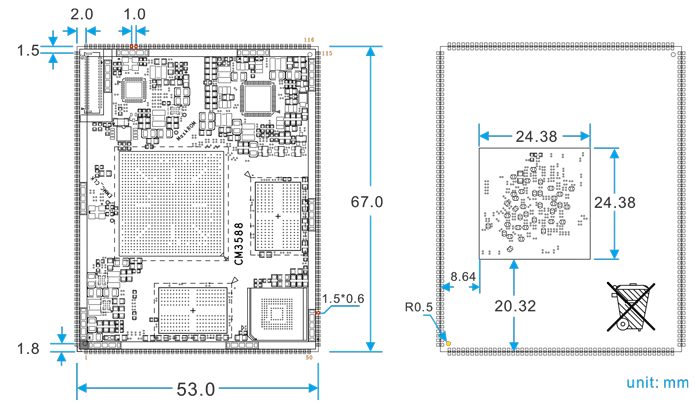

* Dimensions: 67 x 53 mm
* Package: 230-pin, 1.0mm pitch QFN, and 39-pin FPC connector for Camera
pdf icon CEFCCRoHS
html Idea3588 Manual

     CM3588-development-board-kit RK3588_development_kit

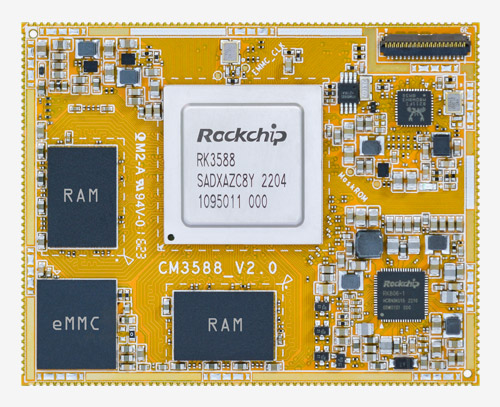

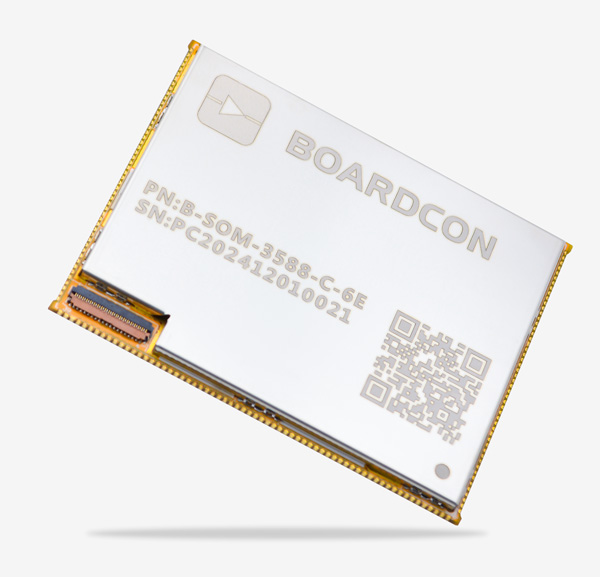

CM3588 is a system-on-module (SoM) based on Rockchip RK3588 octa-core Cortex-A76/A55 processor with 6 TOPS of AI performance and hardware-based maximum 48-Megapixel ISP designed for AR/VR, edge IoT, AIoT, and computer vision applications. The SoM is equipped with 8GB (up to 16GB) RAM and 32GB (up to 256GB) flash, offers Gigabit Ethernet network through RTL8211F-CG controller, and FPC connector for cameras with up to 8K resolution.

CM3588 SOM has obtained certifications for CE, FCC and RoHS.

Boardcon has successfully ported DeepSeek's large language models (1.5B and 7B parameters) onto the Idea3588, the results highlight Idea3588's capability to balance cost and performance for lightweight AI deployments. This advancement opens doors for industrial automation, smart retail, and other latency-sensitive applications requiring localized LLM inference.

RK3588-system-on-moduleRK3588-SOM
