CMIMX7

* Processor: NXP i.MX7. Dual -core ARM Cortex-A7 @ 1.2GHz + Cortex-M4 @ 200MHz
* RAM: 512MB/1GB
* Storage: 4GB/8GB/16GB/32GB
* Pin out: 5x UART, 2x USB2.0 OTG, EPD, LCD, MIPI DSI, MIPI CSI, GbE, SD, PCIe, 2x CAN, Audio out, I2C, ADC, SPI, SAI, PWM, GPIO, etc.
* Operating system: Android 6.0.1, Linux+QT
* Dimensions: 67.6 x 37.0 mm
* Connectors: 200-pin SODIMM edge connector

Overview
Hardware
Software
Download
Price&Order
FAQ

The NXP i.MX7Dual based system-on-module CMIMX7 comes with 1GB RAM, 8GB eMMC, and supporting WiFi+Bluetooth4.0.
The i.MX7 module is led out most signals of i.MX7Dual, such as USB Host, USB OTG, LCD, Serial, Gigabit Ethernet, HDMI, SPI, CAN, MIPI, EPD, and so on. This SOM is a full-featured and flexible drop-in solution ideal for a wide range of embedded applications such as factory automation; building automation; IoT gateways; industrial human machine interface (HMI); machine vision; medical imaging as well as Smart home controls.

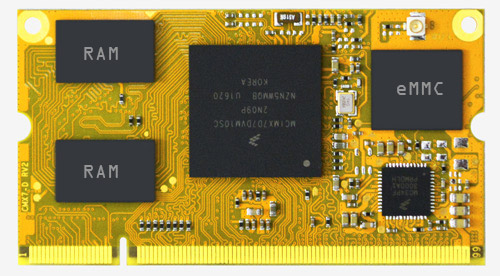

CMIMX7-system-on-module

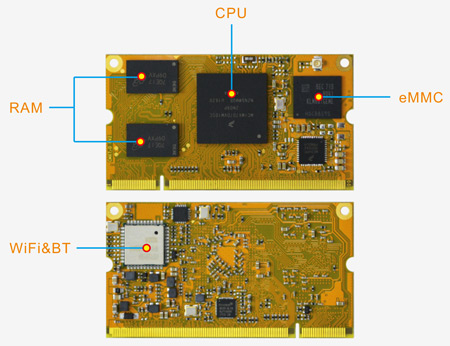

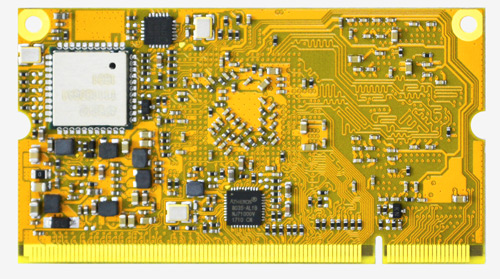

CMIMX7

Specifications
SoC	NXP i.MX7. Dual core ARM Cortex-A7 processor @ 1.2GHz with Cortex-M4 @ 200MHz
Memory	512MB/1GB DDR3
Storage	4GB/8GB/16GB/32GB eMMC
Supply Voltage	5V
Pin out	5x UART, 2x USB2.0 OTG, EPD, LCD, MIPI DSI, MIPI CSI, GbE, SD, PCIe, 2x CAN, Audio out, 3x I2C, 6x ADC IN, SPI, SAI, PWM, GPIO, etc.
Ethernet	Gigabit Ethernet, AR8035AL1B controller
WiFi&BT	Certified IEEE802.11 a/b/g/n WiFi module, Bluetooth4.0
PCB Layer	8
Dimensions	67.6 x 37 mm
Connectors	200-pin SO-DIMM edge connector
Application	Mobile devices, Smart home controls, E-Readers, Patient monitoring, Building automation, etc.
Development Board	EINK-IMX7

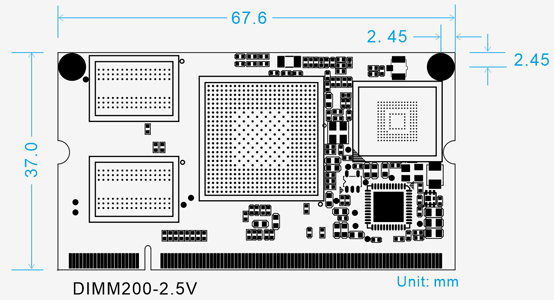

PCB Dimension

CMIMX7 PCB dimension

Pin Definition

DIMM (Front)	Signal	DIMM (Front)	Signal	DIMM (Back)	Signal	DIMM (Back)	Signal
1	GPIO_EPDC_D0	101	MIPI_CSI_D1_N	2	PCIE_REFCLKOUT_N	102	GND
3	GPIO_EPDC_D1	103	GND	4	PCIE_REFCLKOUT_P	104	AUDIO_TXFS
5	GPIO_EPDC_D2	105	HSIC_STROBE	6	GND	106	AUDIO_TXD
7	GPIO_EPDC_D3	107	HSIC_DATA	8	PCIE_TX_N	108	AUDIO_TXC
9	GPIO_EPDC_D4	109	USB_OTG2_ID	10	PCIE_TX_P	110	AUDIO_RXD
11	GPIO_EPDC_D5	111	USB_OTG2_DP	12	PCIE_RX_N	112	AUDIO_MCLK
13	GPIO_EPDC_D6	113	USB_OTG2_DN	14	PCIE_RX_P	114	I2C4_SDA
15	GPIO_EPDC_D7	115	GND	16	GND	116	I2C4_SCL
17	GPIO_EPDC_D8	117	USB_OTG1_DP	18	GPIO_EPDC_BDR1	118	CAN1_RX
19	GPIO_EPDC_D9	119	USB_OTG1_DN	20	GPIO_EPDC_BDR0	120	CAN1_TX
21	GPIO_EPDC_D10	121	USB_OTG1_ID	22	GPIO_EPDC_SDLE	122	GPIO_SAI2_RXD
23	GPIO_EPDC_D11	123	USB_OTG2_ VBUS	24	GPIO_EPDC_GDSP	124	GPIO_SAI2_TXC
25	GPIO_EPDC_D12	125	USB_OTG_VBUS	26	GPIO_EPDC_ PWRCTRL0	126	GPIO_SAI2_TXD
27	GPIO_EPDC_D13	127	SD1_CLK	28	GPIO_EPDC_GDRL	128	GPIO_SAI2_TXFS
29	GPIO_EPDC_D14	129	GND	30	GPIO_EPDC_GDOE	130	IOX_SHCP
31	GPIO_EPDC_D15	131	SD1_WP	32	GPIO_EPDC_SDCE0	132	IOX_STCP
33	GND	133	SD1_CD_B	34	GPIO_EPDC_SDCE1	134	IOX_SDI
35	GPIO_EPDC_ GDCLK	135	SD1_DATA2	36	GPIO_EPDC_SDCE2	136	ECSPI2_SS0
37	GND	137	SD1_DATA3	38	GPIO_EPDC_SDCE3	138	ECSPI2_MOSI
39	GPIO_EPDC_ SDCLK	139	SD1_RESET_B	40	GPIO_EPDC_SDOE	140	ECSPI2_MISO
41	LCD1_ENABLE	141	SD1_DATA1	42	GPIO_EPDC_ PMIC_PG	142	ECSPI2_SCLK
43	LCD1_VSYNC	143	SD1_DATA0	44	GPIO_EPDC_ SDSHR	144	I2C3_SDA
45	LCD1_HSYNC	145	SD1_CMD	46	LCD1_DATA23	146	I2C3_SCL
47	LCD1_DATA15	147	UART3_CTS	48	LCD1_DATA22	148	UART6_RXD
49	LCD1_DATA14	149	UART2_RXD	50	LCD1_DATA21	150	UART2_TXD
51	LCD1_DATA13	151	I2C2_SDA	52	LCD1_DATA20	152	I2C1_SDA
53	LCD1_DATA12	153	I2C2_SCL	54	LCD1_DATA19	154	I2C1_SCL
55	LCD1_DATA11	155	UART1_TXD	56	LCD1_DATA18	156	UART6_CTS_B
57	LCD1_DATA10	157	UART1_RXD	58	LCD1_DATA17	158	UART6_TXD
59	LCD1_DATA9	159	PWM3_OUT	60	LCD1_DATA16	160	UART6_RTS_B
61	LCD1_DATA8	161	UART3_RTS	62	GND	162	UART5_TXD
63	CD1_RESET	163	UART5_RXD	64	LCD1_DATA7	164	UART3_TXD
65	LCD1_CLK	165	UART3_RXD	66	LCD1_DATA6	166	GPIO1_IO04
67	GND	167	ENET_MDC	68	LCD1_DATA5	168	LCD_PWM
69	MIPI_DSI_D0_P	169	ENET_MDIO	70	LCD1_DATA4	170	USB_OTG1_PWR
71	MIPI_DSI_D0_N	171	CAN2_RX	72	LCD1_DATA3	172	USB_OTG2_PWR
73	GND	173	CAN2_TX	74	LCD1_DATA2	174	GND
75	MIPI_DSI_CLK_P	175	GND	76	LCD1_DATA1	176	ADC2_IN1
77	MIPI_DSI_CLK_N	177	BOOT_SEL	78	LCD1_DATA0	178	ADC2_IN0
79	GND	179	BOOT_MODE	80	LED_1000	180	ADC1_IN3
81	MIPI_DSI_D1_P	181	PMIC_ON_REQ	82	LED_ACT	182	ADC1_IN2
83	MIPI_DSI_D1_N	183	PMIC_STBY_ REQ	84	GND	184	ADC1_IN1
85	GND	185	POR_B	86	MDI3-	186	ADC1_IN0
87	MIPI_CSI_D0_P	187	MX7_RST_B	88	MDI3+	188	GND
89	MIPI_CSI_D0_N	189	MX7_ONOFF	90	MDI2-	190	GND
91	GND	191	VBACK	92	MDI2+	192	GND
93	MIPI_CSI_CLK_P	193	GND	94	MDI1-	194	MAIN_PWR
95	MIPI_CSI_CLK_N	195	GND	96	MDI1+	196	MAIN_PWR
97	GND	197	PMIC_5V	98	MDI0-	198	MAIN_PWR
99	MIPI_CSI_D1_P	199	PMIC_5V	100	MDI0+	200	MAIN_PWR

OS	Item	Feature	Description
Linux4.1.15	Bootloader	Boot	u-boot 2015.04
		Boot mode	Boot from eMMC
		Download	Download via USB OTG
	Kernel	Version	Linux4.1.15
		File system format	Support ext2, ext3, ext4, fat, jeffs2, UBIFS, nfs, etc. Boardcon only provides ext4, R/W file system.
		Serial	Support
		RTC	Support
		Ethernet	10/100/1000 Mbps Ethernet
		CAN	2x CAN
		USB host	USB2.0 HOST
		USB OTG	USB2.0 OTG
		LCD	4.3-/ 7-inch LCD, 6-/ 9.7-inch EPDC
		eMMC	eMMC5.0
		MMC/SD	MMC mode. Support Micro SD card slot
		GPIO	Support
		Button	Support
		Audio I/O	Audio out, 2x MIC
		WiFi	Wireless - 2.4GHz, 802.11 a/b/g/n
		HDMI	Support
		3G moudle	MU709s-2
	Embedded GUI	Qt/Embedded	rootfs_nogpu.tar.bz2
	File system	TCP/IP	TCP/IP protocol
		Network ping	Check the network
		Ifconfig, route	For network configuration and related service application
	Basic tool	linux common cammands	cat, chmod, echo, free, init, kill, ls, mkdir, mount, ps, reboot, rm, insmod, lsmod, rmmod, dd, df, aplay
	Basic tool	Tools	DNW, CRT, MFGTOOLS.RAR, VMWARE7.0

OS	Item	Feature	Description
Android6.0.1	Boot	uboot 2015.04	u-boot 2015.04
	Kernel	Version	Linux 4.1.15
	Drivers	HDMI	Support 720P resolution
		Audio	Audio out, MIC
		SD card	Micro SD card
		USB HOST	USB mouse, USB keyboard, usb storage etc
		Ethernet	10/100/1000 Mbps Ethernet
		LCD	Support 4.3-/ 7-inch LCD, 6-/ 9.7-inch EPDC
		WIFI	Wireless-2.4GHz/5GHz 802.11 a/b/g/n
		Serial Port	Debug
		eMMC	eMMC 5.0
		3G moudle	MU709s-2
		Serial	Support
		CAN	2x CAN
		USB OTG	USB2.0 OTG
		RTC	Support
	Embedded GUI	Android6.0.1	Support Alarm Clock, Browser, Gallery, Calculator, Camera, Email, ES File Explorer, video player, Music etc.
	Cross-compiler Environment	ubuntu-14.04, java-7-openjdk-amd64.tar.bz2
	Debug Tools	DNW, CRT, MFGTOOLS.RAR, VMWARE7.0, ADB
