EM-IMX8M-MINI

* Processor: NXP i.MX8M Mini. Quad-core ARM Cortex-A53 @ 1.8GHz + Cortex-M4 @ 400MHz
* RAM: 2GB
* Storage: 8GB

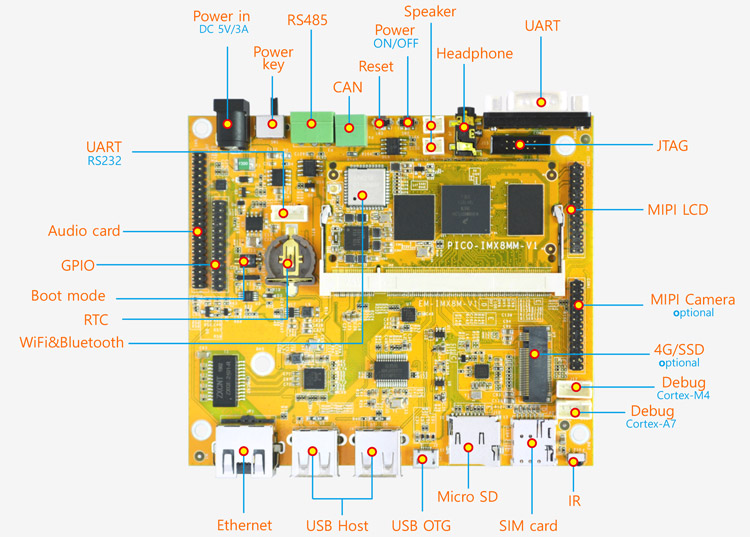

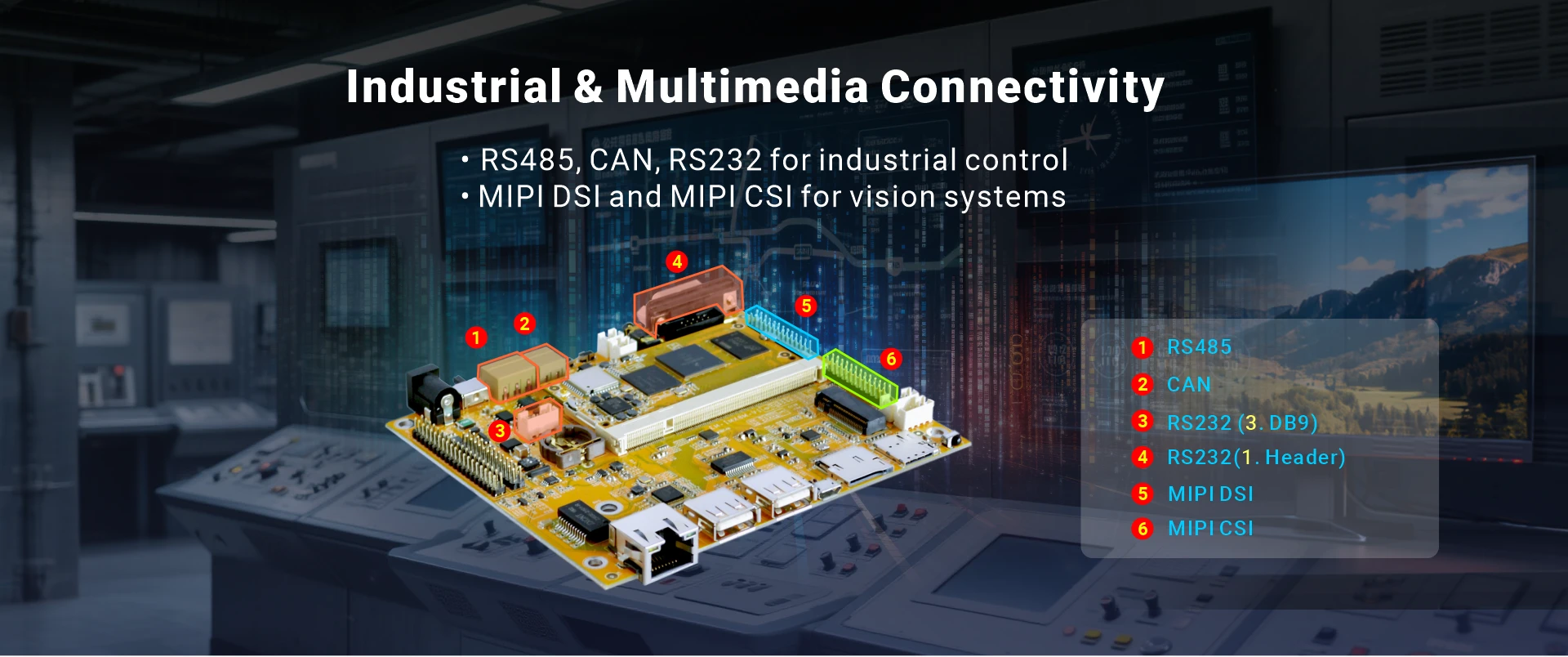

* Interfaces: 4x UART, 2x USB Host, 1x USB OTG, Gigabit Ethernet, MIPI CSI, MIPI DSI, Audio I/O, PCIe, MMC/SD, JTAG, CAN, RS485, Speaker, I2C, SPI, etc.
* Operating system: Linux 4.14.98 + Qt 5.0

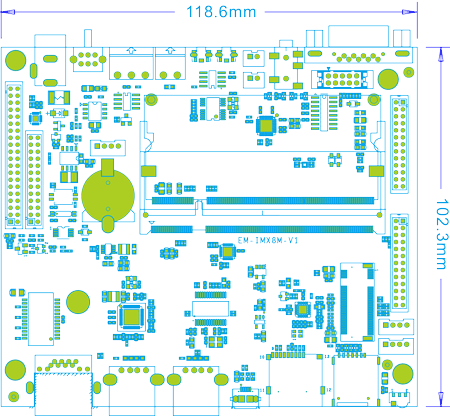

* Dimensions: 118.6 x 102.3 mm

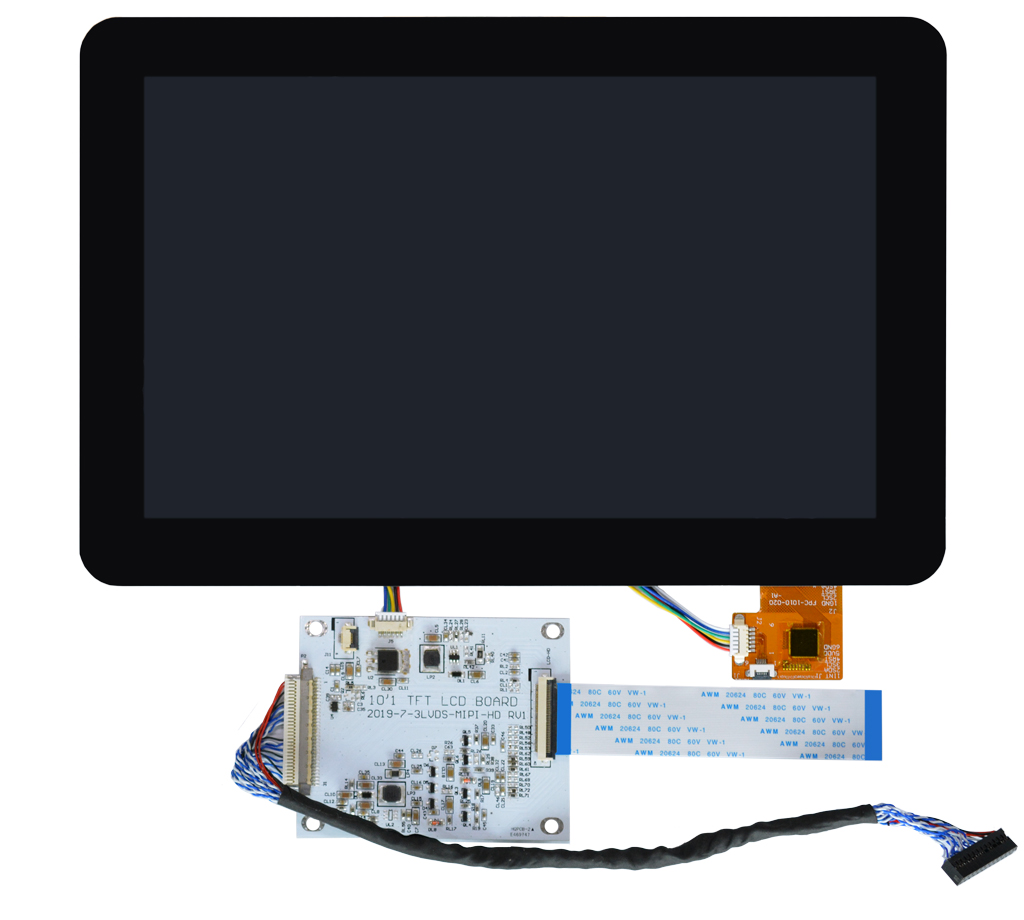

* Expansion Module: 4G model, WiFi, 10.1-inch LCD

     PICO-IMX8M-MINI

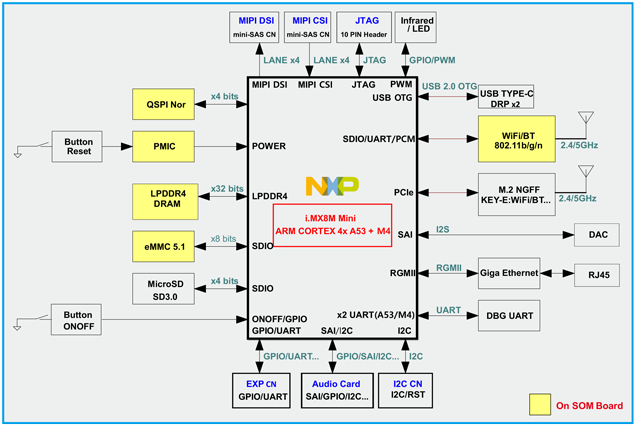

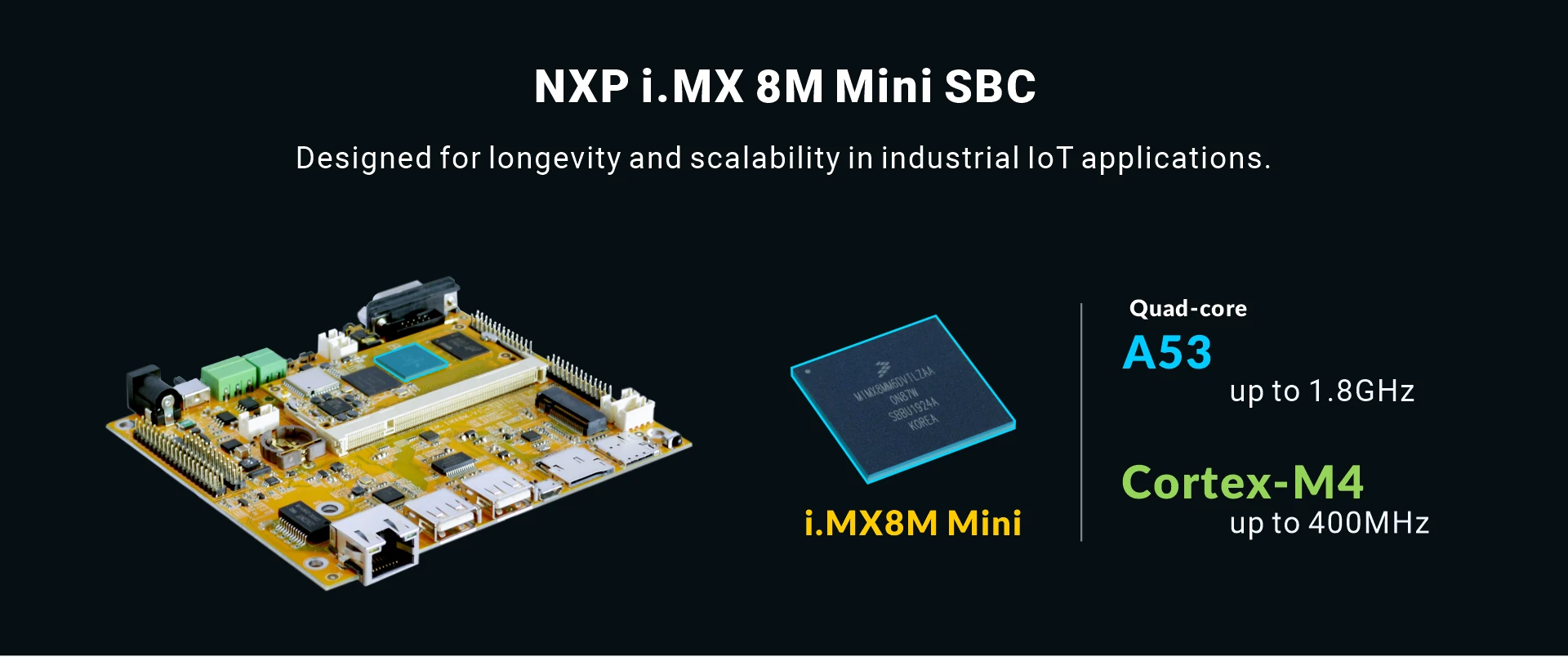

The EM-IMX8M-MINI is a linux based single board computer (SBC) incorporates PICO-IMX8M-MINI SODIMM module which is based on NXP’s energy efficient i.MX8M Mini ARM Cortex A53 processor.
This i.MX8M Mini SBC is tailor made for a wide range of multimedia applications, featuring 2GB LPDDR4, 8GB eMMC, 2x USB 2.0, powerful network connectivity options including 4G, WiFi and Bluetooth. Robust multimedia features including 1080P60 video HEVC/H265/H264/VP9 decode with HDR, 2D/3D graphics acceleration, 16 audio channels (32bits), MIPI-DSI, and 1080p encoder and decoder.
Together with MIPI CSI camera inputs, MIPI DSI display outputs, flexible audio interfaces and comprehensive communication features, EM-IMX8M-MINI is ideal for Advanced graphics, machine vision, and other multimedia applications.

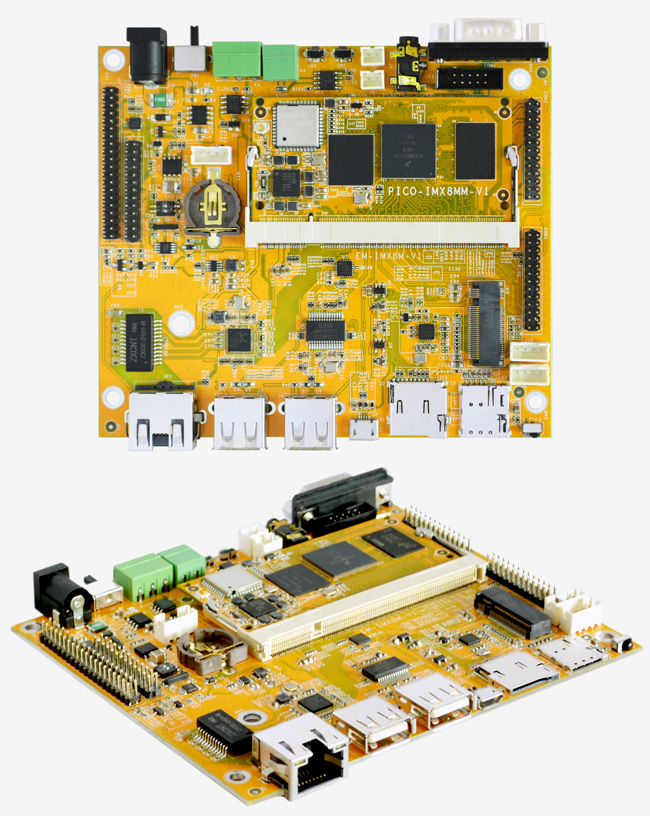

i.MX8M Mini Single Board Computer
