* Processor: Amlogic C305X. Dual-core ARM Cortex-A35
* NPU: 2 TOPS
* RAM: 2GB
* Storage: 8GB
* Interfaces: Ethernet, UART(Debug), 2x USB2.0 Host, USB2.0 OTG, mPCIe, MIPI CSI, Micro SD, RS485, Speaker, ADC, etc.
* Operating system: Buildroot
* Dimensions: 150 x 100 mm
* Connectors: 2x 100-pin, 0.4mm pitch Board-to-Board Connectors (Plug)
* Expansion Module: 4G model, WiFi, Camera, SPI LCD

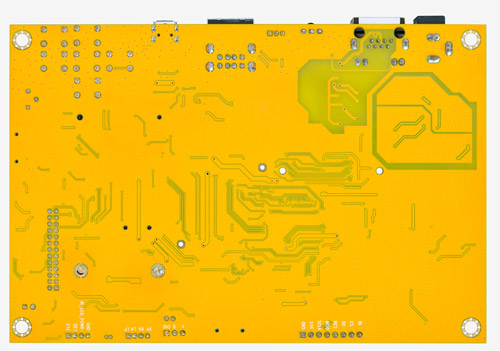

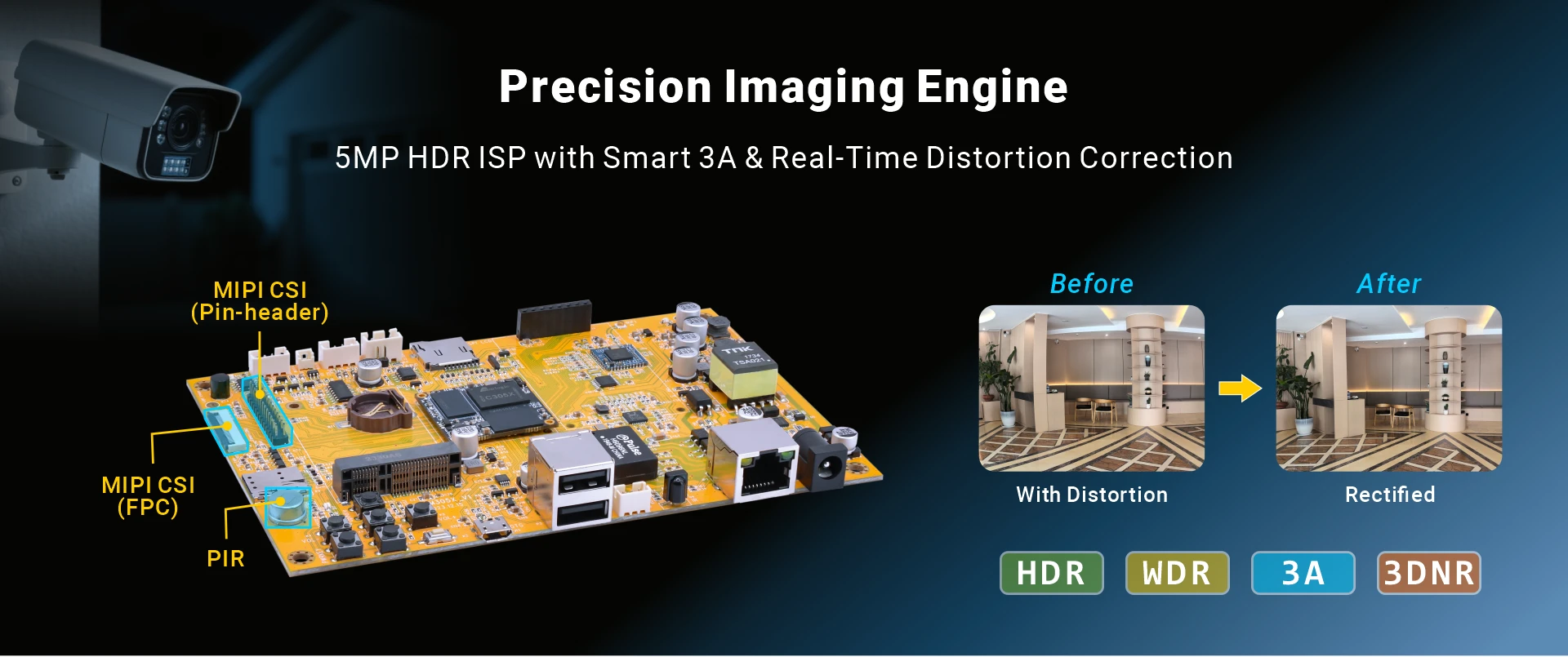

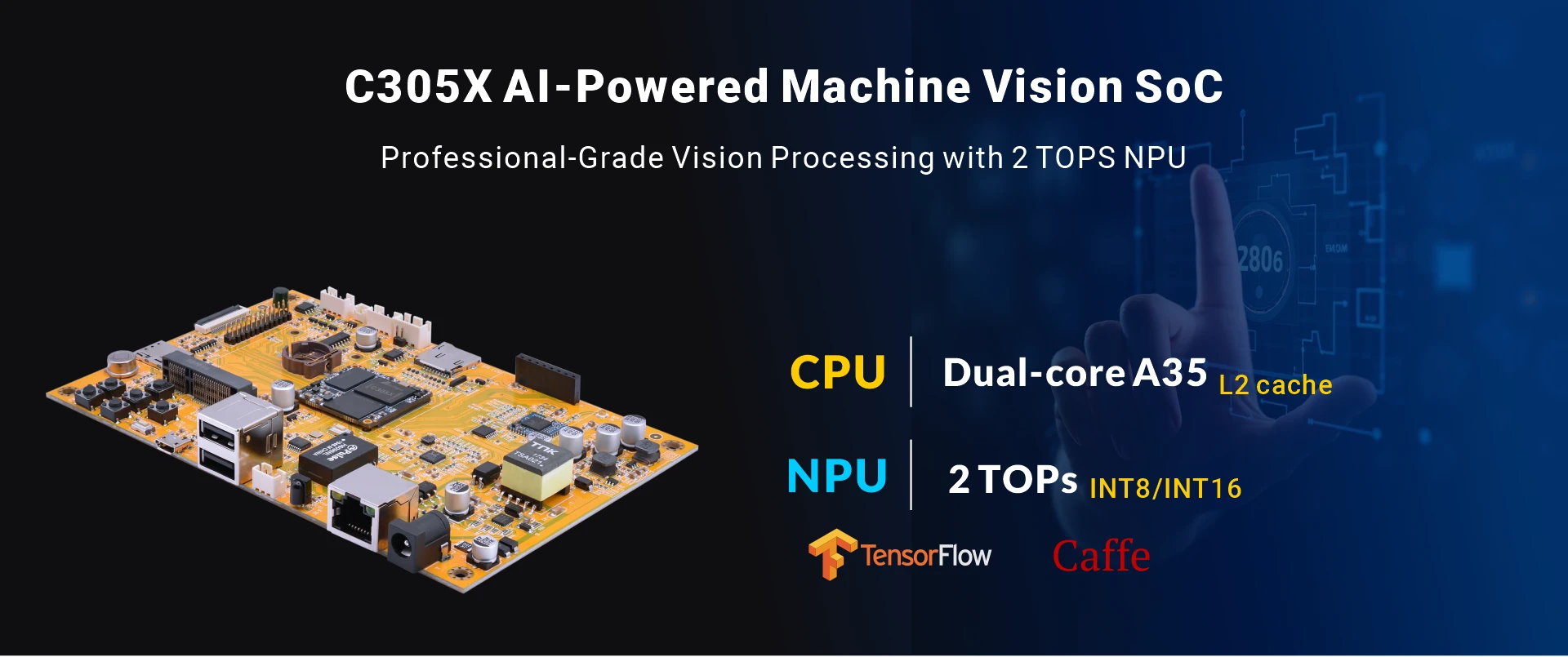

Boardcon EM305X is a single board computer powered by Amlogic C305X AI processor. The Amlogic C305X is a general-purpose SoC specifically designed for AI machine vision applications. It utilizes an 11nm process technology, integrates dual-core ARM Cortex-A35 CPU, and a dedicated NPU that provides up to 2 TOPS of computational power. C305X features 5M pixel HDR image signal processing (ISP) and graphic distortion correction (GDC) unit, support advanced image enhancement including 3A (AE/AWB/AF), Spatial/Temporal/Color Noise reduction, RGB sharpen, fish eye correction, Keystone correction and etc., helps the EM305X SBC providing images and videos of professional quality.
Compared to the C308X, the C305X is more suitable for algorithm models used in single scenarios. Adopting the C305X design helps avoid wasting computational power and reduces deployment costs.

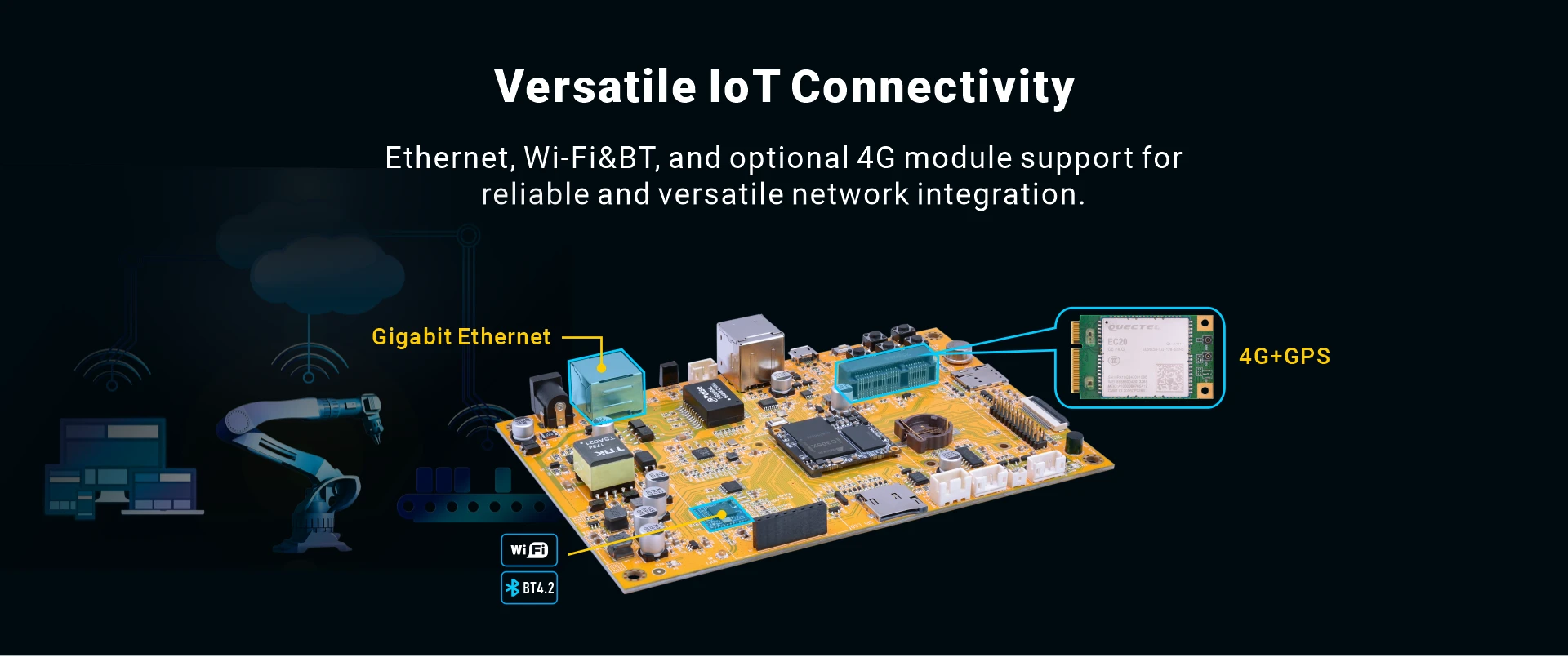

EM305X SBC is equipped with 2GB RAM and 8GB storage, integrates WiFi, 4G, and Gigabit network, and provides FPC/header interface for MIPI camera. It has efficient image recognition and processing capabilities, enabling functions such as facial recognition and behavior analysis. The EM305X can be used as a Smart IP camera for security surveillance, smart home, and Internet of Things (IoT).

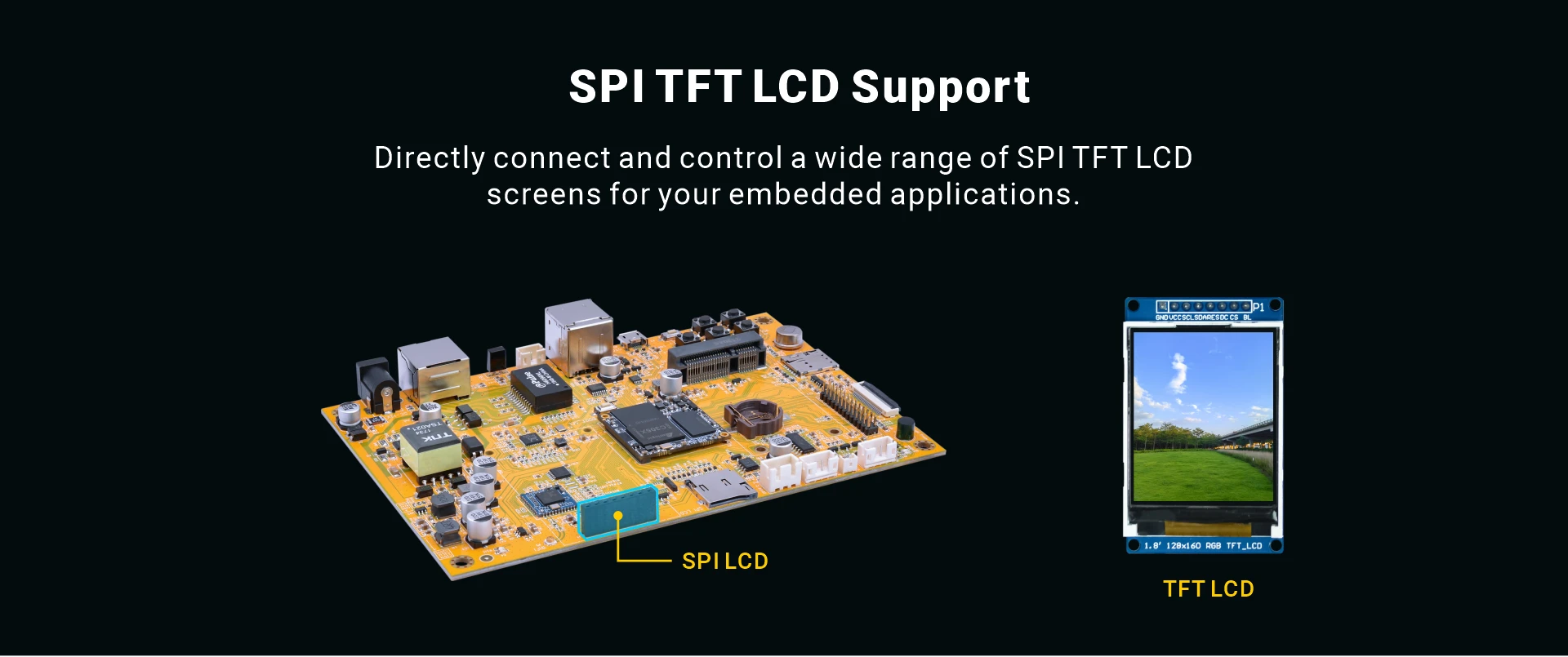

Specifications | |
---|---|
SoC | Amlogic C305X. Dual-core ARM Cortex-A35 |
NPU | 2 TOPS |
Memory | 2GB |
Storage | 8GB eMMC flash (up to 128GB) MicroSD card slot |
Power Supply | 12V/3A DC input jack Power over Ethernet (PoE) |
USB | 1x USB2.0 OTG, 2x USB2.0 Host |
Connectivity | 10/100/1000 Mbps Ethernet RJ45 port via Realtek RTL8211F-CG controller 2.4G WiFi (802.11 b/g/n) with Bluetooth 4.2 Mini PCIe socket with Nano SIM card port to support 4G LTE Modem |
Serial port | UART for Debug, 3-pin connector RS485, 3-pin connector or 2-pin header |
Display | SPI LCD, 128x160, 8-pin connector |
Audio | 2-CH Speaker, 4-pin connector |
Camera(optional) | 4-lane MIPI camera, 30-pin FPC or 26-pin header |
Keys | Boot select, Reset, Power, 5x User keys |
Other features | RTC with battery connector, IRCUT, IR, PIR, Light sensor, Debug for Light sensor |
Dimensions | Based board – 150 x 100 mm; CPU module – 29 x 27 mm |

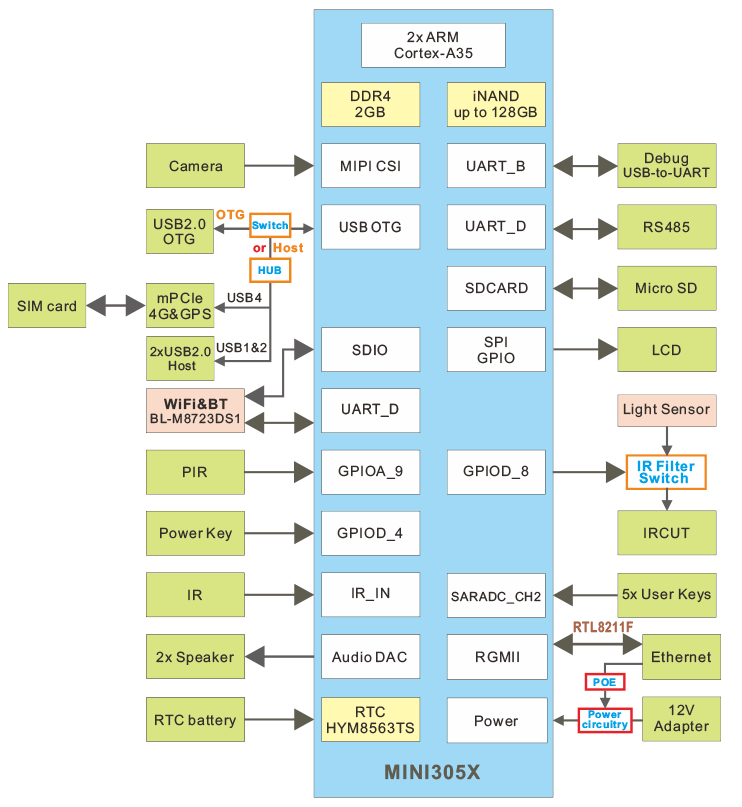

Block Diagram

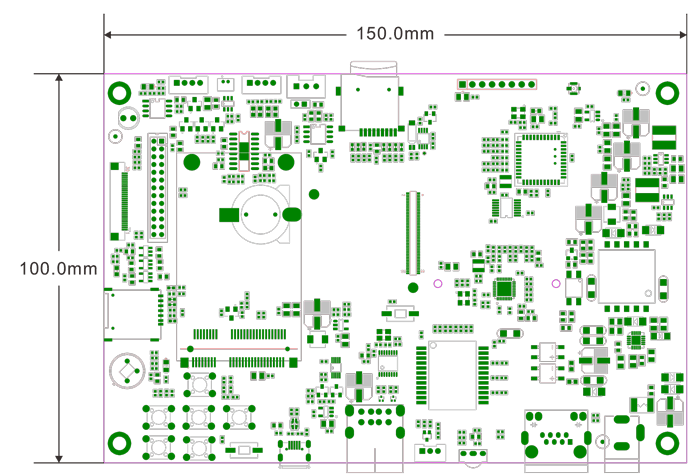

PCB Dimension
OS | Item | Feature | Description |
---|---|---|---|
Buildroot | Boot | U-Boot 2019.01 | u-boot.bin |
Kernel | version | Linux version 4.19.81 | |
Drivers | LCD | SPI LCD, 128x160 | |
USB Host | 2x USB 2.0 Host | ||
USB OTG | USB2.0 OTG | ||
Ethernet | RTL8211F, 10/100/1000 Mbps Ethernet | ||
Camera | IMX307 | ||
4G&GPS | EC20 | ||
SIM card | Nano SIM | ||
SD card | Micro SD card | ||
IR | PWM IR | ||
Serial Port | debug | ||
WiFi | 802.11 b/g/n | ||
Bluetooth | Bluetooth4.2 | ||
RS485 | support | ||
Speaker | support | ||
PIR | support | ||
RTC | HYM8563TS | ||
Key | Reset, power, boot, user keys | ||
Embedded GUI | IPC-WebUI | ||
Cross-compiler Environment | ubuntu-18.04 | ||
Debug Tools | SecureCRT, ADB | ||
Burn tool | Aml_Burn_Tool |
Datasheet |
Amlogic C305X_Datasheet (12.3MB) |
Realtek RTL8211F-CG (1.86MB) |
Tools |

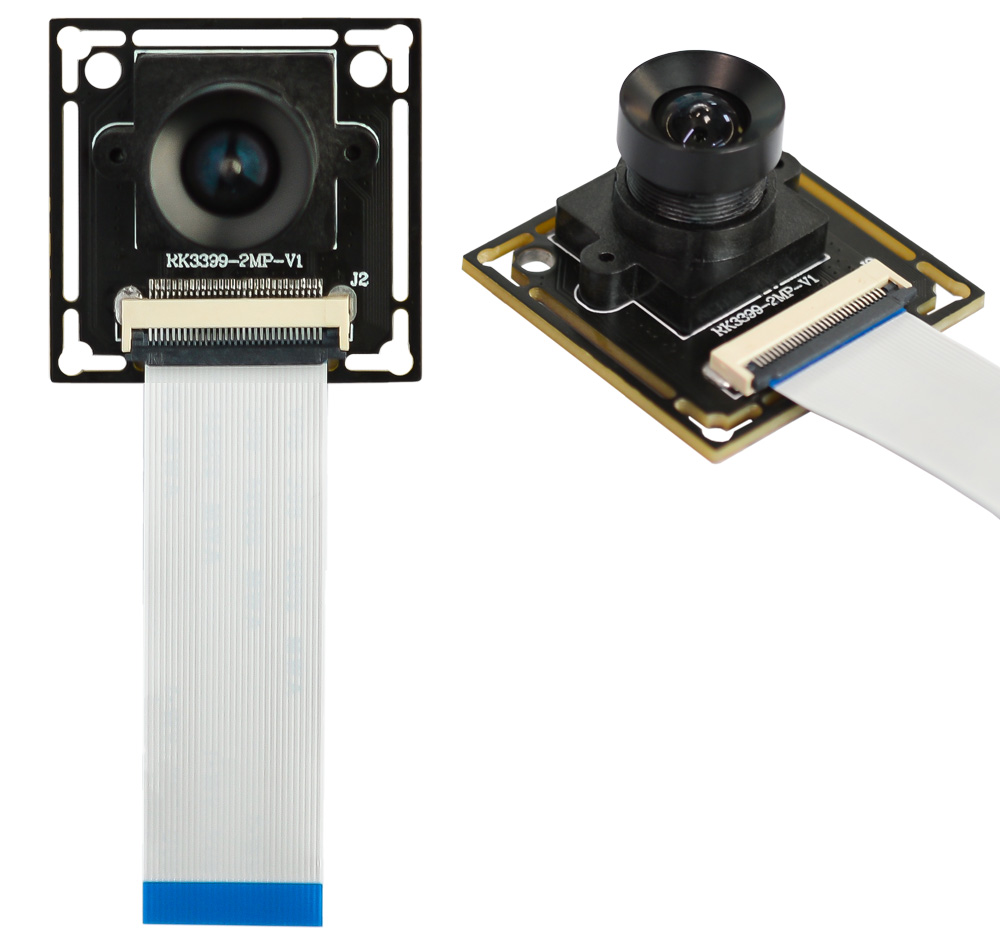

Expansion Module | Module Detail | Buildroot |
---|---|---|
4G&GPS | Quectel EC20 Mini PCIe Multi-mode LTE Module | √ |
WiFi&Bluetooth | BL-M8723DS1 module. 2.4G WiFi + Bluetooth 4.2 | √ |
Camera | IMX307 module, 2.13-Megapixel | √ |
LCD | 1.8-inch SPI LCD, 128x160 | √ |
