* Processor: Allwinner T113-S3/S4. Dual-core ARM Cortex-A7 up to 1.2GHz
* DSP: Single-core HiFi4
* Memory: 128MB/256MB DDR3
* Storage: 8GB

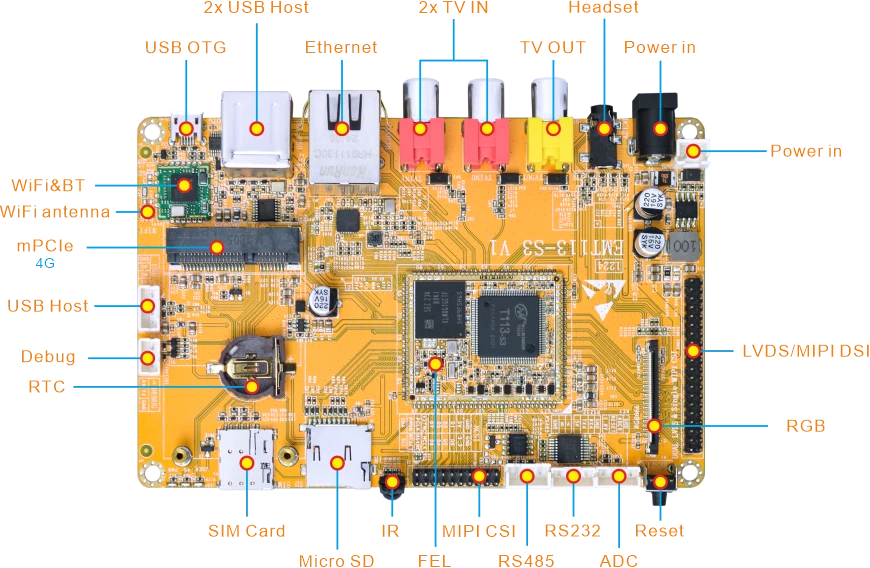

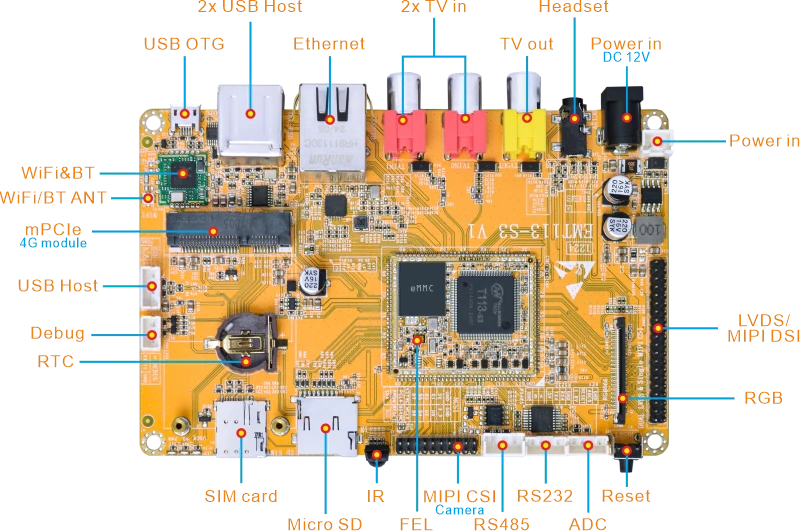

* Interfaces: UART, Debug, RS485, 2x USB2.0 Host, USB2.0 OTG, RGB, LVDS/MIPI DSI, Micro SD, Parallel CSI, TV OUT, 2x TV IN, Ethernet, Audio I/O, mPCIe, IR, CRT, ADC, etc.
* Operating system: Buildroot
* Dimensions: 130 x 85 mm
* Expansion Module: 4G model, WiFi, 10.1-inch LCD

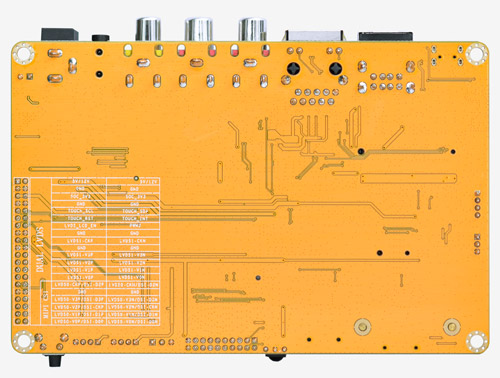

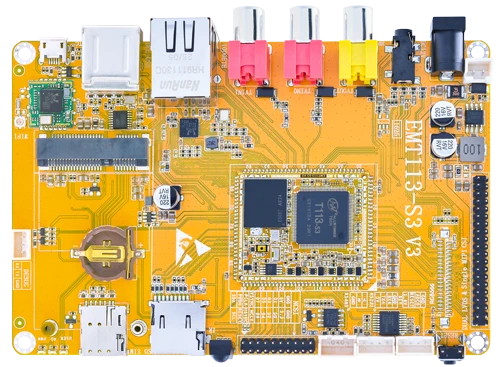

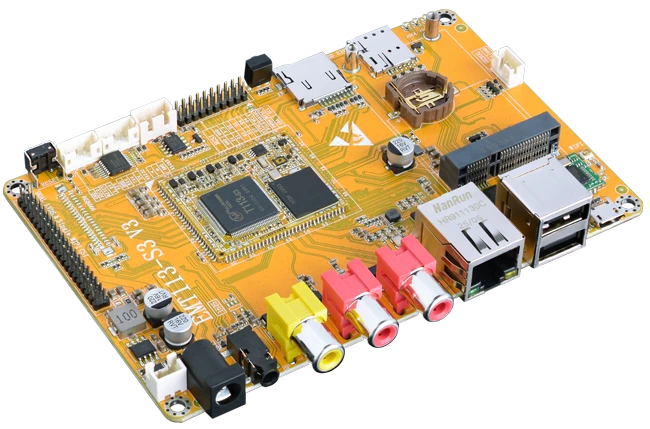

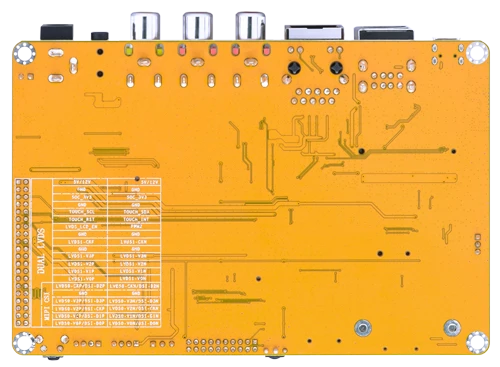

Boardcon EMT113 is a single board computer powered by Allwinner T113-S3/S4 dual-core ARM Cortex-A7 SoC with 128MB/256MB DDR3 on-chip memory and HiFi4 DSP, 8GB eMMC flash, and features such as RS485 and gigabit Ethernet that makes it suitable for Commercial display, Industrial control, Car Instrument and medical devices.
Allwinner T113-S3/S4 is an entry-level embedded processor. It integrates dual-core Cortex-A7 CPU and single -core HiFi4 DSP, supports full format decoding of H.265, H.264, MPEG-1/2/4, JPEG, VC1, as well as JPEG or MJPEG encoding.
The EMT113 SBC supports gigabit Ethernet, WiFi, and 4G LTE, making it an ideal choice for IoT gateways. Moreover, its H.265/H.264 1080P@60FPS video decoding and JPEG/MJPEG 1080P@60FPS video encoding capabilities enable the SBC to achieve high-quality video playback and image display in commercial display devices. Additionally, EMT113 SBC features interfaces such as USB, RS485, RS232, 2x TV-IN, DVP, TV-out, RGB/LVDS/MIPI DSI , providing users with efficient, stable, and reliable solutions in industrial control and HMI applications.
| Specifications | |
|---|---|
| SoC | Allwinner T113-S3/T113-S4. Dual-core ARM Cortex-A7 @ 1.2GHz |
| DSP | Single-core HiFi4 |
| Memory | 128MB(T113-S3) or 256MB(T113-S4) DDR3 |
| Storage | 8GB eMMC flash (up to 32GB) MicroSD card slot |
| Power Supply | DC 12V/3A |
| USB | 1x USB2.0 OTG, Micro USB 2x USB2.0 Host, Dual-USB AF |
| Connectivity | 1x 10/100/1000 Mbps Ethernet RJ45 port via Realtek RTL8211F-CG controller 2.4G WiFi (802.11b/g/n) with Bluetooth 4.2 Mini PCIe socket with Nano SIM card port to support 4G LTE Modem |
| Serial Port | 1x Debug (TTL), 3-pin connector 1x UART (RS232), 4-pin connector 1x RS485, 3-pin connector |
| Display | RGB (multiplexed with LVDS1), 40-pin FPC connector MIPI DSI/ Dual-LVDS, 40-pin Header TV out, RCA connector |
| Audio | 3.5mm audio jack for Audio in/out |
| Video in | 1x Parallel CSI, 20-pin header 2x TV in, RCA connector |
| Keys | Reset, FEL |
| Other features | RTC with battery connector, IR, GPADC |
| Dimensions | Based board – 130 x 85 mm; CPU module – 36 x 30 mm |

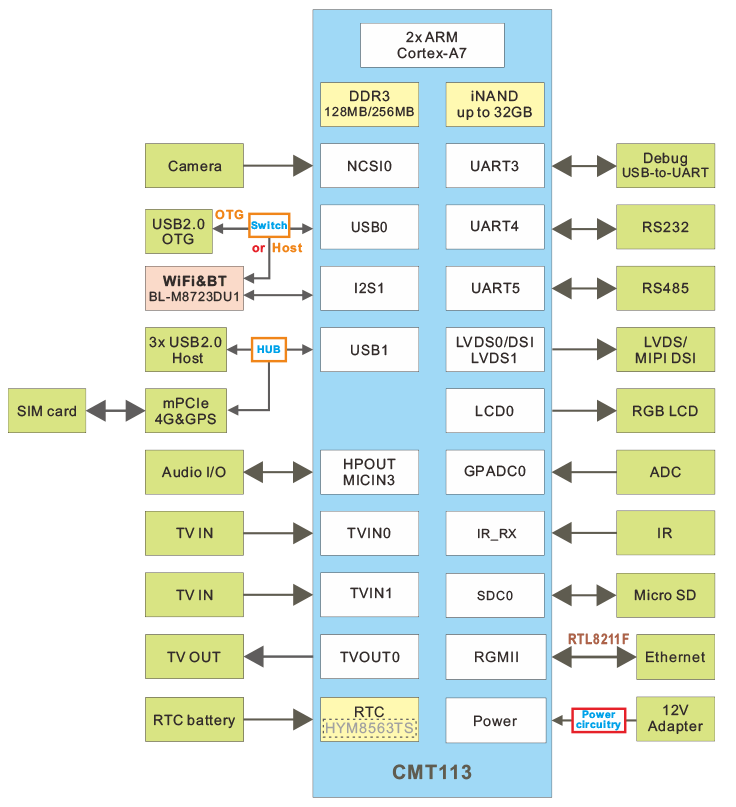

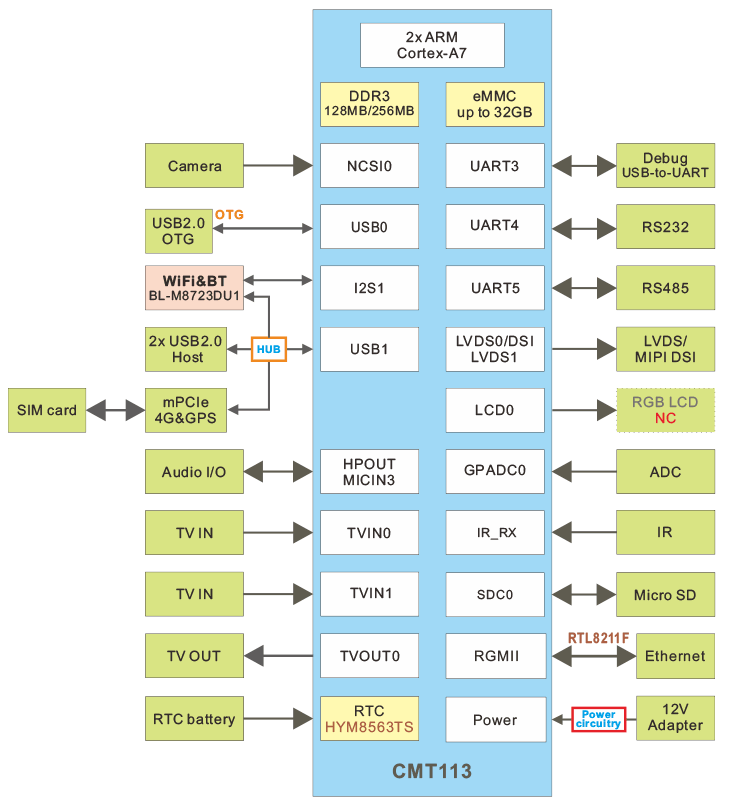

Block Diagram

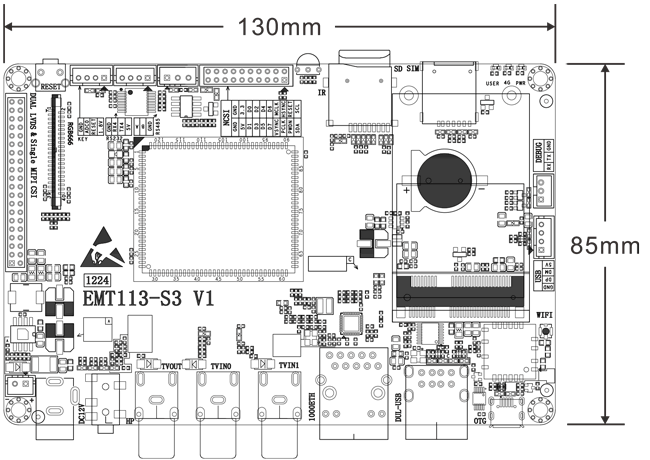

PCB Dimension
| OS | Item | Feature | Description |
|---|---|---|---|
| Buildroot | Boot | U-Boot 2018.05 | u-boot.bin |
| Kernel | version | Linux 5.4.61 | |
| Drivers | LCD | 10.1-inch LVDS or MIPI, 1280 x 800 7-inch RGB |
|
| USB Host | 2x USB 2.0 | ||
| USB OTG | support | ||
| Ethernet | RTL8211F, 10/100/1000 Mbps Ethernet | ||
| Camera | DVP | ||
| 4G&GPS | EC20 | ||
| SIM card | Nano Sim | ||
| SD | Micro SD | ||
| IR | PWM IR | ||
| Serial Port | 1x debug, 1x RS232 | ||
| WiFi | 802.11 b/g/n | ||
| Bluetooth | Bluetooth4.2 | ||
| RS485 | support | ||
| Audio | Audio out, MIC | ||
| TV out | 1x TV out | ||
| TV in | 2x TV in | ||
| KEY | FEL, Reset | ||
| Embedded GUI | QT5 | ||
| Cross-compiler Environment | Ubuntu-18.04 | ||
| Debug Tools | SecureCRT, ADB | ||
| Burn tool | PhoenixSuit | ||
| Datasheet |
|
|
|
|
|
|
| Tools |
| Expansion Module | Module Detail | Buildroot |
|---|---|---|
 4G&GPS |
Quectel EC20 Mini PCIe Multi-mode LTE Module | √ |
| WiFi&BT |
RTL8723DU model. 2.4G WiFi, Bluetooth4.2 | √ |
| 10.1-inch LVDS LCD |
10.1-inch Capacitive Touch Screen, 1280 x 800 | √ |
If you order the SBC or any question, please feel free to contact us at market@armdesigner.com
