* Processor: Freescale/NXP i.MX287 ARM926EJ-S CPU, 454MHz
* RAM: 64MB/128MB
* Storage: 256MB/512MB/1GB
* Pin out: 5x UART, USB2.0 OTG, USB2.0 Host, LCD, 2x Ethernet, CAN, Audio I/O, 2x SD, SPI, GPMI, PWM, I2C, ADC, GPIO, etc.
* Operating system: Linux 2.6.39
* Dimensions: 40 x 40 mm
* Compatible module: CM9X35, MINI2416
* Package: 120-pin, 1.27mm pitch QFN

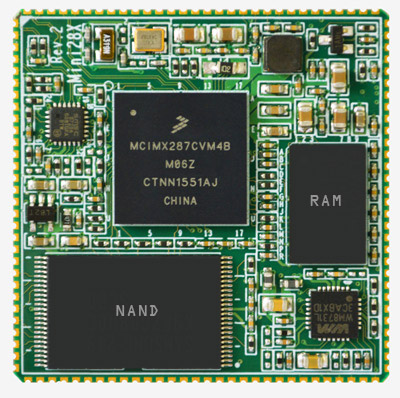

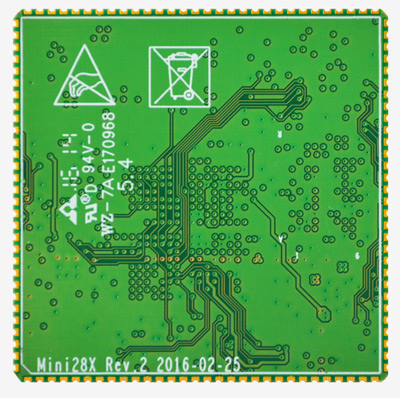

MINI287 is a cost-effective System-on-Module (SoM) thought of to drastically reduce the development time needed to design a low-power and low-EMI Linux Embedded device.
The module is based on the Freescale/NXP i.MX287 which is a multimedia applications processor offers an ideal fit for portable devices that require rich user interfaces with high color displays for presented information and user interaction. The more complex hardware like RAM, Ethernet, Audio, Power and EMI components are integrated on a single SMD component in just 40x40 mm (1.57x1.57 inch) using an complex eight layers PCB permitting hardware designers to create their simple and cheap carrier boards.

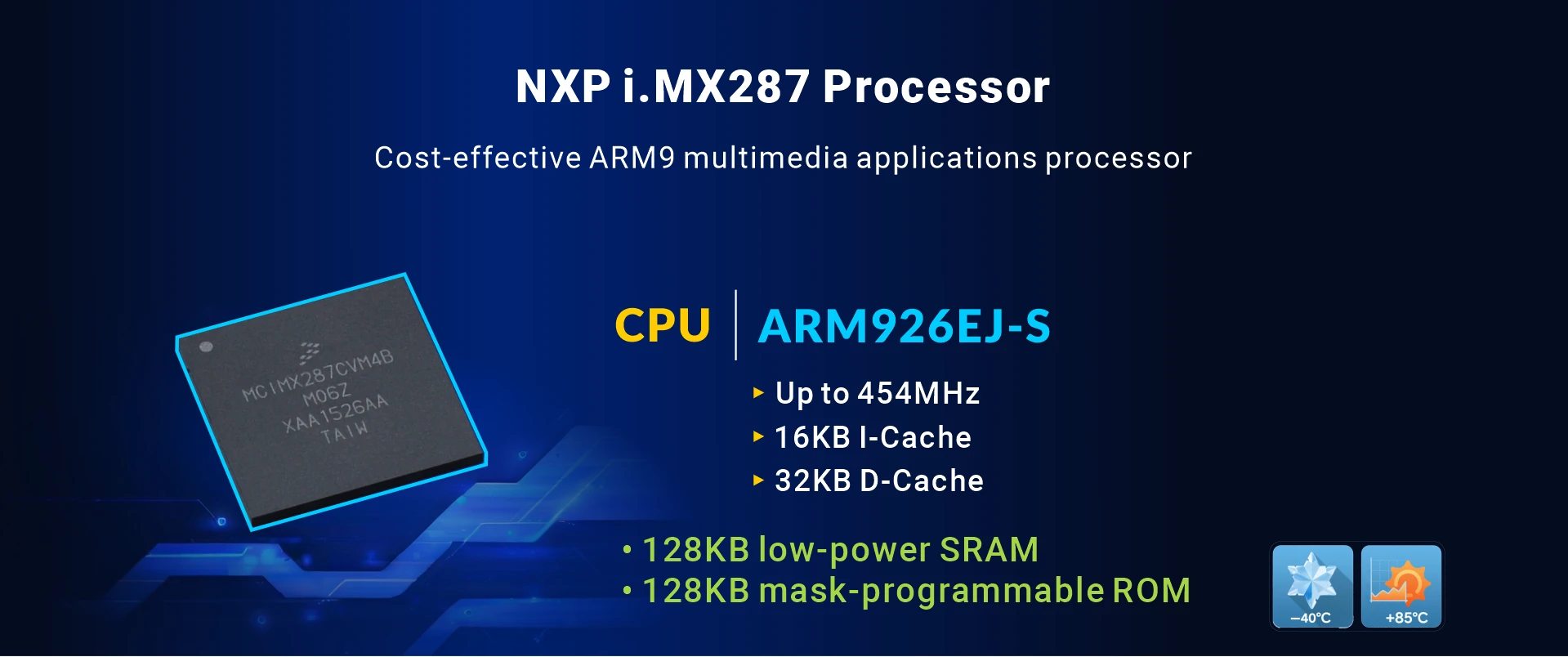

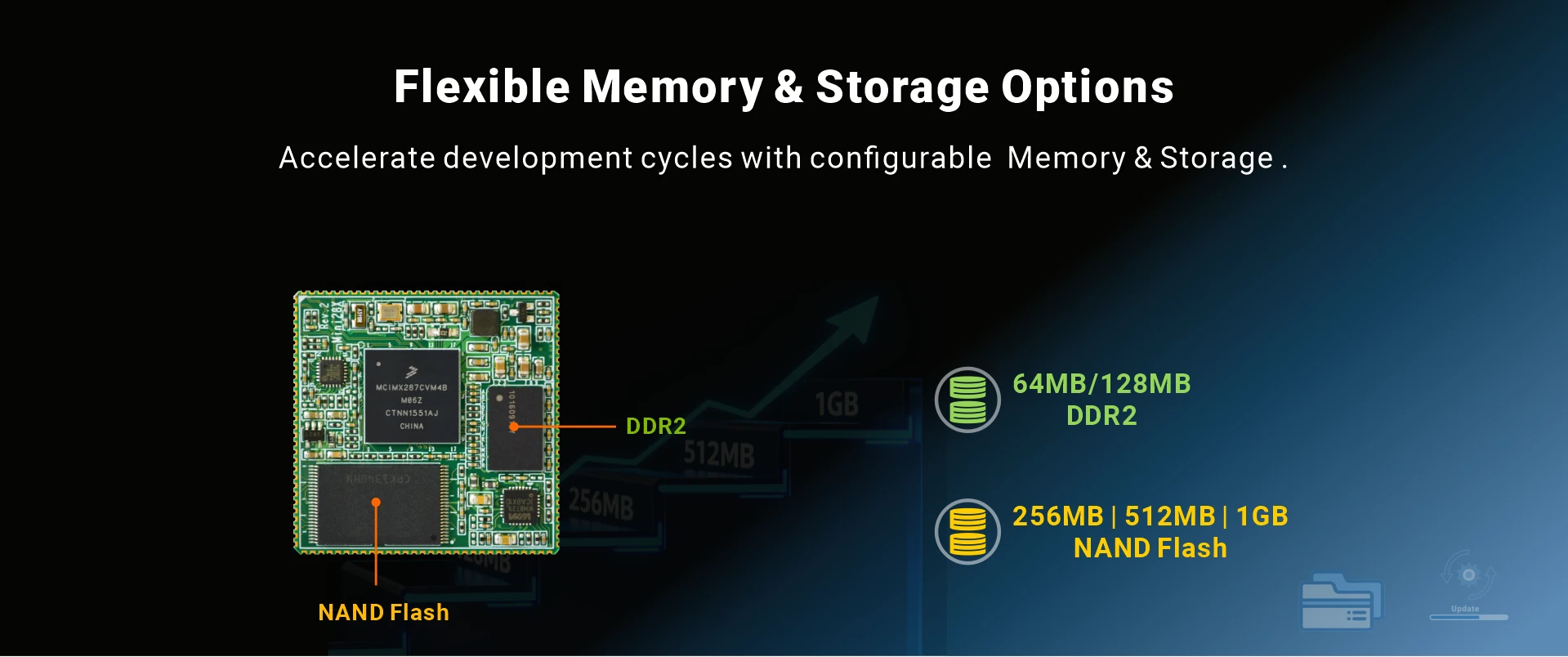

| Specifications | |
|---|---|
| SoC | Freescale/NXP i.MX287 ARM926EJ-S CPU, 454MHz |
| Memory | 64MB/128MB DDR2 |
| Storage | 256MB/512MB/1GB SLC NAND Flash |
| Supply Voltage | DC 3.3V |
| Pin out | 5x UART, USB2.0 OTG, USB2.0 Host, LCD, 2x Ethernet(100M), CAN, Audio I/O, 2x SD, SPI, GPMI, 4x PWM, I2C, 6x ADC IN, GPIO, etc. |
| Ethernet | 10/100 Mbps Ethernet, LAN8720A controller |
| PCB Layer | 8 |
| Dimensions | 40 x 40 mm |
| Package | 120-pin, 1.27mm pitch QFN |
| Application | Smart gateways, human-machine interfaces, hand-held devices, educational tools and other industrial applications. |
| Development Board | EM2000 |

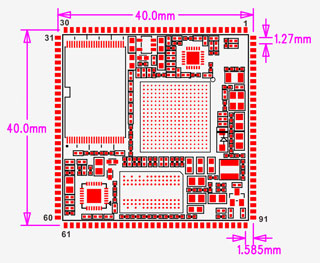

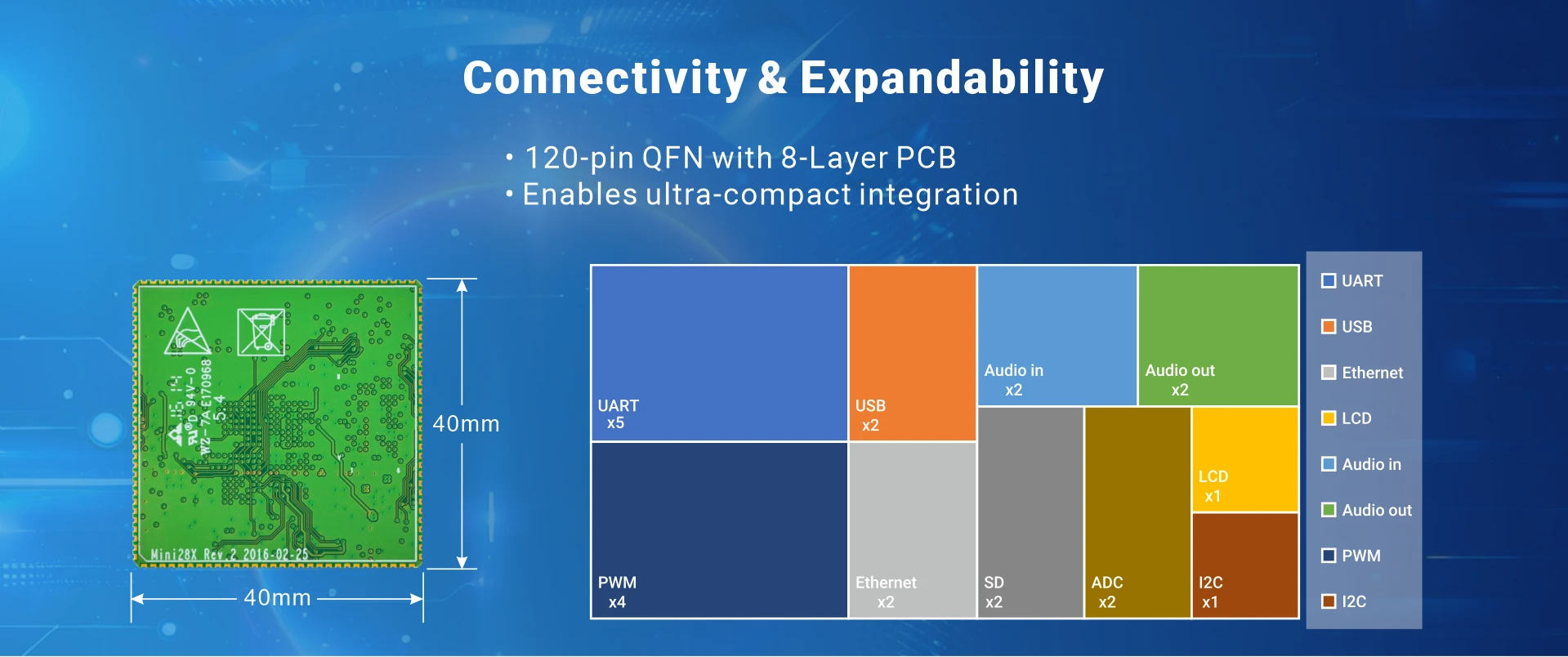

PCB Dimension
Pin Definition
| Pin | Signal | Pin | Signal | Pin | Signal | Pin | Signal |
|---|---|---|---|---|---|---|---|
| 1 | ENET_TXN | 2 | ENET_TXP | 3 | GND | 4 | ENET_RXN |
| 5 | ENET_RXP | 6 | ENET0_100MLED2 | 7 | ENET0_LINKLED1 | 8 | GND |
| 9 | RESETN | 10 | PSWITCH | 11 | GND | 12 | GPMI_RDN |
| 13 | GPMI_WRN | 14 | GPMI_CE1N | 15 | GPMI_CE2N | 16 | GPMI_CE3N |
| 17 | GPMI_ALE | 18 | GPMI_CLE | 19 | GPMI_READY1 | 20 | GPMI_READY2 |
| 21 | GPMI_READY3 | 22 | GPMI_D0 | 23 | GPMI_D1 | 24 | GPMI_D2 |
| 25 | GPMI_D3 | 26 | GPMI_D4 | 27 | GPMI_D5 | 28 | GPMI_D6 |
| 29 | GPMI_D7 | 30 | LI-ION_BATTERY | 31 | VDD_5V | 32 | LCD_PWR_EN |
| 33 | LCD_HS | 34 | LCD_RS | 35 | LCD_VS | 36 | LCD_DE |
| 37 | GND | 38 | LCD_D00 | 39 | LCD_D01 | 40 | LCD_D02 |
| 41 | LCD_D03 | 42 | LCD_D04 | 43 | LCD_D05 | 44 | LCD_D06 |
| 45 | LCD_D07 | 46 | LCD_D08 | 47 | LCD_D09 | 48 | LCD_D010 |
| 49 | LCD_D11 | 50 | LCD_D12 | 51 | LCD_D13 | 52 | LCD_D14 |
| 53 | LCD_D15 | 54 | LCD_D16 | 55 | LCD_D17 | 56 | LP_OUT |
| 57 | RP_OUT | 58 | MIC_IN | 59 | AL_IN | 60 | AR_IN |
| 61 | GND_AUDIO | 62 | UART0_TX | 63 | UART0_RX | 64 | UART3_TX |
| 65 | UART3_RX | 66 | UART1_TX | 67 | UART1_RX | 68 | PWM3 |
| 69 | PWM4 | 70 | UART2_TX | 71 | UART2_RX | 72 | UARTD_TX |
| 73 | UARTD_RX | 74 | I2C0_SCL | 75 | I2C0_SDA | 76 | SSP3_MOSI |
| 77 | SSP3_SCK | 78 | SSP3_MISO | 79 | SSP3_SS0 | 80 | SSP2_SCK |
| 81 | SSP2_CMD | 82 | SSP2_DATA1 | 83 | SSP2_DATA2 | 84 | SSP2_DATA0 |
| 85 | SSP2_DATA3 | 86 | GND | 87 | VDDXTAL | 88 | BOOT_SEL |
| 89 | BOOT_MOD | 90 | GPIO1_19 | 91 | SSP0_DETECT | 92 | SSP0_SCK |
| 93 | SSP0_CMD | 94 | SSP0_DATA0 | 95 | SSP0_DATA1 | 96 | SSP0_DATA2 |
| 97 | SSP0_DATA3 | 98 | GND | 99 | TS_XP | 100 | TS_YP |
| 101 | TS_XM | 102 | TS_YM | 103 | LRADC6 | 104 | HSADC0 |
| 105 | PWM0 | 106 | PWM1 | 107 | ENET1_TX_EN | 108 | ENET1_TXD1 |
| 109 | ENET1_TXD0 | 110 | ENET1_RX_EN | 111 | ENET1_RXD1 | 112 | ENET1_RXD0 |
| 113 | ENET_MDIO | 114 | ENET_MDC | 115 | GND | 116 | USB_0_DM |
| 117 | USB_0_DP | 118 | USB_0_ID | 119 | USB_1_DM | 120 | USB_1_DP |
| OS | Item | Feature | Description |
|---|---|---|---|
| Linux | Uboot | Version | u-boot-2009.08 |
| Boot | Start up system. Supporting configure parameters of Linux. | ||
| Tftp | Support tftp transmitting protocol | ||
| File system | UBIFS | ||
| Other | Support via USB and Serial Interface to download application to flash debug | ||
| Kernel | Version | Linux kernel 2.6.35.3 | |
| Nand flash | Nand flash driver | ||
| File system | UBIFS/CRAMFS/RAMFS/EXT2/FAT32/NFS/ | ||
| Serial device | Three serial ports (one for debug) | ||
| CAN | Can driver | ||
| RS485 | Use serial driver | ||
| Ethernet | Two 10/100M Ethernet. LAN8720A | ||
| WIFI | SDIO WIFI ESP8089 | ||
| RTC | RTC driver | ||
| USB Host | USB Host, USB Slave driver | ||
| Buttons | Reset and Recovery buttons | ||
| LCD | Coming with driver for 4.3", 7" TFT LCD | ||
| Touch | Touch panel driver | ||
| SD/MMC card | SD/MMC card driver | ||
| Sound | WM8731 | ||
| MIC | WM8731 | ||
| Battery | Support Charging and Power for the board | ||
| imx-bootlets-src-2.6.35.3-1.1.0 | Feature | The imx-bootlest is the freescale imx28x series boot codes, it needs the u-boot and zImage to compile. | |
| File system | GUI Version | QT4.8.5 | |
| Rz and sz | It is a application that transfer and receive file by serial port | ||
| Aplay | It is a wav player | ||
| TCP/IP | TCP/IP protocol | ||
| Telnet | Telnet server, telnet remote login | ||
| File transfer | FTP Client/server | ||
| Language | Multi-language Support | ||
| Other | U-disk, portable hard-disk, USB mouse, USB Keyboard, USB HUB, USB Camera and so on. | ||
| Support Command | cat, chmod, discard, echo, flashfsd, flashwrite, free, genhtml, hostname, init, kill, loader, ls, mkdir, mount, ps, reboot, rm, smanaged, sysconf, yes, insmod, lsmod, rmmod |
If you order the SOM or any question, please feel free to contact us at market@armdesigner.com
