3. Flash Images

❶ Open \PhoenixSuit_v1.19\PhoenixSuit.exe

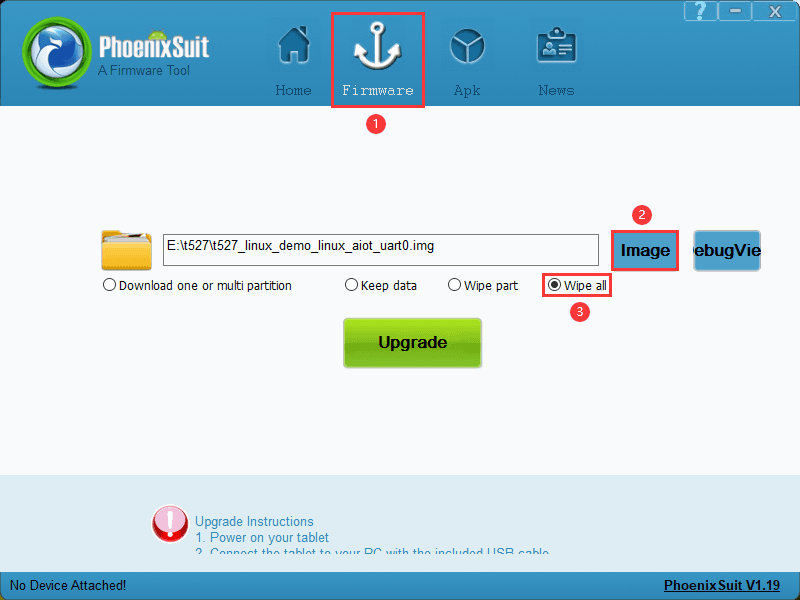

❷ Click Firmware -> Image, select .img, check Wipe all as the upgrade mode.

_images/linux_Flash_Images.png

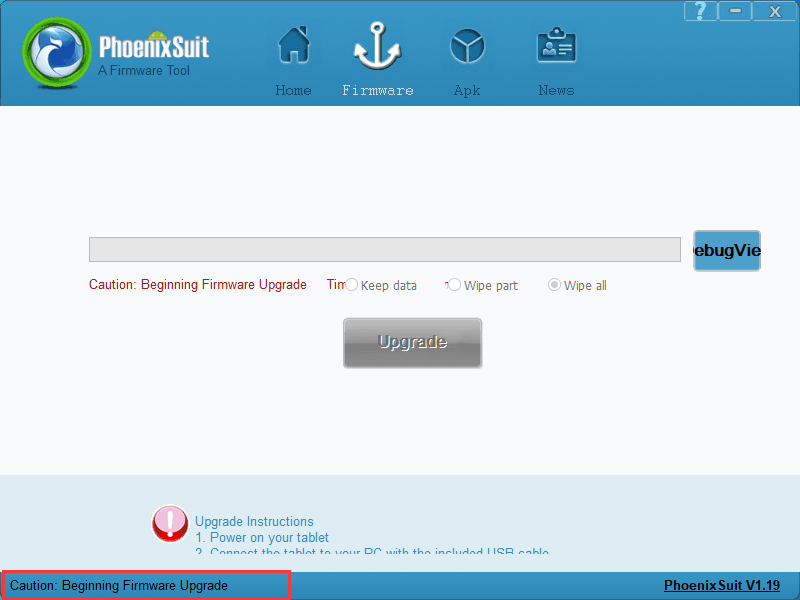

❸ Connect PC and development board with USB Type-A cable, keep pressing FEL key and power the board until the windows PC shows Beginning Firmware Upgrade.

_images/flash_firmware.jpg
_images/linux_Beginning_Firmware_Upgrade.png

❹ Release FEL key, the download will start automatically.

_images/linux_download.png

downloading

_images/linux_download_complete.png

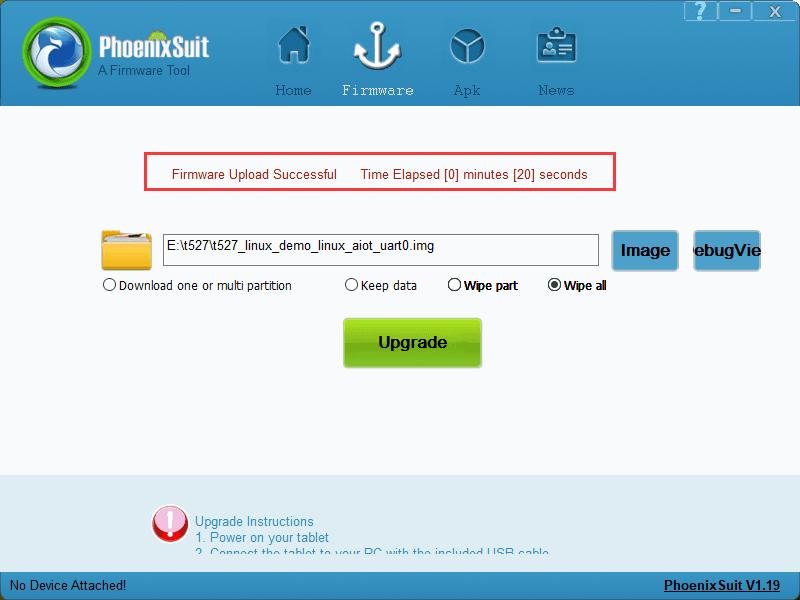

Download complete
