1. Overview
1.1 Summary
Idea3588 is an octa-core single board computer powered by Rockchip RK3588, configured with quad-cluster Arm Mali ‘Odin’ GPU, 6 TOPS NPU accelerator. It’s designed for IPC, high-end tablet, 8K TV, AR/VR, personal mobile Internet equipment and other AIoT devices.
1.2 Product Parameters
Specifications |
||
|---|---|---|
CPU |
Quad-core Cortex-A76 + Quad-core Cortex-A55 |
|
GPU |
ARM Mali-G610 MP4 with support for OpenGL ES 1.1/2.0/3.2, OpenCL 2.2, Vulkan 1.2 |
|
NPU |
6 TOPS |
|
Memory |
8GB (up to 16GB) |
|
Storage |
32GB eMMC flash (up to 256GB) Micro SD card slot 1x SATA3.0 1x M.2 PCIe SSD |
|
Power Supply |
12V/3A DC input jack |
|
USB |
1x USB3.1 Type-C 4x USB2.0 Host 2.0 1x USB3.0 Host |
|
Connectivity |
Gigabit Ethernet RJ45 portvia Realtek RTL8211F-CG controller 2.4G/5G 2T2R WiFi (802.11a/b/g/n/ac/ax) with Bluetooth5.2 Mini PCIe socket with Nano SIM card port to support 4G LTE Module |
|
UART |
1x Serial port for debug, 3-pin connector 2x UART, 4-pin connectors 1x RS485 |
|
Video |
Output |
HDMI 2.1 up to 8Kp60 MIPI DSI/eDP 1.3, 4Kp60 (40-pin header) DisplayPort 1.4a, 8Kp30 |
Input |
HDMI2.0 input, up to 4Kp60 2x MIPI-CSI, 1x DPHY input for camera |
|
Audio |
3.5mm audio I/O jack 8-channel audio via HDMI |
|
Camera |
3x Cameras, 30-pin FPC connector |
|
Keys |
Recovery, Reset, Power |
|
Other features |
RTC with battery connector, IR receiver, CAN |
|
Dimension |
Based board - 165 x 120mm; CPU module - 67 x 53mm |
|

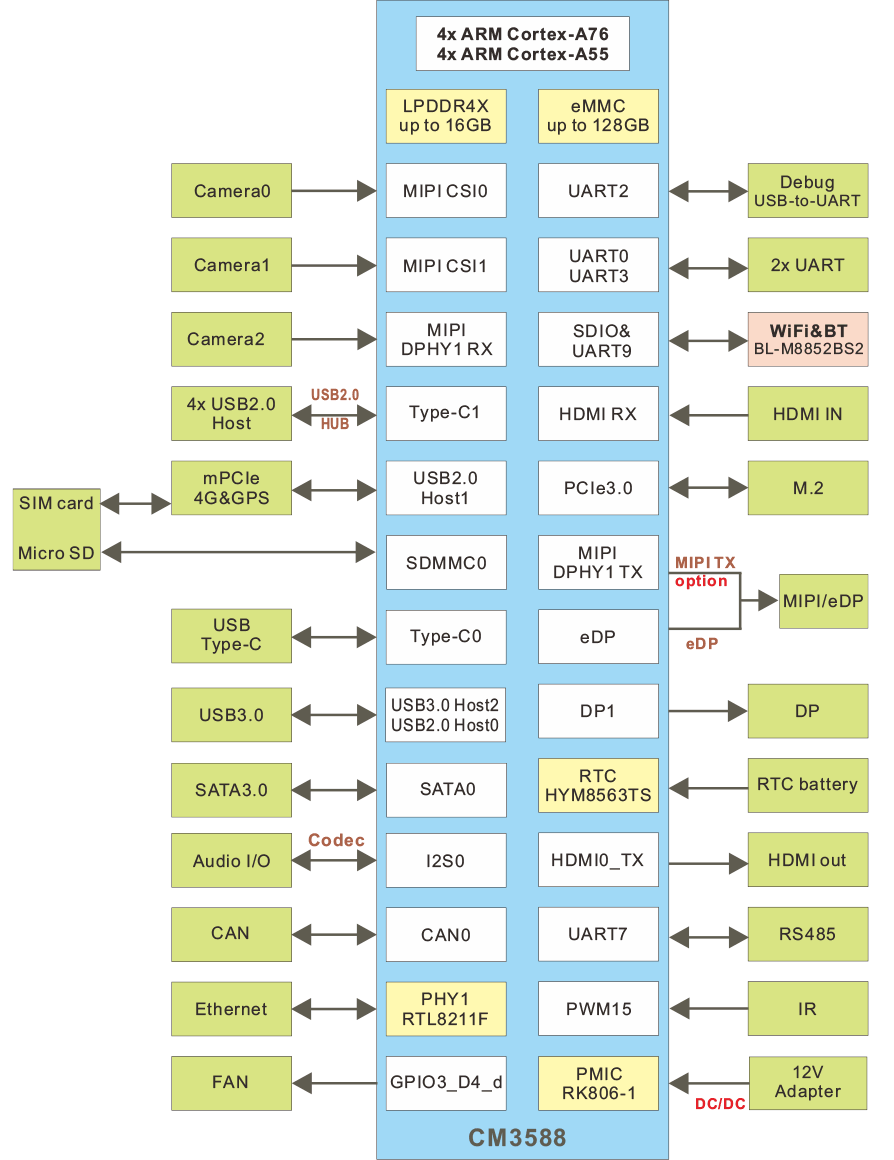

1.3 Idea3588 Block Diagram
