1. Install Rockchip Driver Assistant

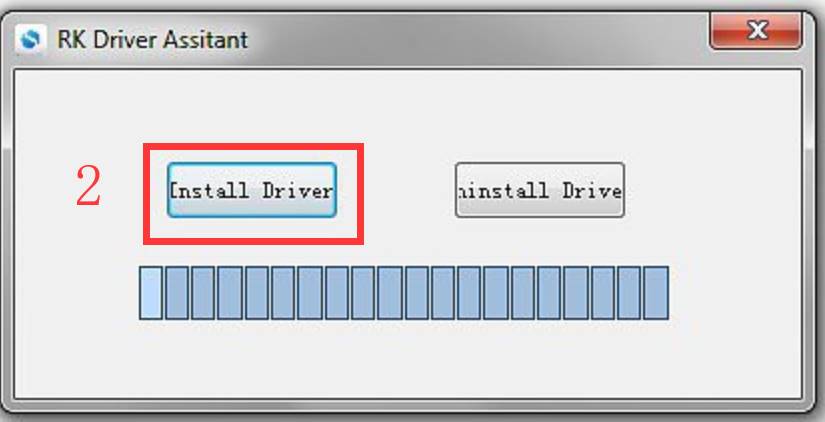

If it is the first time to download firmware in Windows, you need to install Rockchip Driver DriverAssitant_v5.12/DriverInstall.exe

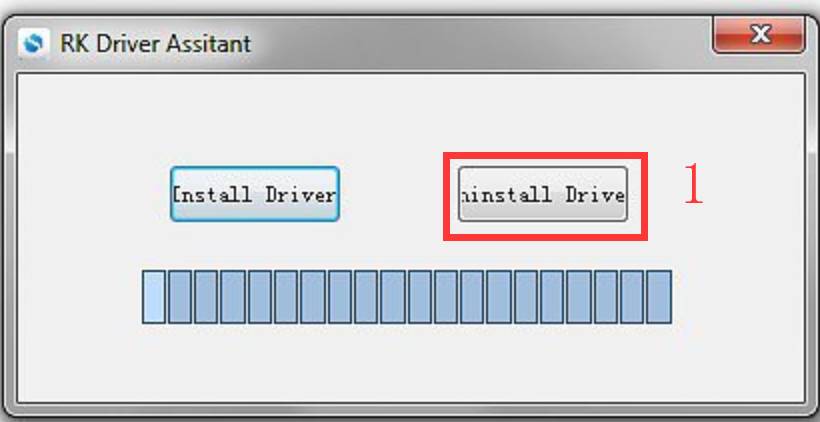

Click Uninstall Driver to uninstall the driver (Avoid driver conflict. The earlier drivers don’t detect RK3566 properly).

_images/image008.jpg _images/image010.jpg _images/image013-1.png

After the installation is complete, connect the board and PC with USB Type-A cable and press the Recovery key and hold then power the board, in Computer Management can see the following information:

_images/image011.png

The Window will pop up found New Hardware Wizard dialog box, choose to install from the specified location, and then select \DriverAssitant_v5.12\ADBDriver

After the installation is complete in Computer Management can see the following information:

_images/image013.png
