Boardcon EMH6 SBC Launched for 4K HDR Set-Top Box Solution

Author: Boardcon Embedded Design 　　Date: 2020-10-23

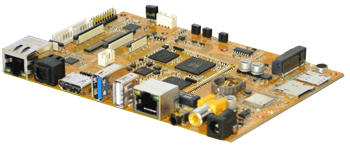

Boardcon have recently introduced a new SBC powered by Allwinner H6 which is targeted at the OTT, DVB and IPTV markets. The EMH6 single board computer equipped with 1GB LPDDR3, 8GB eMMC flash, 802.11b/g/n Wi-Fi, Bluetooth 4.0, optional 13M camera model and support for 4G LTE cellular connectivity.
This H6 SBC supports 4K@60fps-10bit ultra-HD video decoding and low-latency H.264 4K encoding, various I/Os including HDMI 2.0a, USB 3.0, M.2 card socket, and 2x Ethernet ports. The EMH6 is designed for 4K Set-Top Box (STB), Game Console, and Facial Recognition.

EMH6 specifications
* Processor: Allwinner H6 Quad-core 64-bit ARM Cortex A53
* RAM: 1GB LPDDR3
* Storage: 8GB
* Interfaces: 2x Ethernet, UART(Debug), CVBS-OUT, SPDIF-OUT, USB Host, USB OTG, HDMI, PCI-E, LCD (RGB, EDP), Camera, GPIO, Audio I/O, SD, SIM, etc.
* Operating system: Android7.1.2
* Board size: 140mm x 100mm

More information may be found on the product page.
