Boardcon announced a SBC powered by NXP’s i.MX8M Mini

Author: Boardcon Embedded Design   Date: 2019-10-22

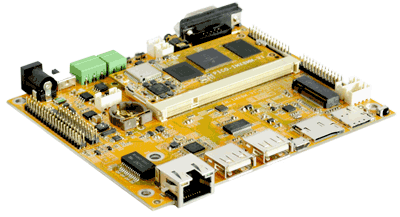

 EM-IMX8M-MINI-SBC

Boardcon EM-IMX8M-MINI based on NXP’s energy efficient i.MX8M Mini ARM Cortex A53 processor and runs Linux 4.14 + QT 5.0. The iMX8M SBC combines 2GB LPDDR4 and 8GB eMMC flash with GbE, 2x USB 2.0, display via MIPI LCD, PCIe, and optional SSD/4G.

EM-IMX8M-MINI specifications
Processor – i.MX 8MQuad, 4x ARM Cortex-A53 @ 1.8 GHz + ARM Cortex-M4 @ 400 MHz
Memory – 2GB LPDDR4
Storage
 - 8GB eMMC flash
 - MicroSD slot
 - 1x PCIe SSD interface
Video Output / Display
 - MIPI DSI Interface up to 1920×1080
Audio Output / Input
 - 3.5mm audio jack
 - 2x 2pin header for Speaker
 - 26pin header for Audio card
Camera – 2-lane MIPI CSI
Connectivity
 - Gigabit Ethernet port via Realtek RTL8211E
 - 802.11 b/g/n WiFi + Bluetooth 4.0
 - Optional 4G module via mini PCIe socket + Nano SIM card slot
USB – 1x USB2.0 OTG, 2x USB2.0 Host
Expansion – GPIO, UART, CAN, RS485, JTAG
Misc
 - IR receiver
 - RTC & battery slot
 - Power, Reset buttons
Power Supply – 5V/3A
Operating system – Linux+qt
Dimensions – 102.3mm x 118.6mm

More information may be found on the product page.
