SBC1108

* Processor: Rockchip RV1108. Single-core Cortex-A7, 1.0GHz
* RAM: 512MB
* Storage: 8GB
* Interfaces: USB2.0 OTG, USB2.0 Host, Debug, SD/MMC, RGB, HDMI, speaker, MIC, battery
* Operating system: Buildroot
* Dimensions: 90.5 x 66.7 mm

The SBC1108 is a single board computer (SBC) based on the Rockchip RV1108 ARM Cortex A7 SoC with a 400 MHz DSP and 8-channel I2S audio codec and 1440p H.264 video encoder and decoder.
This RV1108-based board comes in small form factor, designed to be energy-efficient, and supports Fast Startup (less than 4 seconds), making it suitable for space-constrained, battery-operated and low-power applications.
Boardcon RV1108 SBC is flexible and can be customized for various embedded applications depending on the specific project requirements.

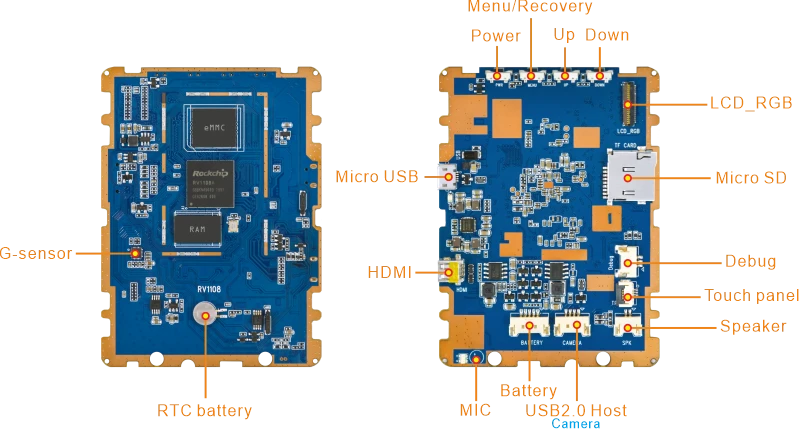

SBC1108_frontSBC1108_rear
