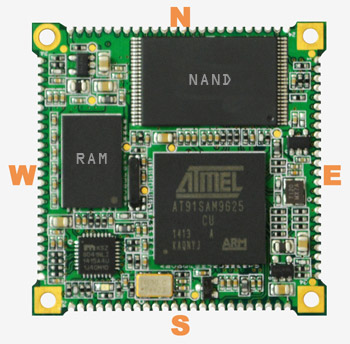

The MINI9G25 ARM9 Board is an ARM embedded System-on-module(SoM) produced by BOARDCON, integrate the ATMEL ARM926EJ-S-based processor AT91SAM9G25, operating at 400MHz frequency, and can support Linux OS. The board has 128MB DDR2 SDRAM, 128MB NandFlash, 4MB DataFlash, 64KB Serial EEPROM.

MINI9G25 Benefits
Small form-factor
Available Carrier Board
Custom engineering for customer needs
Saving your resources
Optimizing your product development cost
Shortening time-to-market
Avoiding development risk

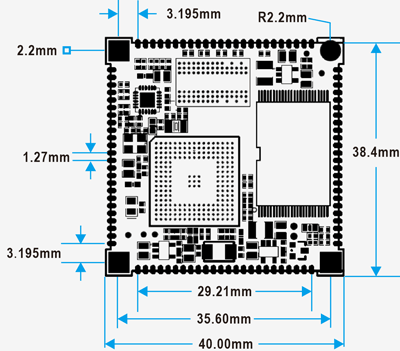

 PCB dimension

 Pin Definition
 MINI9G25 Pin Definition

 Software Feature
Bootloader support (Support update the system via TF Card, USB Disk and Ethernet)
Linux kernel version: Linux 3.6.9
Buildroot rootfs provided (pre-install in the Nand Flash)
       DHCP, SSH, Telnet, Test Demo Support
       The Expand interface demo provide
        Fully open source firmware, software environments and toolchains available from Atmel sites
Debian system provided(Need boot from SD/TF card)
        Thousands of Open Source applications available from the Debian repositories
        Almost all programming language available
        C, Python, Perl and PHP already installed on the factory default micro SD for in-board development
All the Bootloader/Linux Kernel Source code and system images provide

 Linux&Buildroot
Buildroot is a configurable Makefile which downloads, configures, and builds cross compilers, the kernel, busybox, and most of the other stuff needed for a simple, small complete Linux distribution and root filesystem based on uClibc, glibc or EGLIBC C libraries
Small root filesystem, you can install the system in Nand Flash
We provide the source code and system image in CD.
Provide the developer method manul in the CD
Support SSH, DHCP

 Linux&Debian
big root filesystem that contain more function, you have to install the system in SD card.
It is possible to develop in almost any language using differents tools. In the developers page we illustrate some different development methods available and examples to manage the embedded peripherals in C or Python languages.
The C compiler and the Python interpreter are pre-installed by default. Also a small web server (Lighttpd) and PHP language interpreter is already available for the web development.
Other languages, tools, web servers, etc are available from Debian binary repositories and can be installed in few minutes.
We propose, by default, a Debian Linux bootable from SD card. Any executable can be built starting from sources and following our tutorials. The basic requirements are a Linux Ubuntu PC.


If you order the System-on-Module or any question, please feel free to contact us at market@armdesigner.com
