PDA based on S3C6410
* Processor: Samsung ARM11 S3C6410, ARM1176JZF-S @ 667MHz
* RAM: 128MB/256MB
* Storage: 256MB/512MB/1GB

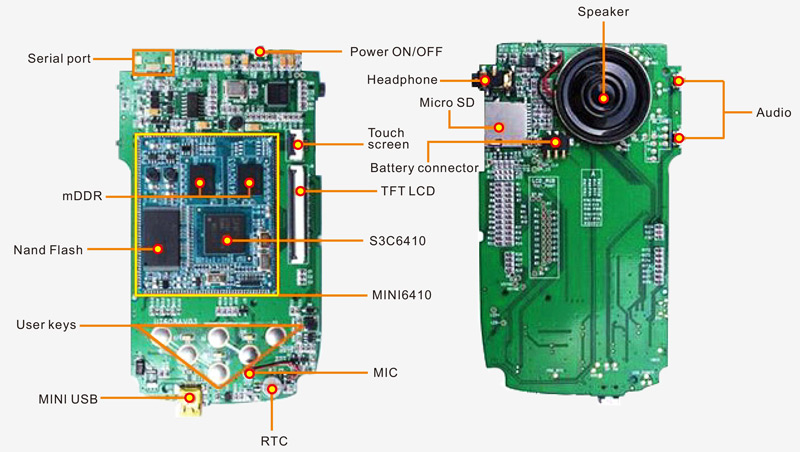

* Interface: LCD, Mini USB, Micro SD, Earphone, MIC, SPK, Serial port
* Operating system: WINCE6.0 R2/R3
* Board size: 52 x 45 mm
.png)
608AV03 is a custom design product based upon Boardcon off-the-shelf product MINI6410, it takes full features of the processor by providing common system peripherals, minimizing overall system costs and eliminating the need to configure additional components, and it supports 128MB DDR RAM and 1GB NAND Flash as well as high-speed USB2.0 OTG/Host.
| Specifications | ||
|---|---|---|
| CPU Board MINI6410 |
SoC | S3C6410, Samsung ARM11 @ 667MHz |
| RAM | 128M Bytes mDDR | |
| Nand Flash | 1G Bytes (256MB - 1GB optional) | |
| Layers | 8 layers, wiring full account of EMC,EMI | |
| Dimensions | 52 x 45 x 2.8mm | |
| Interfaces | LCD | 3.5Inch TFT LCD & Touch Screen,320*240 |
| Mini USB | Charge, Activesync,U-Disc | |
| SD Slot | Mini SD Card, T-Flash, up-to 32GB | |
| Earphone | 3.5mm stereo headphone jack | |
| MIC | MIC Jack | |
| Key | Function key | 6 user-defined keys, the user can specify the function |
| Audio button | 2 Audio button for adjusting Audio | |
| On/Off key | 1 Power key for system entering into standby, sleep and wake | |
| Power supply | Mini USB Port | USB Power supply and charge |
| Battery | 2500mAh/3.7V | |
| Working condition | Working Environment | 0°C - 50°C |
| Storing Environment | -20°C - 70°C | |
| Humidity | 5% - 90% RH | |
| OS | Feature | Description |
|---|---|---|
| WINCE6.0 R2/R3 | Supporting Software Development | .NET CF2.0/3.5, MFC, C#, VB, SQL |
| SDK | Support full-featured SDK Application Development | |
| Application Debugging | Through USB interface to step-debug the application in VS2005 | |
| Powerful Multimedia Features | Hardware decoding MPEG-4/H263/H264/VC-1 avi, mp4, m4v, mov, 3gp, flv, mpg and other extended format DIVX, XVID Support MP1, MP2, MP3, AC3, AAC D1(720*576) @40fps |
|
| 2D/3D Hardware graphic acceleration | Opengles 1.1&2.0 |
