CM210-II

* Processor: Samsung ARM Cortex-A8 S5PV210AH, 1GHz
* RAM: 256MB/512MB
* Storage: 256MB/512MB/1GB
* Pin out: 4x UART, USB2.0 Host, USB2.0 OTG, RGB, HDMI, Camera I/F, 2x SDMMC, GPIO, I2S, I2C, SPI, etc.
* Operating system: Android 4.0
* Dimensions: 65.5 x 53.0 mm
* Package: 140-pin, 1.27mm pitch QFN

Overview
Hardware
Software
Download
Price&Order
FAQ

CM210-II is a System-on-Module (SOM) based on the Samsung S5PV210AH-A0 application processor with ARM Cortex-A8 core in small size, powerful 3D accelerator full HD (1080P) and high-performance HW multimedia.
This SOM is designed to provide a cost-effective, low-power application processor solution for MID, PAD, data terminals and so on.

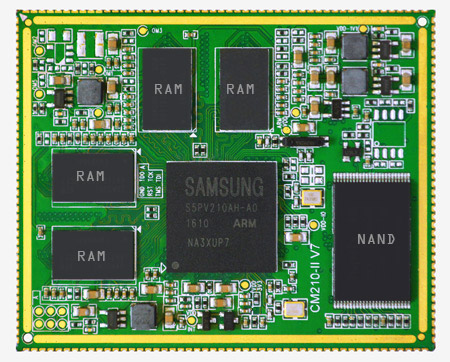

CM210-II-S5PV210-system-on-module

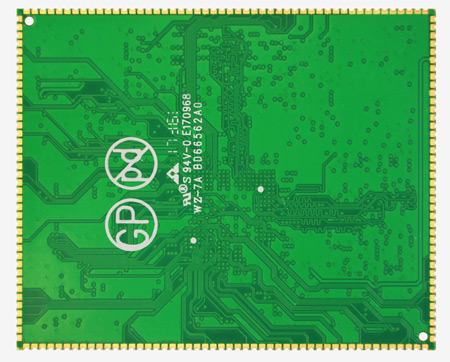

CM210-II-S5PV210-SOM

Specifications
SoC	Samsung ARM Cortex-A8 S5PV210AH, 1GHz
GPU	PowerVR SGX540 @ 200MHz
Memory	256MB/512MB DDR2
Storage	256MB/512MB/1GB NAND Flash
Supply Voltage	DC 3.3 ~ 5V
Pin out	4x UART, USB2.0 Host, USB2.0 OTG, RGB, HDMI, Camera I/F, 2x SDMMC, GPIO, I2S, I2C, SPI, etc.
PCB Layer	8
Dimensions	65.5 x 53.0 mm
Weight	13.0 gram
Package	140-pin, 1.27mm pitch QFN
Application	MID, PDA, PND, automotive systems, data terminals, etc
Development Board	Android210

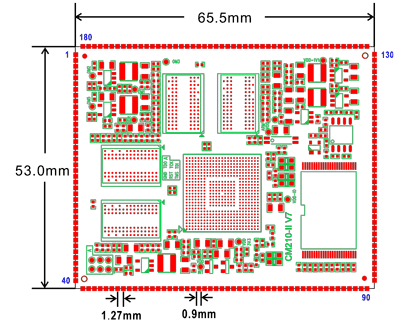

PCB Dimension

CM210-II PCB dimension

Pin Definition

Pin	Signal	Pin	Signal	Pin	Signal	Pin	Signal
1	DC_IN	46	EINT17	91	EINT24	136	SCL1
2	DC_IN	47	EINT18	92	EINT25	137	Xm0DATA15
3	DC_IN	48	EINT19	93	I2SLRCK_AC97SYNC	138	Xm0DATA14
4	VDD_IO	49	EINT20	94	I2SSCK_AC97BCK	139	Xm0DATA13
5	VDD_IO	50	EINT21	95	I2SSDI_AC97SDI	140	Xm0DATA12
6	/	51	TX2N	96	I2SSDO_AC97SDO	141	Xm0DATA11
7	/	52	TX2P	97	I2SCDCK_AC97RST	142	Xm0DATA10
8	VDD_MEM	53	TX1N	98	EINT26	144	Xm0DATA9
9	V_SAVE	54	TX1P	99	EINT27	144	Xm0DATA8
10	GND	55	TX0N	100	TXD3	145	Xm0DATA7
11	CORE_PWREN	56	TX0P	101	RXD3	146	Xm0DATA6
12	EINT9	57	TXCN	102	TXD2	147	Xm0DATA5
13	USB_ID	58	TXCP	103	RXD2	148	Xm0DATA4
14	XOTG_DP	59	B0	104	RTS1	149	Xm0DATA3
15	XOTG_DM	60	B1	105	CTS1	150	Xm0DATA2
16	XVBUS	61	B2	106	TXD1	151	Xm0DATA1
17	XOTG_DRV_VBUS	62	B3	107	RXD1	152	Xm0DATA0
18	USBH_DP	63	B4	108	RTS0	153	Xm0OEn
19	USBH_DN	64	B5	109	CTS0	154	Xm0Wen
20	EINT11	65	B6	110	TXD0	155	Xm0CSn1
21	HDMI_CEC	66	B7	111	RXD0	156	EINT10
22	SD0DATA0	67	G0	112	SPIMOSI0	157	Xm0ADDR2
23	SD0DATA1	68	G1	113	SPIMISO0	158	nRESET
24	SD0DATA2	69	G2	114	SPICS0	159	EINT2
25	SD0DATA3	70	G3	115	SPICLK0	160	OM5
26	SD0CLK	71	G4	116	EINT28	161	OM3
27	SD0CMD	72	G5	117	EINT29	162	OM2
28	SD0CDn	73	G6	118	EINT30	163	OM1
29	EINT7	74	G7	119	EINT31	164	EINT3
30	SD1DATA0	75	R0	120	EINT0	165	EINT4
31	SD1DATA1	76	R1	121	EINT1	166	EINT5
32	SD1DATA2	77	R2	122	YDATA7	167	RST_KEY
33	SD1DATA3	78	R3	123	YDATA6	168	EINT6
34	SDACLK	79	R4	124	YDATA5	169	AIN1
35	SDACMD	80	R5	125	YDATA4	170	AIN0
36	SDACDn	81	R6	126	YDATA3	171	GND
37	EINT8	82	R7	127	YDATA2	172	GND
38	HDMI_HPD	83	LCD_VSYNC	128	YDATA1	173	GND
39	EINT14	84	LCD_HSYNC	129	YDATA0	174	GND
40	EINT15	85	LCD_DOTCLK	130	YPCLK	175	GND
41	TSXM	86	DE	131	YCLKO	176	GND
42	TSXP	87	TOU0	132	YVSYNC	177	GND
43	TSYM	88	EINT22	133	YHREF	178	GND
44	TSYP	89	EINT23	134	YFIELD	179	GND
45	EINT16	90	TVOUT	135	SDA1	180	GND

OS	Item	Feature	Description
Android4.0	Bootloader	Uboot-1.3.4	Main functions: 1. NAND Flash erase/write/read 2. USB download Image 3. print, set, save Environment Variables 4. memory's contents display/compare/modify 5. bootm, bootargs setting
		V210_USB.BL2.bin	Uboot boot process, download uboot by the process
		Image update	Support updating image from SD card or USB
	Kernel and drivers	Kernel version	Linux 3.0.8
	Kernel and drivers	Drivers (source code)	RTC, 4.3"/ 7"/ 10.1" LCD including Touch Screen, USB Device, Audio, Keypad, DMA, 2D, IIC, SPI, MFC, TVOUT, HDMI, SD/MMC/SDIO, JPEG, ROTATOR
	File System	File System	Yaffs File System
	Embedded GUI	Android4.0	Support file browser, Mediaplayer, Calendar, time, counter, Touch Screen Calibration program, Plug-in manager
	Network protocol & application	Network Protocol	TCP/IP protocol, Telnet, FTP Client/server, boa web server
	Network protocol & application	Application	Alarm Clock, Browser, Gallery, Calculator, Camera, Phons, Email, ES File Explorer, ES Task Manager, Messaging, Music, Gallery
	Cross compiler Environment	Arm-2009q3.tar.bz2
	Debug Tools	DNW, MoviNAND_Fusing_Tool.exe, VmWare7.0
