CM3588S

* Processor: Rockchip RK3588S octa-core processor, 4x Cortex-A76 cores @ 2.4GHz + 4x Cortex-A55 cores @ 1.8GHz
* NPU: 6 TOPS
* RAM: 8GB/16GB
* Storage: 32GB/64GB/128GB/256GB
* Pin out: 7x UART, USB3.0 Host, 2x USB2.0 Host, Type-C, MIPI CSI, MIPI DPHY, HDMI/eDP, GbE, 2x PCIe2.1, SATA3.0, SDMMC, CAN, I2C, SPI, PWM, ADC, PDM, I2S, GPIO, etc.
* Operating system: Android 12, Debian 12, Buildroot, Ubuntu 20.04

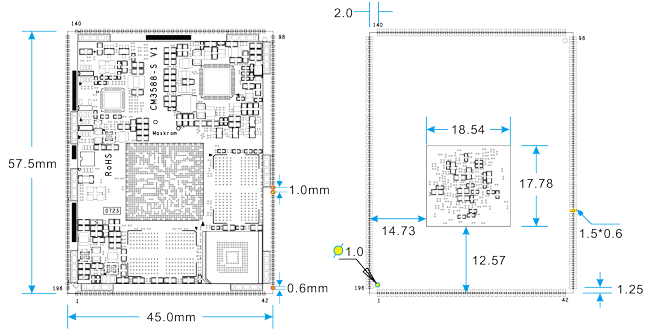

* Dimensions: 57.5 x 45 mm
* Package: 196-pin, 1.0mm pitch QFN

     Rockchip RK3588S single board computer

Rockchip RK3588S is a cost-optimized version of the RK3588 octa-core Cortex-A76/A55 processor.
CM3588S is a system-on-module (SOM) based on Rockchip RK3588S processor with support for 8K video playback and a dedicated neural processing unit. It is designed specifically for the high-performance devices such as 8K TV box or recorder, VI devices, intelligent interactive devices, personal computers and robots. The high-performance multimedia processing and acceleration engine solution can help customers to introduce new technologies more quickly and enhance the overall solution efficiency.

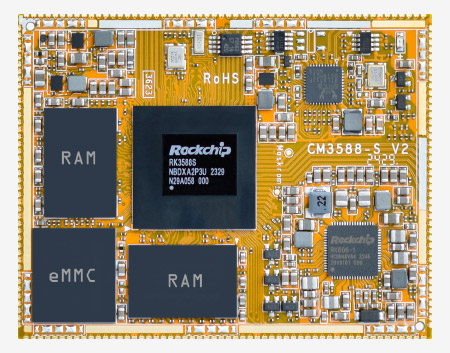

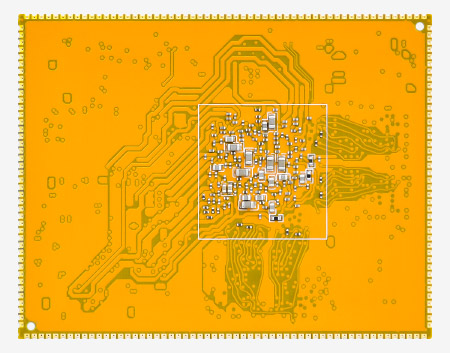

Rockchip RK3588S module CM3588S CM3588S rear
