* Processor: Atmel/Microchip AT91SAM9X35, 400MHz
* RAM: 64MB/128MB
* Storage: 256MB/512MB/1GB
* Pin out: 5x UART, 3x USB2.0 Hos, LCD, Ethernet, 2x SDMMC, Audio I/O, I2C, SPI, PWM, GPIO, etc.
* Operating system: Linux 2.6.39
* Dimensions: 40 x 40 mm
* Compatible module: MINI2416, MINI287
* Package: 120-pin, 1.27mm pitch QFN

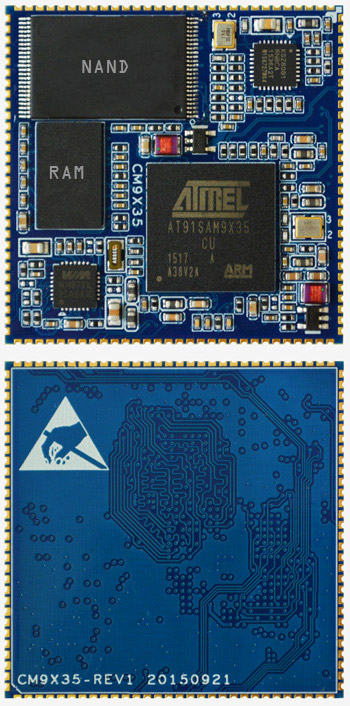

CM9X35 is an ARM9 based Computer-on-Module (CoM) designed by Boardcon, integrated with multi-functional embedded hardware based on Atmel’s AT91SAM9X35 industrial processor.
The module is featuring a rich set of connectivity and user interface peripherals, including Ethernet MAC and CAN. The graphics LCD controller features 4-layer overlay and 2D acceleration and a 10-bit ADC that supports 4-wire resistive touchscreen panels. Additional interfaces include a soft modem supporting exclusively the Conexant SmartDAA line driver, High Speed USB OTG and Host, Full Speed USB Host, HS SDCard/SDIO/MMC interfaces, UARTs, SPIs, I2S and TWIs.
CM9X35 is ideally suited for a variety of embedded control HMI (human machine interface) applications including industrial control terminals, intelligent instruments, medical products, network terminals as well as data acquisition and analysis.

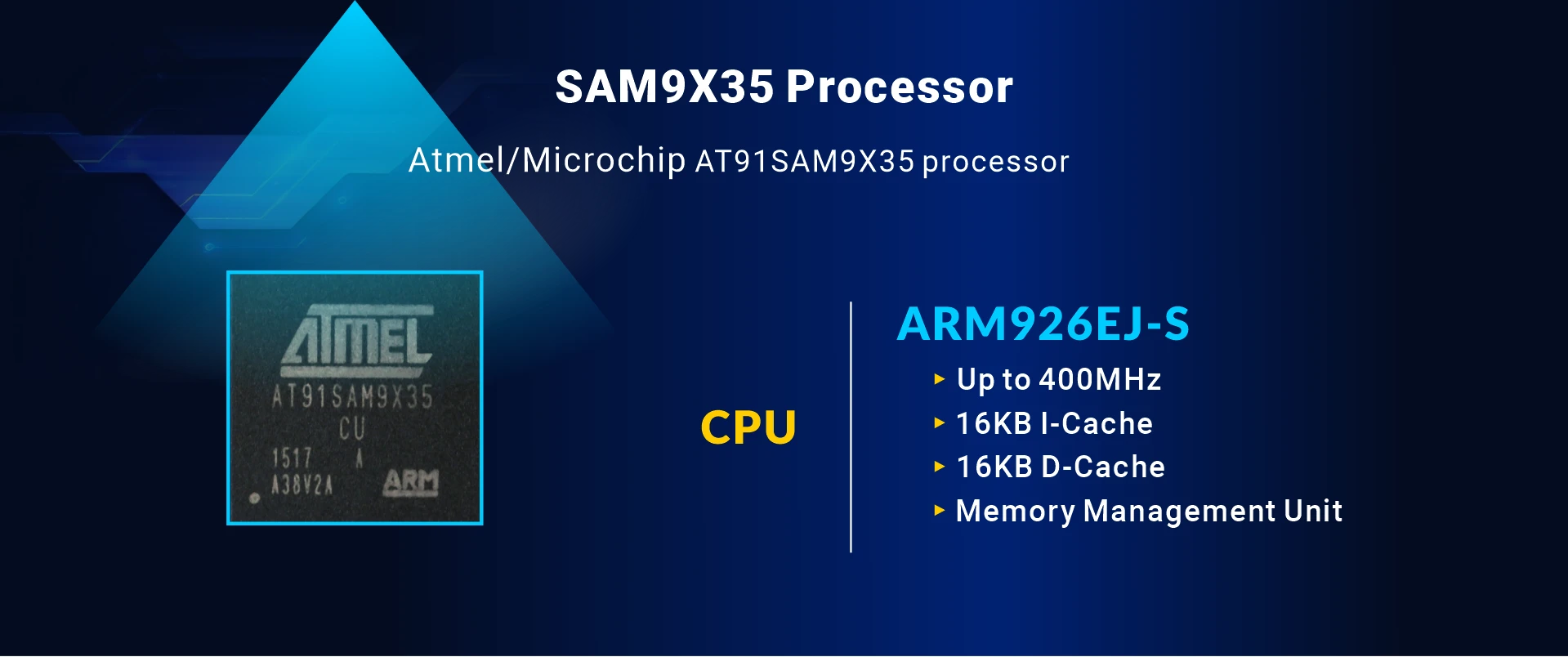

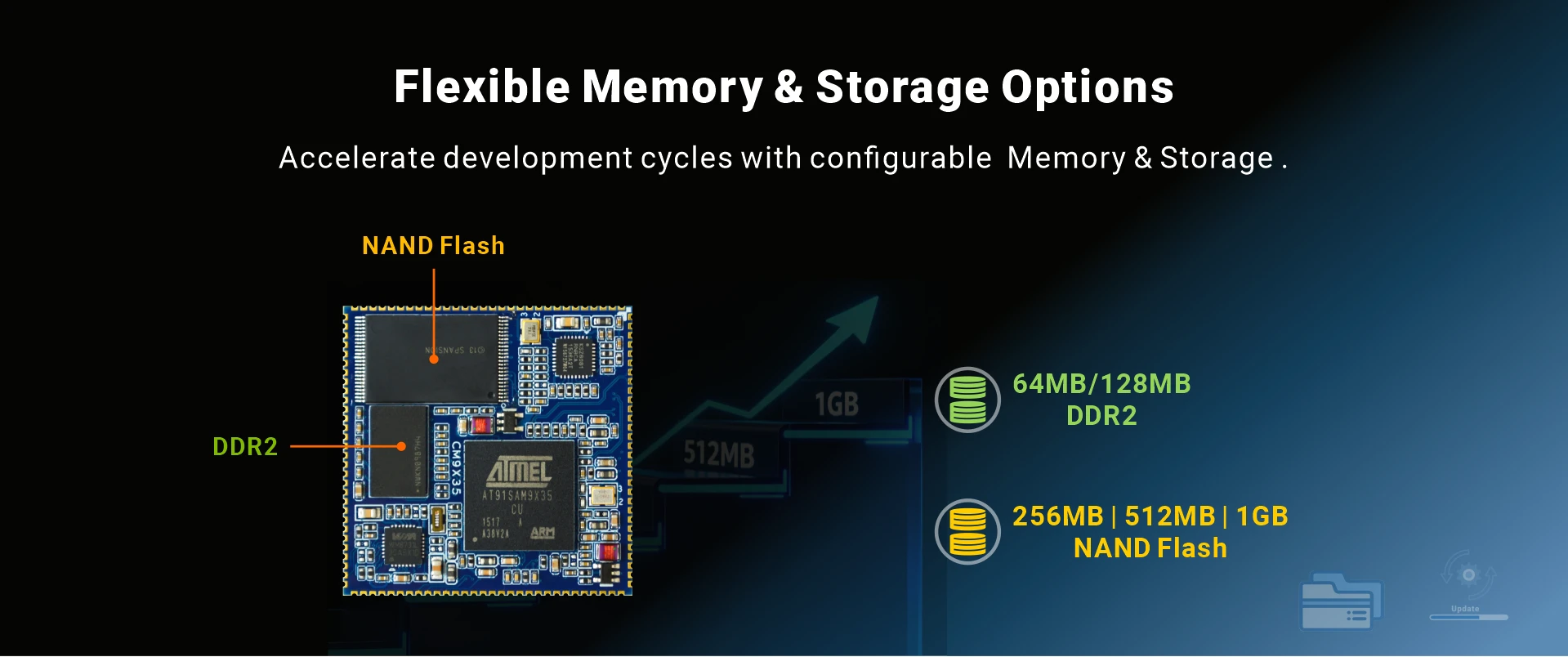

| Specifications | |
|---|---|
| SoC | Atmel/Microchip AT91SAM9X35, 400MHz |
| Memory | 64MBB/128MB DDR2 |
| Storage | 256MB/512MB/1GB SLC NAND |
| Supply Voltage | DC 3.3V |
| Pin out | 5x UART, 3x USB2.0 Host(or 2x Host, 1x Device), LCD, Ethernet, 2x SDMMC, Audio I/O, I2C, SPI, 4x PWM, GPIO, etc. |
| Ethernet | 10/100 Mbps Ethernet, KSZ8081RNBC controller |
| PCB Layer | 6 |
| Dimensions | 40 x 40 mm |
| Weight | 6.9 gram |
| Package | 120-pin, 1.27mm pitch QFN |
| Application | Embedded control HMI (human machine interface) applications including industrial control terminals, intelligent instruments, medical products, network terminals as well as data acquisition and analysis. |
| Development Board | EM2000 |

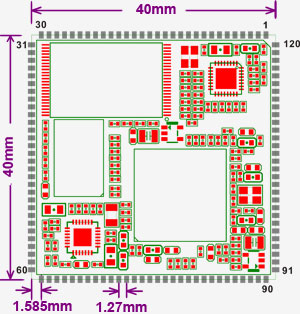

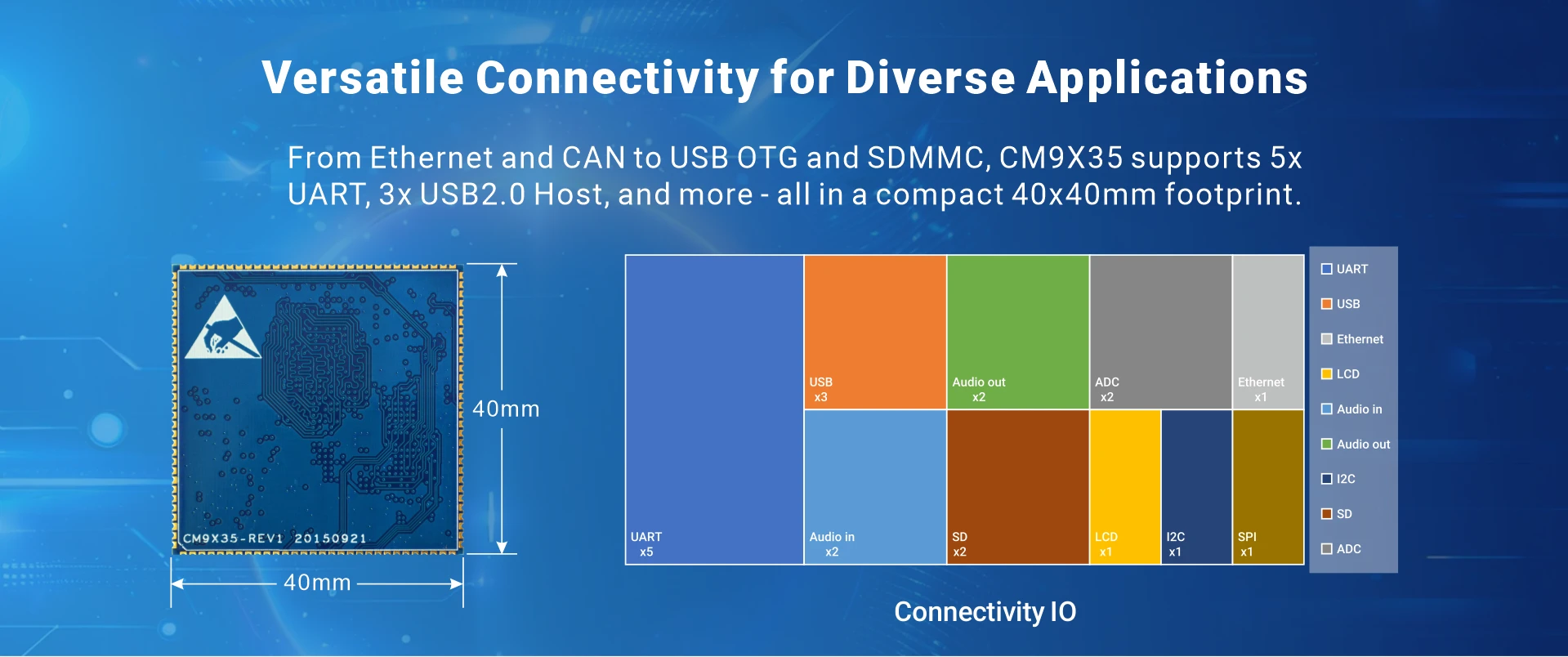

PCB Dimension
Pin Definition
| Pin | Signal | Pin | Signal | Pin | Signal | Pin | Signal |
|---|---|---|---|---|---|---|---|
| 1 | ETH_TX- | 31 | +3V3 | 61 | GND_AUDIO | 91 | MCI0_nCD |
| 2 | ETH_TX+ | 32 | LCDPWM | 62 | TXD0 | 92 | MCI0_CK |
| 3 | GND | 33 | LCDHSYNC | 63 | RXD0 | 93 | MCI0_CDA |
| 4 | ETH_RX-- | 34 | LCDPCK | 64 | TXD3 | 94 | MCI0_DA0 |
| 5 | ETH_RX+ | 35 | LCDVSYNC | 65 | RXD3 | 95 | MCI0_DA1 |
| 6 | ETH_SPLED | 36 | LCDDEN | 66 | TXD1 | 96 | MCI0_DA2 |
| 7 | ETH_LKLED | 37 | GND | 67 | RXD1 | 97 | MCI0_DA3 |
| 8 | GND | 38 | LCDDA0 | 68 | CTS3 | 98 | GND |
| 9 | NRST | 39 | LCDDA1 | 69 | RTS3 | 99 | TS_XP |
| 10 | WKUP | 40 | LCDDA2 | 70 | TXD2 | 100 | TS_YP |
| 11 | RB | 41 | LCDDA3 | 71 | RXD2 | 101 | TS_XM |
| 12 | RE | 42 | LCDDA4 | 72 | DTXD | 102 | TS_YM |
| 13 | WE | 43 | LCDDA5 | 73 | DRXD | 103 | PB15 |
| 14 | NCS2 | 44 | LCDDA6 | 74 | TWCK0 | 104 | PB17 |
| 15 | NCS4 | 45 | LCDDA7 | 75 | TWD0 | 105 | PB18 |
| 16 | NCS5 | 46 | LCDDA8 | 76 | SPI1_MOSI | 106 | ADCDAT |
| 17 | ALE | 47 | LCDDA9 | 77 | SPI1_SPCK | 107 | BCLK |
| 18 | CLE | 48 | LCDDA10 | 78 | SPI1_MISO | 108 | ADCLRC |
| 19 | A23 | 49 | LCDDA11 | 79 | SPI0_NCS0 | 109 | PC18 |
| 20 | A24 | 50 | LCDDA12 | 80 | MCI1_CK | 110 | PC19 |
| 21 | A25 | 51 | LCDDA13 | 81 | MCI1_CDA | 111 | PC20 |
| 22 | NAND_FSH_D0 | 52 | LCDDA14 | 82 | MCI1_DA0 | 112 | PC21 |
| 23 | NAND_FSH_D1 | 53 | LCDDA15 | 83 | MCI1_DA1 | 113 | HHSDMC |
| 24 | NAND_FSH_D2 | 54 | LCDDA16 | 84 | MCI1_DA2 | 114 | HHSDPC |
| 25 | NAND_FSH_D3 | 55 | LCDDA17 | 85 | MCI1_DA3 | 115 | GND |
| 26 | NAND_FSH_D4 | 56 | LP_OUT | 86 | GND | 116 | HHSDMA |
| 27 | NAND_FSH_D5 | 57 | RP_OUT | 87 | VDDBU | 117 | HHSDPA |
| 28 | NAND_FSH_D6 | 58 | MIC_IN | 88 | BMS | 118 | USB_VBUS |
| 29 | NAND_FSH_D7 | 59 | AL_IN | 89 | DIBN | 119 | HHSDMB |
| 30 | +3V3 | 60 | AR_IN | 90 | DIBP | 120 | HHSDPB |
| OS | Item | Feature | Description |
|---|---|---|---|
| Linux2.6.39 | Bootloader | Boot | Uboot 2010 |
| Tftp | Support tftp transmitting protocol | ||
| File system | Yaffs | ||
| Kernel | Support writing kernel image into nand flash and kernel parameter setting | ||
| Etc. | Support via USB and Serial Interface to download application to flash debug | ||
| Kernel | Version | Linux kernel 2.6.39 | |
| File system | CRAMFS/RAMFS/EXT2/FAT32/NFS/YAFFS/YAFFS2 | ||
| Serial port | 3x serial ports | ||
| Ethernet | 10/100 Mbps Ethernet,KSZ8081 | ||
| RTC | RTC driver | ||
| USB Host | USB Host, USB Slave driver | ||
| LEDs | LEDs driver | ||
| Buttons | User buttons | ||
| Language | Multi-language Support | ||
| LCD | 4.3-, 7-inch TFT LCD | ||
| Touchscreen | Touch screen driver | ||
| SD/MMC card | SD/MMC card driver | ||
| TWI | TWI driver | ||
| SPI | SPI driver | ||
| CAN | CAN driver | ||
| USB | USB driver | ||
| RS485 | RS485 driver | ||
| NANDFLASH | Support 512 Bytes small Page, 2K bytes big Page, driver is compatible with 128Mbit ~ 8Gbit capacity | ||
| Sound | WM8731 | ||
| Embedded GUI | Qt/Embedded | Angstrom | |
| Rz and sz | It is a application that transfer and receive file by serial port | ||
| Madplay | It is a MP3 player | ||
| Network protocol | TCP/IP | TCP/IP protocol | |
| Telnet | Telnet server, telnet remote login | ||
| File transfer | FTP Client/server | ||
| Web server | boa web server | ||
| USB port supported Devices | U-disk, portable hard-disk, USB mouse, USB Keyboard, USB HUB and so on. | ||
| Commands | cat, chmod, discard, echo, flashfsd, flashwrite, free, genhtml, hostname, init, kill, loader, ls, mkdir, mount, ps, reboot, rm, smanaged, sysconf, yes, insmod, lsmod, rmmod | ||
| Tools | Busybox1.2.0 and busybox1.13 (provided in the CD-ROM) | ||
| Datasheet |
|
|
|
|
|
|
