* Processor: Allwinner H6. Quad-core ARM Cortex-A53, 1.5GHz
* RAM: 1GB/2GB
* Storage: 4GB/8GB/16GB/32GB/64GB/128GB

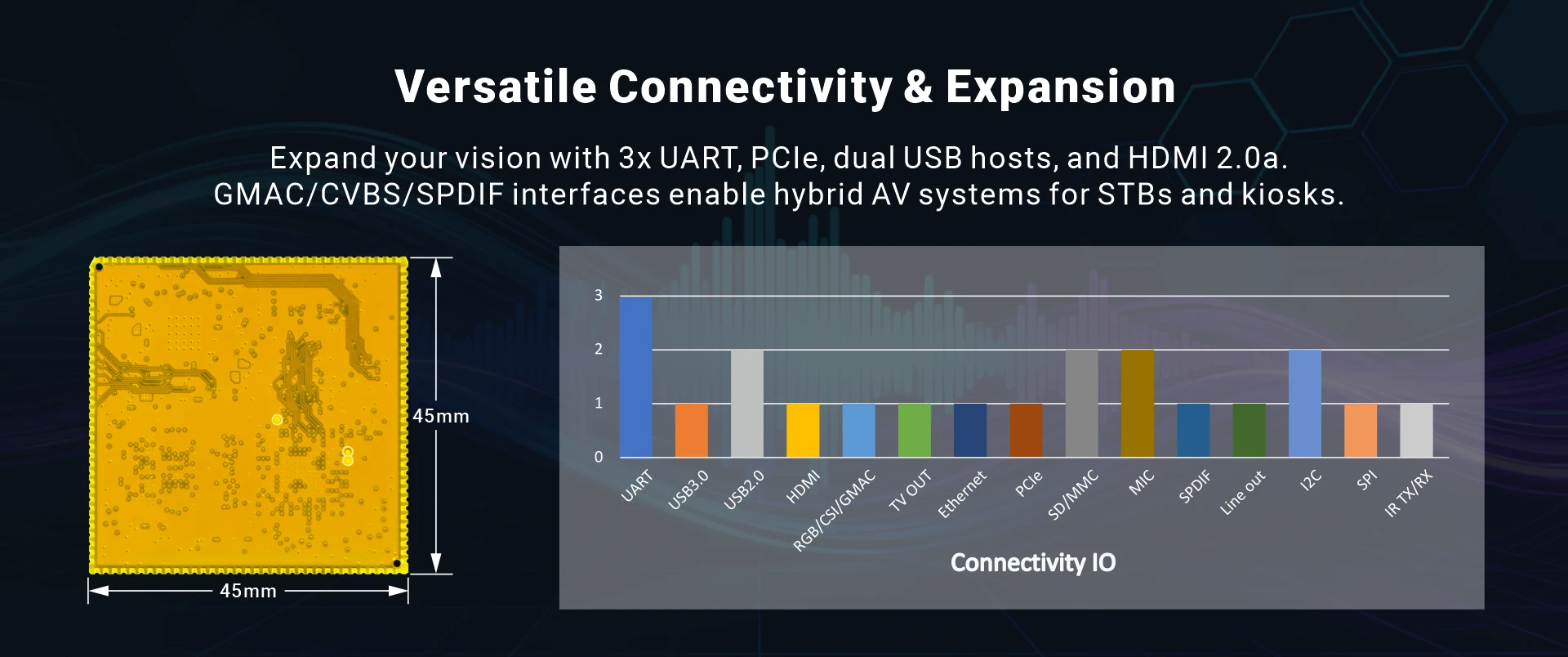

* Pin out: 3x UART, USB3.0 Host, USB2.0 Host, USB2.0 OTG, HDMI TX, RGB/CSI/GMAC, CVBS, Ethernet, PCIe, SDIO, SDMMC, MIC, SPDIF, Line out, I2C, SPI, ADC, PWM, IR, GPIO, etc.
* Operating system: Android 7.0
* Dimensions: 45 x 45 mm
* Package: 138-pin, 1.25mm pitch QFN

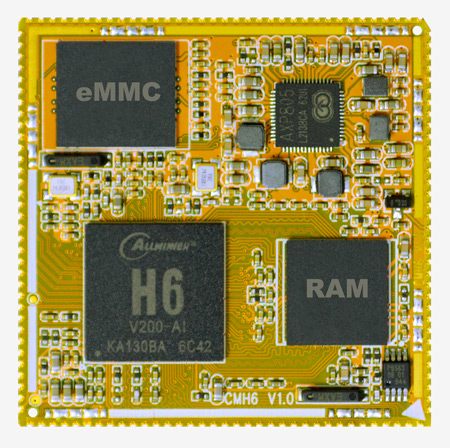

The CMH6 is a highly cost-efficient quad-core System-on-Module powered by Allwinner H6 V200 processor which is a part of growing home entertainment products that offer high-performance processing with a high degree of functional integration.
It supports 4K@60fps-10bit ultra-HD video decoding and low-latency H.264 4K encoding and targets applications with high performance like 4K Set-Top Box (STB), digital signage or other niche commercial solutions.
| Specifications | |
|---|---|

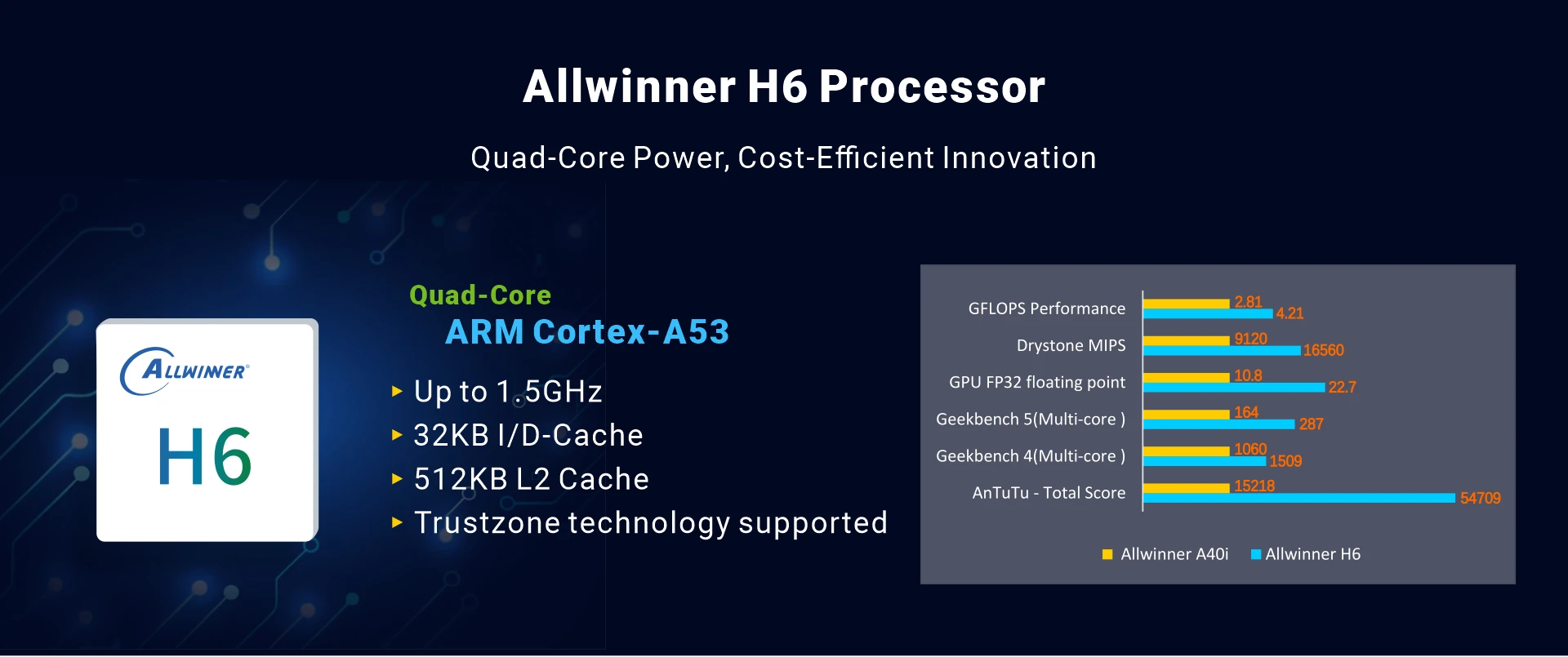

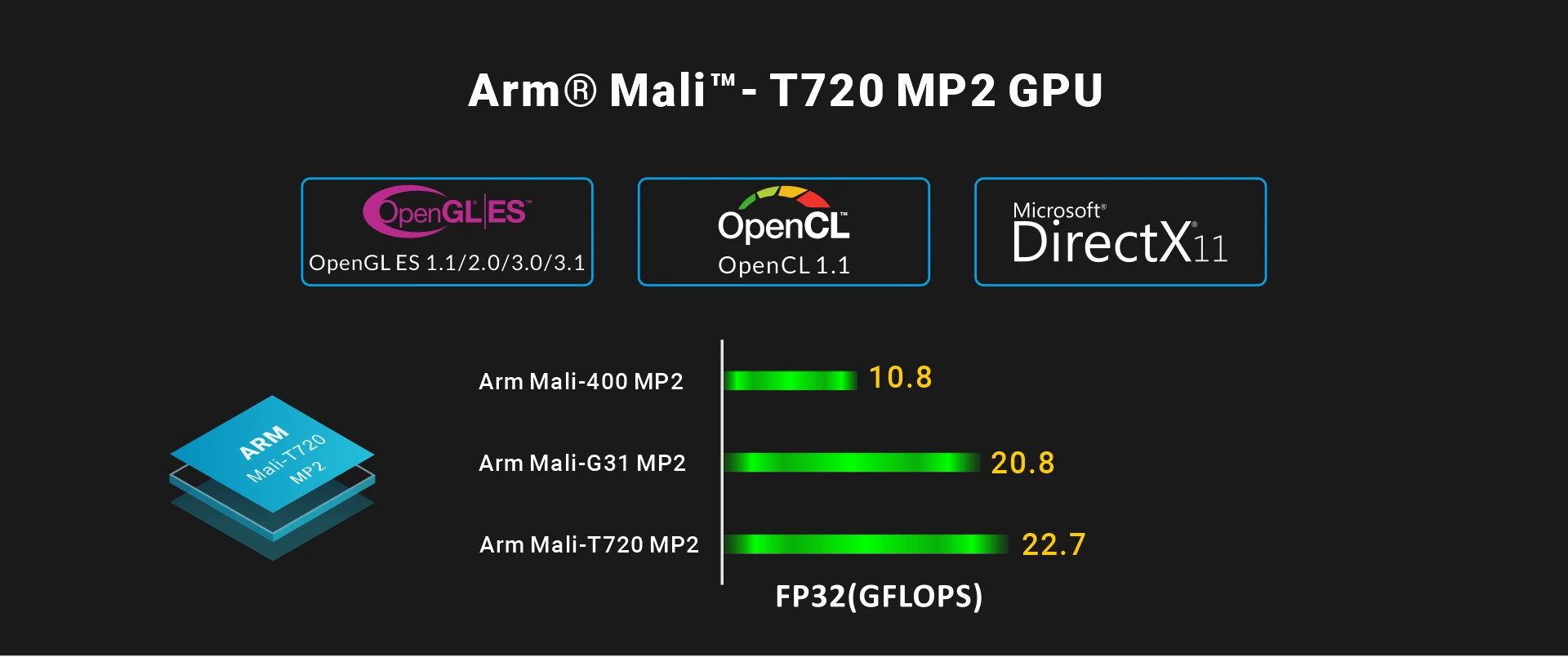

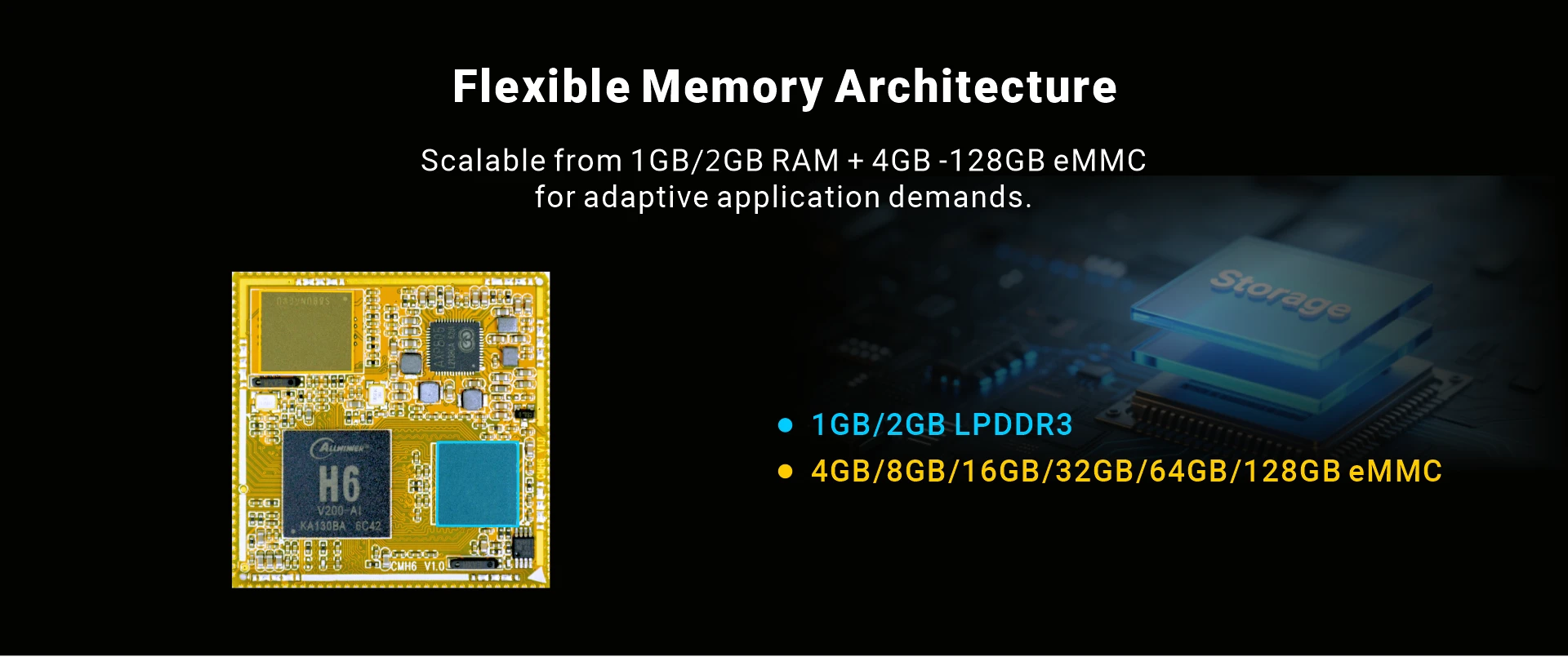

| SoC | Allwinner H6. Quad-core 64-bit ARM Cortex-A53, 1.5GHz |
| Memory | 1GB/2GB LPDDR3 |
| Storage | 4GB/8GB/16GB/32GB/64GB/128GB eMMC |
| Supply Voltage | DC 5V |
| Pin out | 3x UART, USB3.0 Host, USB2.0 Host, USB2.0 OTG, HDMI TX, RGB/CSI/GMAC, CVBS, Ethernet(100M), PCIe2.0, SDIO, SDMMC, MIC, SPDIF, Line out, I2C, SPI, ADC, PWM, IR, GPIO, etc. |
| PCB Layer | 6 |
| Dimensions | 45 x 45 mm |
| Package | 138-pin, 1.25mm pitch QFN |
| Application | 4K Set-Top Box (STB), POS Terminal, Digital signage, and Facial Recognition |
| Development Board | EMH6 |

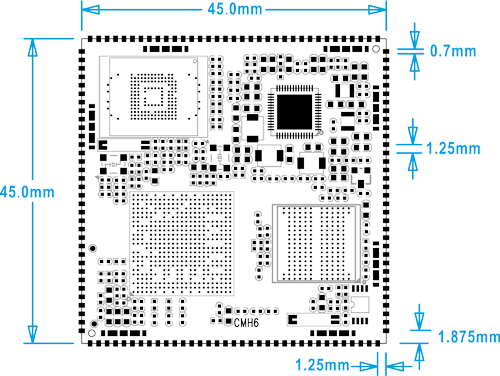

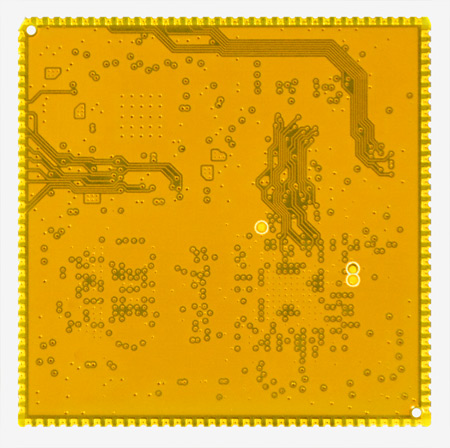

PCB Dimension
Pin Definition
| Pin | Signal | Pin | Signal | Pin | Signal | Pin | Signal |
|---|---|---|---|---|---|---|---|
| 1 | LCDD10- RGMIIRXER |
35 | PS_SWOUT | 70 | HSCL | 104 | MIC2N |
| 2 | LCDD20- DMICCLK |
36 | VCC33-WIFI | 71 | HSDA | 105 | MIC2P |
| 3 | LCDD21- DMICDAT0 |
37 | PC0 | 72 | SDC0-DET | 106 | MICBIAS |
| 4 | LCDD22- DMICDAT1 |
38 | PC2 | 73 | BT-PCM-DOUT | 107 | MIC1P |
| 5 | LCDD23- DMICDAT2 |
39 | PC3 | 74 | BT-PCM-SYNC | 108 | MIC1N |
| 6 | LCDDCK- DMICDAT3 |
40 | PC15 | 75 | BT-PCM-CLK | 109 | GND |
| 7 | LCDDE- UART2TX-MDC |
41 | PC16 | 76 | BT-PCM-DIN | 110 | LINEOUTR |
| 8 | LCDHS- UART2RX-MDIO |
42 | SPDIF-OUT | 77 | EPHY-LINK-LED | 111 | LINEOUTL |
| 9 | LCDVS- UART2RTS |
43 | PL7 | 78 | EPHY-SPD-LED | 112 | GND |
| 10 | PWM0- UART2CTS |
44 | PL6 | 79 | GND | 113 | SDC0-CLK |
| 11 | I2C2SCL- UART3TX |
45 | SPI1-MISO | 80 | KEYADC | 114 | SDC0-D3 |
| 12 | I2C2SDA- UART3RX |
46 | SPI1-MOSI | 81 | GND | 115 | SDC0-D2 |
| 13 | I2C0SCL- UART3RTS |
47 | SPI1-CLK | 82 | USB1-DM | 116 | SDC0-CMD |
| 14 | I2C0SDA- UART3CTS |
48 | SPI1-CS | 83 | USN1-DP | 117 | SDC0-D1 |
| 15 | GND | 49 | IR-TX | 84 | USB1-SSTXN | 118 | SDC0-D0 |
| 16 | AP-CK32KO | 50 | CPUX-URX | 85 | USB1-SSTXP | 119 | WL-SDIO-D3 |
| 17 | RTC | 51 | CPUX-UTX | 86 | USB1-SSRXN | 120 | WL-SDIO-D2 |
| 18 | BT-UART-TX | 52 | IR-RX | 87 | USB1-SSRXP | 121 | WL-SDIO-D1 |
| 19 | BT-UART-RX | 53 | S-PWM1 | 88 | USB0-DM | 122 | WL-SDIO-D0 |
| 20 | BT-UART-RTS | 54 | WL-WAKE-AP | 89 | USB0-DP | 123 | WL-SDIO-CMD |
| 21 | BT-UART-CTS | 55 | BT-WAKE-AP | 90 | USB3-DM | 124 | WL-SDIO-CLK |
| 22 | S-UART-TX/ Recover |
56 | AP-WAKE-BT | 91 | USB3-DP | 125 | LCDD6-RGMIIRXCK |
| 23 | S-UART-RX | 57 | BT-REG-ON | 92 | PCIE-RXM | 126 | LCDD5-RGMIIRX0 |
| 24 | USB0- DRVVBUS |
58 | WL-REG-ON | 93 | PCIE-RXP | 127 | LCDD4-RGMIIRX1 |
| 25 | PL4 | 59 | HHPD | 94 | PCIE-TXM | 128 | LCDD3-RGMIIRX2 |
| 26 | PL8 | 60 | HCEC | 95 | PCIE-TXP | 129 | LCDD2-RGMIIRX3 |
| 27 | UBOOT | 61 | GND | 96 | PCIE-REF-CLKM | 130 | LCDD7-RGMIIRXCTL |
| 28 | PWRON | 62 | HTXCP | 97 | PCIE-REF-CLKP | 131 | LCDD19-RGMIICKIN |
| 29 | AP-RESET | 63 | HTXCN | 98 | EPHY-RXP | 132 | GND |
| 30 | GND | 64 | HTX0P | 99 | EPHY-RXN | 133 | LCDD15-RGMIITXCK |
| 31 | PS | 65 | HTX0N | 100 | EPHY-TXP | 134 | LCDD14-RGMIITX0 |
| 32 | PS | 66 | HTX1P | 101 | EPHY-TXN | 135 | LCDD13-RGMIITX1 |
| 33 | PS | 67 | HTX1N | 102 | GND | 136 | LCDD12-RGMIITX2 |
| 34 | PS | 68 | HTX2P | 103 | TV-OUT | 137 | LCDD11-RGMIITX3 |
| 69 | HTX2N | 138 | LCDD18-RGMIITXCTL | ||||
| OS | Item | Feature | Description |
|---|---|---|---|
| Android7.0 | Boot | u-boot-2014.07 | u-boot-sun50iw6p1.bin |
| Kernel | Version | Linux 3.10.65 | |
| Drivers | HDMI | Support 4K, 1080P, 720P, 480P resolution | |
| Audio | Audio in/out | ||
| SD card | Micro SD card | ||
| USB | USB 2.0, USB 3.0 | ||
| Ethernet | 10/100/1000 Mbit/s Ethernet | ||
| Camera | 13 Megapixels, OV13850 model | ||
| WiFi | Wireless-2.4GHz, 802.11 b/g/n | ||
| Bluetooth | Bluetooth 4.0 | ||
| Serial Port | Debug | ||
| PCI-E | Support SSD, 4G, GPS | ||
| GPU | Support AFBC | ||
| eMMC | Support eMMC 5.1 | ||
| IR | IR in | ||
| LCD | 7-inch RGB LCD with touch screen | ||
| Embedded GUI | Android7.0 | Alarm Clock, Browser, Gallery, Calculator, Camera, Email, ES File Explorer, video player, Music etc. | |
| Cross-compiler Environment | ubuntu-16.04, java-8-openjdk-amd64.tar.bz2 | ||
| Debug Tools | SecureCRT, AndroidTool.exe, ADB | ||
