CM210-III
* Processor: Samsung ARM Cortex-A8 S5PV210AH, 1GHz
* RAM: 256MB/512MB
* Storage: 512MB/1GB/2GB/4GB/8GB/32GB
* Pin out: 4x UART, USB2.0 Host, USB2.0 OTG, RGB, HDMI, Camera I/F, TV out, Ethernet, 2x SDMMC, SPI, I2C, Audio I/O, JTAG, ADC, Keypad, PWM, GPIO, etc.
* Operating system: Linux 2.6.32, WinCE6.0(R3), Android 4.0
* Dimensions: 61.55 x 59.9 mm
* Package: 230-pin, 1.0mm pitch QFN

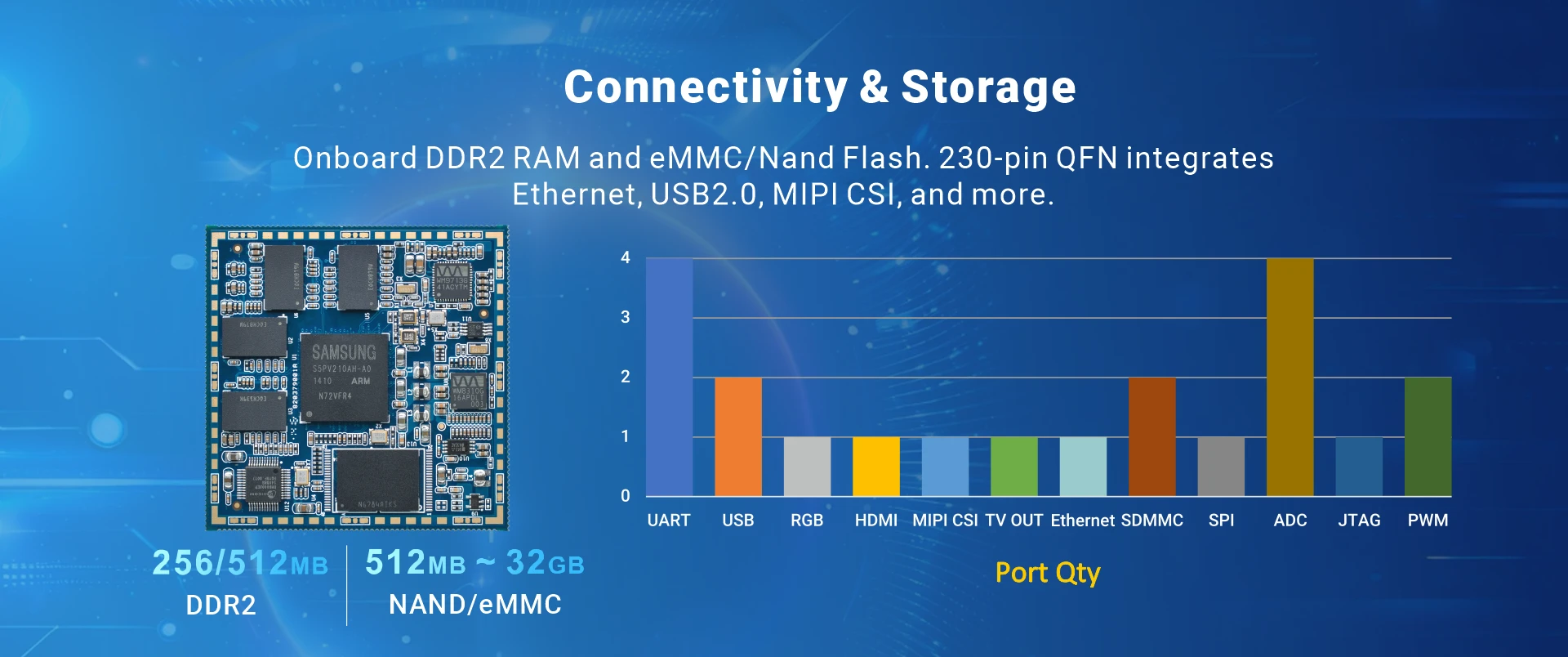

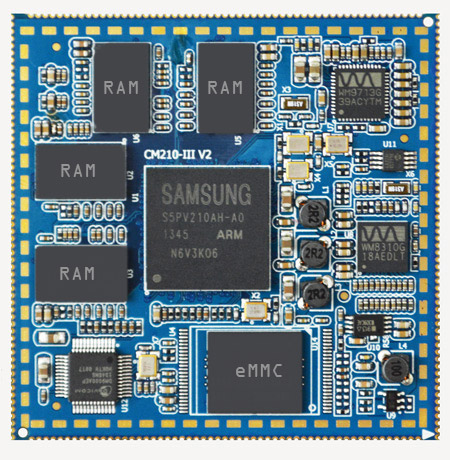

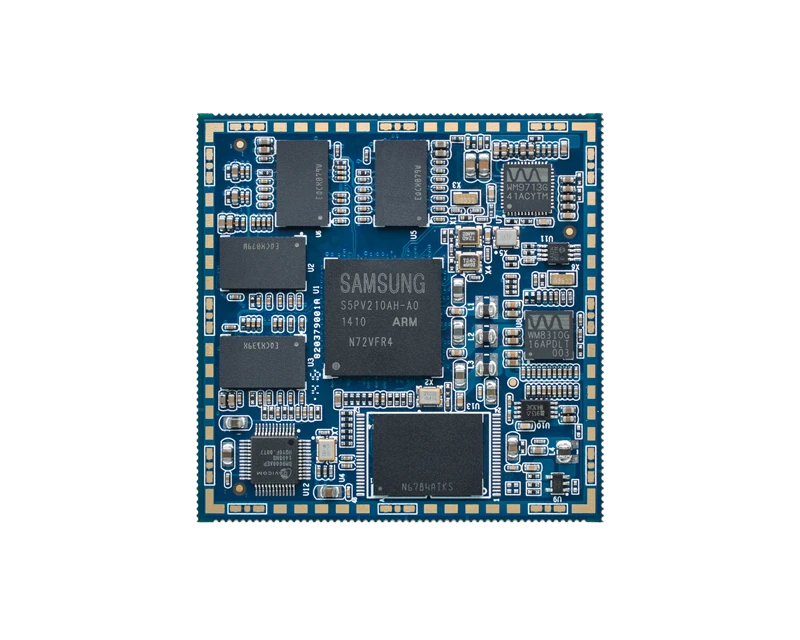

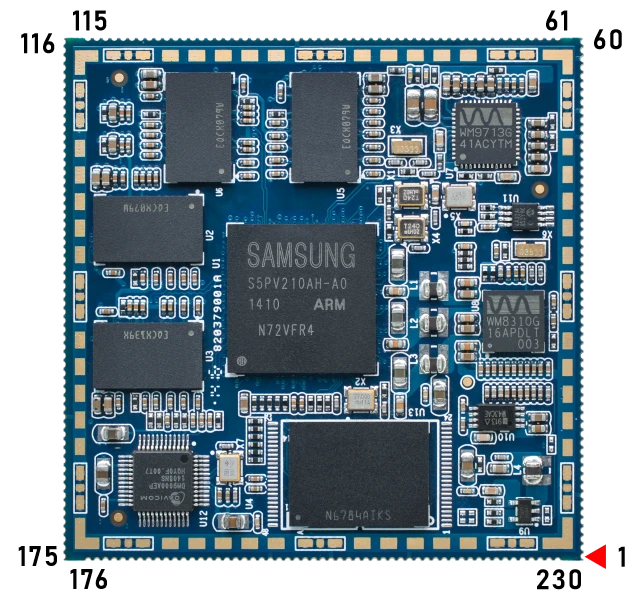

The Boardcon CM210-III is a full function embedded system on module based on S5PV210AH processor in small size and designed for communication, healthcare, automation, transportation, multimedia advertising, high performance POS machine, and surveillance applications with a Custom base board.

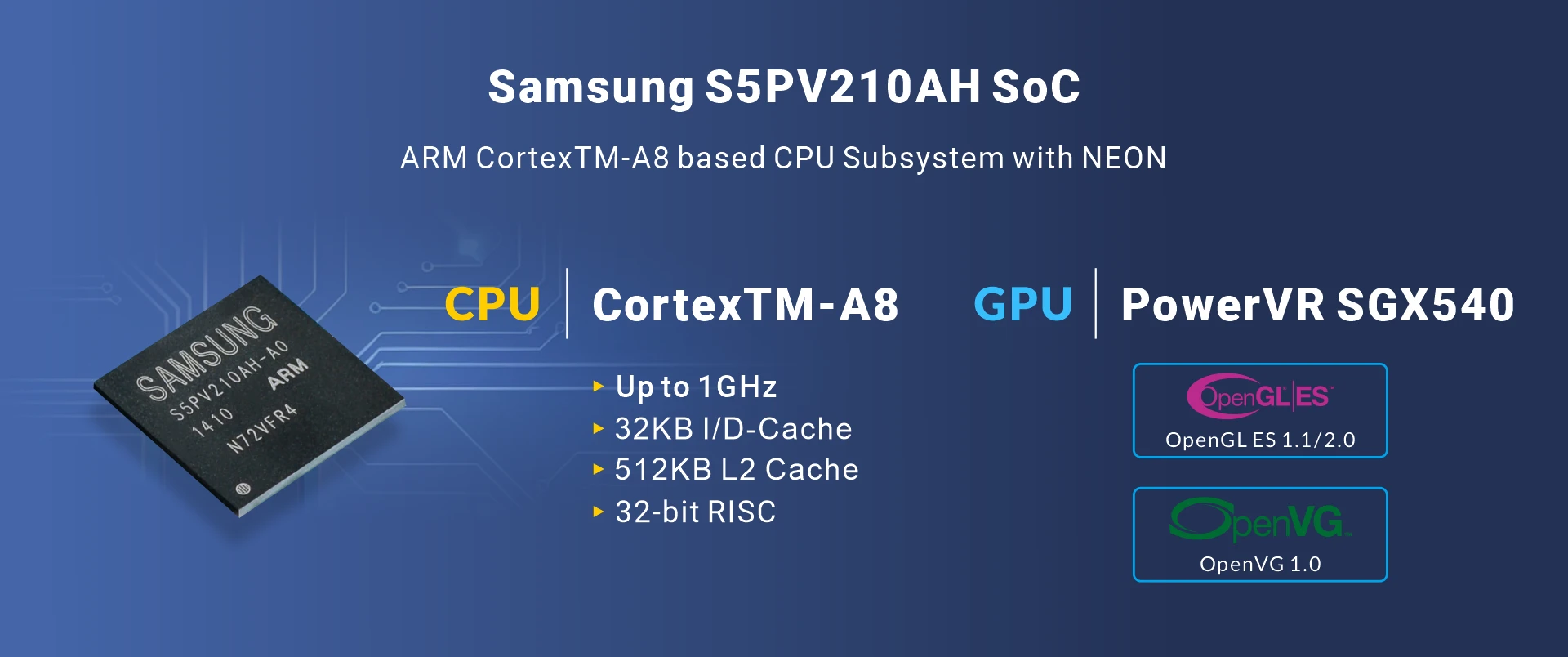

| Specifications | |
|---|---|
| SoC | Samsung ARM Cortex-A8 S5PV210AH, 1GHz |
| GPU | PowerVR SGX540 @ 200MHz |
| Memory | 256MB/512MB DDR2 |
| Storage | 512MB/1GB NAND Flash, 4GB/8GB/16GB/32GB eMMC optional |
| Supply Voltage | DC 5V |
| Pin out | 4x UART, USB2.0 Host, USB2.0 OTG, RGB, HDMI, Camera I/F, TV out, Ethernet(100M), 2x SDMMC, SPI, I2C, Audio I/O, JTAG, 4x ADC IN, Keypad, 2x PWM, GPIO, etc. |
| Ethernet | 10/100M bps Ethernet, DM9000AEP controller |
| PCB Layer | 8 |
| Dimensions | 61.55 x 59.9 mm |
| Weight | 11.0 gram |
| Package | 230-pin, 1.0mm pitch QFN |
| Application | MID, POS, PND, and Terminal controller |
| Development Board | EM210 |

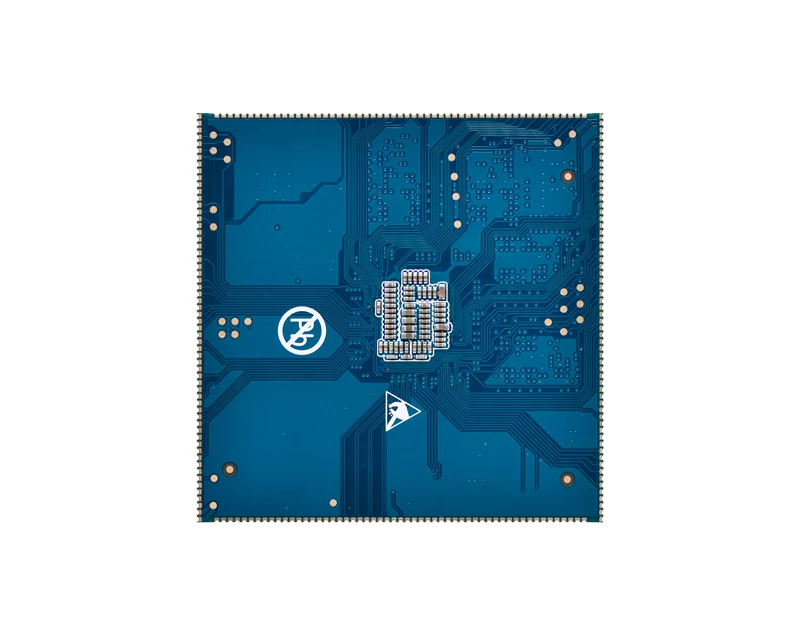

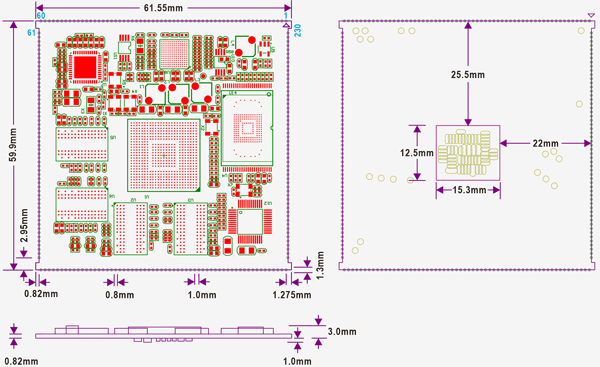

PCB Dimension
Pin Definition
| Pin | Signal | Pin | Signal | Pin | Signal | Pin | Signal |
|---|---|---|---|---|---|---|---|
| 1 | DC5V | 61 | MIC1 | 116 | SPIMOSI1 | 176 | DATA15 |
| 2 | DC5V | 62 | MICN | 117 | SPIMISO1 | 177 | DATA14 |
| 3 | VBAT | 63 | MICP | 118 | SPICS1 | 178 | DATA13 |
| 4 | VBAT - | 64 | LINEL | 119 | SPICLK1 | 179 | DATA12 |
| 5 | USBVDD | 65 | LINER | 120 | I2C_SDA0 | 180 | DATA11 |
| 6 | USBVDD | 66 | GSM_MIC- | 121 | I2C_SCL0 | 181 | DATA10 |
| 7 | VDD_RTC | 67 | GSM_MIC+ | 122 | RTSn1 | 182 | DATA9 |
| 8 | GND | 68 | SPKL | 123 | CTSn1 | 183 | DATA8 |
| 9 | XVVD23 | 69 | SPKR | 124 | RXD1 | 184 | DATA7 |
| 10 | XVVD22 | 70 | LOUT | 125 | TXD1 | 185 | DATA6 |
| 11 | XVVD21 | 71 | ROUT | 126 | RTSn0 | 186 | DATA5 |
| 12 | XVVD20 | 72 | HS_DET | 127 | CTSn0 | 187 | DATA4 |
| 13 | XVVD19 | 73 | AUGND | 128 | RXD0 | 188 | DATA3 |
| 14 | XVVD18 | 74 | I2C_SCL1 | 129 | TXD0 | 189 | DATA2 |
| 15 | XVVD17 | 75 | I2C_SDA1 | 130 | TOUT1 | 190 | DATA1 |
| 16 | XVVD16 | 76 | HDMI_CEC | 131 | TOUT0 | 191 | DATA0 |
| 17 | XVVD15 | 77 | HDMI_HPD | 132 | SPIMOSI0 | 192 | CSn0 |
| 18 | XVVD14 | 78 | XCIPCLK | 133 | SPIMISO0 | 193 | WEn |
| 19 | XVVD13 | 79 | XCIVSYNC | 134 | SPICS0 | 194 | OEn |
| 20 | XVVD12 | 80 | XCIHREF | 135 | SPICLK0 | 195 | BE0 |
| 21 | XVVD11 | 81 | XCIMCLK | 136 | MMC0CLK | 196 | BE1 |
| 22 | XVVD10 | 82 | XCIFIELD | 137 | MMC0CMD | 197 | GND |
| 23 | XVVD9 | 83 | XCIDATA0 | 138 | MMC0CDn | 198 | XJTRSTN |
| 24 | XVVD8 | 84 | XCIDATA1 | 139 | MMC0DAT0 | 199 | XJTMS |
| 25 | XVVD7 | 85 | XCIDATA2 | 140 | MMC0DAT1 | 200 | XJTCK |
| 26 | XVVD6 | 86 | XCIDATA3 | 141 | MMC0DAT2 | 201 | XJTDI |
| 27 | XVVD5 | 87 | XCIDATA4 | 142 | MMC0DAT3 | 202 | XJTDO |
| 28 | XVVD4 | 88 | XCIDATA5 | 143 | KP_COL7 | 203 | DACOUT0 |
| 29 | XVVD3 | 89 | XCIDATA6 | 144 | KP_COL6 | 204 | GND |
| 30 | XVVD2 | 90 | XCIDATA7 | 145 | KP_COL5 | 205 | HDMITXCN |
| 31 | XVVD1 | 91 | GND | 146 | KP_COL4 | 206 | HDMITXCP |
| 32 | XVVD0 | 92 | EINT0 | 147 | KP_COL3 | 207 | HDMITXN0 |
| 33 | XVVCLK | 93 | EINT1 | 148 | KP_COL2 | 208 | HDMITXP0 |
| 34 | XVHSYNC | 94 | EINT3 | 149 | KP_COL1 | 209 | HDMITXN1 |
| 35 | XVVSYNC | 95 | EINT4 | 150 | KP_COL0 | 210 | HDMITXP1 |
| 36 | XVVDEN | 96 | EINT5 | 151 | KP_ROW7 | 211 | HDMITXN2 |
| 37 | TSXN | 97 | EINT6 | 152 | KP_ROW6 | 212 | HDMITXP2 |
| 38 | TSXP | 98 | EINT7 | 153 | KP_ROW5 | 213 | GND |
| 39 | TSYN | 99 | EINT10 | 154 | KP_ROW4 | 214 | NET_RX+ |
| 40 | TSYP | 100 | EINT11 | 155 | KP_ROW3 | 215 | NET_RX- |
| 41 | ADCIN0 | 101 | EINT16 | 156 | KP_ROW2 | 216 | NET_TX+ |
| 42 | ADCIN1 | 102 | EINT17 | 157 | KP_ROW1 | 217 | NET_TX- |
| 43 | ADCIN6 | 103 | EINT18 | 158 | KP_ROW0 | 218 | NET_LINK |
| 44 | ADCIN7 | 104 | EINT19 | 159 | GND | 219 | NET_SPD |
| 45 | TXD2 | 105 | EINT20 | 160 | ADDR15 | 220 | AVDD25 |
| 46 | RXD2 | 106 | ENIT21 | 161 | ADDR14 | 221 | MMC2CLK |
| 47 | TXD3 | 107 | EINT22 | 162 | ADDR13 | 222 | MMC2CMD |
| 48 | RXD3 | 108 | EINT23 | 163 | ADDR12 | 223 | MMC2CDn |
| 49 | GND | 109 | RTCCLKO | 164 | ADDR11 | 224 | MMC2DAT0 |
| 50 | XUHDP | 110 | OM5 | 165 | ADDR10 | 225 | MMC2DAT1 |
| 51 | XUHDN | 111 | OM4 | 166 | ADDR9 | 226 | MMC2DAT2 |
| 52 | GND | 112 | OM3 | 167 | ADDR8 | 227 | MMC2DAT3 |
| 53 | UDRVVBUS | 113 | OM2 | 168 | ADDR7 | 228 | PWRON |
| 54 | VBUS | 114 | OM1 | 169 | ADDR6 | 229 | nRESET |
| 55 | XUODM | 115 | OM0 | 170 | ADDR5 | 230 | BAT_NTC |
| 56 | XUODP | 171 | ADDR4 | ||||
| 57 | XUOID | 172 | ADDR3 | ||||
| 58 | GND | 173 | ADDR2 | ||||
| 59 | GSM_SPK+ | 174 | ADDR1 | ||||
| 60 | GSM_SPK- | 175 | ADDR0 |
| OS | Item | Feature | Description |
|---|---|---|---|
| Linux2.6.32 | Bootloader | Boot | Start up system, supporting one Key to update Bootloader, Kernel, Yaffs, and one Key to configure parameters of Linux. Also can be configured the board booting from Yaffs or NFS |
| Tftp | Support tftp transmitting protocol | ||
| File system | Yaffs | ||
| Kernel | Support writing kernel image into nand flash and kernel parameter setting | ||
| Etc. | Support via USB and Serial Interface to download application to flash debug | ||
| Kernel | Version | Linux kernel 2.6.32 | |
| File system | CRAMFS/RAMFS/EXT2/FAT32/NFS/YAFFS/YAFFS2 | ||
| Serial | Serial driver | ||
| Ethernet | DM9000. 10/100M bps Ethernet | ||
| RTC | RTC driver | ||
| USB Host | USB Host, USB Slave driver | ||
| Buttons | User buttons | ||
| LCD | Coming with driver for 4.3", 7" TFT LCD | ||
| Touch panel | Touch panel driver | ||
| SD card | SD card driver | ||
| Sound | WM9713 | ||
| Camera | CMOS/CCS Camera driver | ||
| USB Camera | The chip of USB Camera is Vimicro 301p, the USB Camera is collecting dynamic picture and showing on the LCD | ||
| WCDMA Module | Using WCDMA Module to dial-up to Ethernet | ||
| Embedded GUI | Qt/Embedded | Qtopia 2.2.0 and Qtopia 4.7.3 | |
| Application | Servfox | The application is running under Console platform, it controls the USB Camera by internet and displays the picture taken by camera on the LCD. It can be taken as net monitor when the application works with USB Camera. | |
| Spcacat | It is a camera picture capture application under Console platform | ||
| Snapshot | It is a LCD picture capture application under Console platform | ||
| Rz and sz | It is a application that transfer and receive file by serial port | ||
| Madplay | It is a MP3 player | ||
| Network protocol | TCP/IP | TCP/IP protocol | |
| Telnet | Telnet server, telnet remote login | ||
| File transfer | FTP Client/server | ||
| Web server | BOA Web Server | ||
| USB port supported Devices | U-disk, portable hard-disk, USB mouse, USB Keyboard, USB HUB, USB Camera and so on. | ||
| Command | cat, chmod, discard, echo, flashsd, flashwrite, free, genhtml, hostname, init, kill, loader, ls,mkdir, mount, ps, reboot, rm, smanaged, sysconf, yes, insmod, lsmod, rmmod | ||
| Tools | busybox1.13 (provided in the CD-ROM) | ||
| OS | Item | Feature | Description |
|---|---|---|---|
| WinCE6.0 | Bootloader | BL1_UART.nb0 | The first serial guide,not burn into Nand flash |
| EBOOT.nb0 | The second serial guide,not burn into Nand flash | ||
| bootimage.nb0 (stepldr+Eboot) | Include stepldr and eboot, burn into Nand flash 1. USB download: update the image via USB OTG 2.0 2. Format Nand Flash 3. Format BinFS 4. Low-level Format 5. Set boot-up delayed time 6. Booting process bar |
||
| uboot.bin | Use to format the nand flash | ||
| System | Drivers | 7" Touch Screen | |
| SPI, Camera, USB Host, USB OTG, IIC, WIFI, GPS, JPEG, SD/MMC/SDIO, DMA, MFC, Keyboard, Serial ports, AC97, OpenGGLES1.1&2.1/D3DM | |||
| Application | Software features | Source code and test program for MFC, Camera, JPEG, OpenGLES1.1 & 2.0 |
| OS | Item | Feature | Description |
|---|---|---|---|
| Android4.0 | Bootloader | Uboot-1.3.4 | Main functions: 1.Support Nand Flash erase/write/read 2.Support USB download Image 3.Support print, set, save Environment Variables 4.Support memory's contents display/compare/modify 5.Support bootm, bootargs setting |
| USB Installer.bin | Uboot boot process, download uboot by the process | ||
| Image update | Support updating image from SD card or USB | ||
| Kernel and drivers | Kernel version | Linux 3.0.8 | |
| Drivers | Serial ports, RTC, 4.3/ 7/ 10.1/15 inch LCD including Touch Screen, SD, USB Host, USB OTG, LEDs, AC97, Keyboard, 3-axis accelerometer, PWM, IIC, SPI, MFC, TVOUT, HDMI, JPEG, WIFI, WCDMA, GPS, DM9000 | ||
| File System | File System | Yaffs File System | |
| Embedded GUI | Android4.0 | Support file browser, Mediaplayer, Calendar, time, counter, Touch Screen Calibration program, Plug-in manager. | |
| Network protocol & application |
Network Protocol | TCP/IP protocol, Telnet, FTP Client/server, boa web server | |
| Application | Alarm Clock, Browser, Gallery, Calculator, Camera, Phons, Email, Maps, ES File Explorer, Mediaplayer, Music, Picsay, ASTRO | ||
| Cross compiler Environment | Arm-2009q3.tar.bz2, JDK1.6 | ||
| Debug Tools | DNW, MoviNAND_Fusing_Tool.exe, VmWare7.0 | ||
