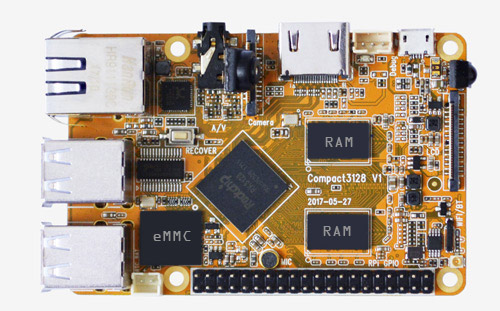

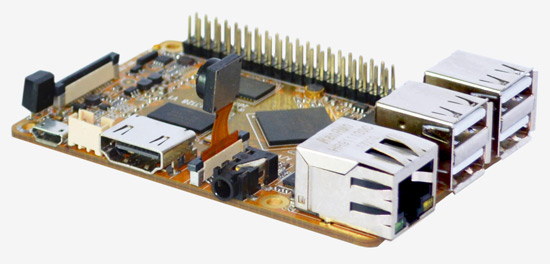

Compact3128

* Processor: Rockchip RK3128. Quad-Core Cortex-A7, 1.2GHz
* RAM: 512MB
* Storage: 4GB
* Interfaces: 4x USB Host, 1x USB OTG, 1x debug, LCD(LVDS/MIPI), Ethernet, HDMI, Audio/CVBS(AV) out, SD, GPIO, Camera, battery connector
* Operating system: Android 6.0

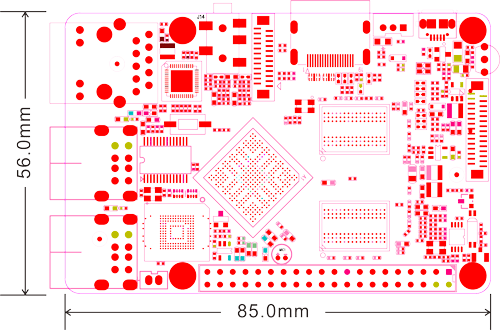

* Dimensions: 85 x 56 mm

Compact3128 is designed with the more power efficient Rockchip RK3128 Cortex-A7 processor compared with RK3288.
RK3128 is a Quad-core application processor for smart TV-Box. Especially it is a high-integration and cost efficient SOC for 1080P H.265 TV-Box. Quad-core Cortex-A7 is integrates with separately Neon and FPU coprocessor, also shared 256KB L2 Cache. Mali400 MP2 GPU is embedded to support smoothly high-resolution (1080p) display and mainstream game. Lots of high-performance interface to get very flexible solution, such as multi-pipe display with HDMI1.4, TV Encoder.
Compact3128 comes with 512MB RAM, 4GB eMMC Flash, Gigabit Ethernet, Wi-Fi and Bluetooth, and various other ports and expansion headers. And besides a data link, the USB2.0 OTG also provides 5V to power the board. Compact3128 is especially suitable for applications that must be contained in a limited space control systems, such as medical, IoT gateway, imaging and Industrial control systems.
