* Processor: NXP i.MX7. Dual-core Cortex-A7 @ 1.2GHz + Cortex-M4 @ 200MHz
* RAM: 1GB
* Storage: 8GB
* Interfaces: USB Host, USB OTG, 3x Debug, 1x RS232, 2x CAN, LCD(TTL), MIPI Camera, MIPI LCD, EPDC, GPIO, Gigabit Ethernet, HDMI, Audio, SD, SIM, RTC, mPCIe
* Operating system: Linux+QT, Android 6.0.1
* Dimensions: 140 x 90 mm

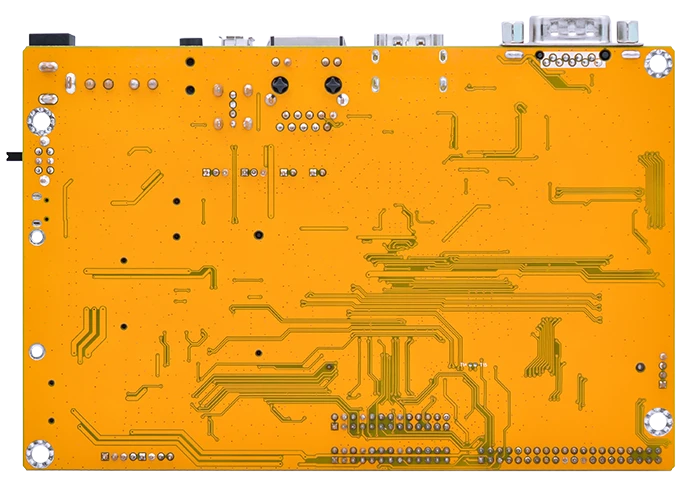

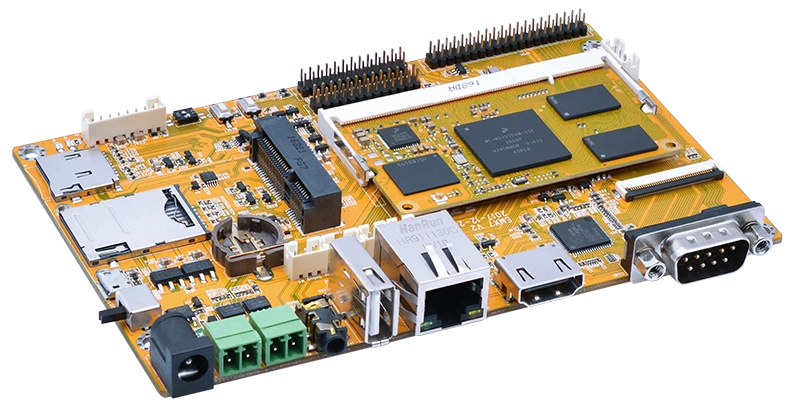

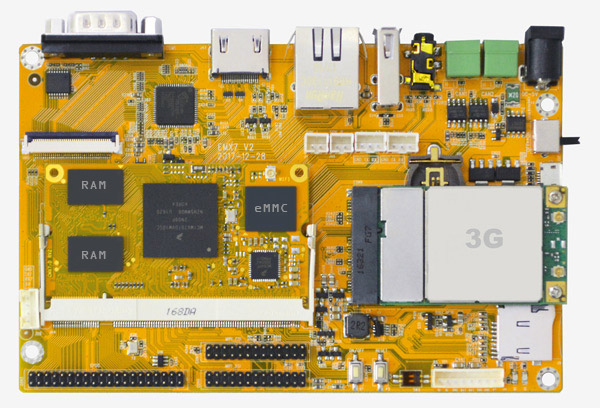

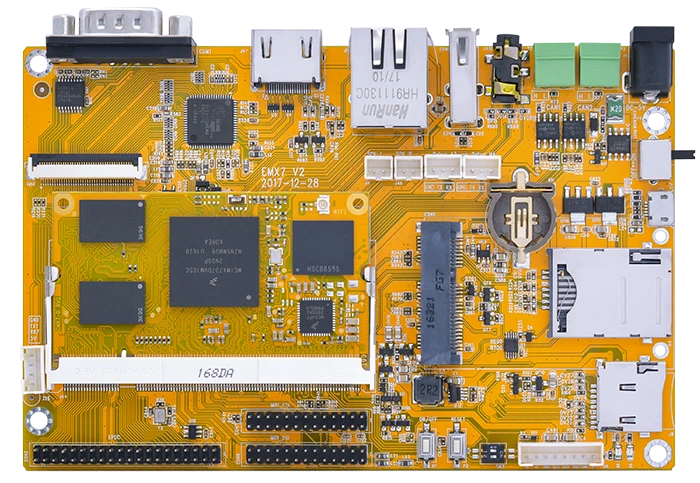

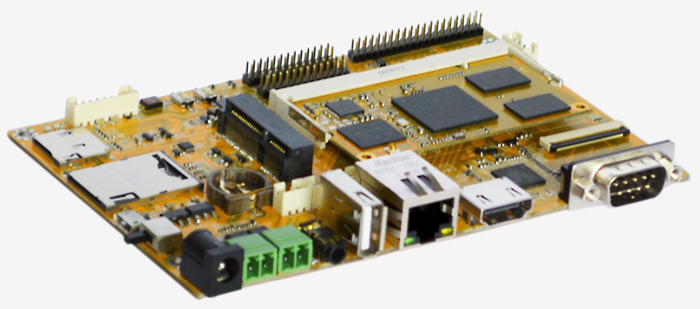

EINK-IMX7 is composed of a carrier board and a CPU module (CMIMX7) via SODIMM200 connector. This Single Board Computer is equipped with NXP's dual-core Cortex-A7/Cortex-M4 based i.MX 7Dual processor, 1GB RAM, 8GB eMMC, supports Eink screen, WiFi&Bluetooth, 3G/4G model, camera module and Gigabit Ethernet.

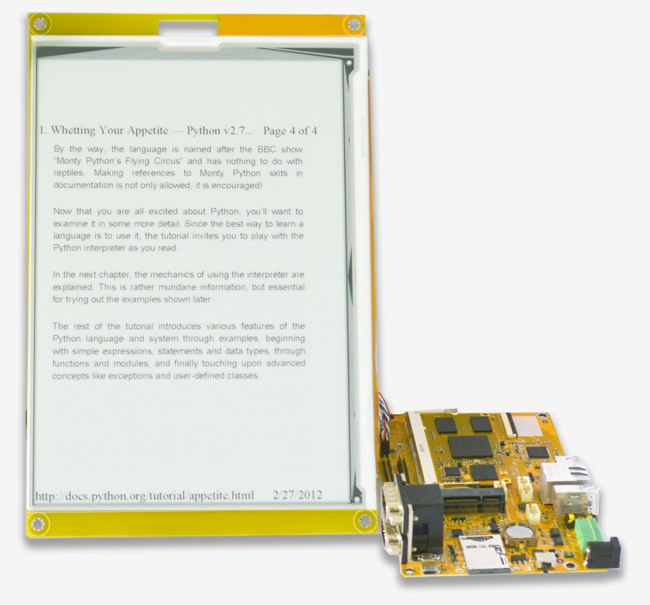

EINK-IMX7 is the first SBC of Boardcon supports E-ink screen, the low power, sharp and images, and light weight of dedicated E-Ink make it well suited for many applications such as Mobile devices, Smart home controls, E-Readers, Patient monitoring, Building automation, etc.
| Specifications | |
|---|---|
| SoC | i.MX 7Dual ARM Cortex A7 MPCore™ Processor, up to 1.2GHz AMR Cortex M4 @ 200MHz Support of ARMv7A architecture 512KB unified I/D L2 cache |
| Memory | 1GB DDR3L |
| Storage | 8GB eMMC Flash Micro SD Card slot |
| Power | 5V/2A DC input jack |
| Serial Ports (UARTs) |
1x DB9 RS232 serial port 1x 3-pin header Debug UART for i.MX 7Dual ARM 1x 3-pin header Debug UART for AMR Cortex M4 1x 4-pin header Debug UART |
| LCD | 40-pin FPC connector, supports 4.3-, 7-inch Cap-LCD |
| Connectivity | 10/100/1000 Mbps Ethernet, RJ45 interface. AR8035AL1B controller 2.4G WiFi IEEE802.11 a/b/g/n, Bluetooth4.0 mPCIe socket with SIM card port to support 4G module |
| HDMI | HDMI V1.3a, 1080p@24/30fps (HDMI or LCD display, only one option) |
| USB | 1x USB2.0 Host, 1x USB2.0 OTG |
| Camera(optional) | 1x 26-pin MIPI CSI camera interface |
| MIPI DIS | 1x 26-pin MIPI DIS Port |
| Audio | WM8960G Audio chip. 1x 3.5mm jack 2x Speaker, 2-pin connector |
| RTC | Real Time Clock, powered by external lithium battery |
| CAN | 2x CAN |
| Buttons | 1x Reset, 1x Power |
| EPDC | 1x 40-pin EPDC Port |
| Dimensions | Carrier board -140 x 90 mm; CPU board - 67.6 x 37.0 mm |

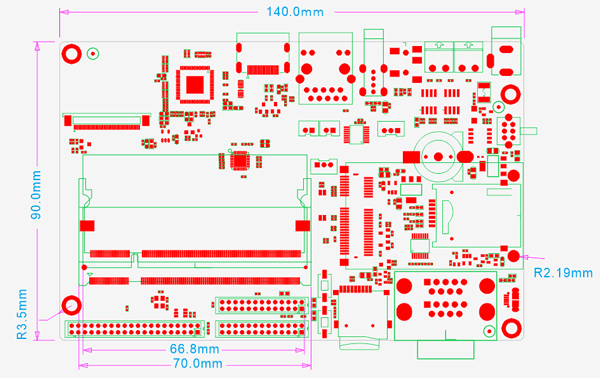

PCB Dimension
| OS | Item | Feature | Description |
|---|---|---|---|
| Linux4.1.15 | Bootloader | Boot | u-boot 2015.04 |
| Boot mode | Boot from eMMC | ||
| Download | Download via USB OTG | ||
| Kernel | Version | Linux4.1.15 | |
| File system format | Support ext2, ext3, ext4, fat, jeffs2, UBIFS, nfs, etc. Boardcon only provides ext4, R/W file system. | ||
| Serial | Support | ||
| RTC | Support | ||
| Ethernet | 10/100/1000 Mbps Ethernet | ||
| CAN | 2x CAN | ||
| USB host | USB2.0 HOST | ||
| USB OTG | USB2.0 OTG | ||
| LCD | 4.3-/7-inch LCD, 6-/9.7-inch EPDC | ||
| eMMC | Support | ||
| MMC/SD | MMC mode. Micro SD card slot | ||
| GPIO | Support | ||
| Button | Support | ||
| Audio I/O | Audio out, 2x SPK | ||
| WiFi | Wireless - 2.4GHz, 802.11 a/b/g/n | ||
| HDMI | Support | ||
| 3G/4G moudle | 3G: MU709s-2 4G: EC20 |
||
| Embedded GUI | Qt/Embedded | rootfs_nogpu.tar.bz2 | |
| File system | TCP/IP | TCP/IP protocol | |
| Network ping | Check the network | ||
| Ifconfig, route | For network configuration and related service application | ||
| Basic tool | linux common cammands | cat, chmod, echo, free, init, kill, ls, mkdir, mount, ps, reboot, rm, insmod, lsmod, rmmod, dd, df, aplay | |
| Tools | DNW, CRT, MFGTOOLS.RAR, VMWARE7.0 |
| OS | Item | Feature | Description |
|---|---|---|---|
| Android6.0.1 | Boot | uboot 2015.04 | u-boot 2015.04 |
| Kernel | Version | Linux 4.1.15 | |
| Drivers | HDMI | Support 720P resolution | |
| Audio | Audio out, 2x SPK | ||
| SD card | Micro SD card | ||
| USB HOST | USB2.0 Host | ||
| Ethernet | 10/100/1000 Mbps Ethernet | ||
| LCD | Support 4.3-, 7-inch LCD 6-, 9.7inch EPDC | ||
| WIFI | Wireless-2.4GHz/5GHz 802.11 a/b/g/n | ||
| Serial Port | Debug serial | ||
| eMMC | Support eMMC 5.1 | ||
| 3G/4G moudle | 3G: MU709s-2 4G: EC20 |
||
| Serial | Support | ||
| CAN | Support 2x CAN | ||
| USB OTG | USB2.0 OTG | ||
| RTC | Support | ||
| Embedded GUI | Android6.0.1 | Support Alarm Clock, Browser, Gallery, Calculator, Camera, Email, ES File Explorer, video player, Music etc. | |
| Cross-compiler Environment | ubuntu-14.04, java-7-openjdk-amd64.tar.bz2 | ||
| Debug Tools | DNW, CRT, MFGTOOLS.RAR, VMWARE7.0, ADB | ||
