* Processor: HiSilicon Hi3559V200 ARM Cortex-A7 MP2, 900MHz
* RAM: 1GB
* Storage: 4GB
* Interfaces: 2x UART, USB OTG, HDMI, Micro SD, M.2 socket, SIM, RS485, CAN, MIPI CSI, MIPI DSI, AHD, Speaker, MIC, etc.
* Operating system: Linux + Huawei Lite OS
* Dimensions: 145.55 x 117.85 mm

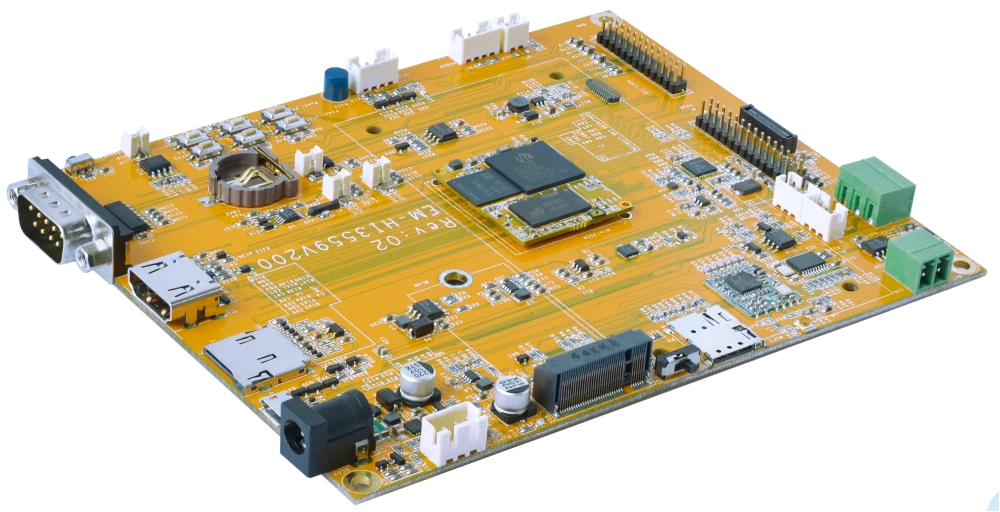

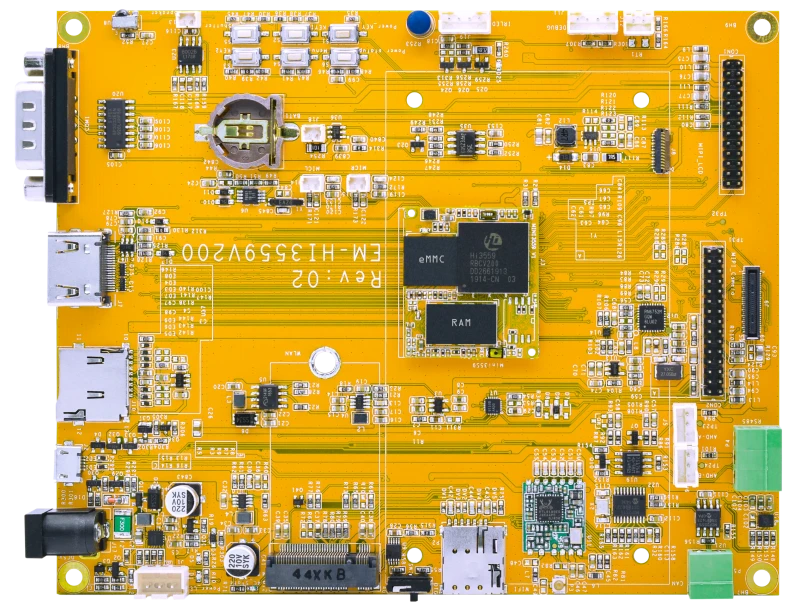

The EM-HI3559V200 embedded computer is equipped with HiSilicon Hi3559 V200 which is a high-performance and low-power 4K ultra-HD mobile camera SoC that is designed for Dash Cam, Action Cam and Streaming Media Rear-View Mirror Camera Solution.
EM-HI3559V200 supports H.265/H.264 encoding and decoding, with performance up to 4K 3840*2160 @ 30fps or 1080P@120fps. With the maximum 0.4T neural network computing capability, user applications can be easily implemented in EM-HI3559V200, such as object categorization (motor vehicle, non-motorized vehicle, and pedestrian detection) and attribute recognition (vehicle type, color, and license plate recognition).
Backed by the dual-core Cortex-A7 CPU, the Hi3559V200 platform offers the Linux + Huawei Lite OS dual-system solution, enabling fast startup (less than 4s), and connections with rich peripheral drives such as HDMI, MIPI CSI, MIPI DSI, UART, USB, M.2/ NGFF.

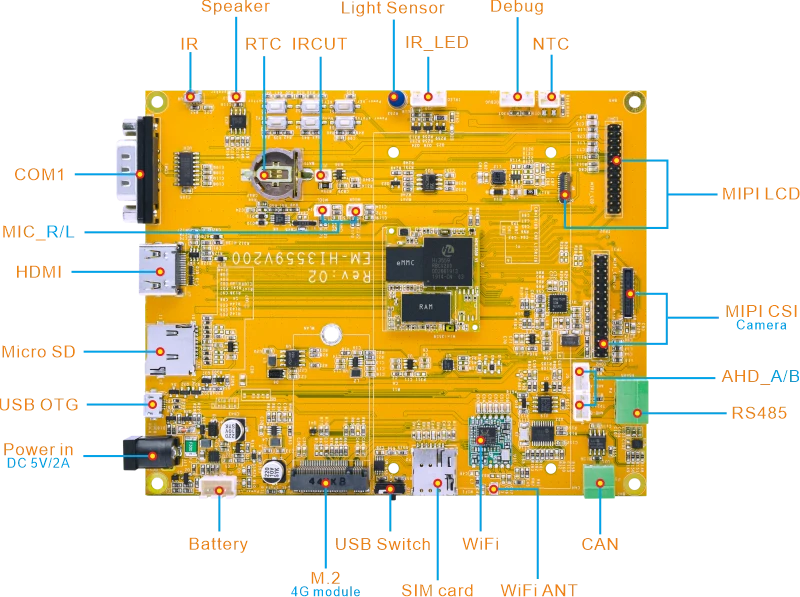

| Specifications | |
|---|---|
| SoC | HiSilicon Hi3559V200. ARM Cortex A7 MP2 @ 900MHz 32 KB I-cache, 32 KB D-cache, and 256 KB L2 cache Neon acceleration and integrated FPU |
| Memory | 1GB DDR3L |
| Storage | 4GB eMMC flash |
| Power Input | DC 5V/2A |
| USB | USB 2.0 OTG, Micro-USB connector |
| UART | 1x RS232(DB9), 1x Debug UART(4-pin header) |
| Audio | Integrated audio codec. 2x 2-pin header for MIC, 1x 2-pin header for Speaker |
| SD | Micro SD socket, SD3.0 |
| Display | HDMI 1.4 interface, with the maximum output of 3840 x 2160@30fps 4-lane MIPI DSI output, 26-pin header or 25-pin FPC connector |
| RTC | Real time clock, powered by external battery(CR1220) |
| CAN | 2-Pin connector |
| RS485 | 3-pin connector |
| Keys | 6x Buttons for Power (S1), Menu1 (S2), Menu2 (S3), GPIO3_1 (S4), Image Shutter (S5), Power startup(S6); 1x Switch (SW3) for USB selection; 1x Recover key (on CPU board). |
| 4G (optional) | Standard M.2 (NGFF) form factor. Quectel EM05 LTE category 4 module Maximum data rate - 150Mbps downlink, 50Mbps uplink |
| Camera (optional) | MIPI-CSI, 4 data lanes, 26-pin header or 60-Position Board-to-Board Connector |
| WiFi | 2.4G WiFi module, 802.11b/g/n |
| SIM | Nano SIM card socket |
| Others | 2x AHD, 1x IRCUT, 1x Battery, 1x IR_LED |
| Dimensions | Baseboard – 145.55 x 117.85 mm; Core board – 30 x 27 mm |

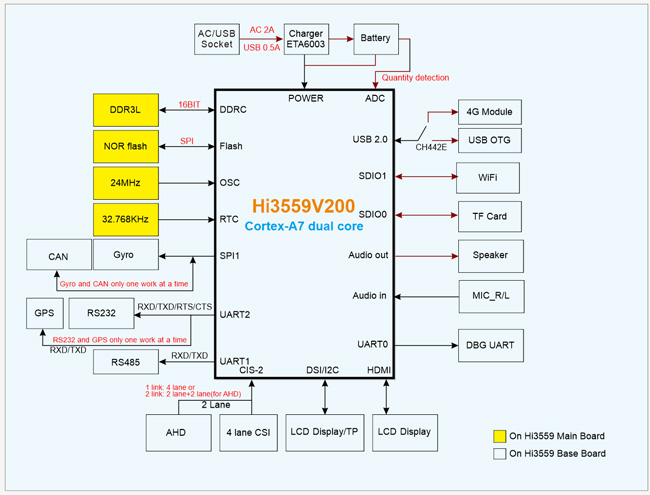

Block Diagram

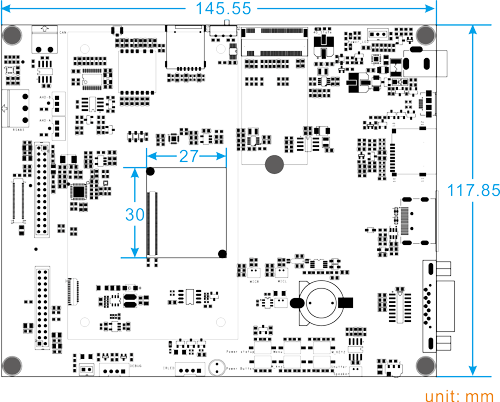

PCB Dimension
| OS | Item | Feature | Description |
|---|---|---|---|
| Linux+Huawei LiteOS Dual-system |
SDK | Version | 1.0.1.5 (Hi3559V200_MobileCam) |
| Boot | uboot 2016.11 | u-boot-hi3559v200.bin | |
| Kernel | Version | Linux 4.9.37 | |
| Drivers | HDMI, MIC in, Speaker out, AHD, NTC, SD card, USB, Sony Image Sensors, RTL8189FTV WiFi model, RS485, CAN, RS232, 4-inch MIPI LCD with touch screen, IR, Key-board, etc. | ||
| Embedded GUI | Actioncam | Support Video recording, Photo shooting, Replay, Audio recording. Support LCD touch |
|
| Dashcam | Support Video recording, SOS mode, Photo shooting. Support Micro SD card, LCD display, Key input |
||
| Sample cam | Test app: Lcd- app, tp-app, vio-app | ||
| Cross-compiler Environment | ubuntu-14.04 | ||
| Debug Tools | SecureCRT, HiTool.exe | ||
Hi3559 V200 4K Mobile Camera SoC Brief Data SheetIf you order the SBC or any question, please feel free to contact us at market@armdesigner.com
