EM1808

* Processor: Rockchip RK1808. Dual-core Cortex-A35, 1.6GHz
* NPU: 3 TOPS
* RAM: 2GB
* Storage: 8GB
* Interfaces: GbE, 3x USB2.0 Host, 1x USB3.0 Host, 3x DAC out, 4x MIC, Headphone, Speaker, SD, SIM, M.2, MIPI CSI, MIPI DSI, RS232, RS485, UART, GPIO.
* Operating system: Linux 4.4.185

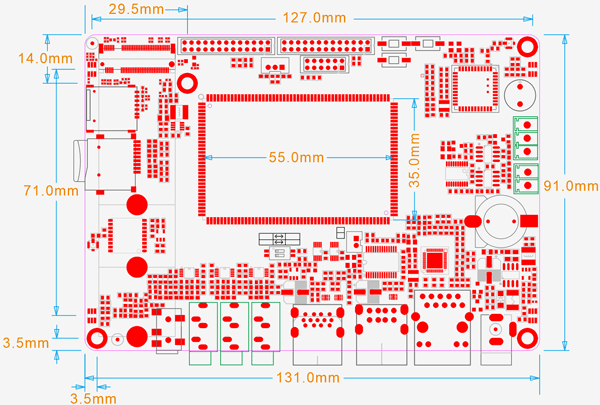

* Board size: 131 x 91 mm

The EM1808 SBC is featuring a Rockchip's RK1808 processor, which is an AIoT solution with built-in high performance NPU. This Embedded board features dual-core Cortex-A35 CPU architecture, NPU computing performance up to 3.0TOPs and VPU supporting 1080P video codec, microphone array with hardware VAD function and camera video signal input with built-in ISP.
The Embedded Kit offers Gigabit Ethernet connectivity, module, dual USB2.0/3.0 HOST, MIPI DSI/CSI connector, 4x MEMS microphone, M.2(NGFF) expansion slot for SSD or 4G LTE module, as well as external GPS and WiFi/BT modules. The board can be customized according to the actual needs of the customer.
With the ultimate low power consumption, powerful AI computing of RK1808 and rich AIoT-oriented interfaces, EM1808 can meet customer demand for AI high-performance computing products, and make it easy for traditional embedded devices to upgrade artificial intelligence.

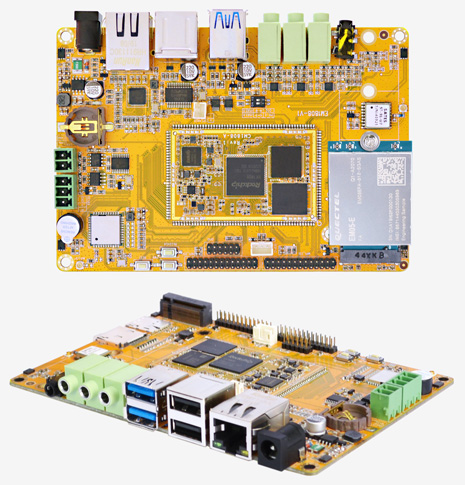

EM1808 SBC
