EM210-III

* Processor: Samsung ARM Cortex-A8 S5PV210, 1GHz
* RAM: 256MB
* Storage: 512MB
* Interface: USB Host, USB Device, 3x UART, LCD, Ethernet, JTAG, Audio, GPIO, ADC, PWM, SD, RTC, Camera
* Operating system: Linux 2.6.35
* Dimensions: 131 x 105 mm

    MINI210-III MINI2440MINI2416-III

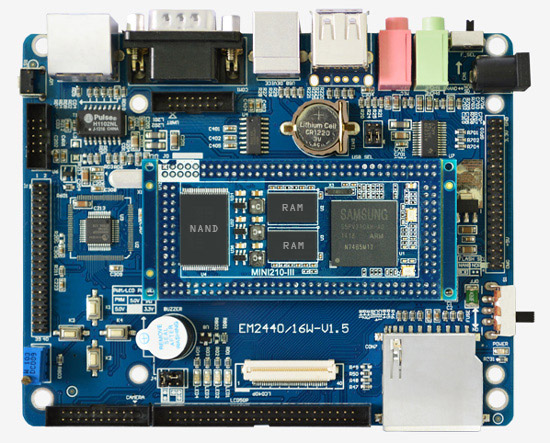

EM210-III is a Single Board Computer (SBC) based on the Samsung ARM Cortex-A8 S5PV210 CPU clocked at 1GHz. The SBC is a great balance between high performance and low cost, providing highly customizable features and board configurations.
The CPU module MINI210-III features a multi-purpose processor. It allows development of multi-function embedded applications through its multiple peripheral interfaces.
The base board supports three versions of CPU module, except MINI210-III, the MINI2440 based on Samsung S3C2440 and  MINI2416-III based on Samsung S3C2416are optional.
By default, the SBC comes pre-installed with Linux2.6.35.

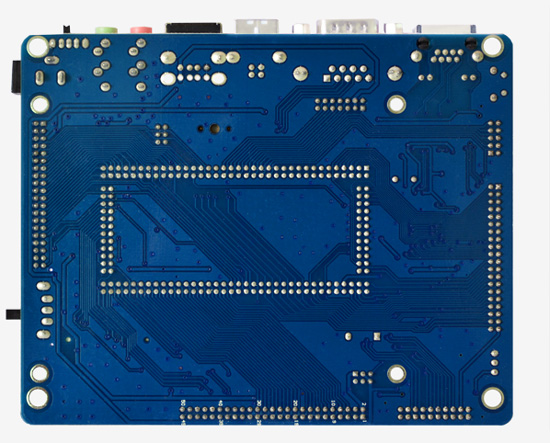

low cost embedded computer EM210-III picture
