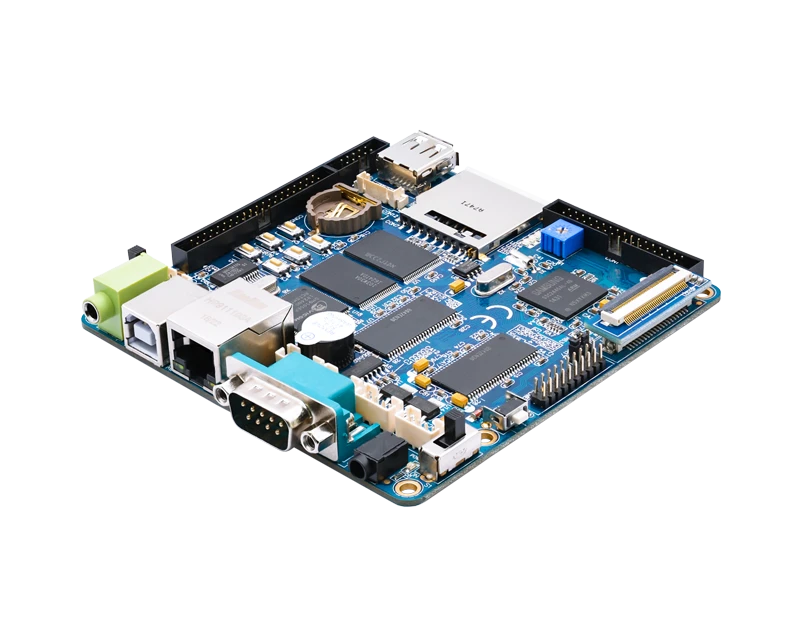

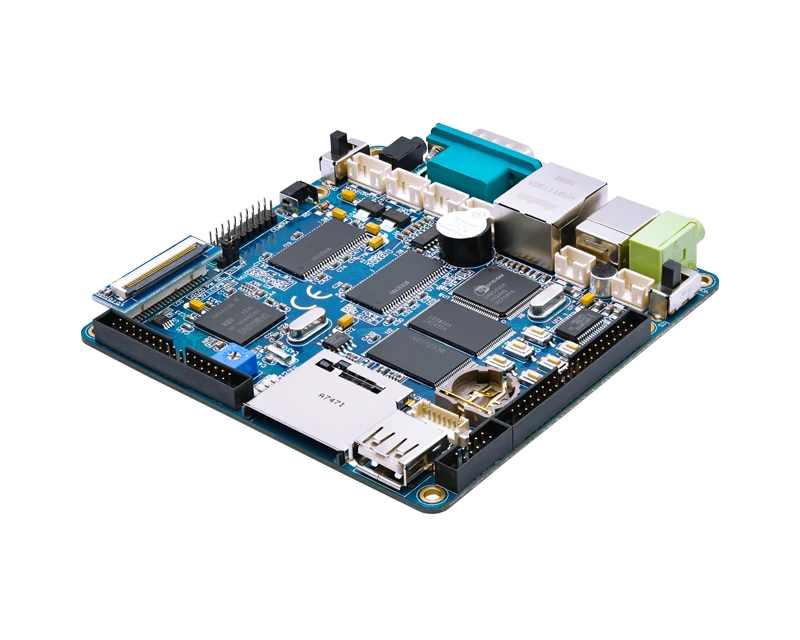

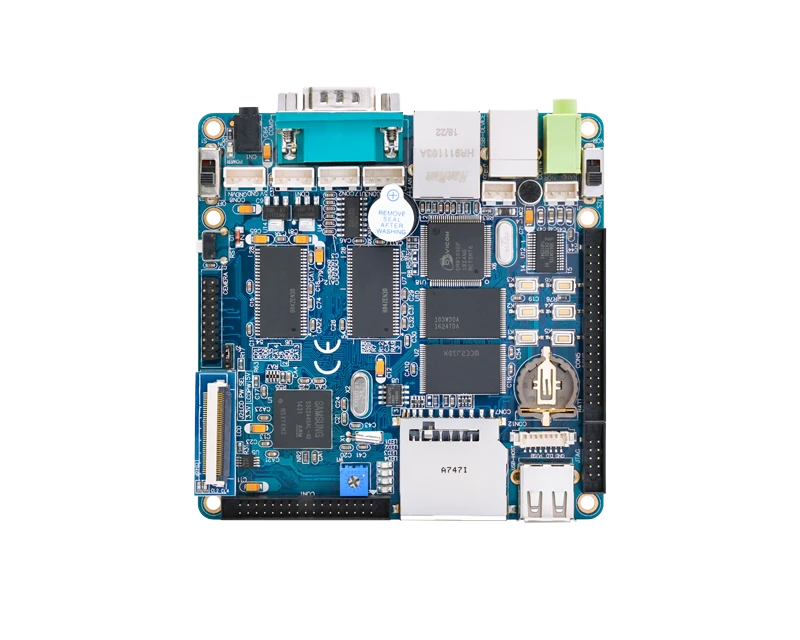

EM2440

* Processor: Samsung ARM9 S3C2440A ARM920T, 400MHz
* RAM: 64MB/128MB
* Storage: 128MB/256MB/512MB/1GB

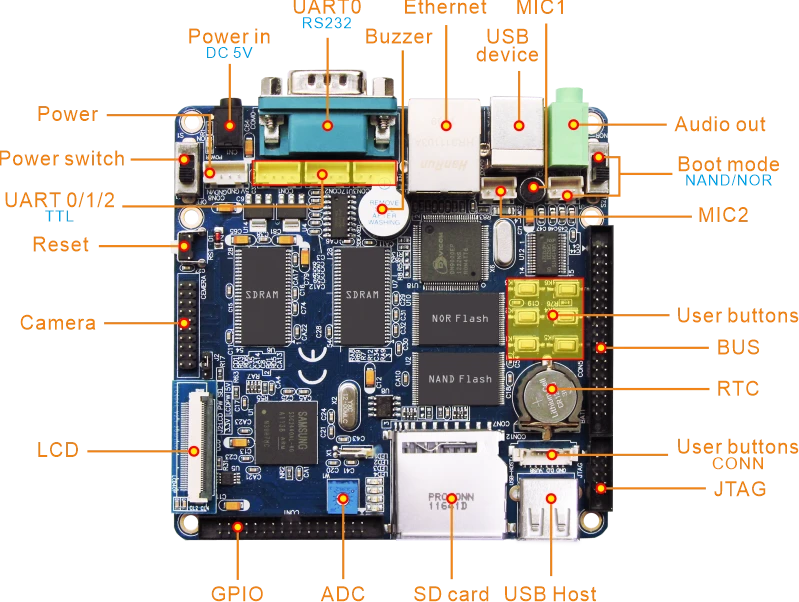

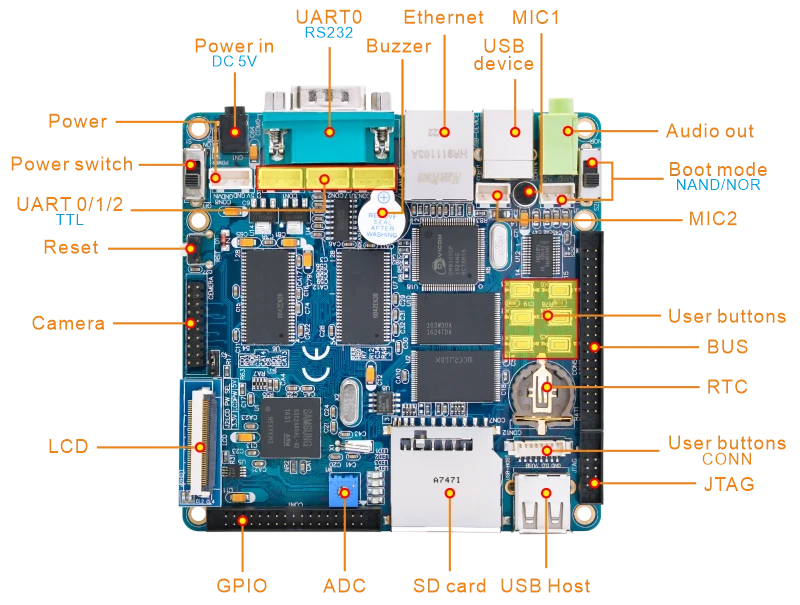

* Interface: USB Host, USB Device, RS232, 3x TTL UART, LCD, Ethernet, Camera, JTAG, Audio, GPIO, SD, User button connector
* Operating system: Linux 2.6.32, WinCE6.0(R3)

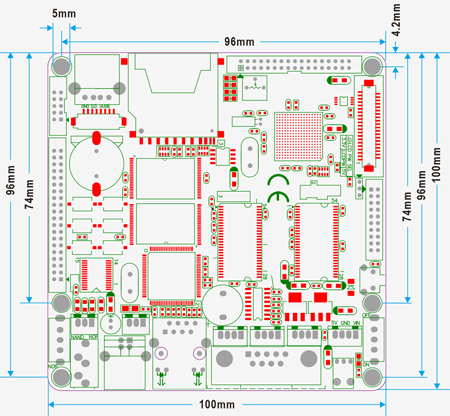

* Dimensions: 100 x 100 mm
* Expansion Module: 4.3-inch LCD, 7-inch LCD

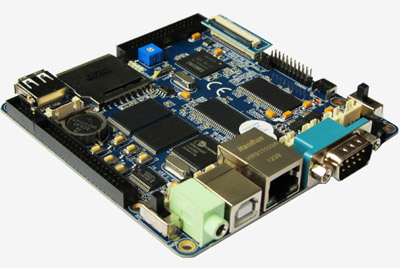

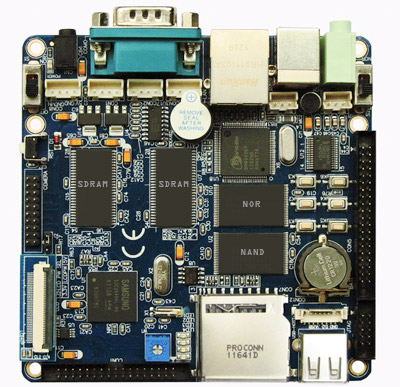

The EM2440 is a small single-board computer with plenty of I/O and several options for touch-screen LCD interfaces. This SBC is based on a Samsung ARM9 S3C2440 microprocessor and capable of supporting both Windows CE6.0(R3) and Linux 2.6.32 OS, and measures 10cm x 10cm, 6-layer PCB turmeric craftwork. The principal attraction of the EM2440 is all the I/O. In particular, there are a number of 3- and 4-pin shells with serial, audio and power connections, and a 34-pin shrouded IDC header which carries processor GPIO, clocks and I2C signals. It is ideal for learning about ARM systems or integrating into numerous products.
