EM3128

* Processor: Rockchip RK3128. Quad-Core Cortex-A7, 1.2GHz
* RAM: 1GB
* Storage: 8GB
* Interfaces: 2x UART, Debug, USB Host, USB OTG, Ethernet/RGB, Micro SD, LVDS/MIPI DSI, HDMI, CIF, SPI, SPDIF, Aduio I/O, CVBS, GPIO, etc.
* Operating system: Android 7.1, Debian 9

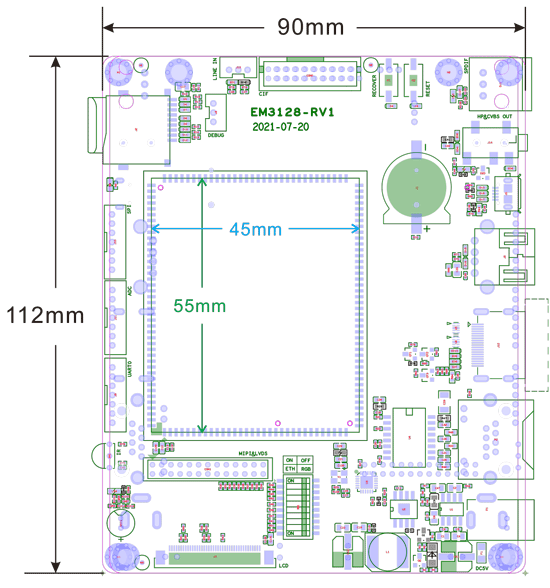

* Board size: 55 x 45 mm

     RK3128-CPU-module

EM3128 single board computer is powered by a Rockchip RK3128 quad-core Cortex-A7 processor, which integrates a Mali-400MP2 GPU. This RK3128 development board comes with 1GB RAM and 8GB eMMC flash, Ethernet, Wi-Fi and Bluetooth, and various other ports and expansion headers, and aimed at low cost and power efficient embedded projects on the market.

RK3128_SBC_EM3128

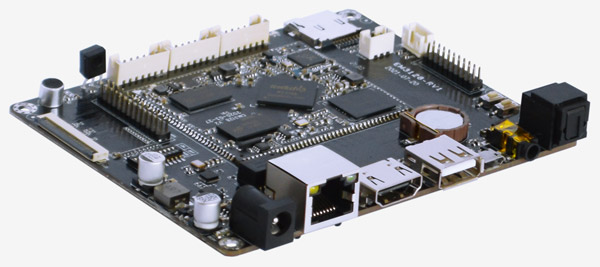

RK3128_SBC_angle
