EM3399

* Processor: Rockchip RK3399. Dual-core Cortex-A72 @ 1.8GHz + Quad-core Cortex-A53 @ 1.4GHz
* RAM: 4GB

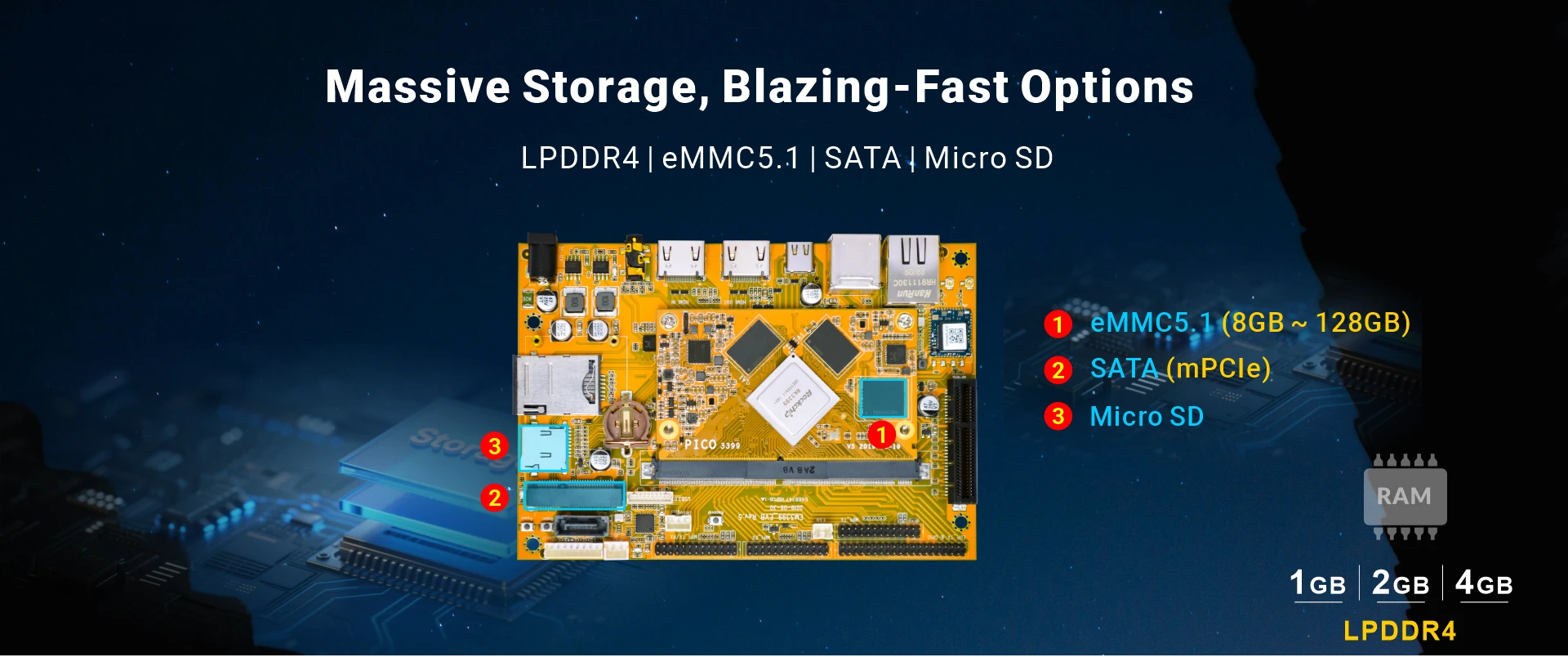

* Storage: 8GB

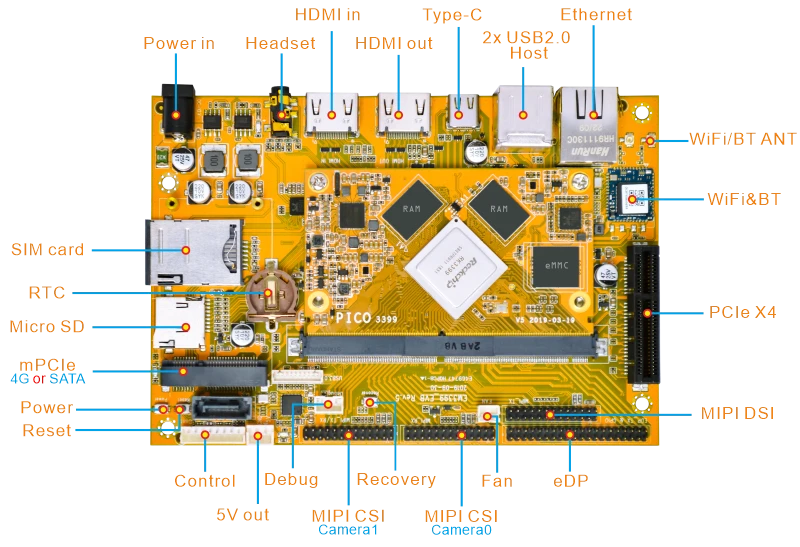

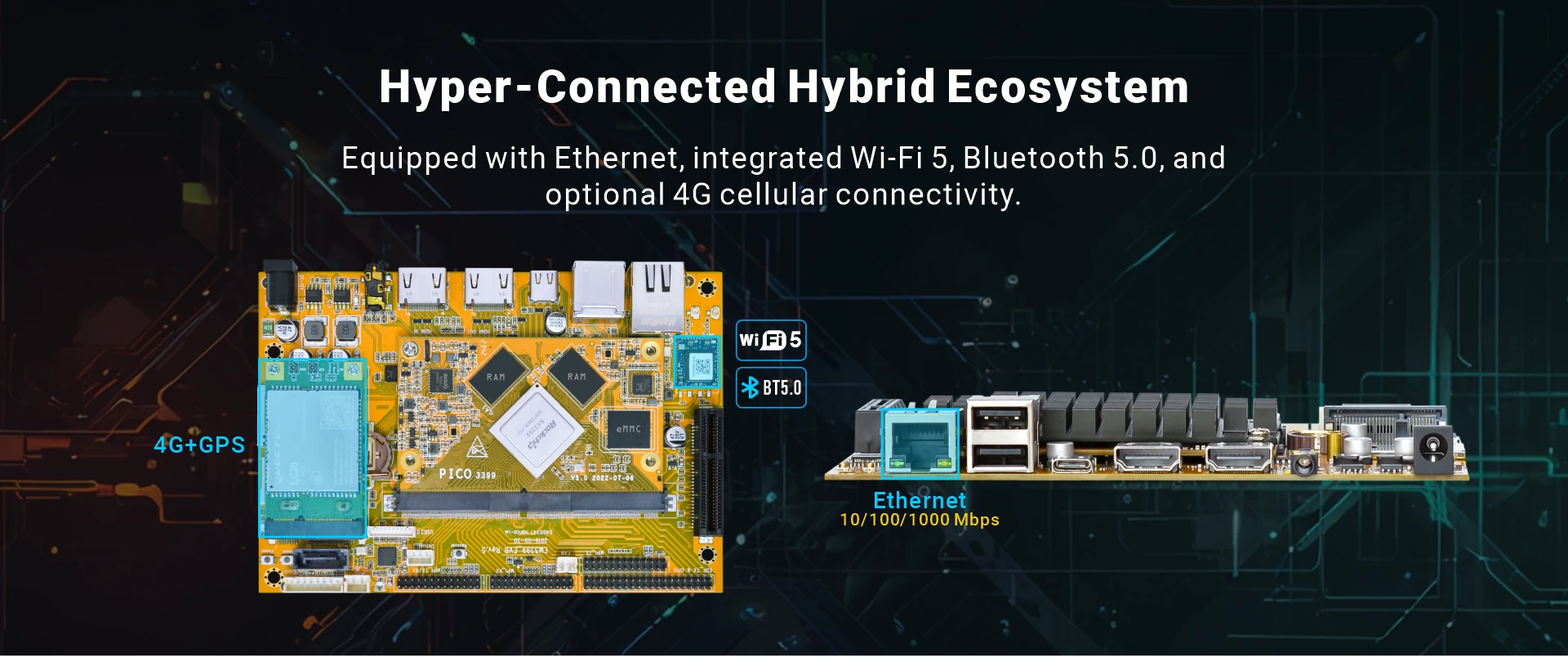

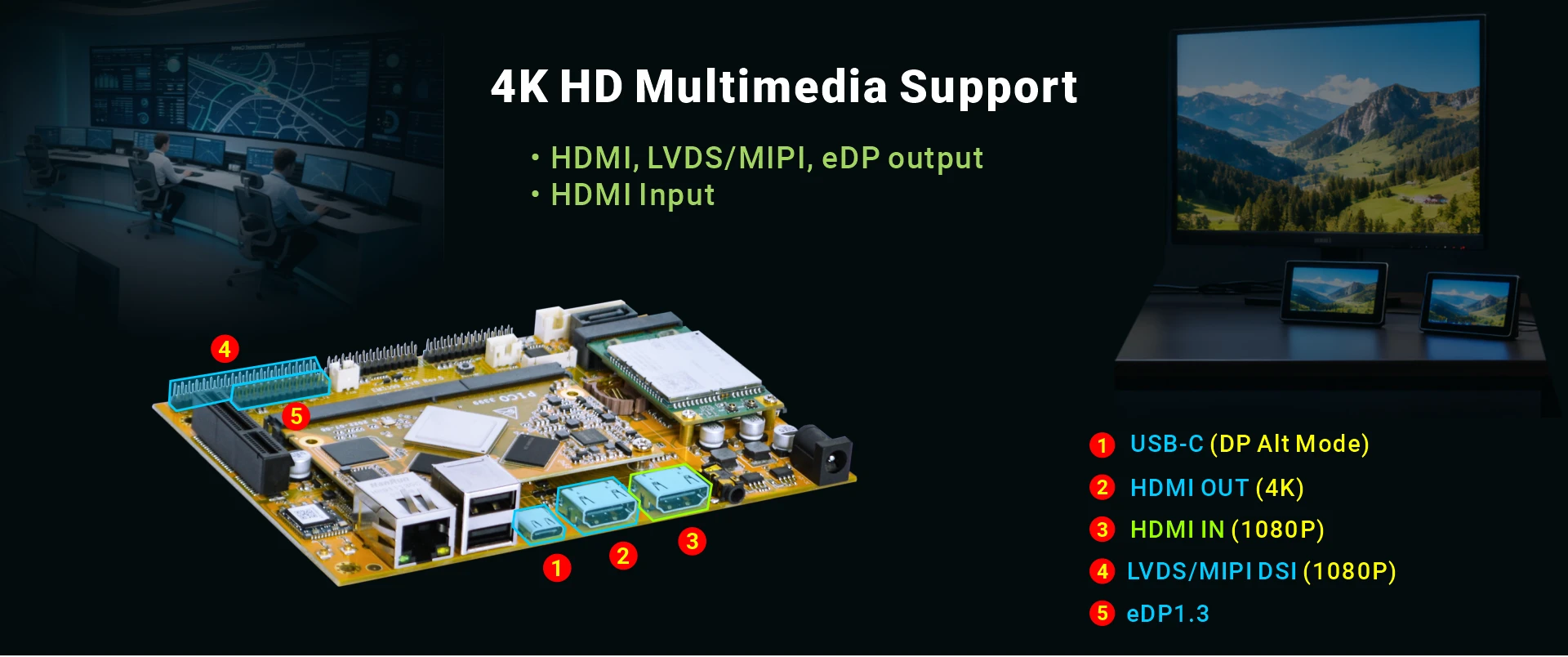

* Interface: 2x USB2.0 Host, USB Type-C, Debug, MIPI, GbE, HDMI in, HDMI out, Audio, Micro SD, PCI-E(3G/4G/SSD), PCI-E x4, SIM slot, eDP LCD
* Operating system: Android 11, Debian 10

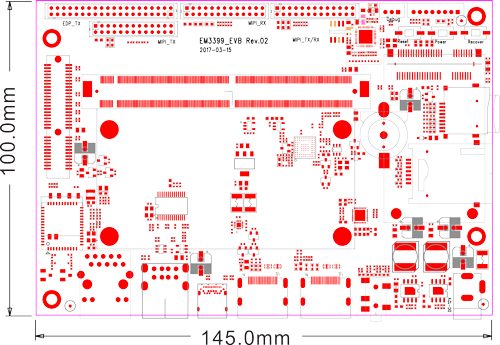

* Dimensions: 145 x 100 mm

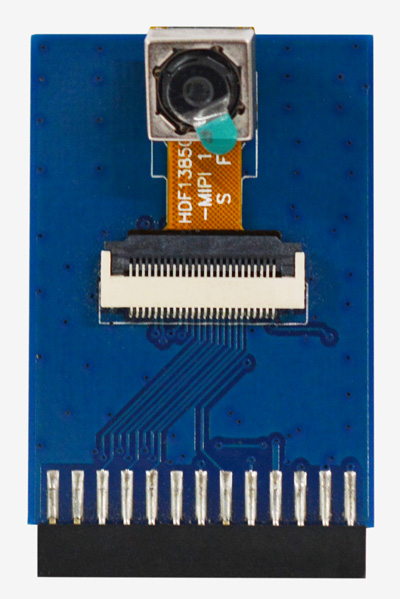

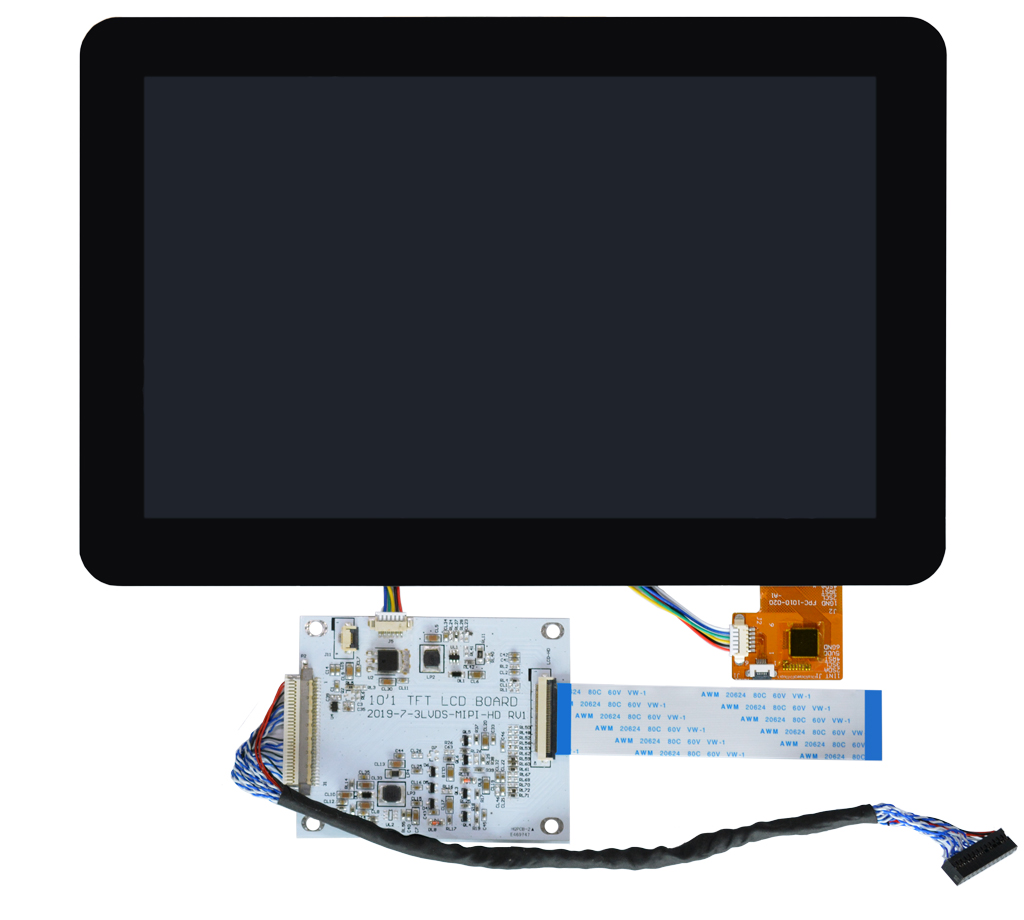

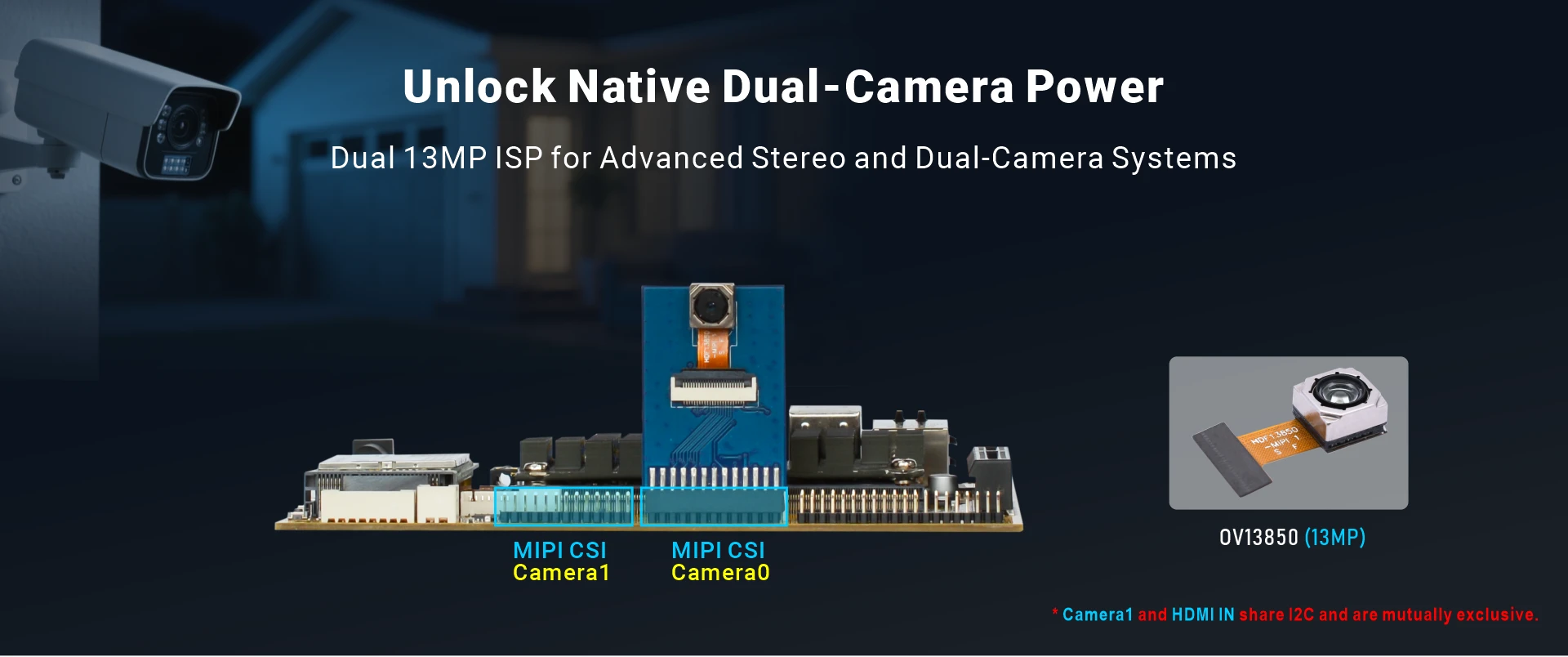

* Expansion Module: 4G model, WiFi, Camera, 10.1-inch LCD
pdf CE Certification, CE-EMC Report, FCC Certification, FCC-VOC Report

    RK3399 module PICO3399

The Boardcon EM3399 is a hexa-core single-board computer based on Rockchip RK3399 processor with two Cortex A72 cores clocked at up to 1.8GHz, and four Cortex A53 cores teamed with a Mali-T860MP4 GPU, featuring 3G/4G and WiFi/BT module, supporting 4K H.265 video decoding up to 60 fps, HDMI in/output, USB Type-C, Gigabit Ethernet, Android 11 operating system, and target to 2in1 Android tablets, VR, TV-BOX, laptops, in-vehicle navigations, communications and other terminals covering industrial and consumer applications, including smart Device, advertising devices / the all-in-one machines, POS systems, vehicle control terminals, thin-clients, VOIP video conferencing security / monitoring / policing, IoT, as well as other fields.

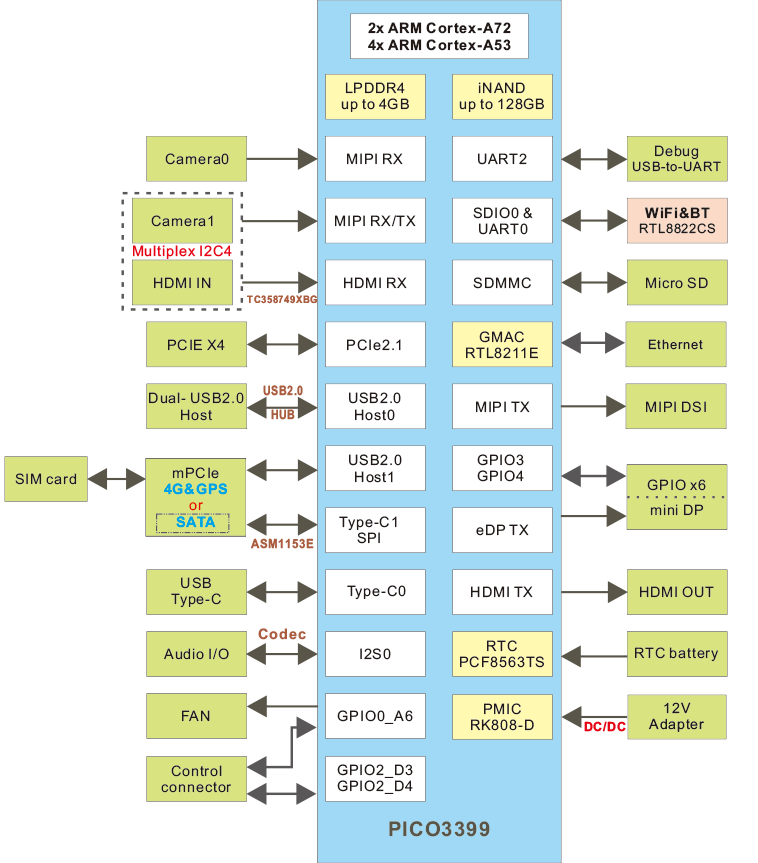

The platform is implemented with a PICO3399 computer-on-module providing most of the functions and interfaces, and EM3399_C carrier board providing connectors and several additional functions.
The processor of EM3399 provides terminals with faster operation speed and better visual effects by utilizing its powerful CPU, GPU, faster interface standards and transfer speeds, 4K@60fps10-bit video playback and output capabilities that support H.265/VP9 encoding, better image decoding, rich game engines, and 3D graphics processing capabilities.

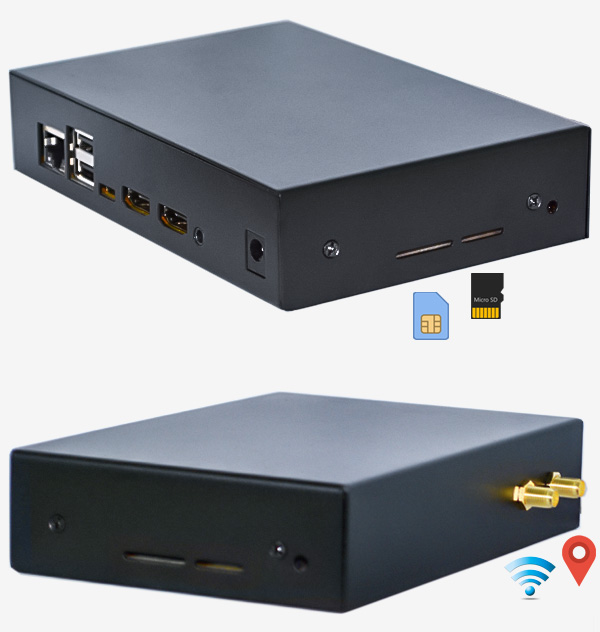

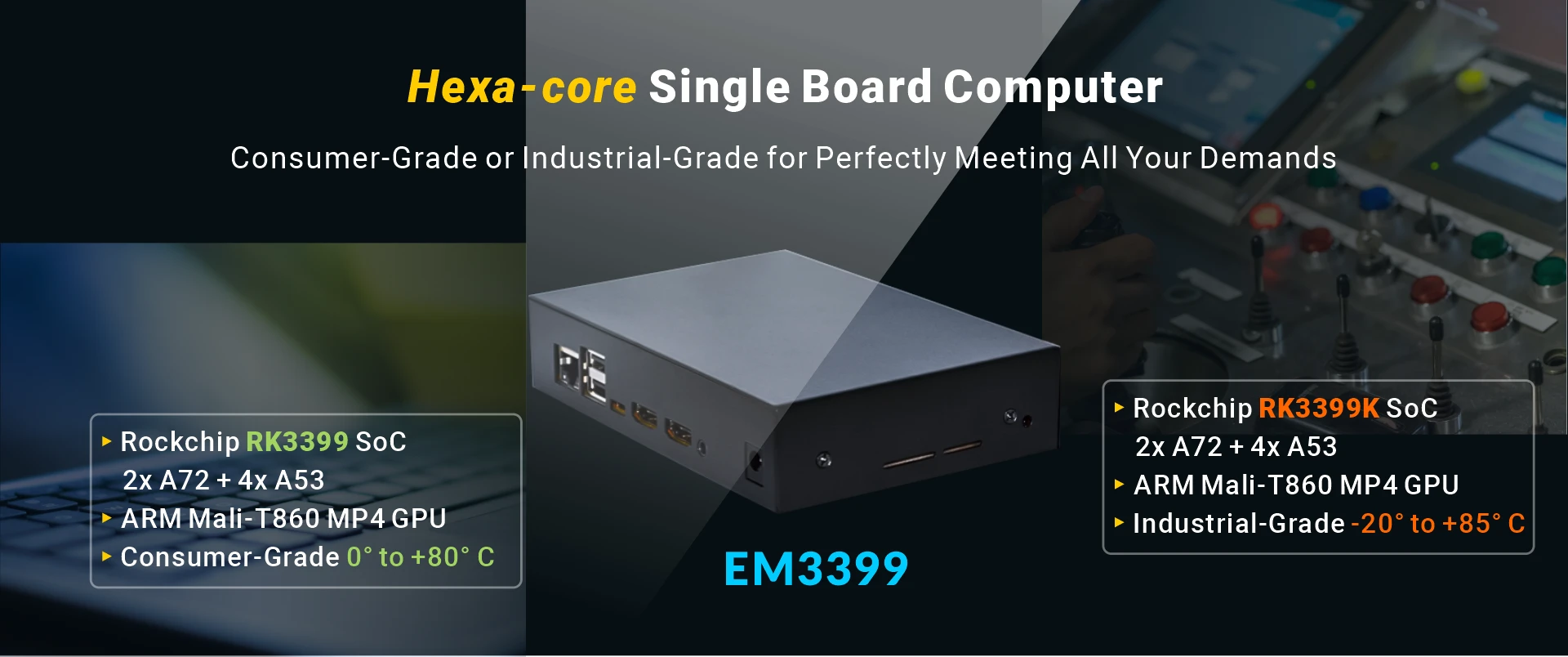

RK3399 BOX

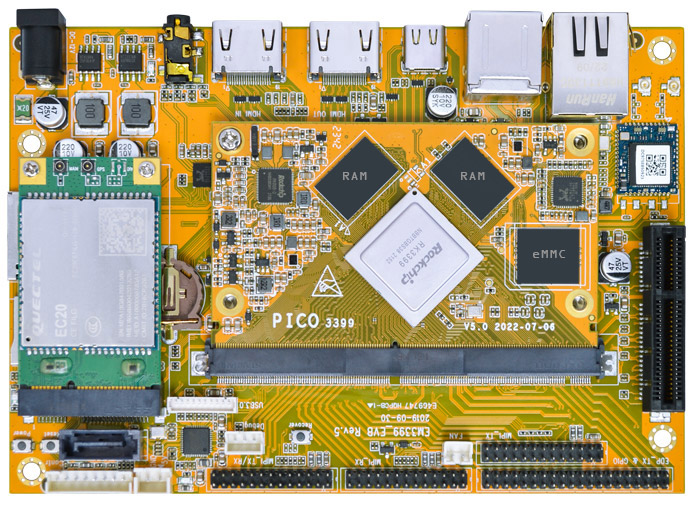

EM3399 Rockchip RK3399 development board

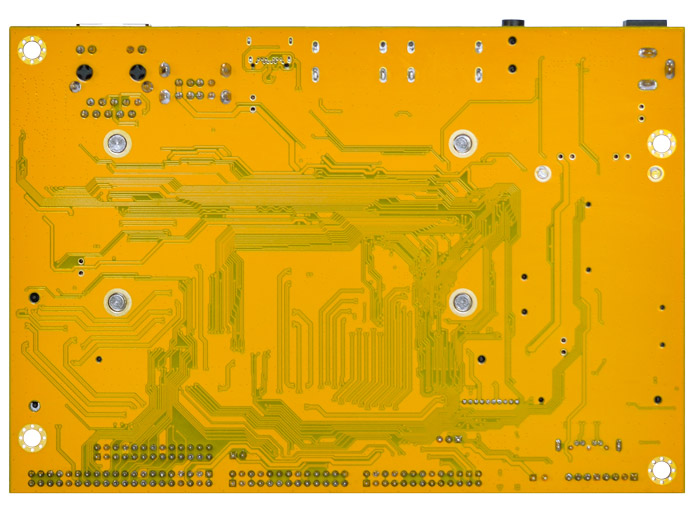

EM3399_V5_rear

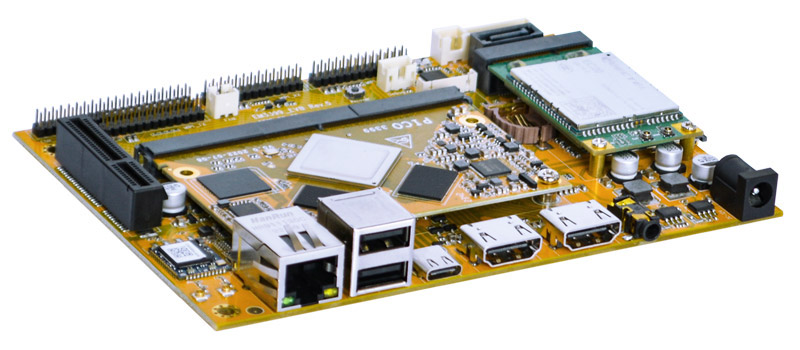

EM3399_V5_angle_s
