EM4418

* Processor: Samsung S5P4418. Quad-Core Cortex-A9, 1.4GHz
* RAM: 1GB
* Storage: 8GB
* Interface: 3x USB Host, USB OTG, Debug, LCD(LVDS), Ethernet, HDMI, Audio, SD, RTC, GPIO, VGA, 3G, SIM
* Operating system: Android 4.4.2
* Dimensions: 175.3 x 117.5 mm

     MINI4418

Boardcon EM4418 SBC uses the Cortex-A9 quad core, which is 50% overall performance higher than Cortex-A8 core. It provides 6.4GB/s memory bandwidth for heavy traffic operations such as 1080p video encoding and decoding, 3D graphics display and high resolution image signal processing with Full HD display. The application processor supports dynamic virtual address mapping, which helps software engineers to fully utilize the memory resources with ease.
EM4418 provides the best 3D graphics performance with wide range of APIs, such as OpenGL ES 1.1, 2.0.Superior 3D performance fully supports Full HD display. The native dual display, in particular, supports Full HD resolution of a main LCD display and 1080p 60frame HDTV display throughout HDMI, simultaneously.
The EM4418 SBC provides mounting and power for the cpu SOM, and adds signal conditioning and connectors for functions including 3x USB 2.0 host ports, 1x USB2.0 OTG port, 1x debug serial port, and display interfaces. It also includes a microSD slot and optional 3G module.
The EM4418 is pre-installed with Android 4.4.2 and offer Linux 3.4.39 kernel with uboot, and it can provide cost - effective of embedded solutions for MID, multimedia advertising, intelligent control terminals, and smart instrumentation.

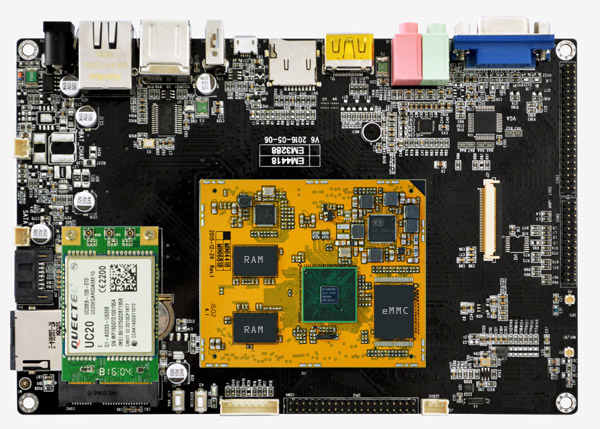

EM4418 single board computer
