Seamless Integration

Seamless integration of high-performance and extensive functionality.

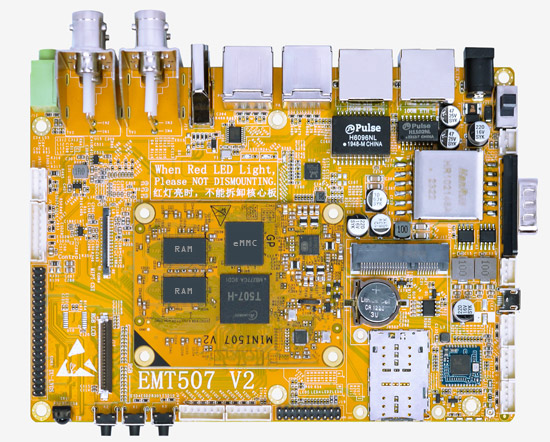

EMT507 development board is driven by the Allwinner T507-H processor, renowned for its exceptional performance and adaptability in various applications, from industrial automation to advanced multimedia projects.

Power over Ethernet (PoE)

Enhanced with Power over Ethernet (PoE) capabilities.
EMT507 is equipped with PoE, offers a robust, reliable, and versatile solution for businesses in high-tech industries.

User-Friendly OS

Operating on Android 10, the EM507 provides a versatile and accessible platform, suitable for a multitude of applications.

Target Applications

Whether it's for controlling industrial systems, automotive applications, or advanced multimedia setups, this board delivers unmatched performance, flexibility, and convenience, solidifying its position as a top choice in the market.

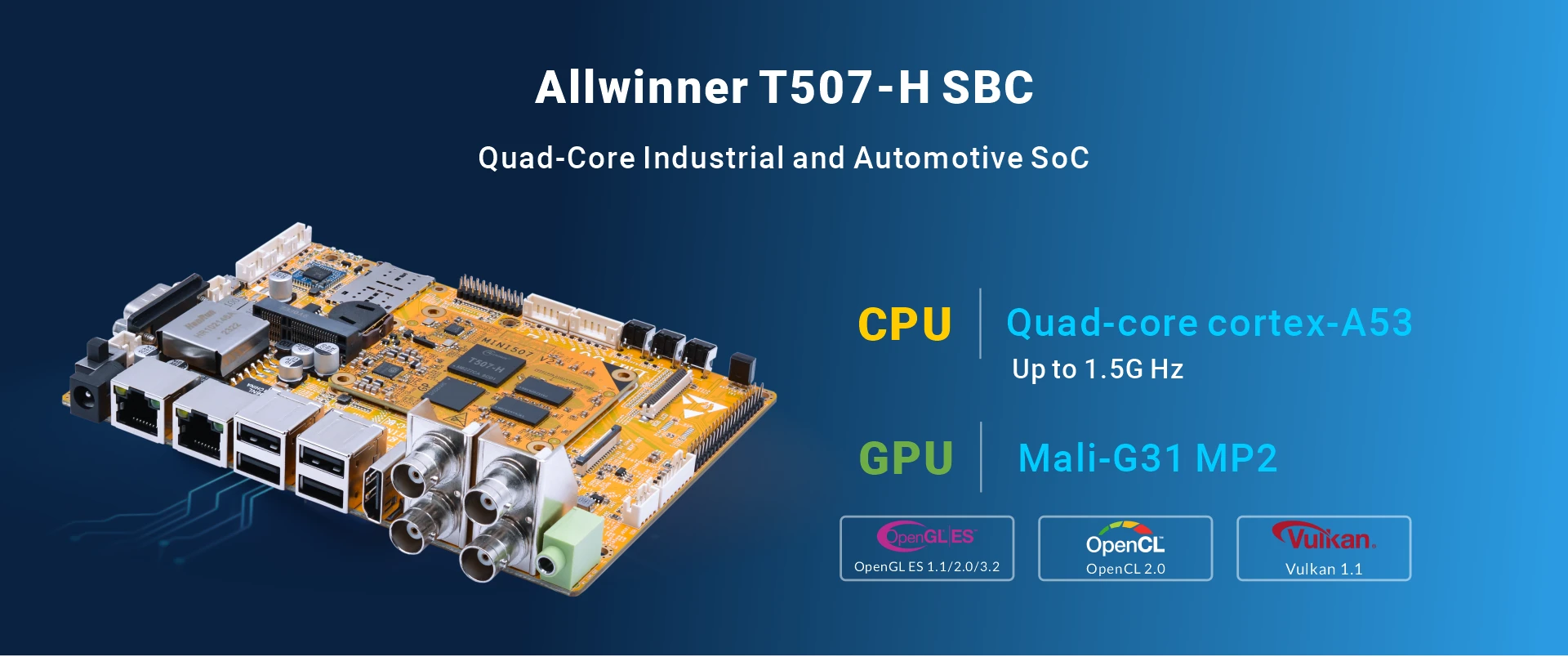

Powerful Processor

Allwinner T507-H features a quad-core Arm Cortex-A53 processor clocked at 1.5GHz. This powerful core ensures efficient and smooth operation, suitable for demanding applications.

High-Quality Graphics

Equipped with an ARM Mali-G31 MP2 GPU, the EMT507 supports OpenGL ES 3.2, Vulkan 1.1, and OpenCL 2.0, offering advanced graphics processing capabilities essential for high-definition video and complex graphics rendering.

Superior Video Processing

The EMT507 boasts 4K@60fps H.265 video decoding and 4K@25fps H.264 video encoding capabilities, making it an ideal choice for digital signage, streaming, and other multimedia applications requiring high-definition video processing.

Robust Memory and Flexible Storage

With 2GB DDR4 RAM, the EMT507 facilitates smooth multitasking. Storage is versatile, ranging from 8GB to 64GB, to suit various data-intensive applications.

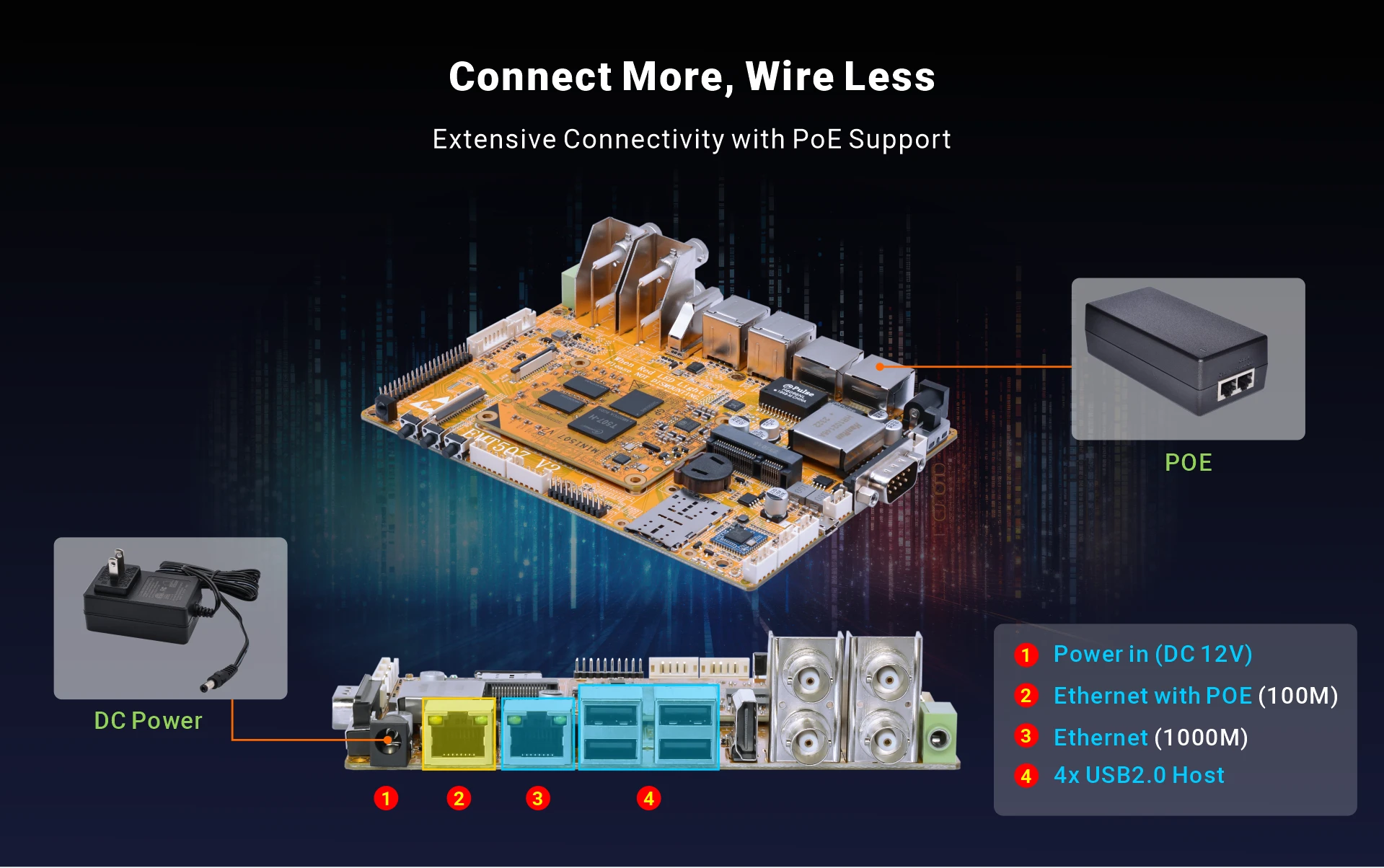

Extensive Connectivity with PoE Support

Featuring a comprehensive set of interfaces, including USB, Ethernet, HDMI, LVDS, RGB, and camera interfaces, this T507 SBC excels in connectivity. The addition of Power over Ethernet (PoE) further enhances its capabilities, allowing for simpler wiring and powering solutions, especially in remote or challenging locations.

Compact and Expandable Design

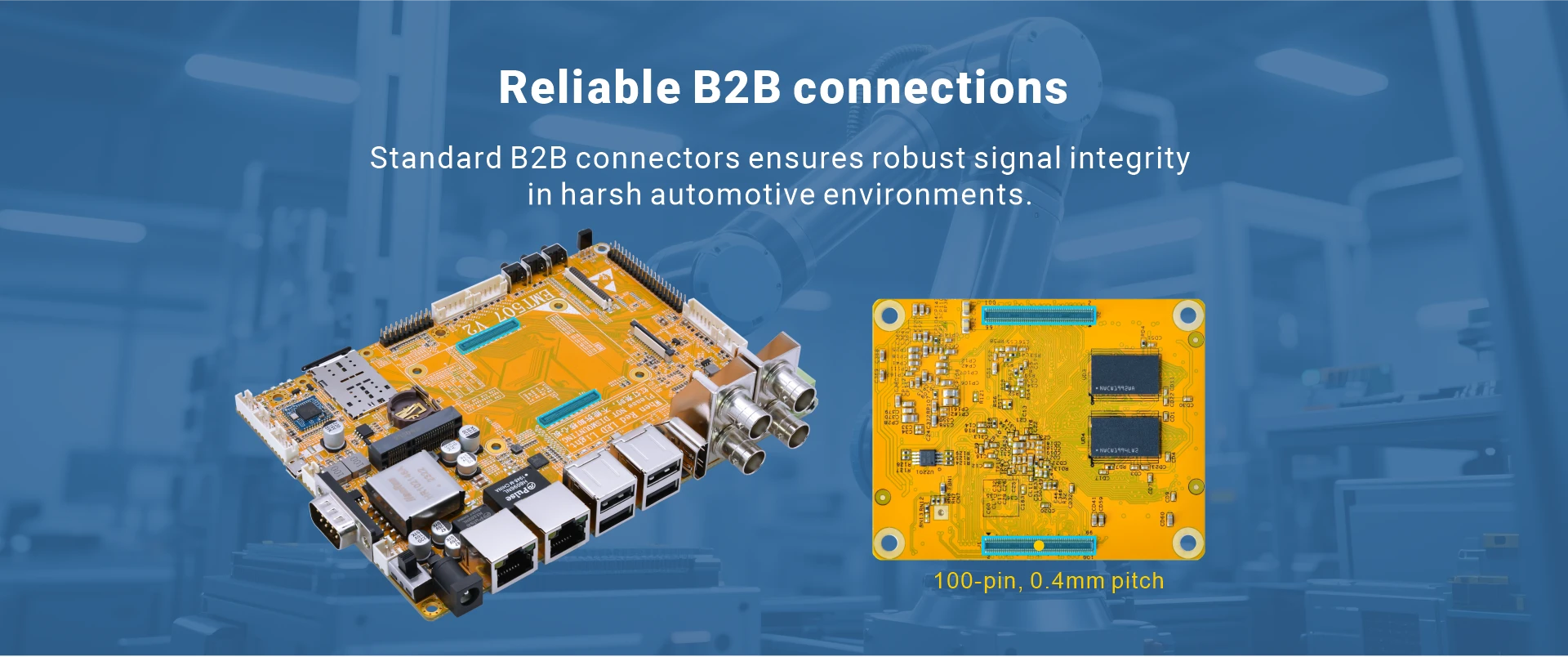

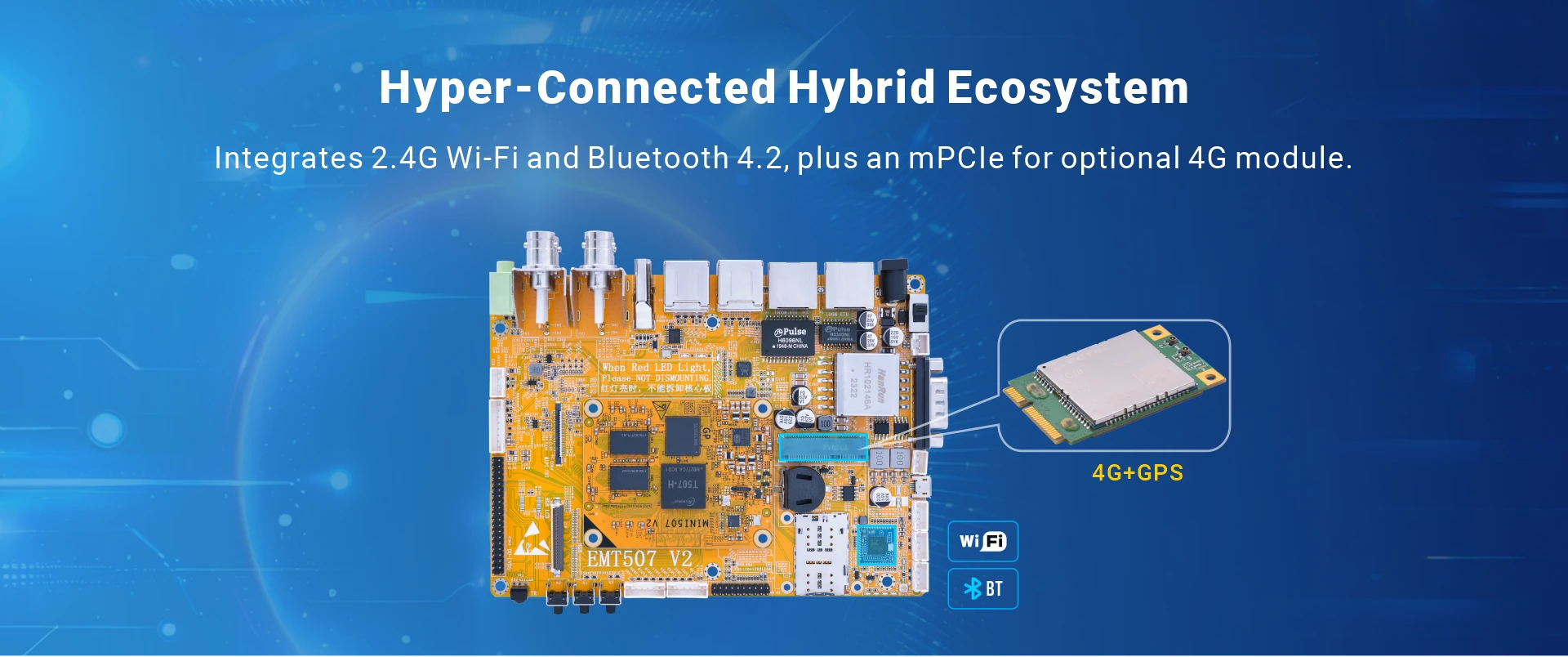

The board measures 150mm x 110mm and comprises a 4-layer carrier board and a 6-layer CPU board. It supports expansion modules like WiFi, 4G, and a 10.1" LVDS LCD, offering scalability and customization to meet evolving project needs.

Durability and Longevity

AEC-Q100 certification and a wide operating temperature range (-40°C to +85°C) ensure the board's reliability and longevity in various environments.

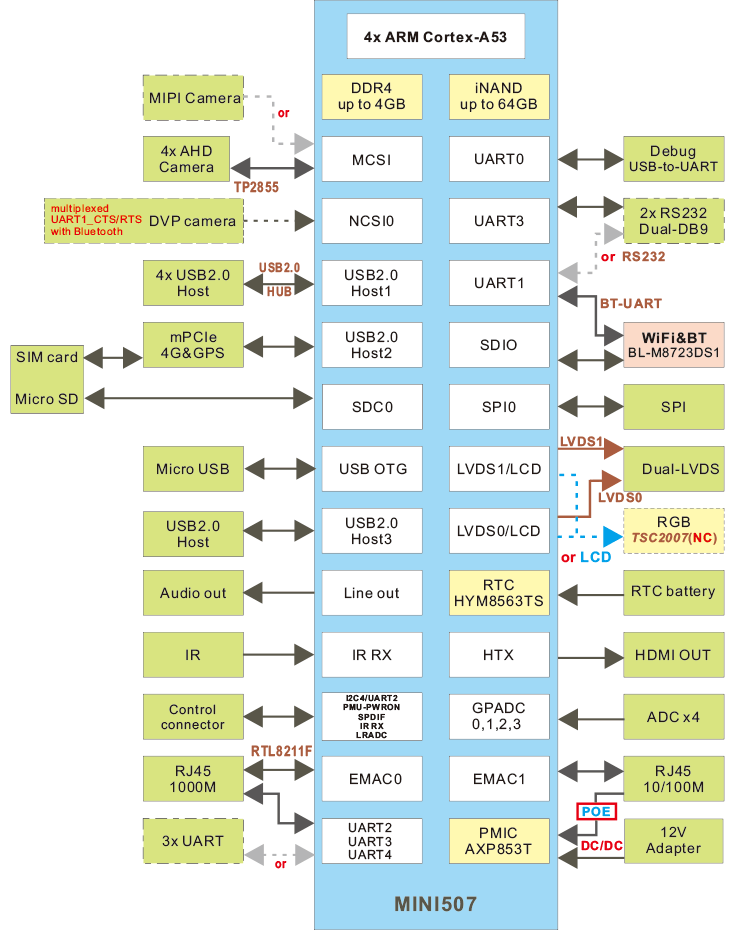

 Block Diagram

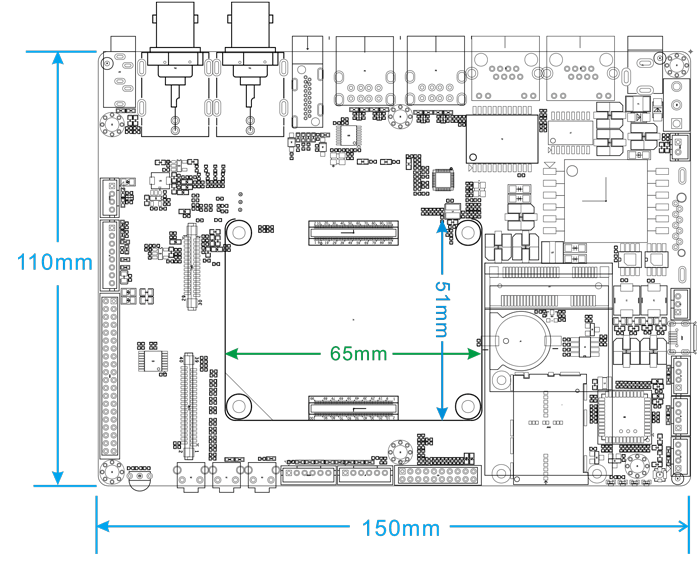

 PCB Dimension

If you order the SBC or any question, please feel free to contact us at market@armdesigner.com
