Idea3288

* Processor: Rockchip RK3288. Quad-core Cortex-A17, 1.8GHz
* RAM: 2GB
* Storage: 8GB
* Interfaces: GbE, mDP, HDMI, 3x USB2.0 Host, USB OTG, Audio, PWR&Battery, MIP DSI/CSI, UARTs, RS485, CAN, POE, Micro SD, PCI-E(4G), M.2 slot (SSD), SIM slot, etc.
* Operating system: Android 9, Android 7.1.2

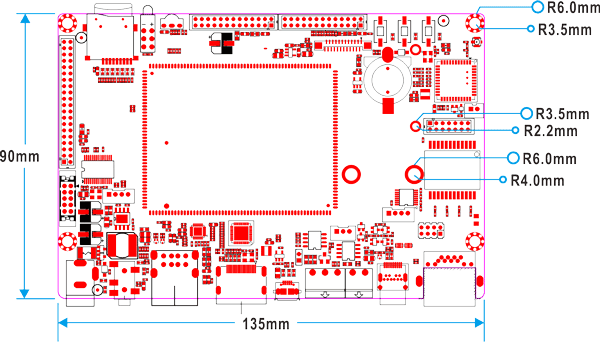

* Dimensions: 135 x 90 mm
* Expansion Module: 4G model, WiFi, Camera, 10.1-inch LCD

     CM3288

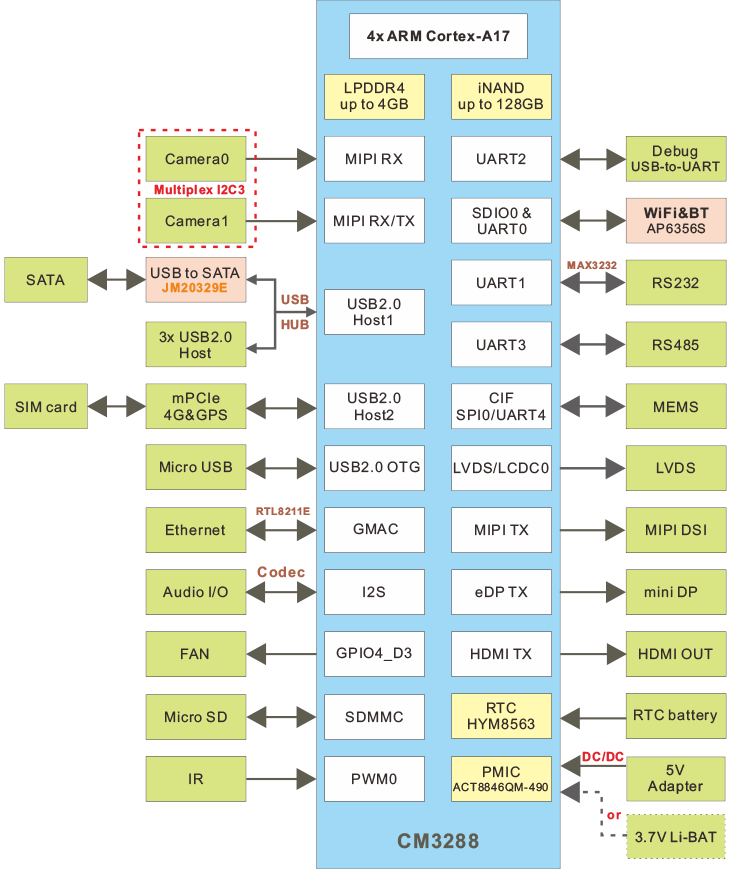

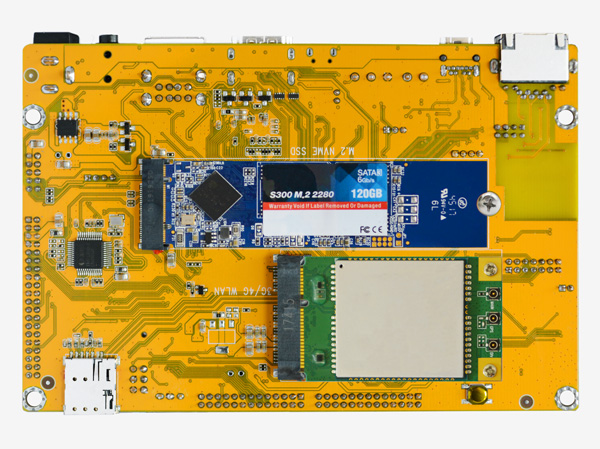

The Idea3288 features a Quad-Core Rockchip RK3288 processor and a Mali-T764 GPU, 2GB RAM, 8GB eMMC, a microSD card slot as well as a M.2 SSD for removable storage.

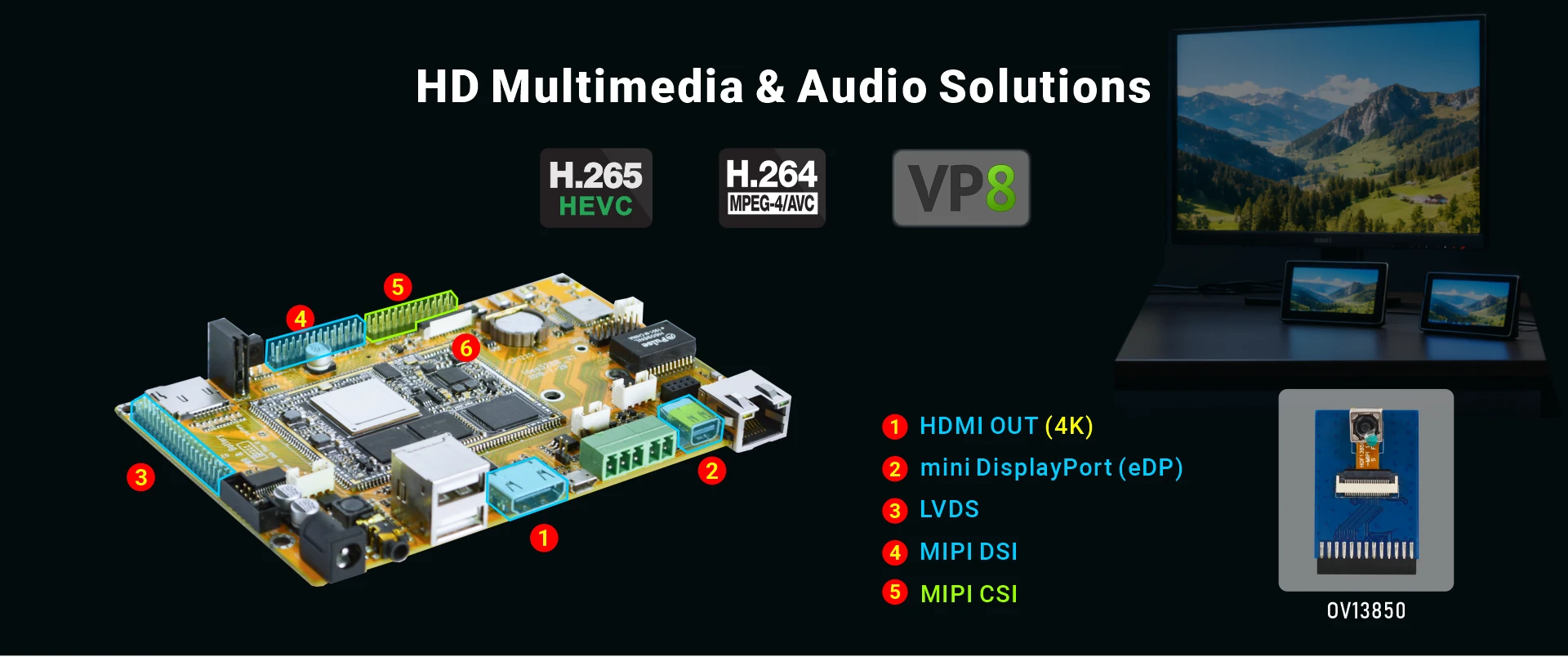

The RK3288 SBC is equipped to deliver 4K Ultra HD video at 60Hz through HDMI 2.0, making it suitable for applications that require 4K video decode capabilities. And the miniDP, MIPI DSI and LVDS output up to 3840*2160 resolution also supported.

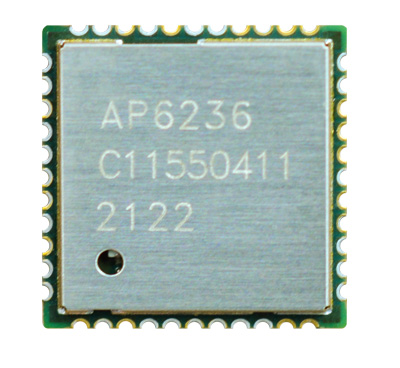

The platform is available with a WiFi&BT module with 802.11b/g/n WiFi and Bluetooth 4.0 connectivity. It is equipped with a 4G LTE(optional) that delivers 100Mbps downlink and 50Mbps uplink data rates.

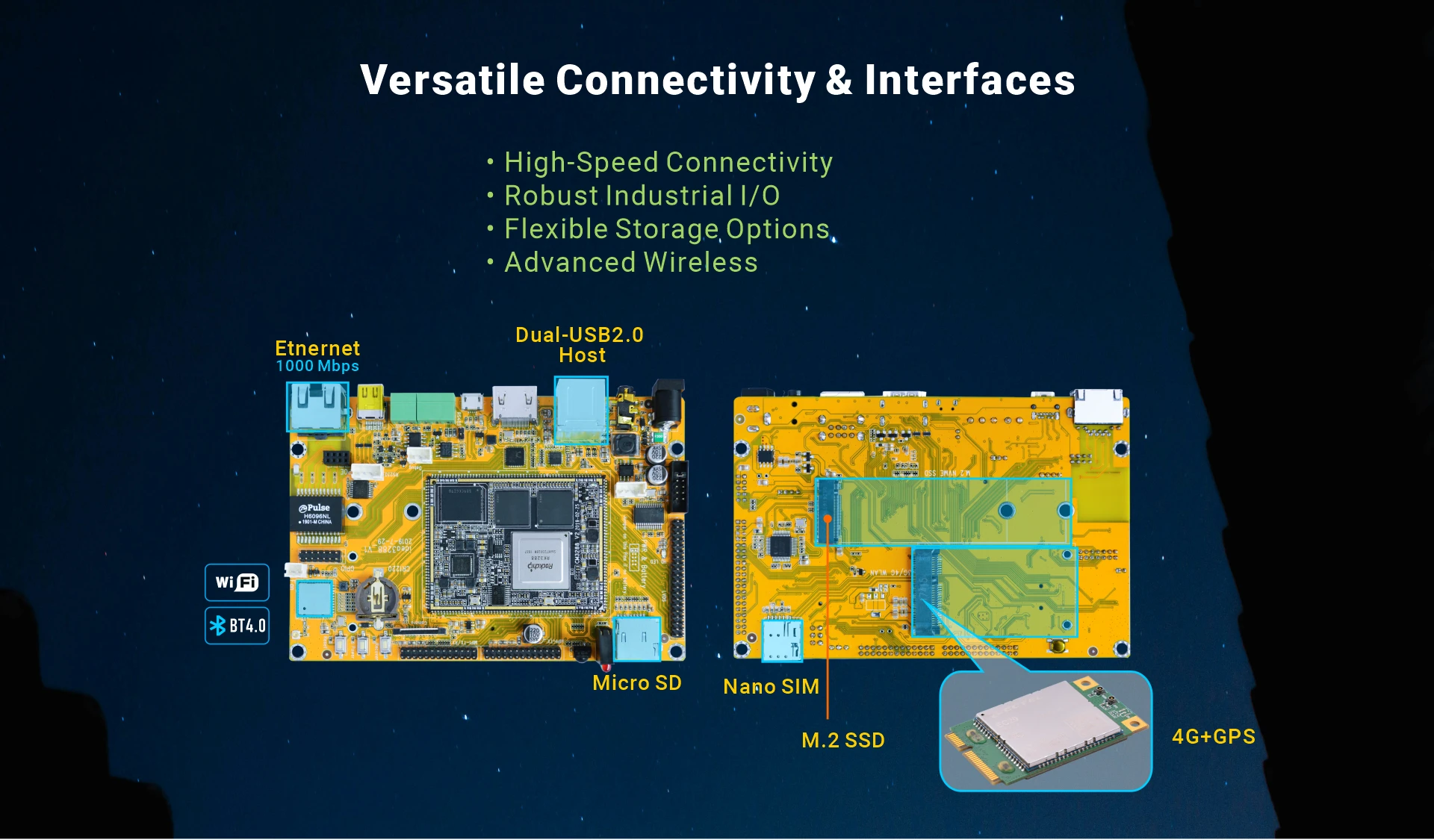

Other expansion features include Gigabit Ethernet port, CAN, RS485, RS232, IR in, etc.
The Idea3288 is designed to be flexible to meet customer’s application requirements. It is well suited Intelligent POS, TV box, Access control system, automotive IoT, Vending Machine and Commercial Display.

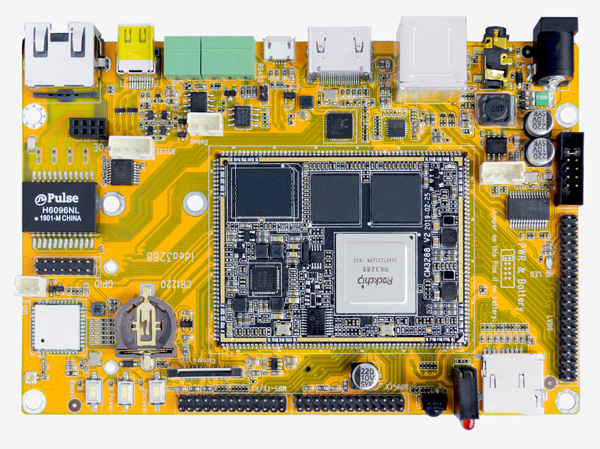

Idea3288-Front

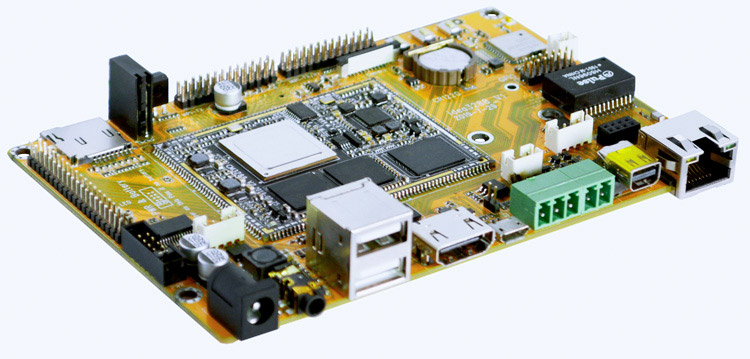

Idea3288-angle
