Idea6410

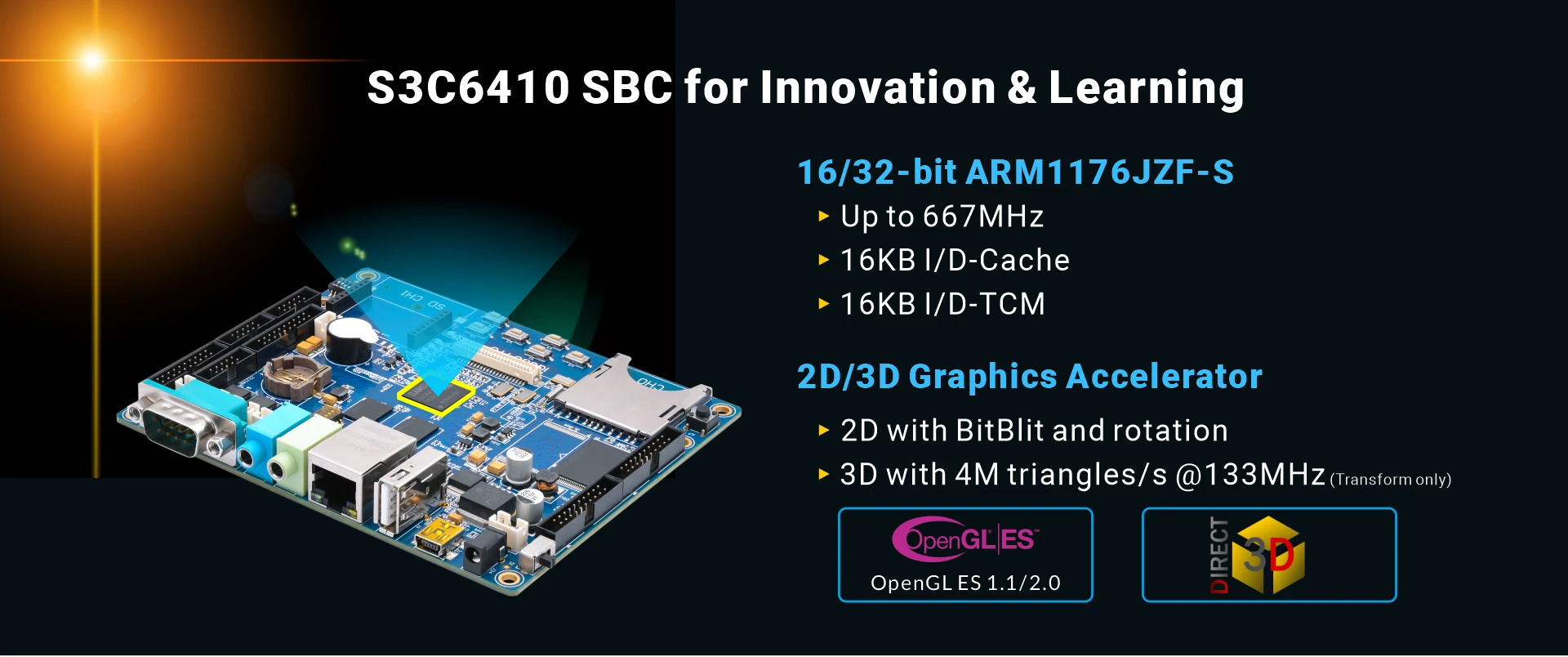

* Processor: Samsung S3C6410, ARM1176JZF-S, 667MHz
* RAM: 128MB

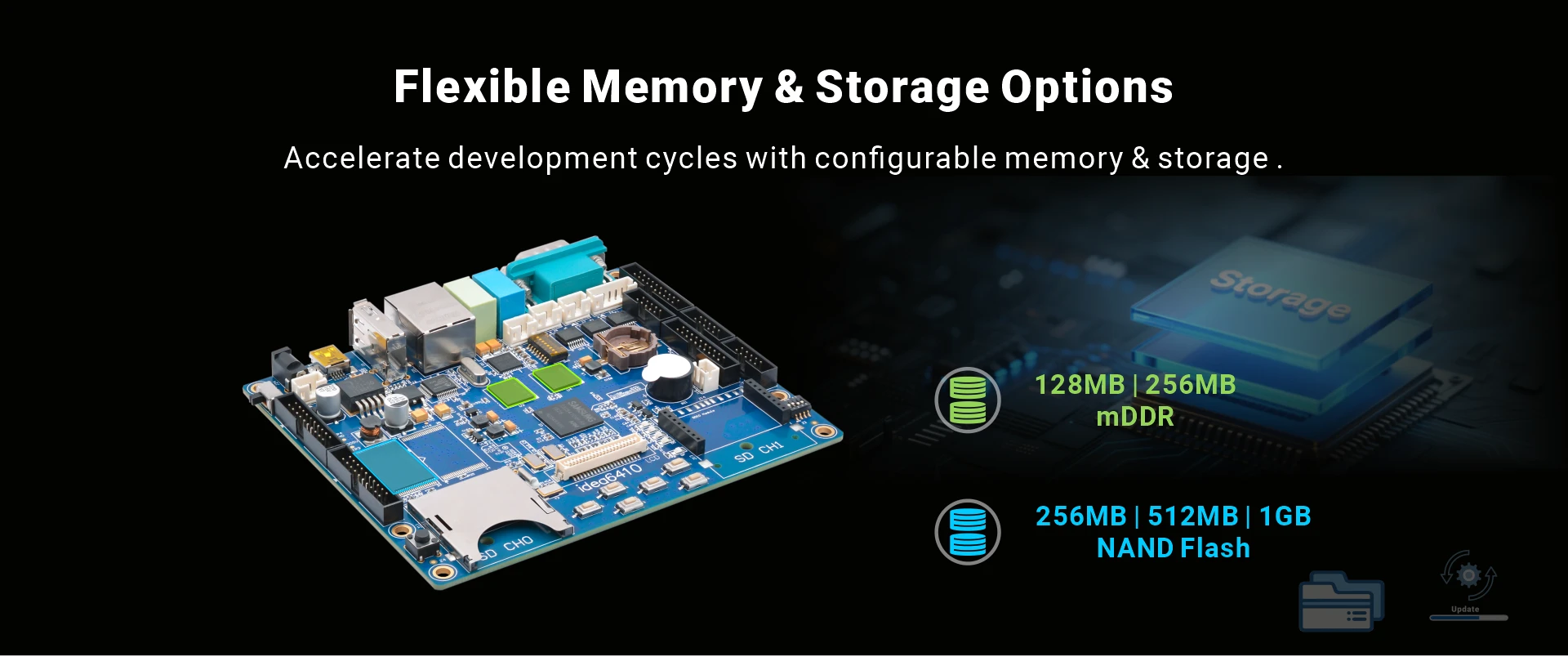

* Storage: 256MB/512MB/1GB

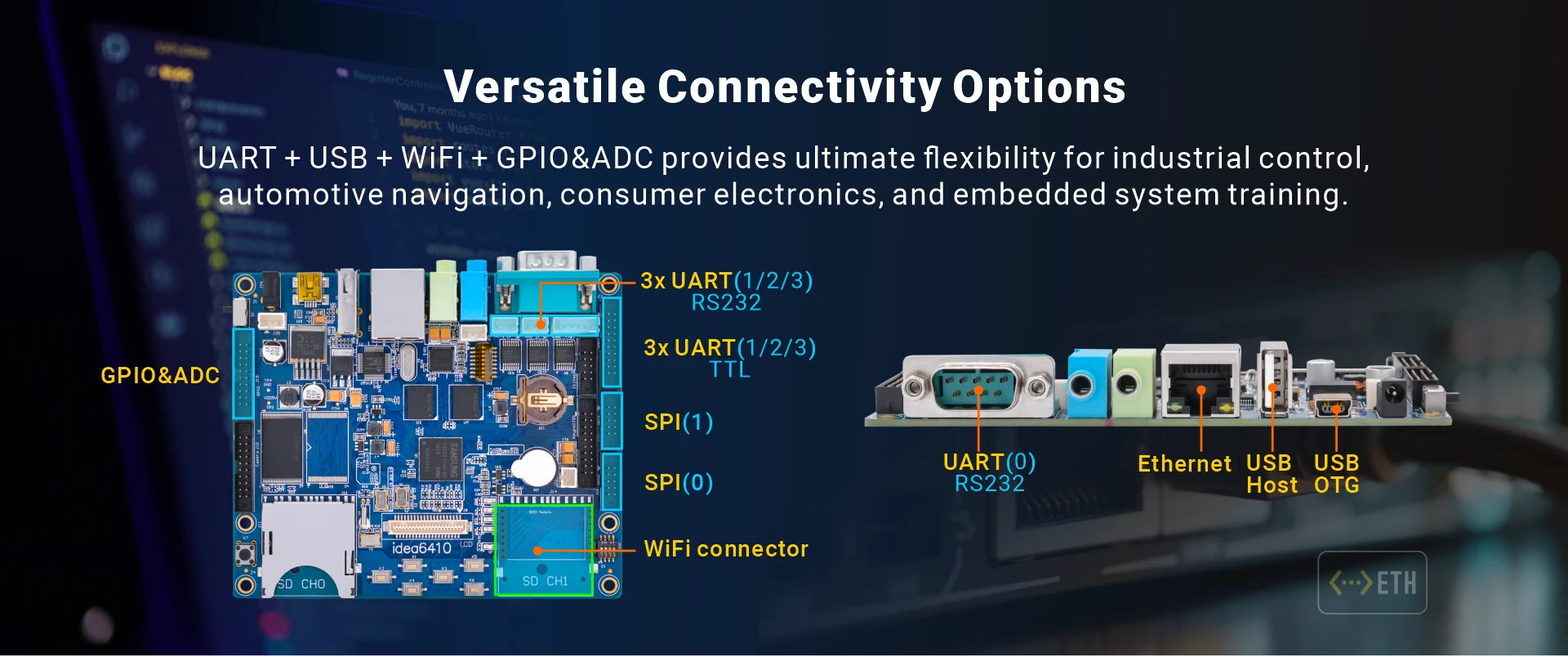

* Interface: USB Host, USB Device, 4x RS232, 3x UART(TTL), GPIO, ADC, I2C, Audio, SPI, LCD, WIFI, Ethernet, SD, Camera, JTAG, TVOUT, Keypad
* Operating system: Linux 2.6.28, WinCE6.0, Android 2.3, Ubuntu

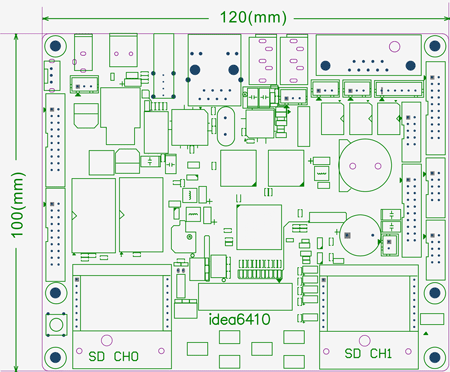

* Dimensions: 120 x 100 mm
* Expansion Module: 3G model, GPS, WiFi, Bluetooth, Camera, LCD

Idea6410 is a compact full-featured Embedded Single Board Computer(SBC) based upon Samsung ARM11 S3C6410, designed specifically for Mobile Internet Device, Notebook, Pocket PC, handheld/3G mobile implementations. Its functional contents are similar to the latest generation of Pocket PC's and smartphones, the ARM11 idea Computer allows easy embedded application development through PC-Compatible tools and methods, while ensuring in-field reliability and ruggedness for end-user systems. Other chip-level features include 4 UARTs, SPI, I2C, a real-time clock with a separate power domain, and NAND Flash and DDR memory controllers. These features make the devices particularly suitable for automotive and industrial control applications as well as medical systems. In addition to Windows Embedded CE 6.0 and Linux2.6 support, Android2.3 and Ubuntu are available from Boardcon. User can use Microsoft EVC or provided development tools in the CD-ROM for development to speed your time to market.

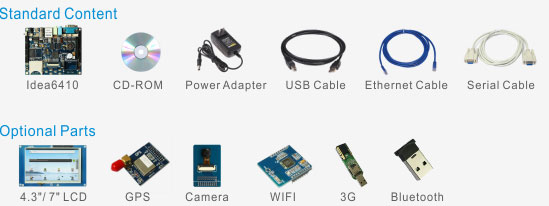

The package includes the SBC, LCD, Windows Embedded CE 6.0 or Linux OS BSP, complete electronic documentation, schematics, demo applications, and third party Cross compilers (Arm-none-linux-gnueabi, 3.3.2, 3.4.1, 4.2.2-eabi) and embedded development environments (DNW, MoviNAND_Fusing_Tool.exe, activesync, sdboot, TCPMP, USB Interface Driver and so on) for evaluation.

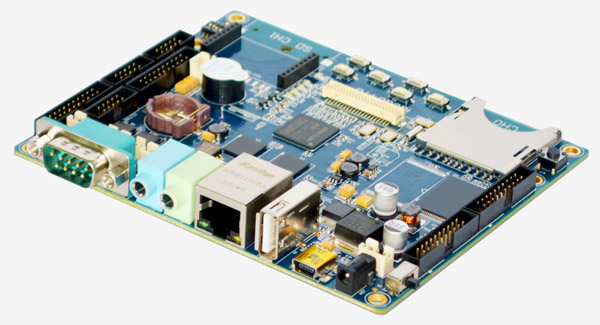

 Idea6410-angle

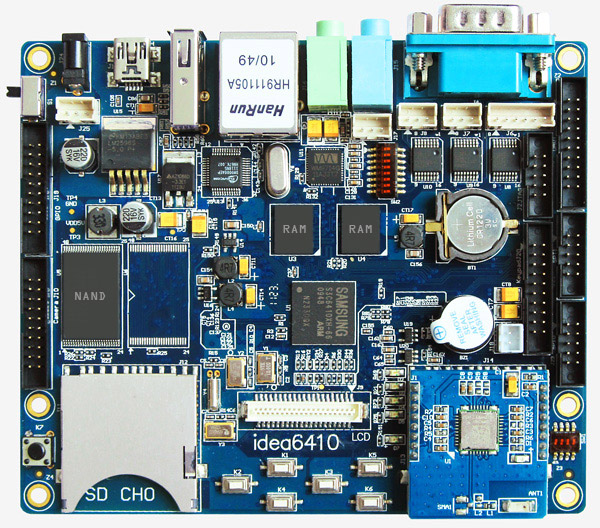

Idea6410 front view
