IdeaT41

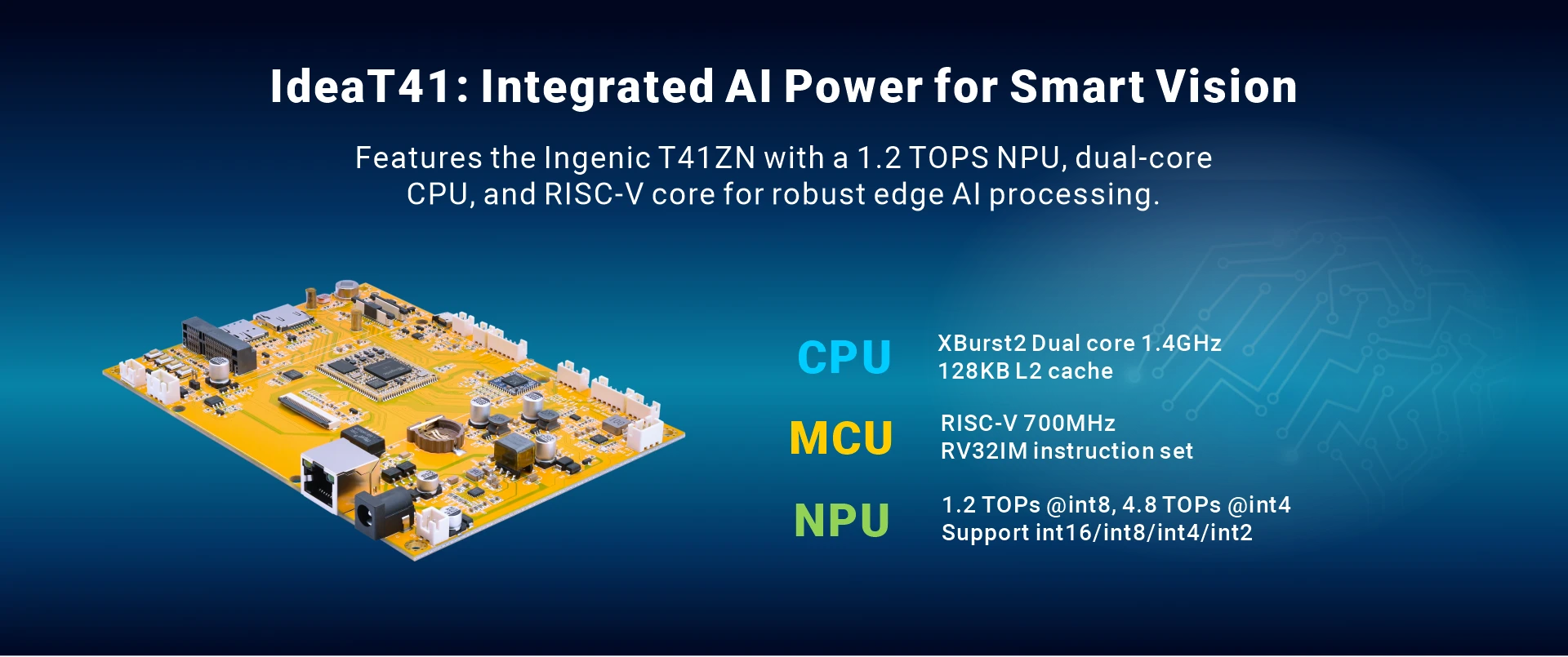

* Processor: Ingenic T41ZL. Dual-core MIPS XBurst2 @ 1.4GHz CPU + RISC-V coprocessor @ 700MHz
* NPU: 1.2 TOPS
* RAM: Built-in 64MB DDR2/DDR2L
* Storage: 32MB Nor Flash
* Interfaces: USB2.0 OTG, Ethernet, RGB LCD, RS485, Debug, UART, mPCIe, SIM, Micro SD, MIPI CSI, Speaker, Microphone, ADC, GPIO, RTC
* Operating system: Linux

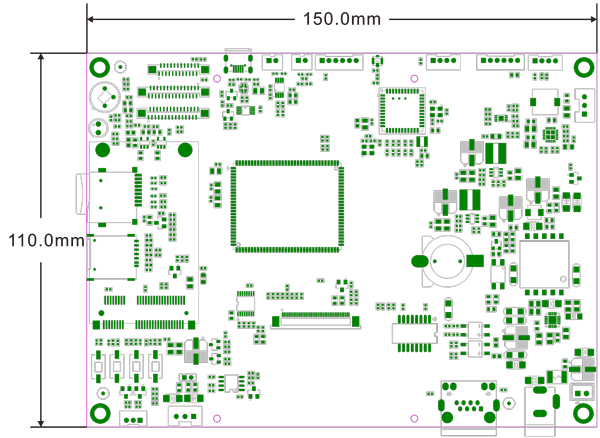

* Dimensions: 150 x 110 mm

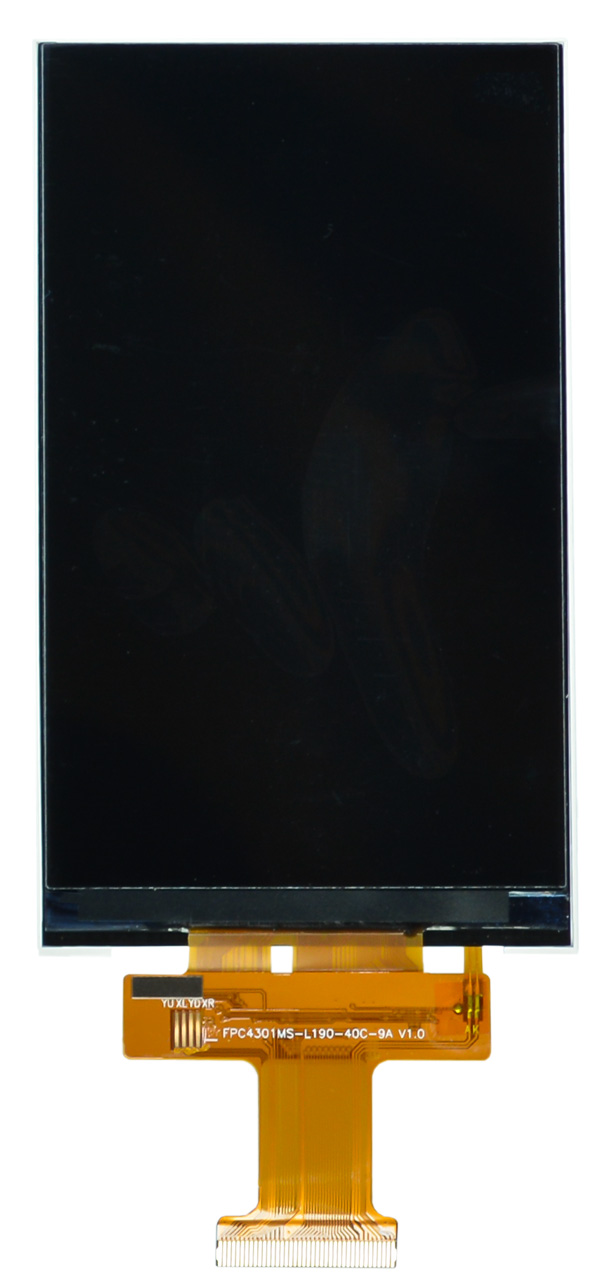

* Expansion Module: 4G model, WiFi, Camera, 4.3-inch LCD

     CMT41_cpu_module

The future trend of the pan-visual industry is richer AI computing power, lower power consumption, lower overall costs, and long-term better quality and effective functional innovation.
Boardcon IdeaT41 is an ultra-low power single board computer powered by Ingenic T41ZL processor for Next-generation Battery Camera. The 12nm process enables T41ZL less power while providing better performance, effectively addressing the issues of computing power density and power consumption heating. It supports 1.2T NPU, 4K resolutions ISP, and 2160P20 VPU.
The IdeaT41 SBC integrates WiFi&BT, 4G LTE modules, and supports 4K camera, enabling functions such as human detection and two-way voice intercom. The high-quality image processing capabilities and low power consumption characteristics make it suitable for scenarios with long-term monitoring needs, such as highways, breeding farms, geological disaster monitoring, and so on.

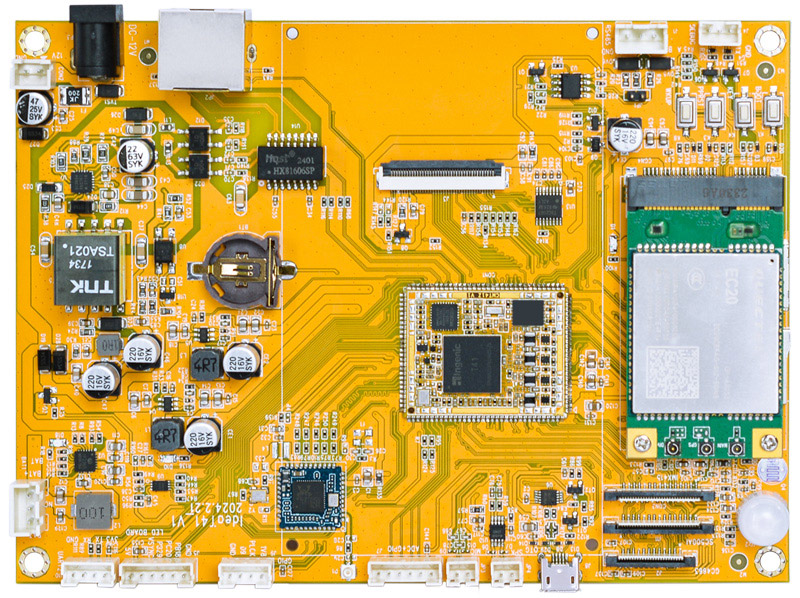

IdeaT41+4G

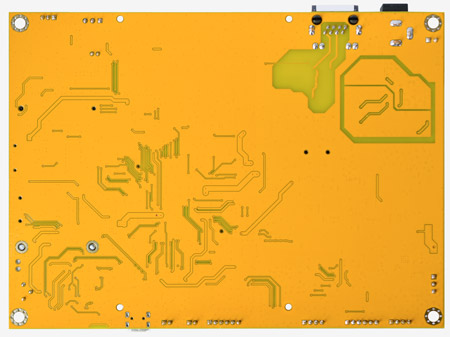

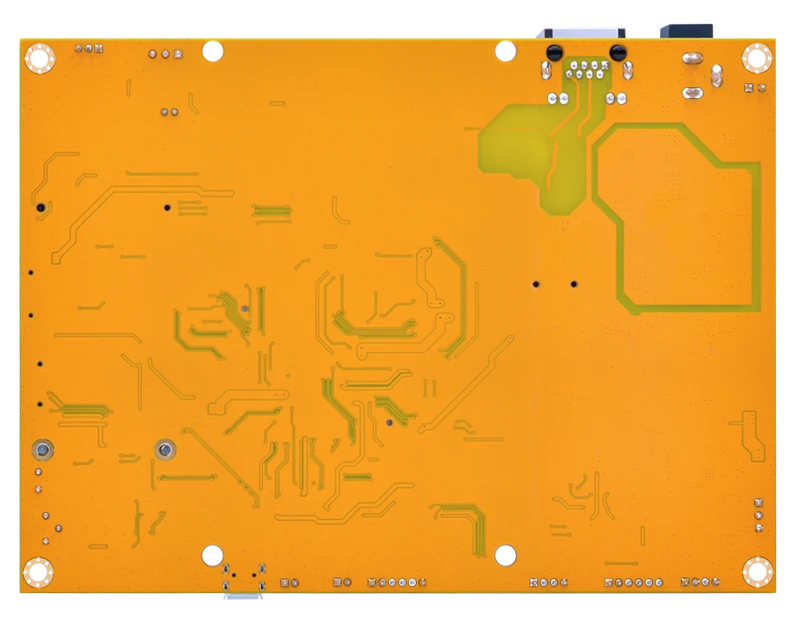

IdeaT41_SBC_rear

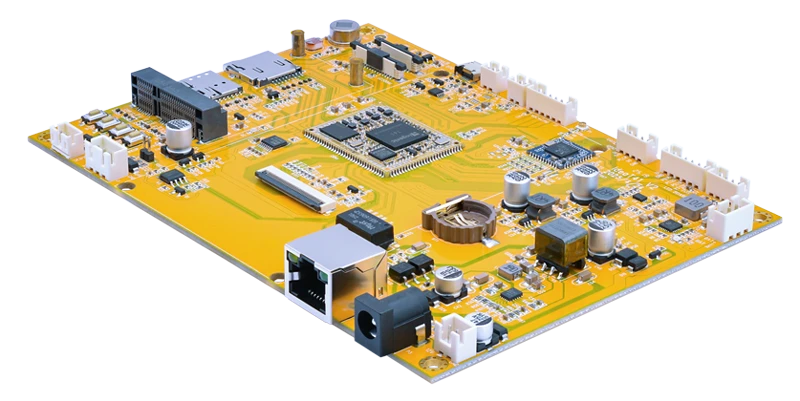

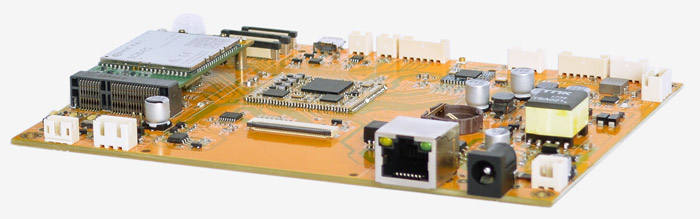

IdeaT41_angle
