KIT3000

* Processor: Samsung S3C6410, ARM1176JZF-S @ 667MHz
* RAM: 128MB/256MB
* Storage: 256MB/512MB/1GB
* Interface: 4x USB host, 1x USB OTG, 4x RS232/TTL, 2x RS485, 2x SPI, I2C, GPIO, LCD, Audio, Ethernet, RTC, SD, TV OUT, Camera, WIFI, Keypad
* Operating system: Linux 2.6.28, WinCE6.0, Android 2.3

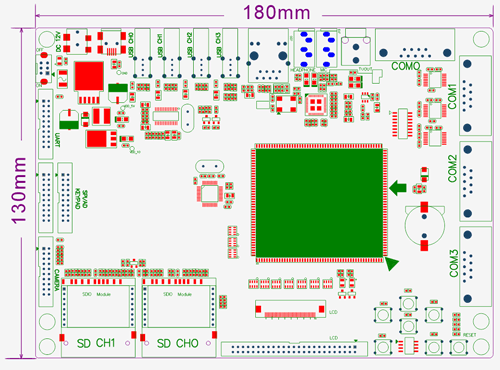

* Dimensions: 180 x 130 mm
* Expansion Module: 3G model, GPS, WiFi, Bluetooth, Camera, AV

     MINI6410

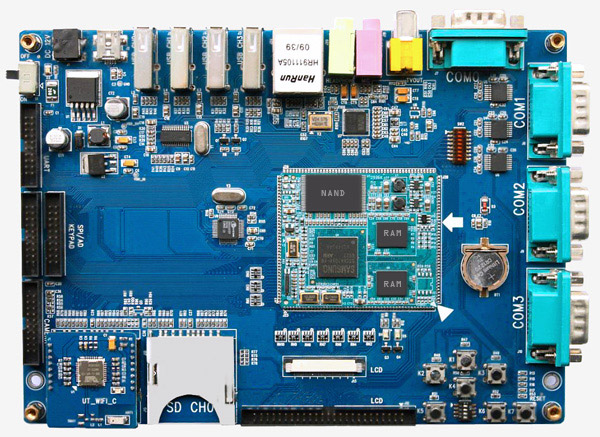

The KIT3000 is a development board designed for the customer who wants to dedicate their carrier board and application development. This Embedded Single Board supports two versions of CPU Module which separately based on Samsung ARM11 S3C6410 and ARM9 S3C2416. The customer spends lowest cost but can estimate the CPU and its kit relative software package, then finally select exactly a CPU and CPU Module that totally meet their specification. The KIT3000 not only reduces the customer's development cost but also accelerate time to market.

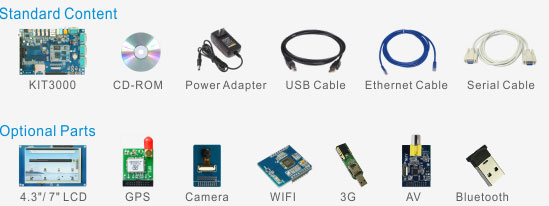

The Development Kit includes the CPU Board and Carrier Board, LCD, WinCE 6.0 or Linux OS BSP, complete electronic documentation, schematics, demo applications, and third-party Cross compilers (arm-none-linux-gnueabi, 3.3.2, 3.4.1, 4.2.2-eabi) and embedded development environments (DNW, MoviNAND_Fusing_Tool.exe, activesync, SDboot, TCPMP, USB Interface Driver and so on) for evaluation.
