KIT9G25

* Processor: Atmel/ Microchip AT91SAM9G25, ARM9 @ 400MHz
* RAM: 128MB
* Storage: 128MB
* Interface: 2x USB Host, 1x mini USB, 4x UART(TTL), 4x UART(RS232), Ethernet, Micro SD, DC output(5V, 3.3V)
* Operating system: Linux
* Dimensions: 118 x 109.9 mm

Overview
Hardware
Software
Download
Price&Order
FAQ

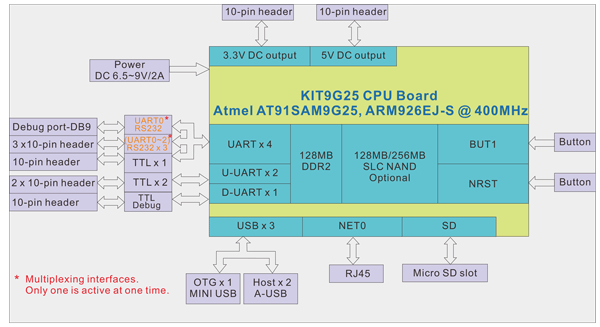

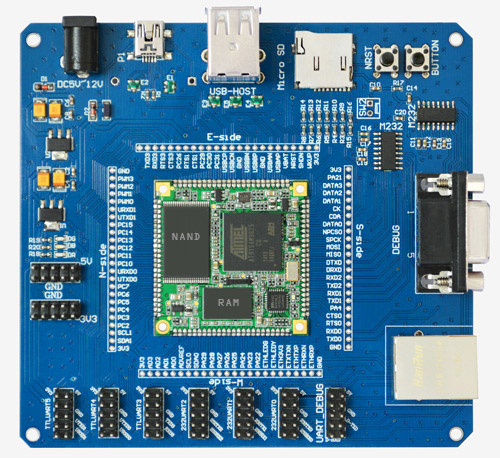

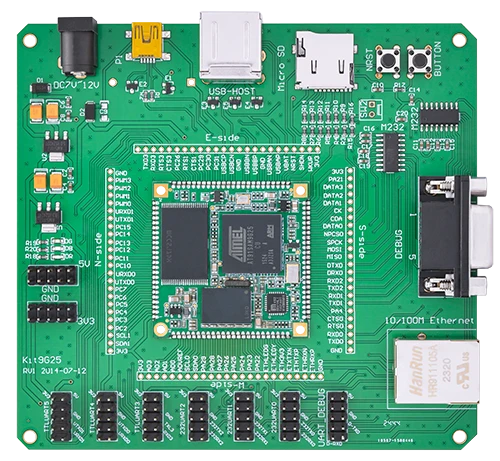

The KIT9G25 consists of the base board and processor card with an Atmel/Microchip AT91SAM9G25 processor operating at 400 MHz with 128MB Nand Flash(optional), 128MB DDR2, 4MB Data Flash, and 64KB Serial EEPROM. It supports Linux(kernel version: Linux 3.6.9). The board features connectivity peripherals, including mini USB, 2x USB host, 10/100M Ethernet interface, UART ports(RS232/TTL), and micro SD card interface.
Measuring only 118mm x 109.9mm, low power and low-cost, making KIT9G25 an optimized solution for industrial applications.

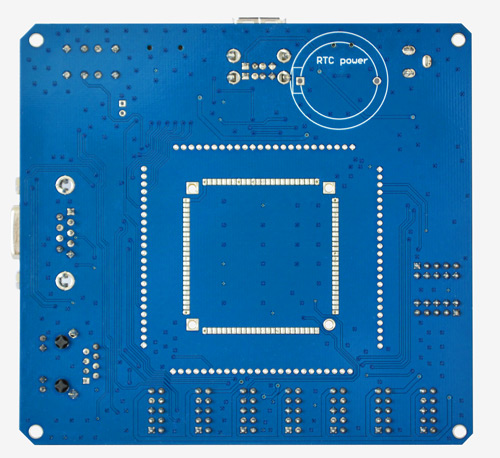

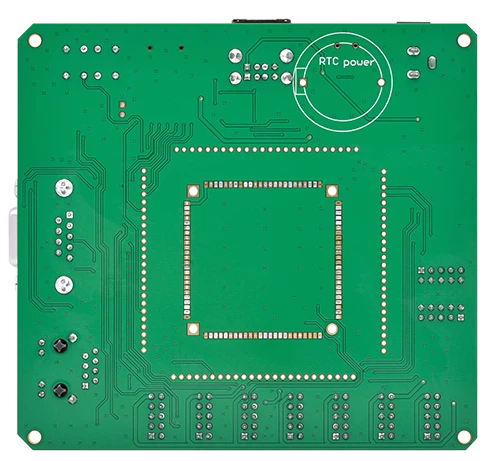

KIT9G25-development-board-rear

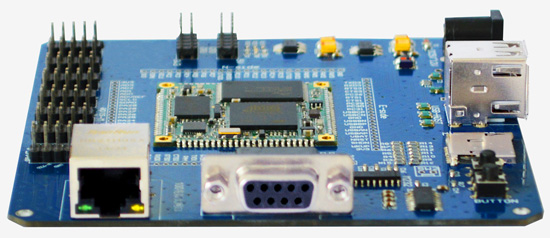

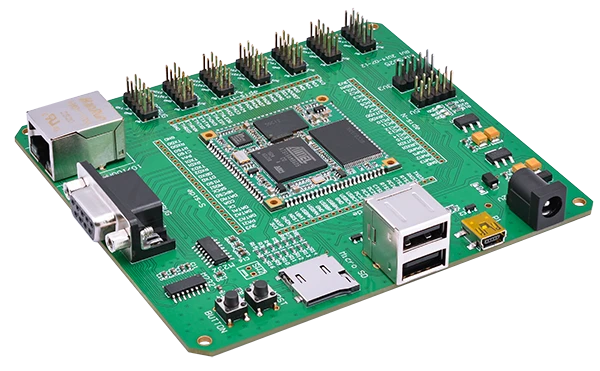

KIT9G25-angle

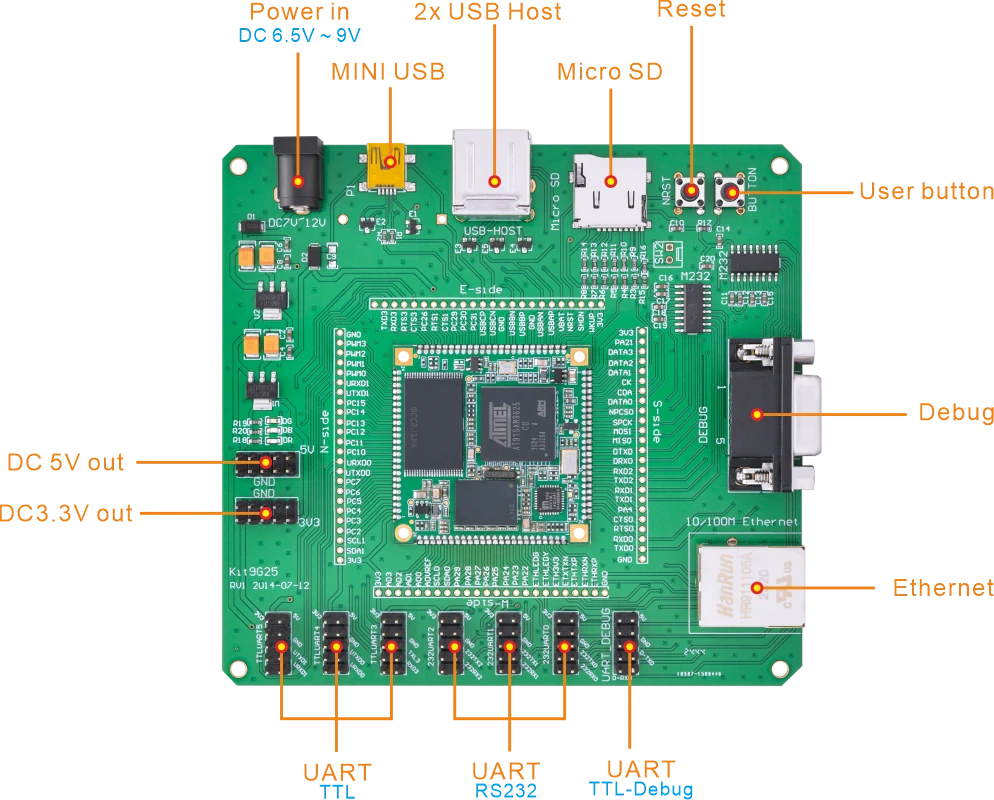

Specifications
SoC	Atmel/ Microchip AT91SAM9G25 ARM9 @ 400MHz
Memory	128MB DDR2
Storage	128MB Nand Flash Micro SD card slot
Power in	DC 6.5V ~ 9V
USB	2x USB Host2.0, 1x mini USB2.0
UART	3x UART(TTL), 2x 5-pin connector; 3x UART(RS232), 2x 5-pin connector;; 1x UART(TTL-Debug), 2x 5-pin connector; 1x UART(Debug), DB9
Ethernet	10/100 Mbps Ethernet RJ45 port via KSZ8041NL controller
DC output	DC 3.3&5V output, 2x 5-pin connector
Button	Reset, user button

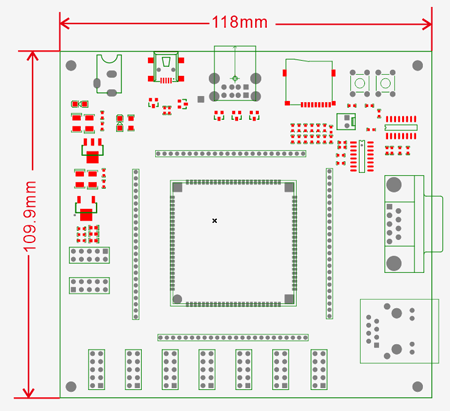

Dimensions	Carrier board - 118 x 109.9 mm; CPU board - 40 x 40 mm
