MINI210-III

* Processor: Samsung ARM Cortex-A8 S5PV210, 1GHz
* RAM: 256MB
* Storageh: 256MB/512MB/1GB/2GB
* Pin out: 4x UART, USB2.0 Host, USB2.0 OTG, RGB, 2x Camera I/F, TV out, 2x SDMMC, JTAG, I2C, ADC, PWM, I2S, SPI, GPIO, etc.
* Operating system: Linux 3.0.8
* Dimensions: 74 x 37 mm
* Compatible module: MINI2416-III, MINI2440
* Connectors: 2x 72-pin and 2x 24-pin, 2.0mm pitch

Overview
Hardware
Software
Download
Price&Order
FAQ

MINI210-III-system-on-module

The MINI210-III is a pin-to-pin Computer on Module based on the Samsung S5PV210 CPU which implements the ARM® Cortex™-A8 architecture clocked at 1 GHz and paired with 256MB DDR2 RAM, 512MB or 1GB MLC Flash.
Several interfaces and connections such as Ethernet, USB, UART, Camera, and more make the MINI210-III a great fit for many embedded systems application.
Apart from the different processors, MINI210-III, MINI2440 and MINI2416-III share the same motherboard.

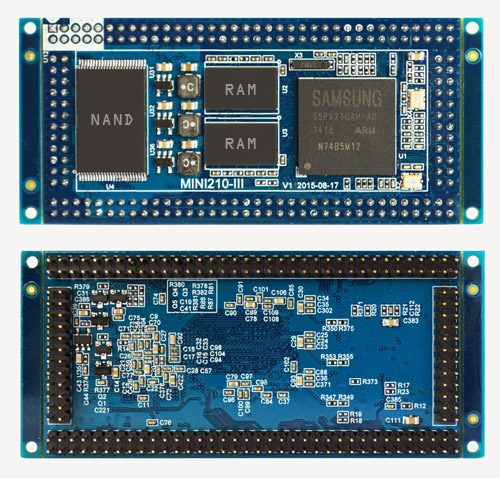

MINI210-III-S5PV210-SOM

Specifications
SoC	Samsung ARM Cortex-A8 S5PV210AH, 1GHz
GPU	PowerVR SGX540 @ 200MHz
Memory	256MB DDR2
Storage	256MB/512MB/1GB/2GB NAND Flash
Supply Voltage	DC 3.3V
Pin out	4x UART, USB2.0 Host, USB2.0 OTG, RGB, 2x Camera I/F, TV out, 2x SDMMC, JTAG, 3x I2C, 4x ADC IN, 4x PWM, I2S, 2x SPI, GPIO, etc.
Dimensions	74 x 37 mm
Weight	18.1 gram
Connectors	2x 72-pin and 2x 24-pin, 2.0mm pitch Pin Header
Application	POS terminals, Security device, Industrial control, etc.
Development Board	EM210-III

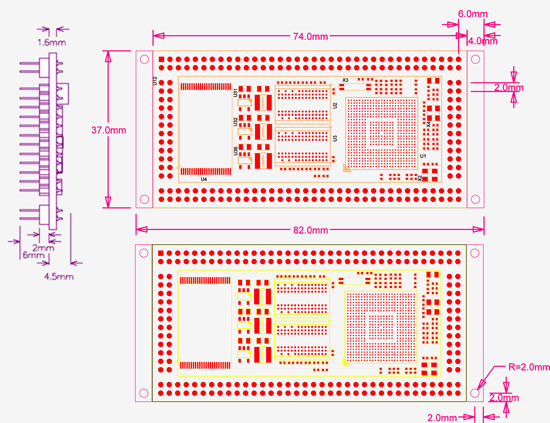

PCB Dimension

MINI210-III pcb

Pin Definition

J0A	Signal	J0A	Signal	J0C	Signal	J0C	Signal
1	Xm0DATA6	2	Xm0DATA7	97	TSXM	98	TSYP
3	Xm0ADDR7	4	Xm0ADDR8	99	TSYM	100	XvVCLK
5	Xm0ADDR5	6	Xm0ADDR6	101	XvHSYNC	102	XvVSYNC
7	Xm0ADDR3	8	Xm0ADDR4	103	XvVDEN	104	Xi2cSCL0
9	Xm0ADDR1	10	Xm0ADDR2	105	Xi2cSDA0	106	XvVD23
11	XciaDATA0	12	XciaDATA1	107	XvVD22	108	XvVD21
13	XciaDATA2	14	XciaDATA3	109	XvVD20	110	XvVD19
15	XciaDATA4	16	XciaDATA5	111	XvVD 18	112	XvVD 17
17	XciaDATA6	18	XciaDATA7	113	XvVD 16	114	XvVD 15
19	XciaPCLK	20	Xmmc2CDn	115	XvVD 14	116	XvVD 13
21	Xmmc2DATA2	22	Xmmc2DATA3	117	XvVD 12	118	XvVD 11
23	Xmmc2CMD	24	Xmmc2CLK	119	XvVD 10	120	XvVD 9
25	Xmmc2DATA0	26	Xmmc2DATA1	121	XvVD 8	122	XvVD 7
27	XjTRSTn	28	XnRESET	123	XvVD 6	124	XvVD 5
29	XjTDO	30	XjTDI	125	XvVD 4	126	XvVD 3
31	XjTCK	32	XjTMS	127	XvVD 2	128	XvVD 1
33	XuRXD2	34	XuTXD2	129	XvVD 0	130	XspiMISO1
35	XuRXD1	36	XuTXD1	131	XspiCS1	132	XspiCLK1
37	XuRXD0	38	XuTXD0	133	XspiMOSI1	134	XpwmTOUT3
39	XuRTSn0	40	XuCTSn0	135	XpwmTOUT2	136	XpwmTOUT1
41	XuRTSn1	42	XuCTSn1	137	XpwmTOUT0	138	XcibFIELD
43	XuRXD3	44	XuTXD3	139	XcibVSYNC	140	XcibHREF
45	XEINT4	46	XEINT5	141	XcibPCLK	142	XcibCLKO
47	XEINT6	48	XEINT7	143	XcibDATA0	144	XcibDATA 1
49	XEINT8	50	XEINT9	145	XcibDATA 2	146	XcibDATA 3
51	XEINT10	52	XEINT11	147	XcibDATA 4	148	XcibDATA 5
53	XEINT12	54	XEINT13	149	XcibDATA 6	150	XcibDATA 7
55	XEINT16	56	XEINT17	151	Xm0WAITn	152	Xm0CSn0
57	XuoVBUS	58	VDD_RTC	153	Xm0CSn1	154	Xm0CSn3
59	XuoDP	60	XadcAIN3	155	Xm0CSn4	156	Xm0CSn5
61	XuoDM	62	XadcAIN2	157	Xm0BE0	158	Xm0BE1
63	XuhDN	64	XadcAIN1	159	GND	160	GND
65	XuhDP	66	XadcAIN0	161	VDD_IO	162	VDD_IO
67	XspiMISO0	68	XspiCS0	163	Xm0DATA8	164	Xm0DATA 9
69	XspiCLK0	70	XspiMOSI0	165	Xm0DATA 10	166	Xm0DATA 11
71	XEINT18	72	XEINT19	167	Xm0DATA 12	168	Xm0DATA 13
J0B	Signal	J0B	Signal	J0D	Signal	J0D	Signal
73	XRTCCLKO	74	XEINT20	169	Xm0DATA 14	170	Xm0DATA 15
75	Xi2cSDA2	76	Xi2cSCL2	171	Xm0DRDn	172	XEINT0
77	OM	78	XdacOUT0	173	Xm0WEn	174	Xm0OEn
79	Xmmc0CDn	80	Xmmc0DATA2	175	XciaCLKO	176	XciaHREF
81	Xmmc0DATA3	82	Xmmc0CMD	177	XciaVSYNC	178	XciaFIELD
83	Xmmc0CLK	84	Xmmc0DATA0	179	Xm0ADDR0	180	Xm0ADDR15
85	Xmmc0DATA1	86	XEINT1	181	Xm0ADDR 14	182	Xm0ADDR 13
87	SPDIFOUT0	88	Xi2sCDCLK0	183	Xm0ADDR 12	184	Xm0ADDR 11
89	Xi2sLRCLK0	90	Xi2sSCLK0	185	Xm0ADDR 10	186	Xm0ADDR 9
91	Xi2cSDA1	92	Xi2cSCL1	187	Xm0DATA0	188	Xm0DATA 1
93	Xi2sSDI0	94	Xi2sSDO0	189	Xm0DATA 2	190	Xm0DATA 3
95	VenFIELD	96	TSXP	191	Xm0DATA 4	192	Xm0DATA 5

OS	Item	Feature	Description
Linux2.6.35	Bootloader	Version	u-boot 1.3.4
		Boot	Start up system, supporting one Key to update Bootloader, Kernel, Yaffs
		Tftp	Support tftp transmitting protocol
		File system	Yaffs
		Kernel	Support writing kernel image into nand flash and kernel parameter setting
		Etc.	Support download application to flash debugvia Serial Interface
	Kernel	Version	Linux 2.6.35
		File system format	CRAMFS/RAMFS/EXT2/FAT32/NFS/YAFFS/YAFFS2
		Serial	Serial driver
		Ethernet	10/100 Mbps Ethernet, DM9000 driver
		RTC	RTC driver
		USB host	USB host driver
		USB device	USB device driver
		LCD	7-inch LCD driver (resolution 800*480)
		TOUCH	resistive touch screen driver
		Language	English
		MMC/SD	MMC/SD Card driver
		LEDs	4x LEDs driver
		Sound	WM8731 driver
		WIFI	USB WIFI driver
		Camera	CMOS Camera driver
	File system	File system format	Jffs2 file system, R/W file system
		TCP/IP	TCP/IP protocol
		Network ping	To check the system
	Embedded GUI	Qt/Embedded	Qt4.7.3 and Qtopia2.2.0
	Network protocol	TCP/IP	TCP/IP protocol
	USB port supported Devices		U-disk, USB Keyboard, USB HUB and so on.
	Command commands		cat, chmod, discard, echo, flash write, free, init, kill, loader, ls, mkdir, mount, ps, reboot, rm, yes, insmod, lsmod, rmmod
	Tools		arm-2009q3.tar.bz2, tslib-1.4.gz and busybox1.13 (provided in the CD-ROM)
