* Processor: Samsung ARM9 S3C2416X, 400MHz
* RAM: 64MB
* Storage: 128MB/256MB/512MB/1GB
* Pin out: 4x UART, USB1.1 Host, USB2.0 Device, RGB, Ethernet, 2x SDMMC, Audio I/O, PWM, I2C, SPI, ADC, GPIO, etc.
* Operating system: Linux 2.6, WinCE6.0
* Dimensions: 40 x 40 mm
* Compatible module: CM9X35, MINI287
* Package: 120-pin, 1.27mm pitch QFN

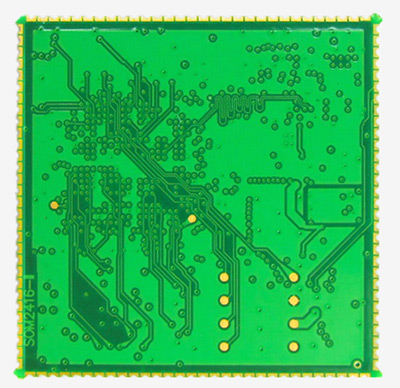

MINI2416 is a cost-effective ARM9 System-on-module based on the Samsung S3C2416X, operating frequency up to 400MHz, and designed for projects requiring low power consumption and overall cost. It can be used as embedded core for handheld devices, GPS navigation systems, Security device, Electric power control system.
| Specifications | |
|---|---|
| SoC | Samsung ARM926EJS S3C2416, 400MHz |
| Memory | 64MB DDR2 |
| Storage | 128MB/256MB/512MB/1GB SLC NAND Flash |
| Supply Voltage | DC 3.3V |
| Pin out | 4x UART, USB1.1 Host, USB2.0 Device, RGB, Ethernet(100M), 2x SDMMC, Audio I/O, PWM, I2C, SPI, 2x ADC IN, GPIO, etc. |
| Ethernet | 10/100 Mbps Ethernet, LAN9220 controller |
| Dimensions | 40 x 40 mm |
| Weight | 6.2 gram |
| Package | 120-pin, 1.27mm pitch QFN |
| Application | Handheld device, GPS navigation system, Printer, Security device, Electric power control system, Industrial control terminal |
| Development Board | EM2000 |

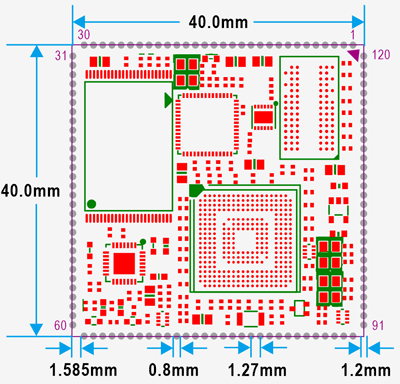

PCB Dimension
Pin Definition
| Pin | Signal | Pin | Signal | Pin | Signal | Pin | Signal |
|---|---|---|---|---|---|---|---|
| 1 | ETX- | 31 | VCC3.3V | 61 | AGND | 91 | nSD_CD |
| 2 | ETX+ | 32 | LCD_PWR | 62 | TXD0 | 92 | SDCLK |
| 3 | GND | 33 | HSYNC | 63 | RXD0 | 93 | SDCMD |
| 4 | ERX- | 34 | PCLK | 64 | nCTS0 | 94 | SDDAT0 |
| 5 | ERX+ | 35 | VSYNC | 65 | nRTS0 | 95 | SDDAT1 |
| 6 | LINK | 36 | VDEN | 66 | TXD1 | 96 | SDDAT2 |
| 7 | SPEED | 37 | GND | 67 | RXD1 | 97 | SDDAT3 |
| 8 | GND | 38 | VD2 | 68 | nRTS1 | 98 | GND |
| 9 | nRST | 39 | VD3 | 69 | nCTS1 | 99 | XP |
| 10 | RSMBWAIT | 40 | VD4 | 70 | TXD2 | 100 | YP |
| 11 | nWAIT | 41 | VD5 | 71 | RXD2 | 101 | XM |
| 12 | nOE | 42 | VD6 | 72 | TXD3 | 102 | YM |
| 13 | nWE | 43 | VD7 | 73 | RXD3 | 103 | AIN0 |
| 14 | nCS3 | 44 | VD10 | 74 | I2C_SCL | 104 | AIN1 |
| 15 | LADDR0 | 45 | VD11 | 75 | I2C_SDA | 105 | EINT0 |
| 16 | LADDR1 | 46 | VD12 | 76 | SPIMISO | 106 | EINT3 |
| 17 | LADDR2 | 47 | VD13 | 77 | SPICLK | 107 | EINT5 |
| 18 | LADDR3 | 48 | VD14 | 78 | SPIMOSI | 108 | EINT6 |
| 19 | LADDR4 | 49 | VD15 | 79 | nSS | 109 | EINT7 |
| 20 | LADDR5 | 50 | VD18 | 80 | SD0CLK | 110 | EINT8 |
| 21 | LADDR6 | 51 | VD19 | 81 | SD0CMO | 111 | EINT9 |
| 22 | LDATA0 | 52 | VD20 | 82 | SD0DAT0 | 112 | EINT10 |
| 23 | LDATA1 | 53 | VD21 | 83 | SD0DAT1 | 113 | EINT11 |
| 24 | LDATA2 | 54 | VD22 | 84 | SD0DAT2 | 114 | EINT12 |
| 25 | LDATA3 | 55 | VD23 | 85 | SD0DAT3 | 115 | GND |
| 26 | LDATA4 | 56 | LPOUT | 86 | GND | 116 | UN1 |
| 27 | LDATA5 | 57 | RPOUT | 87 | VCC_RTC | 117 | UP1 |
| 28 | LDATA6 | 58 | MIC | 88 | OM3 | 118 | VBUS |
| 29 | LDATA7 | 59 | LIN | 89 | OM2 | 119 | DN0 |
| 30 | VCC3.3V | 60 | RIN | 90 | OM1 | 120 | DP0 |
| OS | Item | Feature | Description |
|---|---|---|---|
| Linux2.6.21 | Bootloader | u-boot | u-boot-1.3.4 Main functions: 1. Support Nand Flash erase/write/read 2. Support net download Image 3. Support print, set, save Environment Variables 5. Support bootm, bootargs setting |
| Sdboot | SD Card boot-up and download Image via NET(can replace JTAG) | ||
| Image update | Support updating image from SD card or NET | ||
| Kernel and drivers | Version | Linux 2.6.21 | |
| File system Format | ROM/CRAM/EXT2/EXT3/FAT/NFS/JFFS2/YAFFS2 | ||
| Drivers | Serial ports, RTC, Ethernet, 3.5", 4.3" and 7" LCD including Touch Screen, MMD/SD, USB Host, LEDs, AC97, Nand Flash | ||
| File System | File System | Yaffs File System | |
| Function | Provided Lib (ALSA -lib, tslib, glibc), udev support | ||
| Embedded GUI | Qt/Embedded | Qtopia 2.2.0 | |
| Network protocol & application |
Network Protocol | TCP/IP, Telnet, FTP, Boa Web server,Remote login (telnet) | |
| Cross compiler Environment | cross-4.2.2-eabi |
| OS | Item | Feature | Description |
|---|---|---|---|
| WinCE6.0 | Bootloader | Providing Source code and STEPLDR.bin | |
| Eboot | Providing Source code and EBOOT.bin Eboot main functions: 1.support SD card update image 2. Format Nand Flash 3. Format BinFS 4. Low-level Format 5. update boot logo |
||
| Image update | Support updating image from SD card | ||
| System | Characteristic | Reboot, Watchdog, RTC | |
| Driver | 4.3", 5.6", 7", 10.4" LCD and including Touch Screen | ||
| SD card, AC97, Ethernet, USB Host, USB OTG, Serial ports, RTC, 2D Accelerator, POWERBUTTON, SERIAL Driver, Audio, LED, I2C | |||
| Test program | Mediaplayer | ||
| serial test program | |||
| Activesync | |||
| SD/HSMMC test | |||
| net test | |||
| Media player 9.0, Word and Internet Explorer 6.0 |
Samsung ARM9 S3C2416 Datasheet (2.69MB)
All Technologic Systems products come with:
* 6~12months full warranty
* Technical support
* Computers have pre-installed OS
* Free system software
* Complete documentation, updates through website
Please configure your product using the table below and then add it to your cart. If you have any questions, please contact us for assistance.
| Product | Price(Qty1) | Order now |
|---|---|---|
| MINI2416 | USD50.00 | Add to cart |
