MINI4418

* Processor: Samsung S5P4418. Quad-Core ARM Cortex-A9, 1.4GHz
* RAM: 512MB/1GB
* Storage: 4GB/8GB/16GB/32GB
* Pin out: 5x UART, USB2.0 Host, USB2.0 OTG, HDMI, RGB, LVDS/MIPI DSI, CIF, CVBS, GbE, 2x SDMMC, I2S, ADC, PWM, I2C, SPI, JTAG, IR, SPDIF, GPIO, etc.
* Operating system: Android 4.4.2

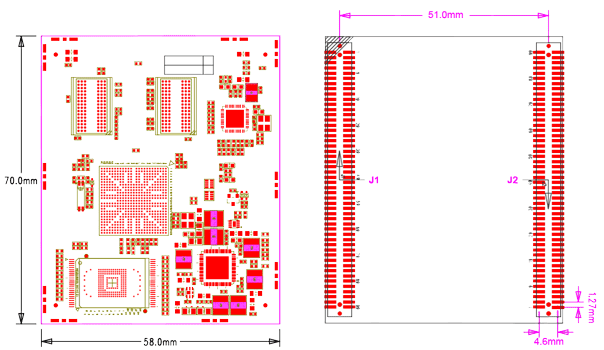

* Dimensions: 70 x 58 mm
* Connectors: 2x 100-pin, 1.27mm pitch

     EM4418

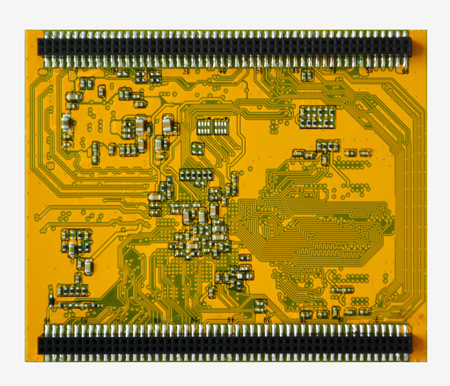

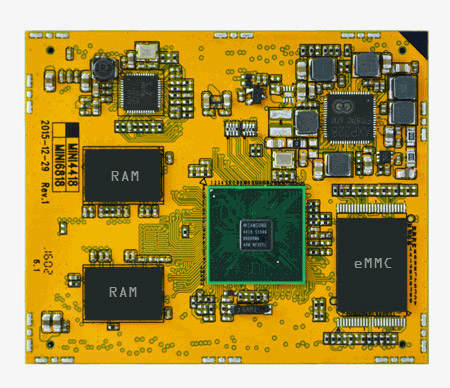

MINI4418-S5P4418-system-on-moduleMINI4418-system-on-module

The MINI4418 is a System-on-Module Boardcon released that runs Android on EM3288 Development board. The module has the same size, pin expansion and power as the MINI3288.
The MINI4418 clocks its four Cortex-A9 cores to 1.4GHz and ships with 1GB of DDR3 RAM and 4GB eMMC flash. The module has an RTL8211E GbE (Gigabit Ethernet) controller. It can enable carrier boards with three USB 2.0 host ports, 1x USB2.0 OTG port, a single COM port, and LCD (TFT/LVDS/MIPI) interfaces. Other features include I2S, CIF, HDMI, GPIO, ADC, PWM, I2C, Audio, SPI and HSMMC/SD.
With the customized carrier board, MINI4418 can provide cost - effective of embedded solutions for the automotive, medical, telecommunications, consumer electronics, and other industries.

Features Exynos 4412 VS S5P4418
Processor model Exynos 4412 S5P4418
Marketing time 2012 2014
Process 32 nm 28 nm
Speed 1.4 GHz 1.4 GHz
CPU ARM Cortex-A9 Quad-Core ARM Cortex-A9 Quad-Core
Arm core series Cortex-A9 quad-core Cortex-A9 quad-core
Cache I/D 32KB*4 L1 cache, 1MB L2 cache I/D 32KB*4 L1 cache, 1MB L2 cache
Memory Dual-channel DDR3 Single-channel DDR3
EMMC 4GB(Default)/8GB/16GB EMMC 4GB/8GB(Default)/16GB EMMC
Multi-media decode H.263, H.264, MPEG2, MPEG4, VC1 H.263, H.264, MPEG1, MPEG2, MPEG4, VC1, VP8, Theora, AVS, RV8/9/10, MJPEG
Multi-media codec H.263, H.264, MPEG4 H.263, H.264, MPEG4, MJPEG
UART 4 6
Display interface RGB, MIPI RGB, MIPI, LVDS
Max resolution 1920*1200 2048*1280
GPIO voltage 1.8V 3.3V
I/O Some I/O built-in interrupt All I/O built-in interrupt
Ethernet Through bus address extension Integrate gigabit Ethernet controller. Less hardware cost
ADC 4 channel 12 bit 0~1.8V 8 channel 12 bit 0~1.8V
USB Interface 1 channel HSIC,1 channel OTG 1 channel HSIC, 1 channel HSIC, 1 channel OTG
Chip unique ID No 128BIT unique ID
GPS Support Not Support
C2C Interface Support(For cell phones) Not Support
Slim bus Support Not Support
ISP Support Not Support
