MINI6410

* Processor: Samsung S3C6410, ARM1176JZF-S, 667MHz
* RAM:128MB/256MB
* Storage: 256MB/512MB/1GB
* Pin out: 4x UART, USB1.1 Host, USB2.0 OTG, RGB, Camera I/F, TV out, 2x SDMMC, I2C, Keypad, ADC, SPI, PWM, GPIO, etc.
* Operating system: Linux 2.6.28, WinCE6.0, Android 2.3

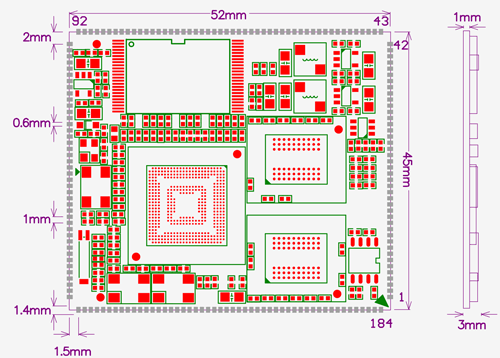

* Dimensions: 52 x 45 mm
* Package: 184-pin, 1.0mm pitch QFN

     KIT3000

Samsung's S3C6410 application processor is the power behind advanced multimedia and graphics-intensive consumer electronic devices. Developers have the flexibility to design-in the combinations of functionality such as wireless communications, GPS-enabled services, digital still picture and video applications, gaming, portable music/video play, and 2D/3D graphics into a single device.
The MINI6410 System on Module is developed specifically for multimedia, graphic-intensive consumer electronics devices. The target markets are as wide as Automotive, Industrial, Test & Measurement and Medical.

MINI6410-S3C6410-system-on-module

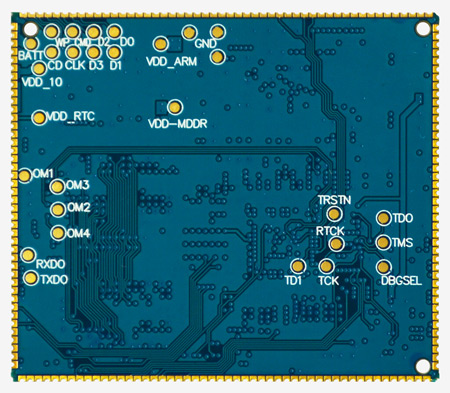

MINI6410  system on module rear view
