PICO3566

* Processor: Rockchip RK3566. Quad-core Cortex-A55, 1.8GHz
* NPU: 1 TOPS
* RAM: 2GB/4GB/8GB

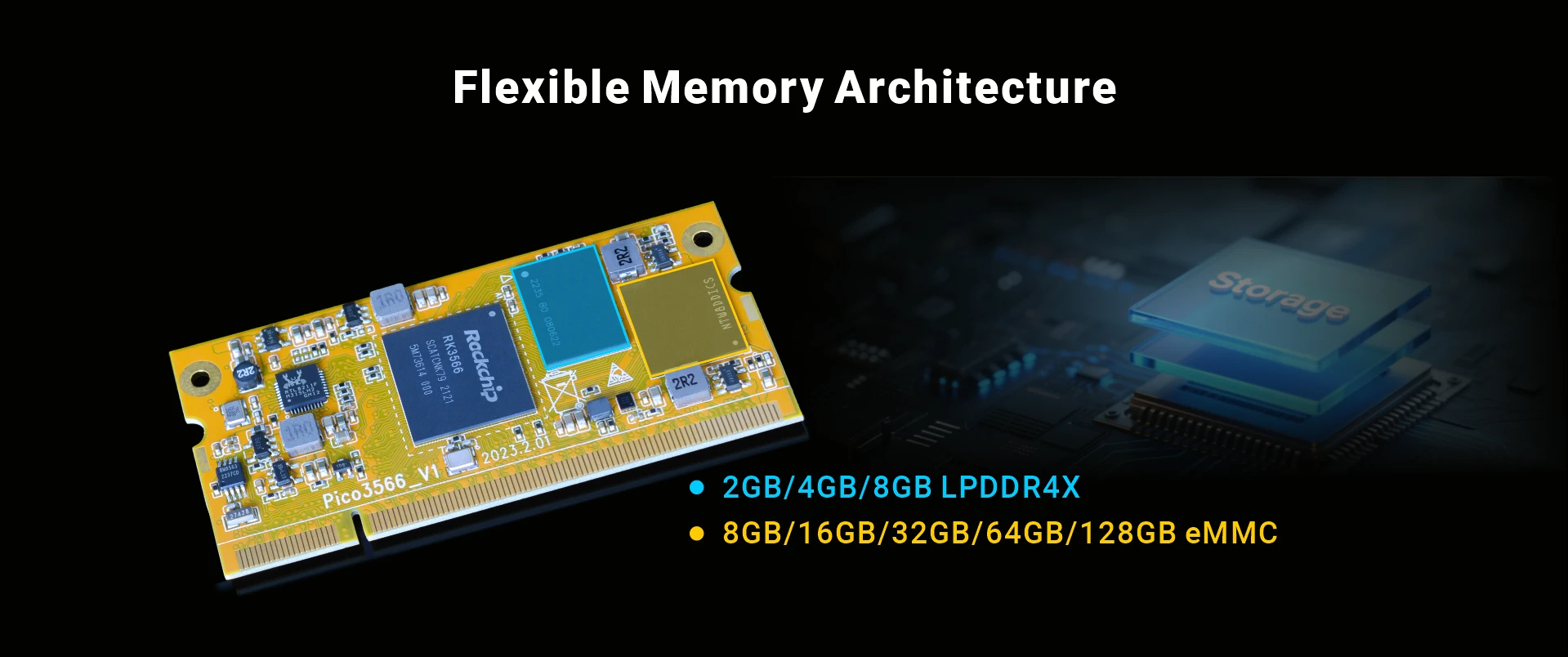

* Storage: 8GB/16GB/32GB/64GB/128GB

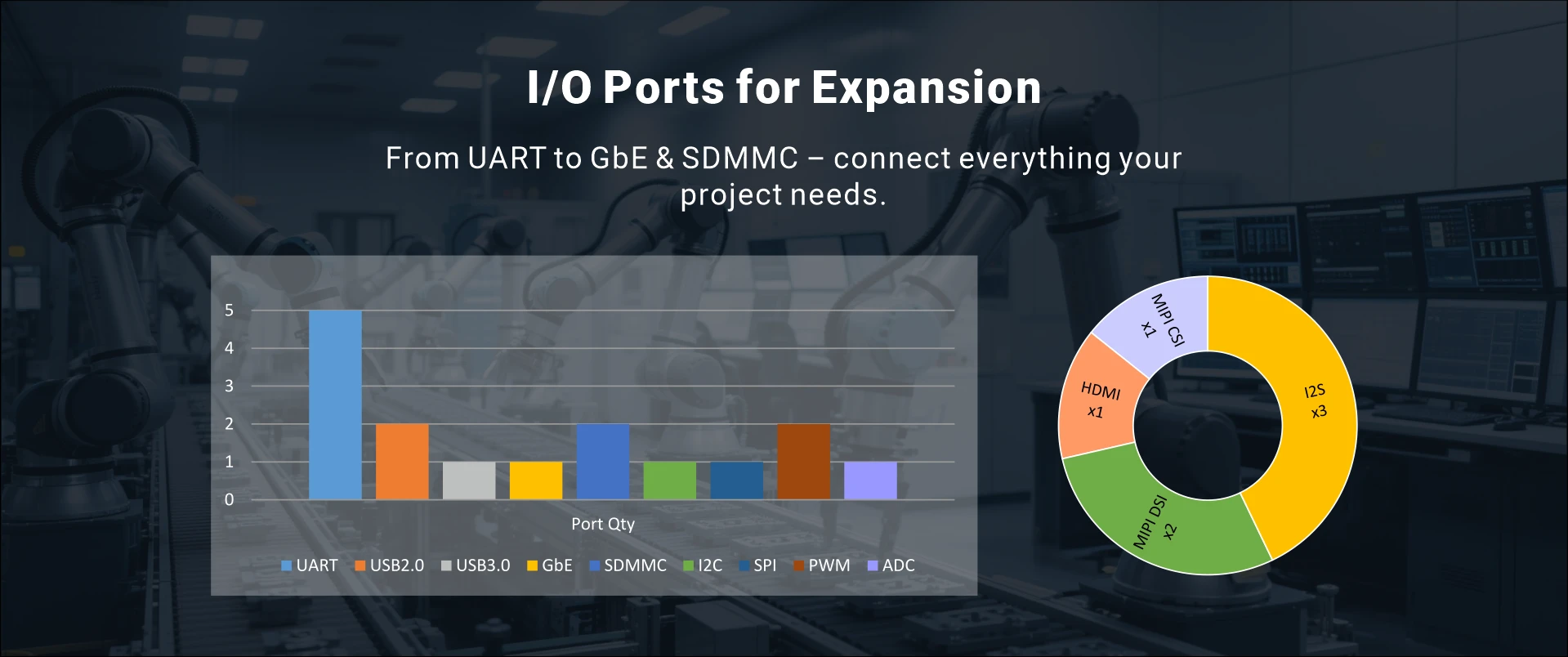

* Pin out: 5x UART, USB2.0 Host, USB3.0 Host, USB2.0 OTG, 2x MIPI DSI (or 1x MIPI DSI, 1x LVDS), MIPI CSI, HDMI TX, GbE, 2x SDMMC, I2C, SPI, PWM, ADC, I2S, GPIO, etc.
* Operating system: Android 12, Debian 11

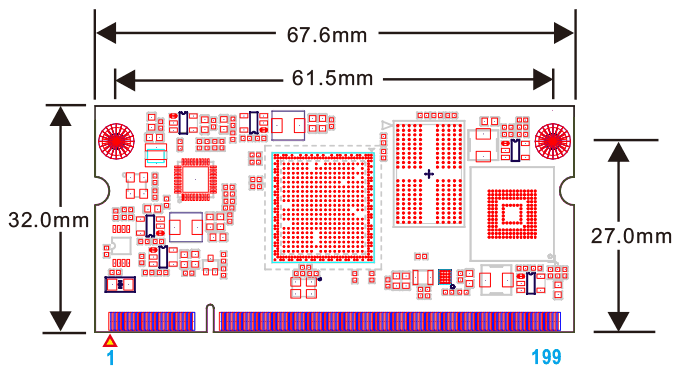

* Dimensions: 67.6 x 32 mm
* Connector: 200-pin SODIMM edge connector

     PICO3566_development_kit

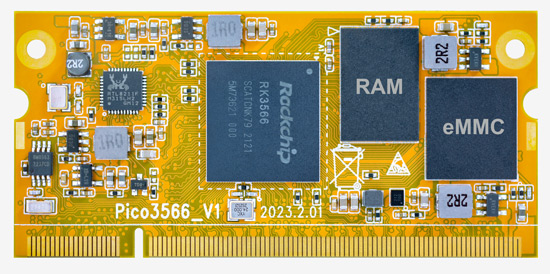

PICO3566_SOM

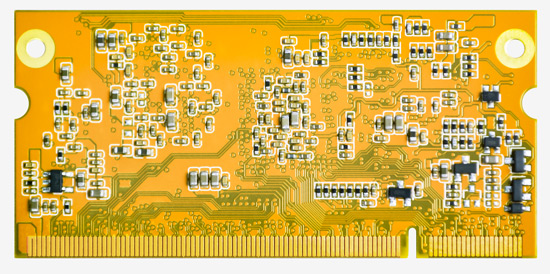

PICO3566_SOM_R

The PICO3566 is a Rockchip RK3566 quad-core system-on-module that offers an alternative to the Raspberry Pi CM3+, with the similar form factor allowing it to become a drop-in replacement. The SOM is designed specifically for the AI devices such as industrial controller, IoT devices, intelligent interactive devices, personal computers and robots.

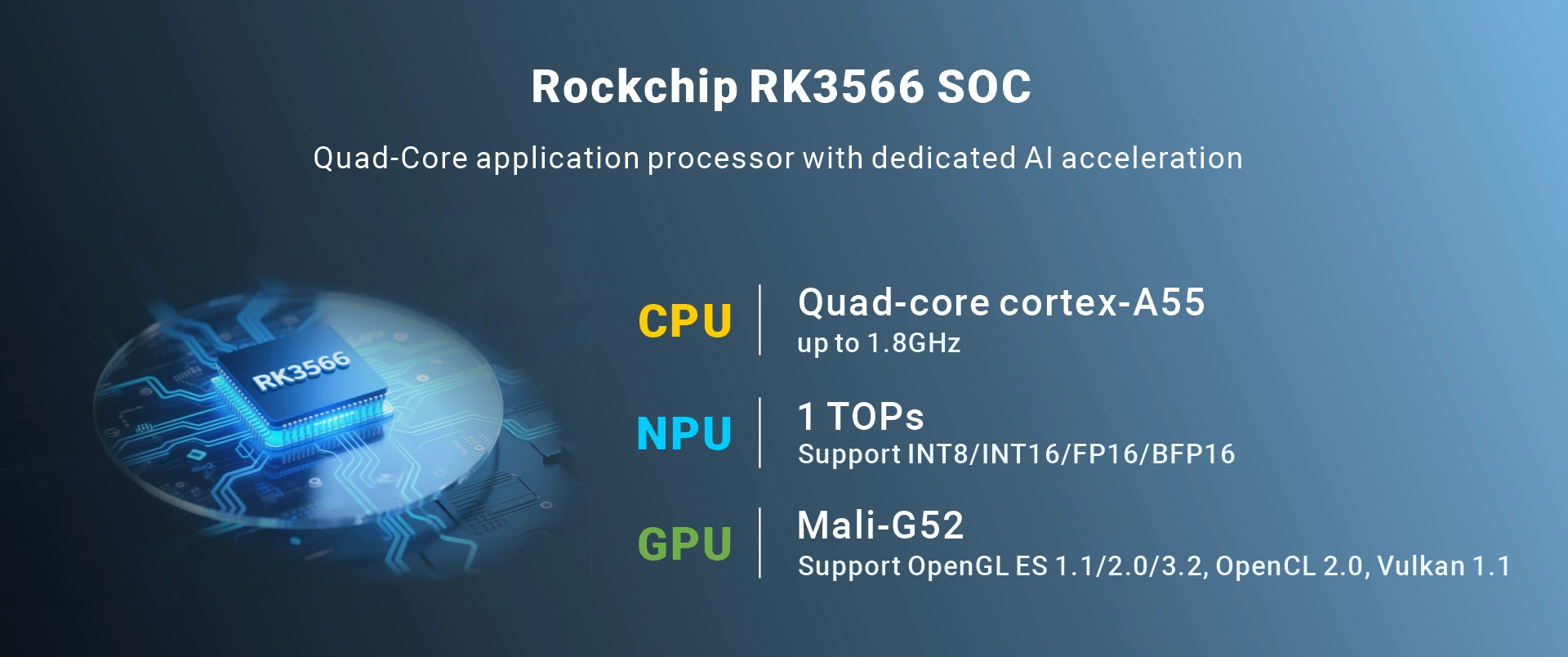

PICO3566 comes with ARM Cortex-A55 cores, a Mali-G52-2EE GPU and a 1-TOPS NPU. The ARM architecture and advanced process brings higher performance and power efficiency. Up to 8M@30fps processing power, supporting time-sharing and multiplexing dual camera. RK3566 supports 4KP60 H.264/H.265/VP9 and other formats HD decoding and 1080p 60fps H.264 and H.265 format encoding. The build-in NPU supports INT8/INT16/FP16/BFP16 MAC hybrid operation.

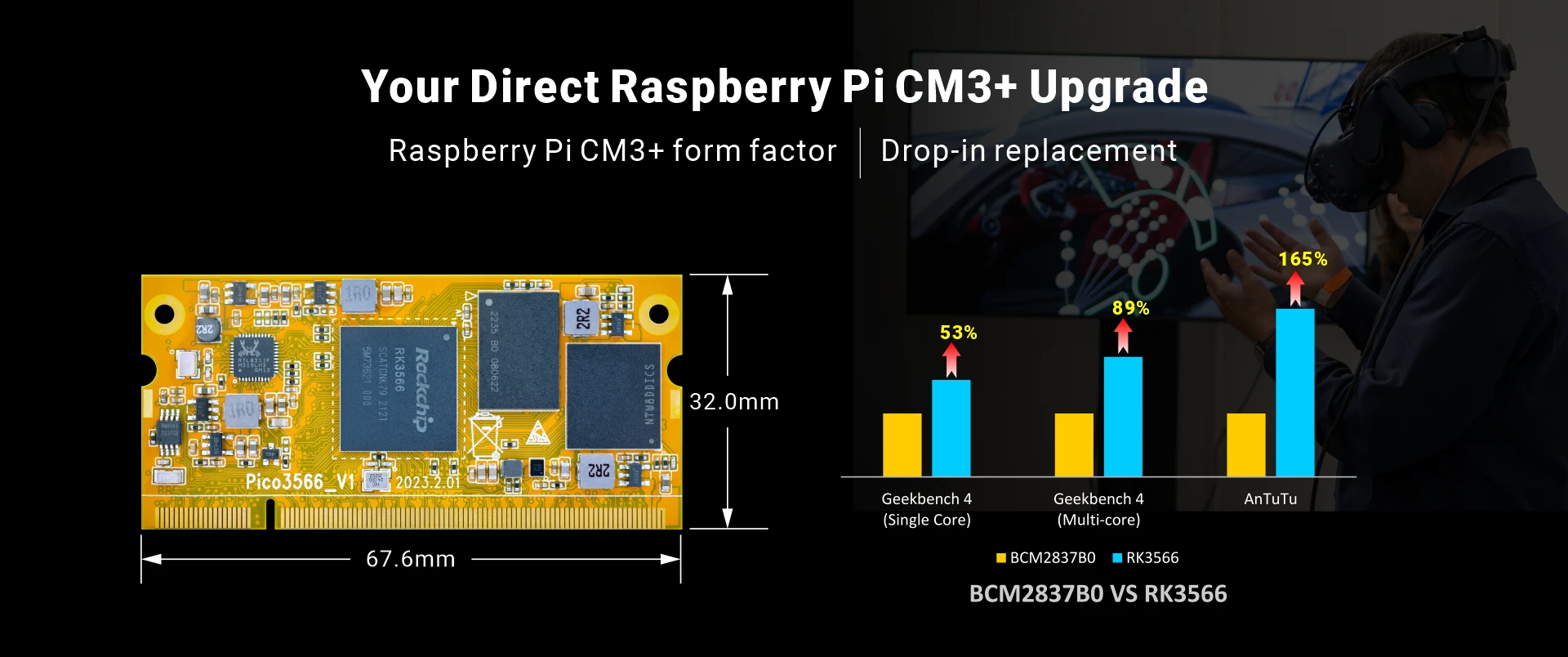

PICO3566  VS  Raspberry Pi Compute Module 3+

Model PICO3566 Raspberry Pi CM3+
Processor Rockchip RK3566, Quad-core Cortex-A55 64-bit SoC @ 1.8GHz Broadcom BCM2837B0, Quad-core Cortex-A53 64-bit SoC @ 1.2GHz
Lithography 22nm 28nm
GPU ARM G52 2EE Videocore IV
NPU 1TOPS N/A
Memory 2GB/4GB/8GB LPDDR4 or LPDDR4X 1GB LPDDR2 SDRAM
Storage 8GB/16GB/32GB/64GB/128GB eMMC flash 8GB/16GB/32GB eMMC Flash
Display interfaces 1x HDMI2.0 up to 4K60
1x 4-lane MIPI DSI, 1x2-lane DSI
1x 4-lane LVDS multiplexed with 1x MIPI DSI
1x HDMI 1.3a, 1080P30
1x 4-lane MIPI DSI, 1x 2-lane MIPI DSI
1x DPI (Parallel RGB Display)
Camera interfaces 1x 4-lane MIPI CSI camera port
or 2x 2-lane MIPI CSI camera port
1x 4-lane MIPI CSI camera port
1x 2-lane MIPI CSI camera port
Ethernet Gigabit Ethernet PHY (RTL8211F-CG) N/A
USB 1x USB2.0 OTG, 1x USB2.0 Host, 1x USB3.0 Host 1x USB2.0 HOST/OTG
PCIe 1x 1-lane PCIe Gen 2 N/A
SATA 2x SATA multiplexed with PCIe and USB 3.0 interfaces N/A
GPIO 66x GPIO:
4x I2C
4x SPI
9x UART
2x SD/SDIO
3x I2S
1x ADC
14x PWM
48x GPIO:
2x I2C
2x SPI
2x UART
2x SD/SDIO
1x NAND interface (SMI)
Connector 200-pin SODIMM edge connector 200-pin SODIMM edge connector
Supply Voltage Discrete Power on board: 3.3V - 5V Discrete Power on board: 1.8V - 5V
Operating Systems Android12, Debian 11 Raspberry Pi OS
Dimensions 67.6 x 32 mm 67.6 x 31 mm
