RK3288 Bus Fare Collection Device

* Processor: Rockchip RK3288. Quad-Core Cortex-A17 @ 1.8GHz
* RAM: 2GB
* Storage: 8GB
* Pin out: USB Host, USB OTG, LCD, Serial, Gigabit Ethernet, VGA, HDMI, Audio, SD/MMC/SDIO, SPI, I2C, I2S, ADC, etc.
* Operating system: Android 5.1

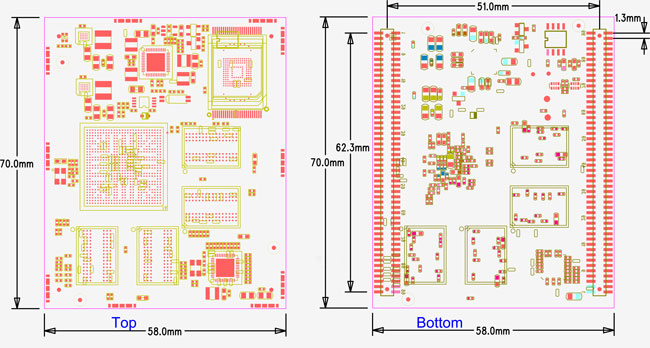

* Dimensions : 70 x 58 mm (CPU module)
* Connectors: 1.27mm pitch, 100-pin Female Pin Header

The Bus Fare Collection Device is an automated fare collection and management device. It can be installed in the buses for multi-purpose functions such as calculating travel expenses, deducting the bus fare, and display the remaining charge.

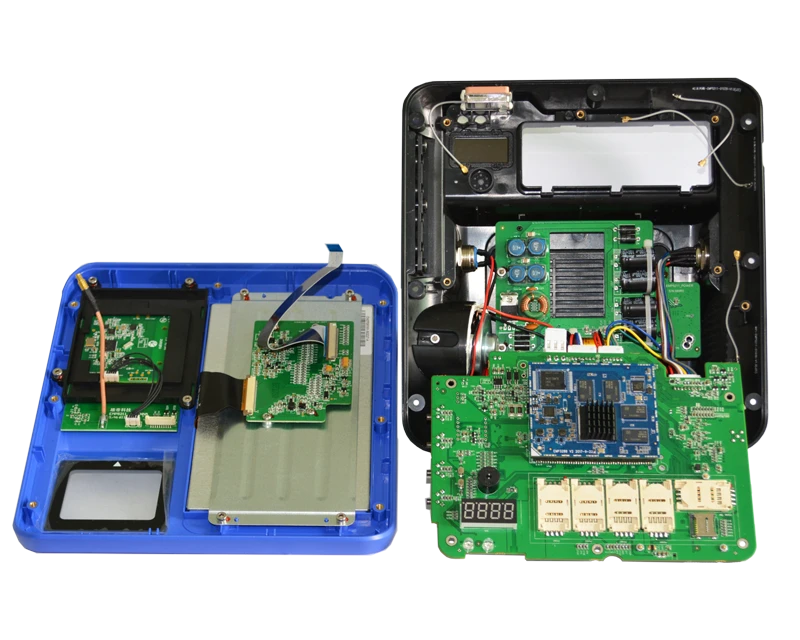

RK3288 Bus Fare Collection Device delivers fare collection capabilities in a compact, secure and durable solution. It includes a contactless smart card payment processor, wireless data transfer and GPS. Combines traditional fare media with emerging technology, it provides fast, easy and secure processing of flexible fare media options including magnetics, smart cards, and mobile QR codes.



RK3288-Bus-Fare-Collection-Device interface.jpgrk3288 POS features
