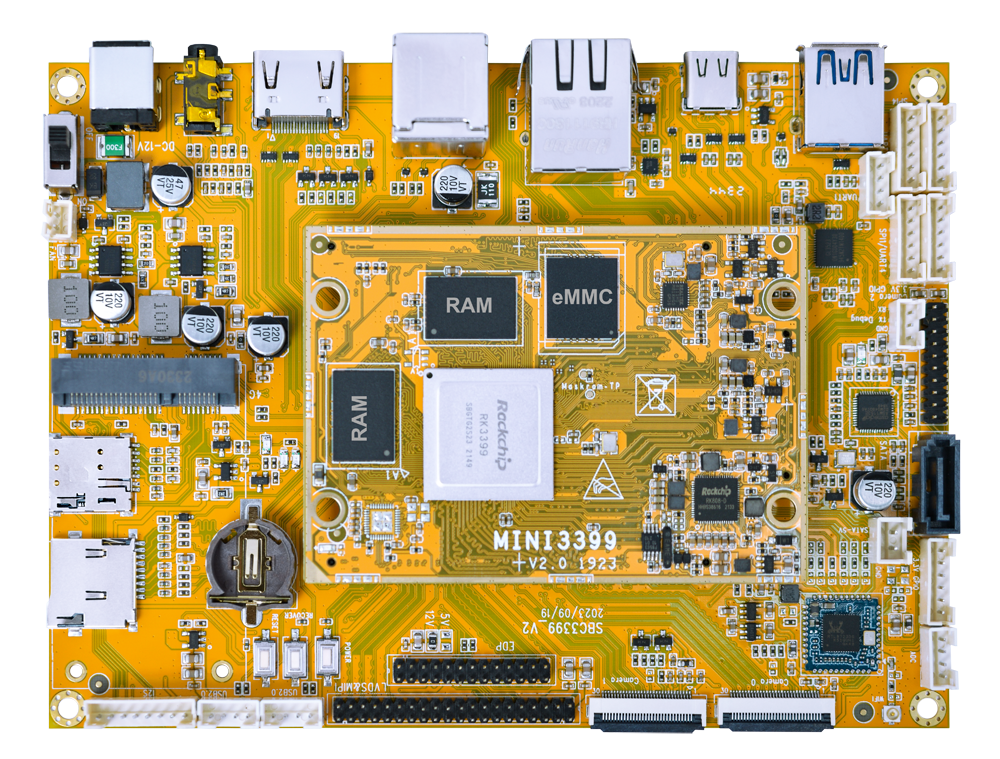

SBC3399

* Processor: Rockchip RK3399. Dual-core Cortex-A72 @ 1.8GHz + Quad-core Cortex-A53 @ 1.4GHz
* RAM: 4GB

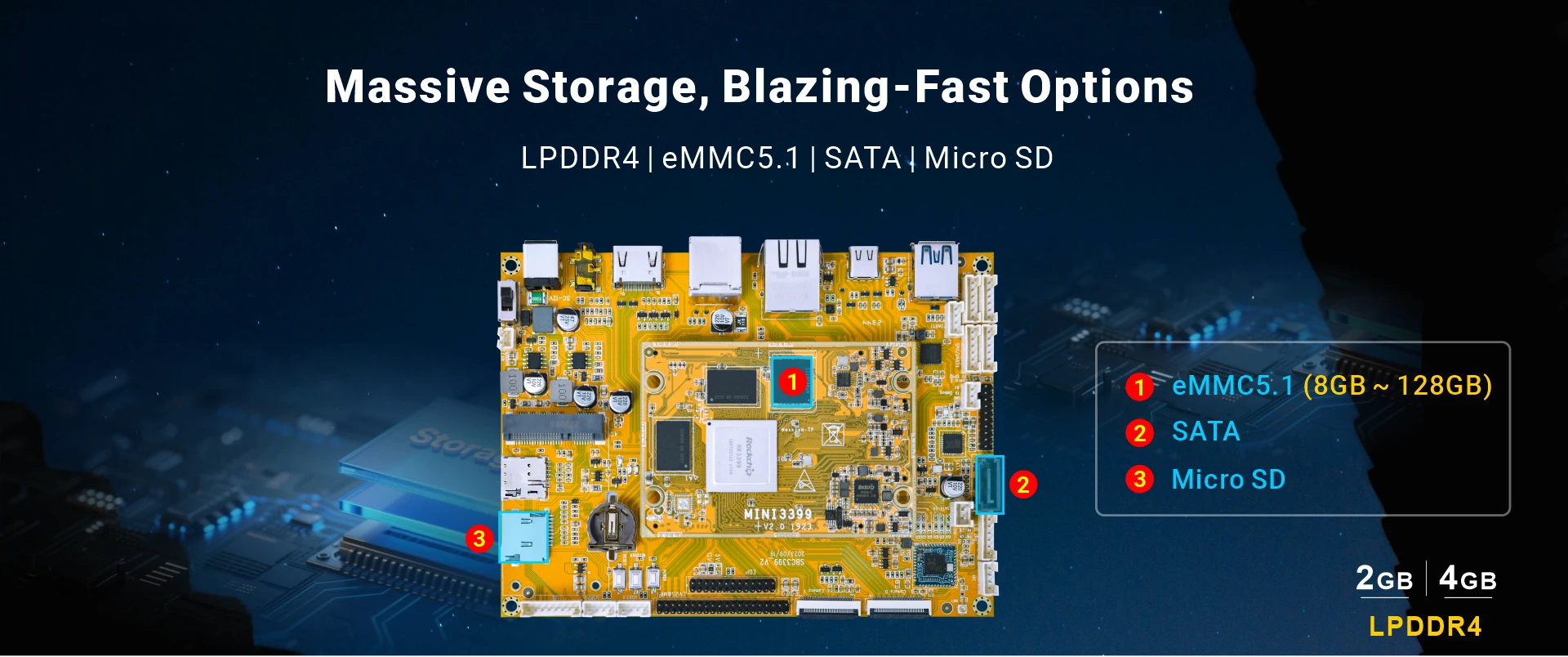

* Storage: 8GB

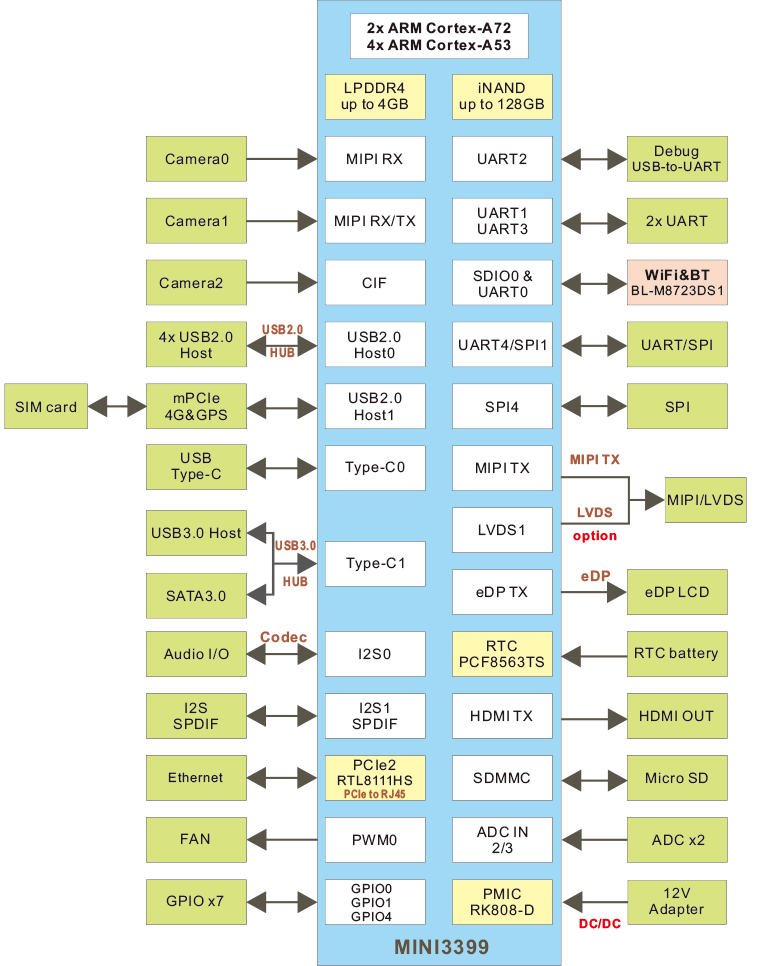

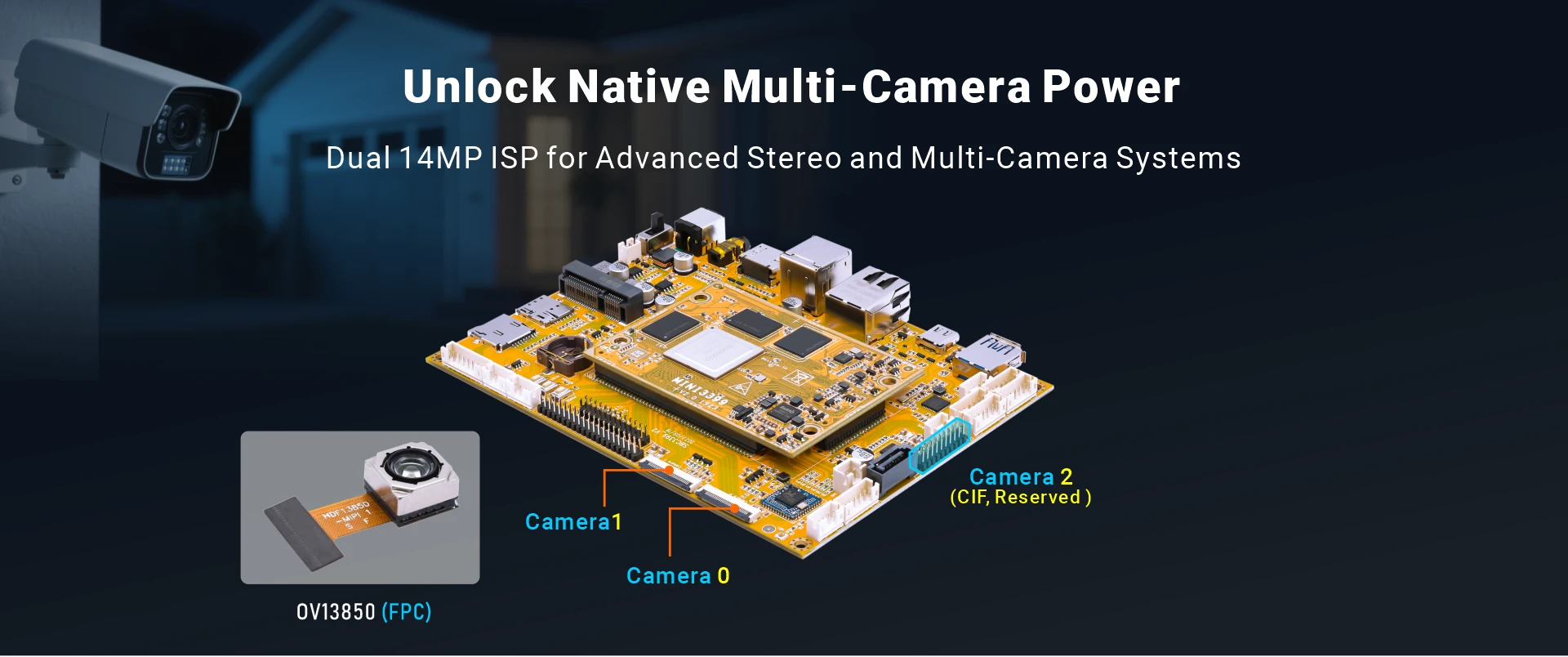

* Interfaces: HDMI OUT, eDP, 2x MIPI CSI, CIF, LVDS/MIPI DSI, mPCIe, SATA3.0, Micro SD, USB3.0 Host, Type-C, 4x USB2.0 Host, Gigabit Ethernet, 3x UART, Debug, Audio I/O, SPI, ADC, GPIO, etc.
* Operating system: Android 11

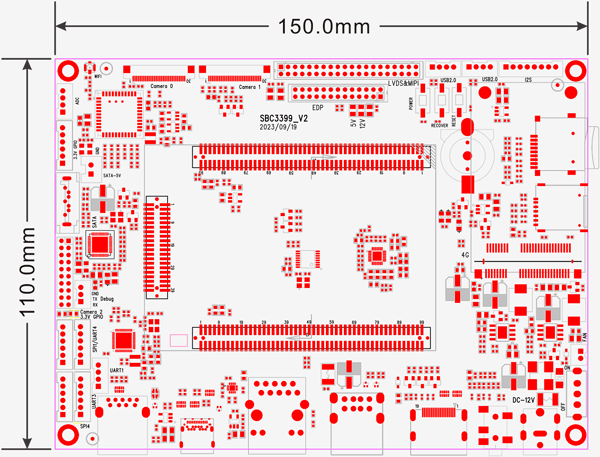

* Dimensions: 150 x 110 mm
* Expansion Module: 4G model, WiFi, Camera, 10.1-inch LCD

     Rockchip RK3399 SOM-MINI3399

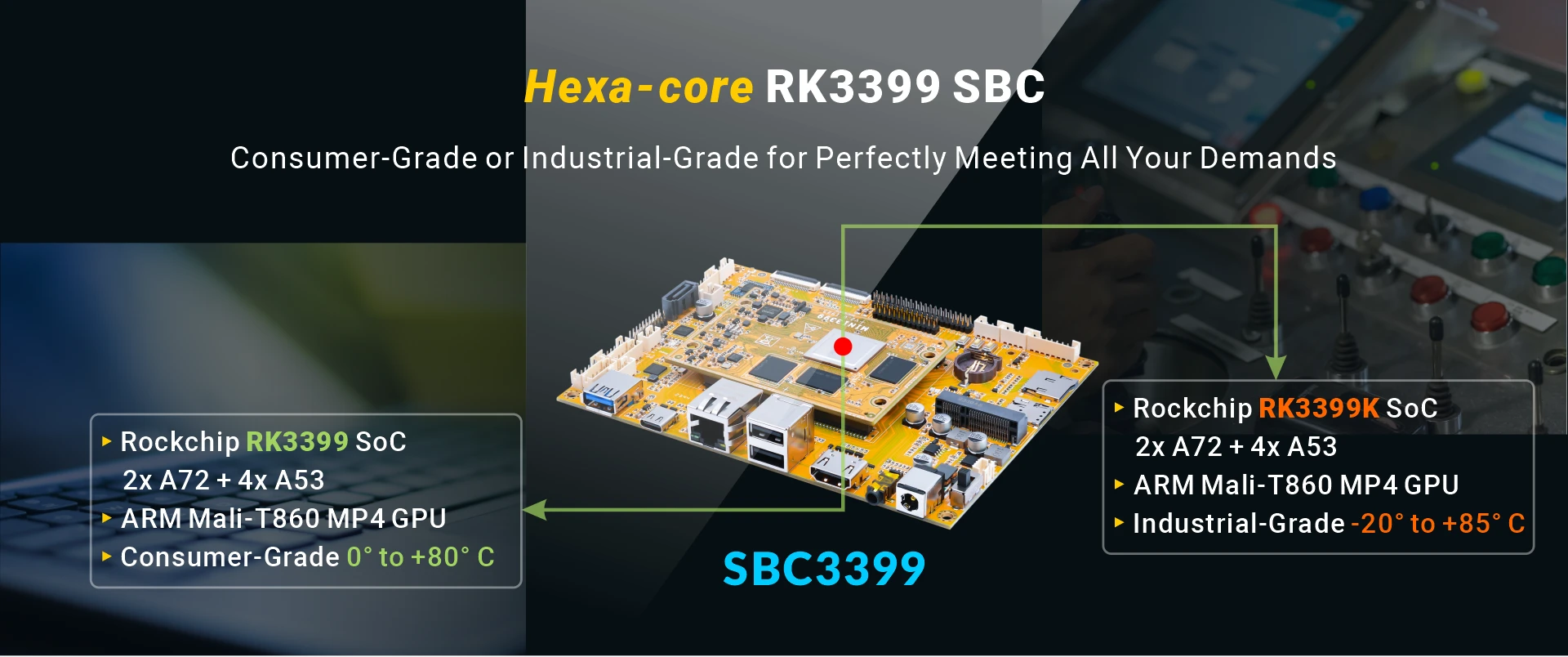

SBC3399 is a single board computer powered by Rockchip RK3399 hexa-core Cortex-A72/A53 processor. Embedded Mali-T860 MP4 GPU provides good graphics processing capabilities, enabling smooth rendering of graphics and 3D content in applications like gaming and multimedia.

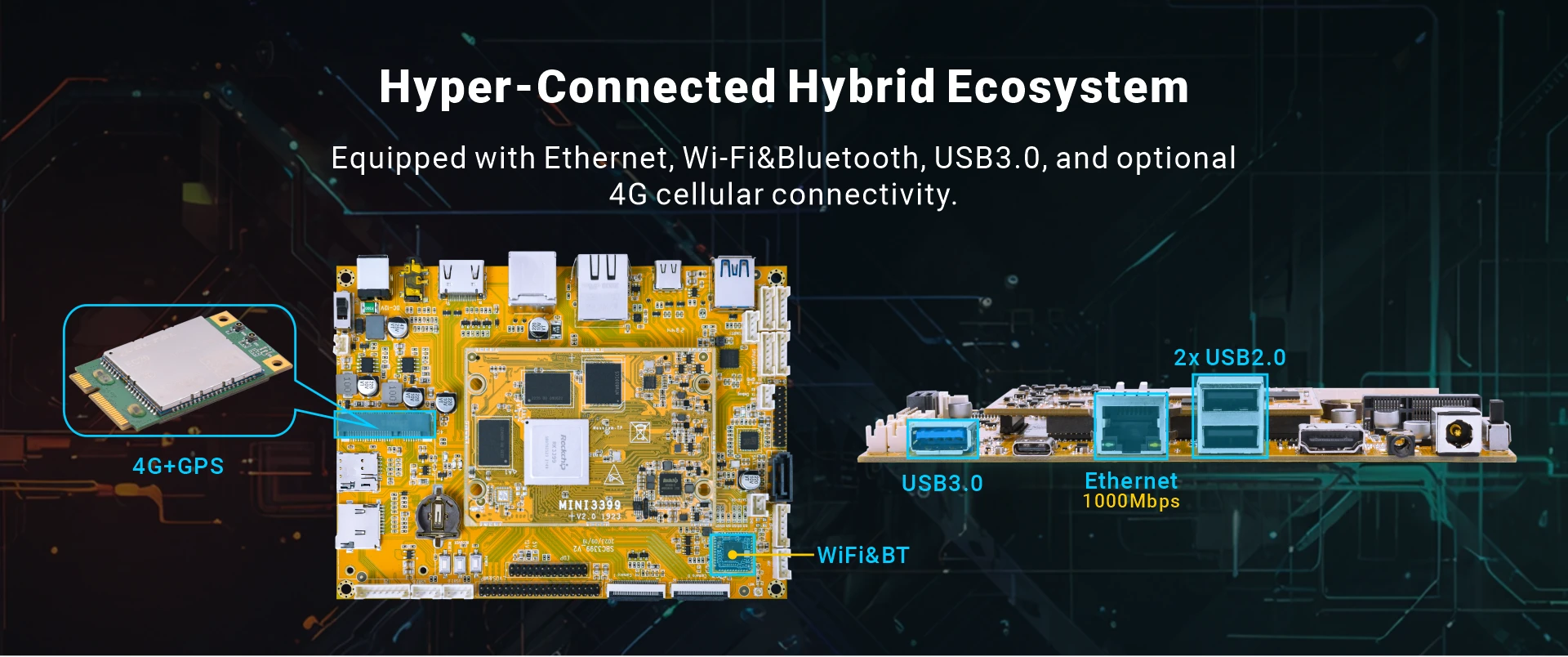

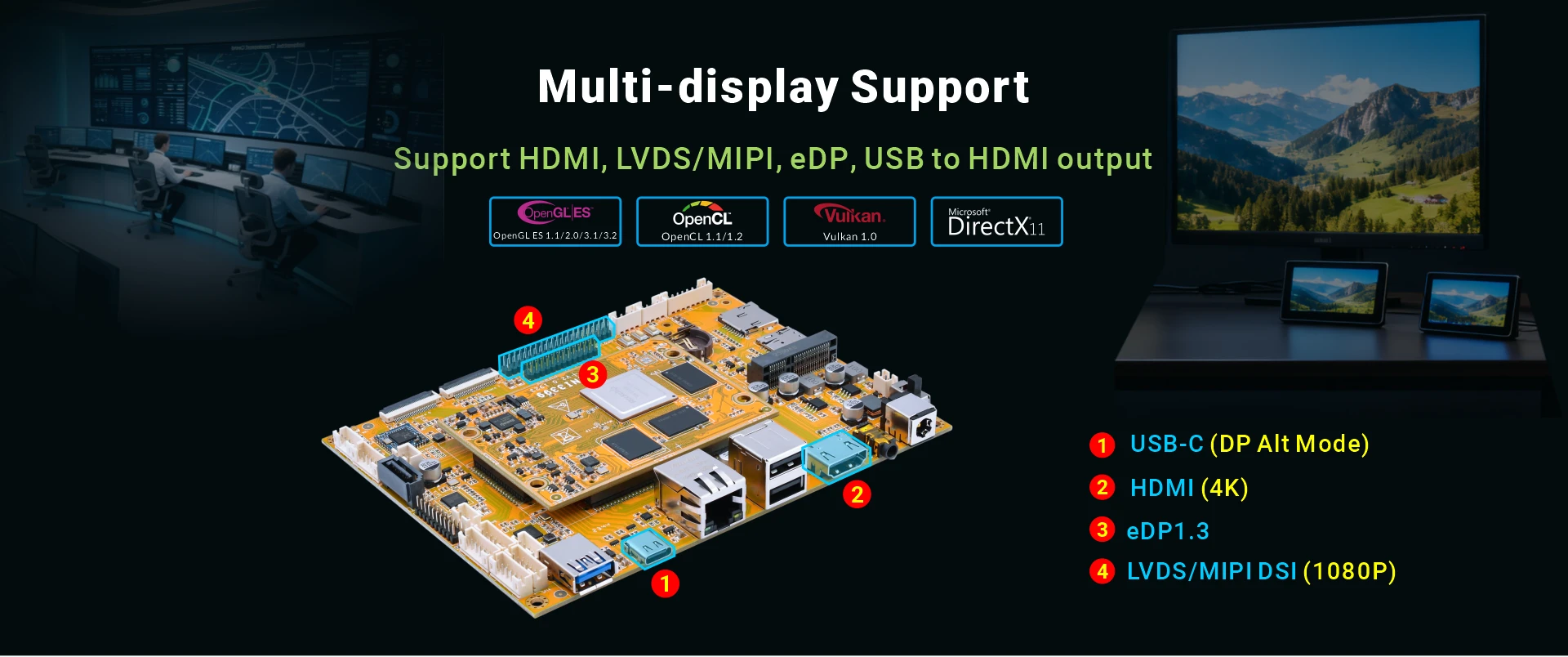

This RK3399 SBC comes with 4GB RAM, USB 3.0/2.0 ports, SATA3.0, Gigabit Ethernet, WiFi and Bluetooth, mPCIe for 4G LTE and features multiple display interfaces, such as LVDS/MPI CSI, eDP and full-size HDMI port capable of 4Kp60 resolution. It is a versatile platform that can be used in industrial automation, robotics, digital signage, IoT devices, and more. Boardcon also offers customization options, allowing clients to tailor the RK3399 SBC to their specific project requirements.

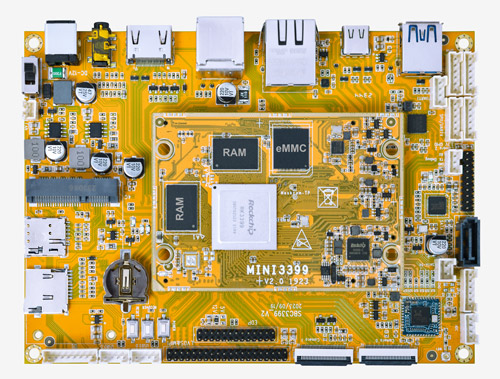

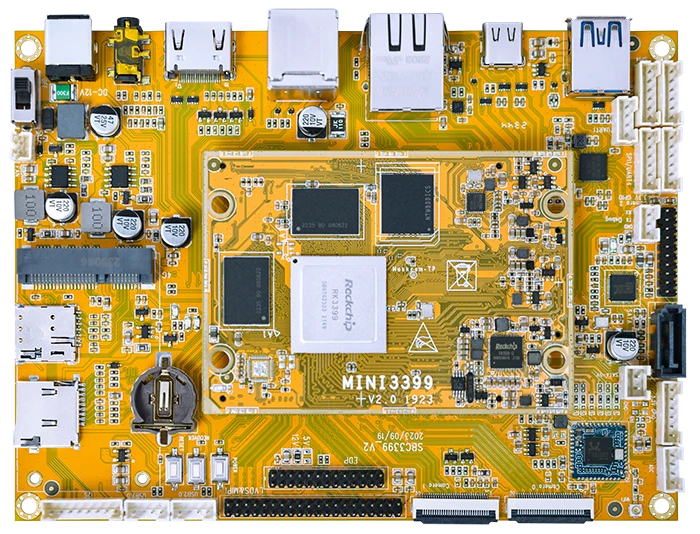

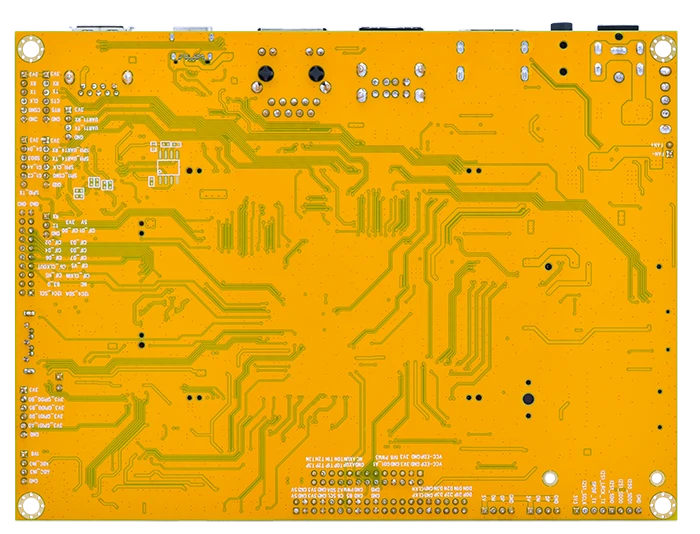

RK3399 single board computer

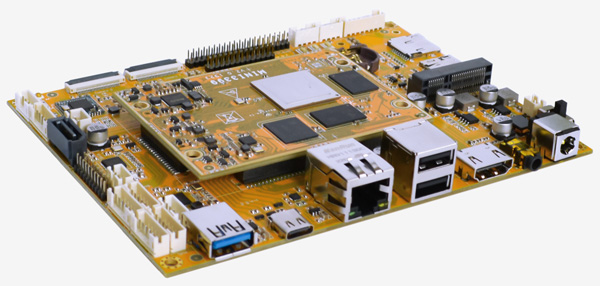

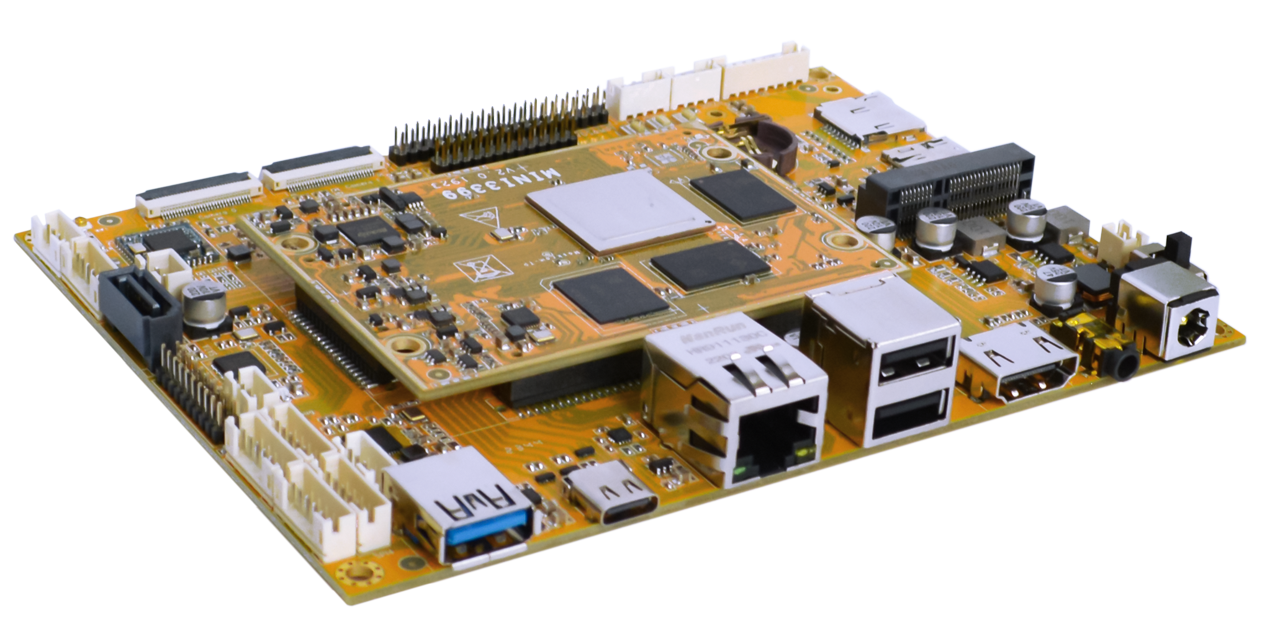

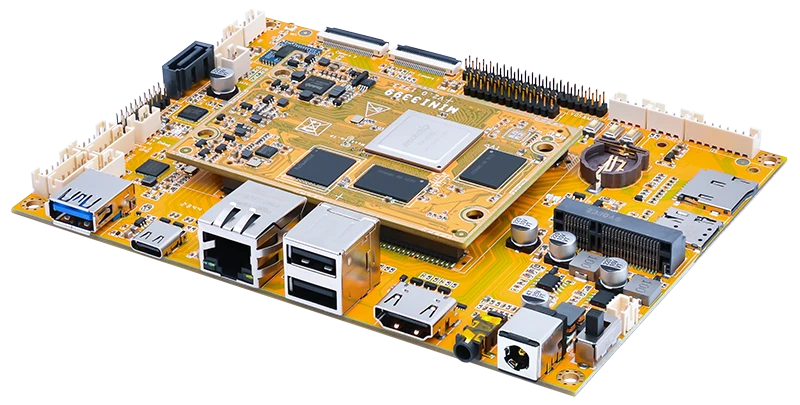

SBC3399 angle
