SBC3566

* Processor: Rockchip RK3566. Quad-core Cortex-A55, 1.8GHz
* NPU: 1 TOPS
* RAM: 2GB
* Storage: 8GB

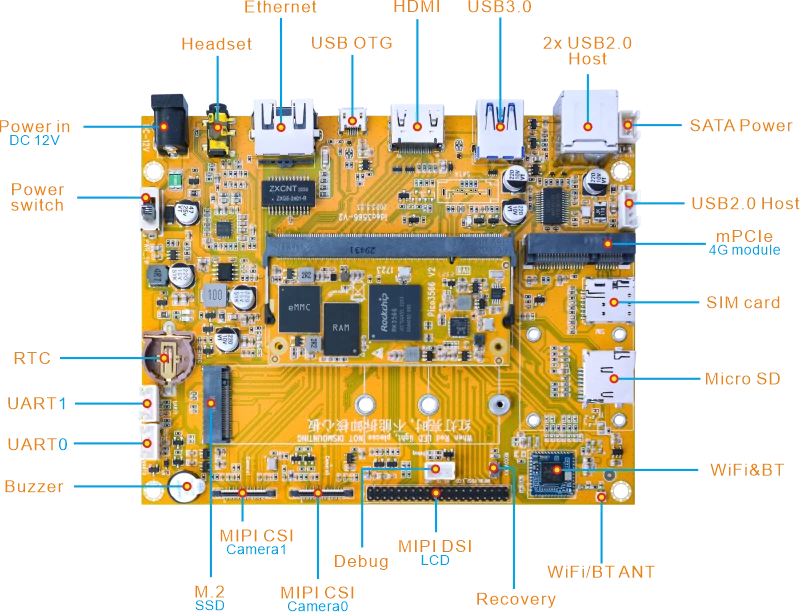

* Interfaces: MIPI DSI, 2x MIPI CSI, HDMI, 3x USB2.0 Host, USB3.0, USB2.0 OTG, Gigabit Ethernet, SDMMC, 2x UART, Debug, mPCIe, SSD, etc.
* Operating system: Debian 11

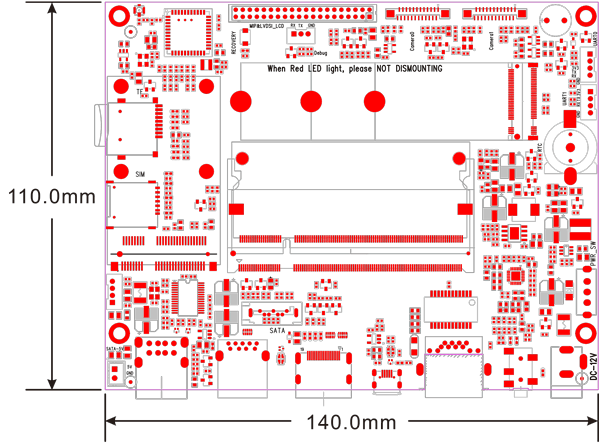

* Dimensions: 140 x 110 mm
* Connector: 200-pin SODIMM edge connector

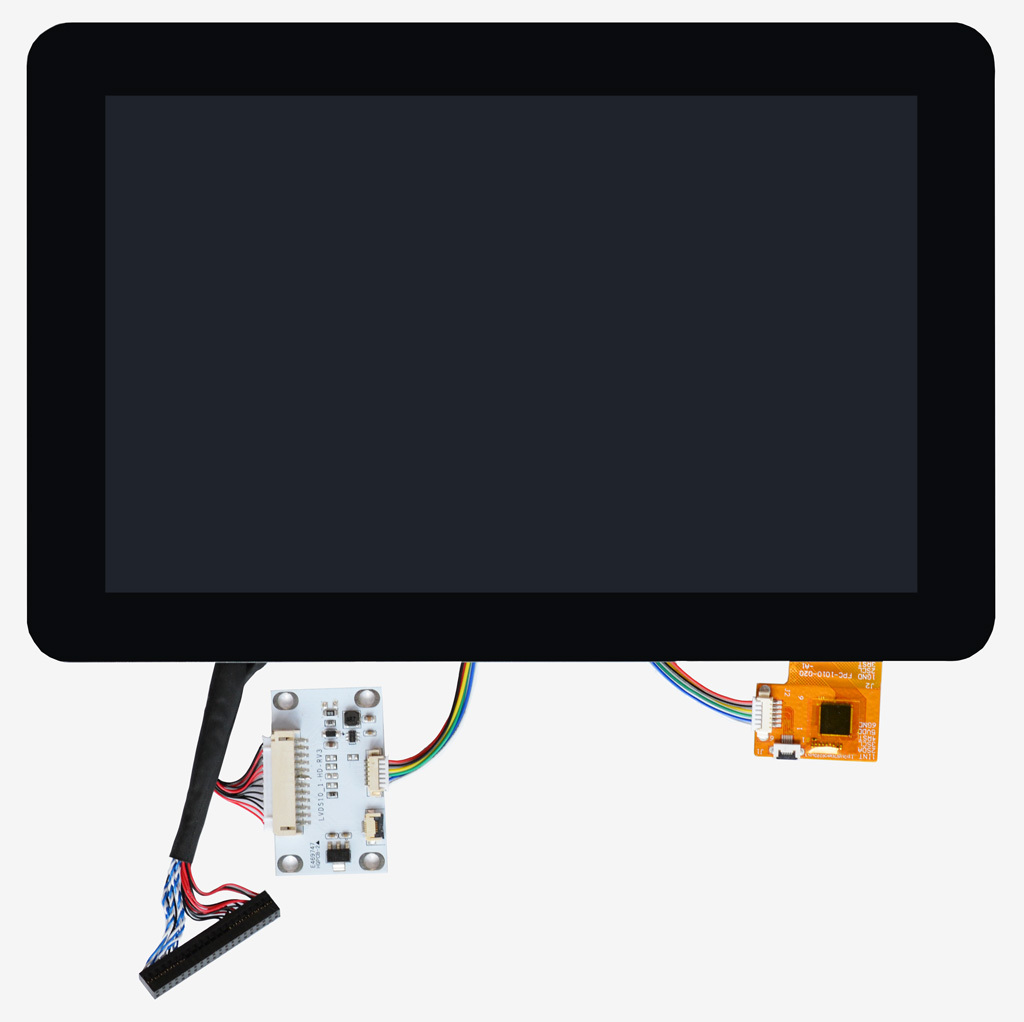

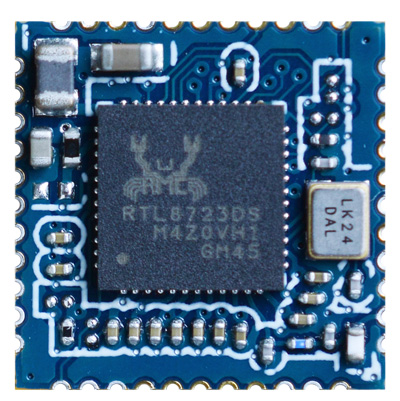

* Expansion Module: 4G model, WiFi, Camera, 10.1-inch LCD

     SBC3566_CPU_Module

The SBC3566 is a single board computer powered by a quad-core Rockchip RK3566 processor with a Mali-G52 GPU and 1 TOPS NPU. The RK3566 SBC includes the PICO3566 SOM, which is an alternative to the Raspberry Pi CM3+ Compute Module and comes with 2GB to 8GB RAM, 8GB to 128GB eMMC flash storage.
The SBC features one M.2 NVMe SSD, a 4G LTE modem, Gigabit Ethernet and WiFi connectivity, HDMI and MIPI CSI/DSI video interfaces that makes the board especially well-suited for the AI and Industrial IoT devices such as industrial controller, intelligent interactive devices, personal computers and robots.

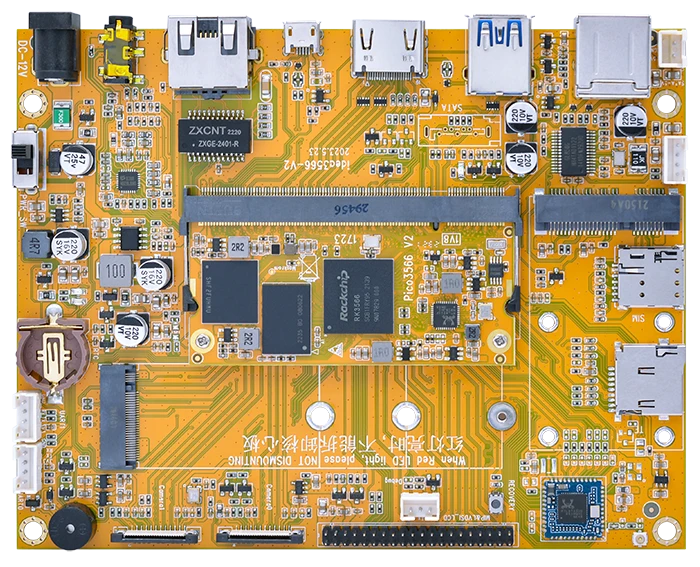

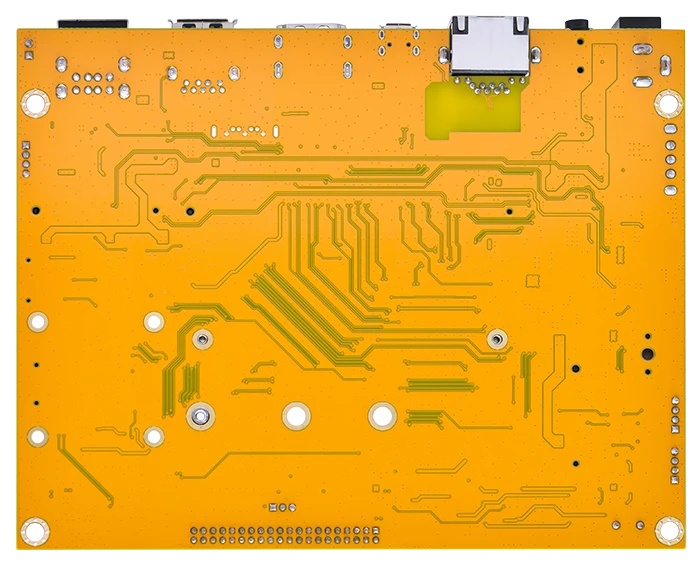

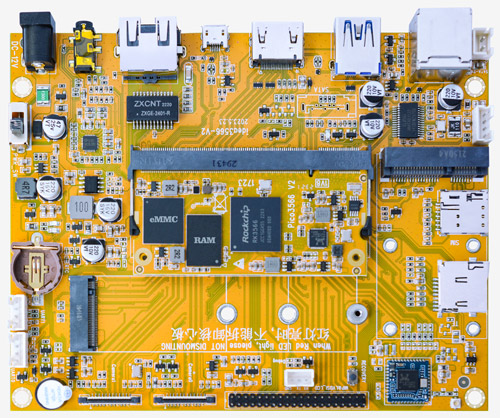

RK3566_single_board_computer_SBC3566

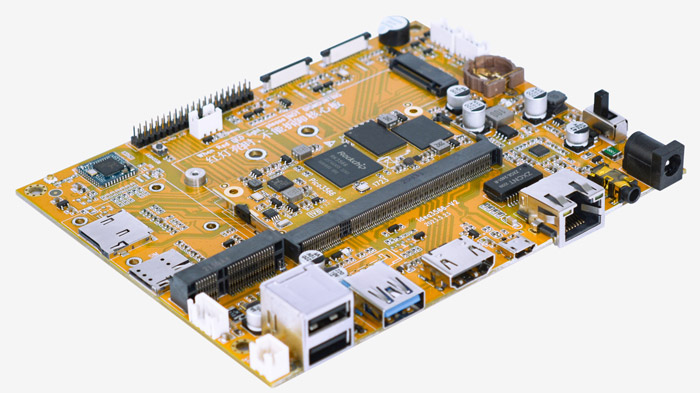

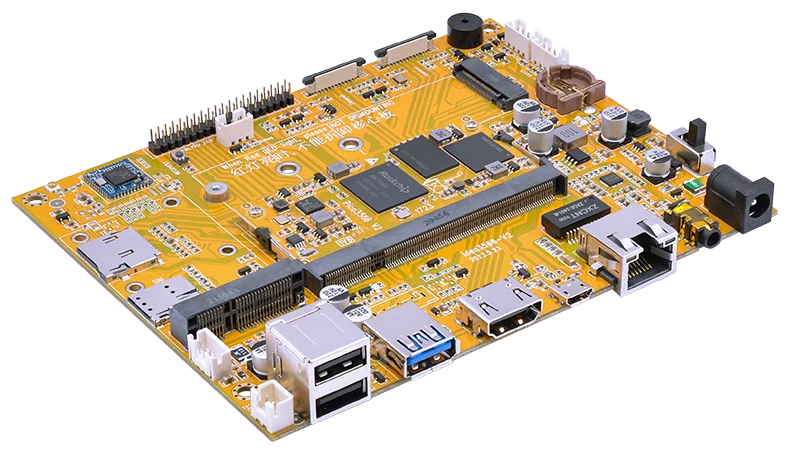

RK3566_SBC3566
