MINI4412
* Processor: Samsung Exynos 4412. Quad-Core ARM Cortex-A9 @ 1.4GHz
* RAM: 1GB/2GB
* Storage: 4GB/8GB/16GB/32GB
* Pin out: 4x UART, USB2.0 Host, USB2.0 OTG, RGB, HDMI, MIPI DSI, 2x MIP Camera, CVBS, Ethernet, 2x SDMMC, SPDIF, I2C, ADC, SPI, PWM, I2S, Keypad, GPIO, etc.
* Operating system: Linux 3.5, Android 4.0/4.2.2/4.4.4
* Dimensions: 65 x 47 mm
* Connectors: 1x 40-pin and 3x 54-pin, 1.0mm pitch

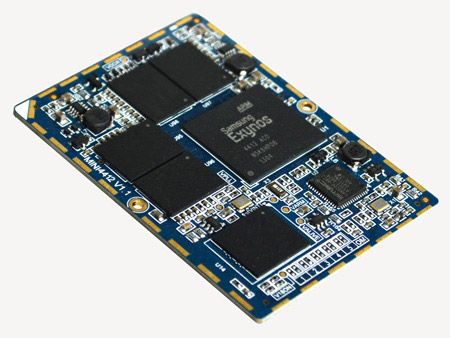

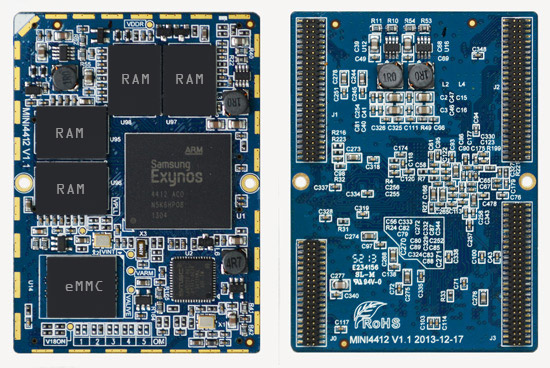

The MINI4412 is a System-on-Module based on the Samsung Exynos 4412 which is the Industry's First Quad-core Mobile Processor with 32nm HKMG Process. It integrates an ARM Mali-400 MP4 GPU (15.8 GFLOPS at 440MHz). Depending on the clock speed, the power consumption should be between 2 and 4 W (estimated). This Exynos 4 Quad CPU based Android board is ideal for developing products involving embedded android system capability.
| Specifications | |
|---|---|
| SoC | Samsung Exynos4412 ARM Cortex-A9 Quad Core, 1.4GHz |
| Memory | 1GB/2GB DDR3 |
| Storage | 4GB/8GB/16GB/32GB eMMC |
| Supply Voltage | DC5V and DC3.3V |
| Pin out | 4x UART, USB2.0 Host, USB2.0 OTG, RGB, HDMI, MIPI DSI, 2x MIP Camera, CVBS, Ethernet(100M), 2x SDMMC, SPDIF, 2x I2C, 2x ADC IN, 2x SPI, 4x PWM, I2S, Keypad, GPIO, etc. |
| PCB Layer | 8 |
| Dimensions | 65 x 47 mm |
| Weight | 14.9 gram |
| Connectors | 1x 40-pin, 1.0mm pitch header 3x 54-pin, 1.0mm pitch header |
| Application | POS, Slot Machine, and Car mounted system |
| Development Board | EM4412 |

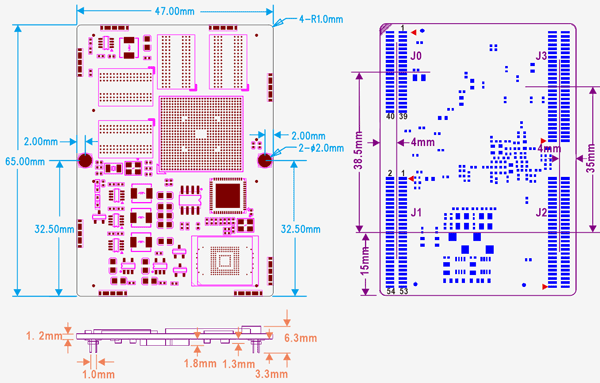

PCB Dimension
Pin Definition
| J0 | Signal | J1 | Signal | J2 | Signal | J3 | Signal |
|---|---|---|---|---|---|---|---|
| 1 | GND | 1 | SPDIF/XCLK | 1 | Xmmc3CLK | 1 | XadcAIN0 |
| 2 | GND | 2 | GND | 2 | Xmmc3CMD | 2 | XadcAIN1 |
| 3 | GND | 3 | XhsicSTROBE0 | 3 | Xmmc3CDn | 3 | TXCP |
| 4 | GND | 4 | XhsicDATA0 | 4 | Xmmc3DATA0 | 4 | TXCN |
| 5 | VSYS | 5 | XotgDP | 5 | Xmmc3DATA1 | 5 | TX0P |
| 6 | VSYS | 6 | XotgDM | 6 | Xmmc3DATA2 | 6 | TX0N |
| 7 | VSYS | 7 | XVBUS | 7 | Xmmc3DATA3 | 7 | TX1P |
| 8 | VSYS | 8 | USB_ID | 8 | GND | 8 | TX1N |
| 9 | V_SAVE | 9 | XotgDRV_VBUS | 9 | KP_COL1 | 9 | TX2P |
| 10 | GND | 10 | XEINT0 | 10 | KP_COL2 | 10 | TX2N |
| 11 | RST_KEY | 11 | XEINT1 | 11 | KP_COL3 | 11 | GND |
| 12 | nRESET | 12 | XEINT2 | 12 | KP_COL4 | 12 | XvHSYNC |
| 13 | OM1 | 13 | XEINT3 | 13 | KP_COL5 | 13 | XvVSYNC |
| 14 | OM3 | 14 | XEINT4 | 14 | KP_COL6 | 14 | XvVDEN |
| 15 | OM4 | 15 | XEINT5 | 15 | KP_COL7 | 15 | XvVCLK |
| 16 | OM5 | 16 | XEINT6 | 16 | Xi2sSCLK0 | 16 | XvVD0 |
| 17 | PWRHOLD | 17 | XEINT7 | 17 | Xi2sCDCLK0 | 17 | XvVD1 |
| 18 | GND | 18 | XEINT9 | 18 | Xi2sLRCK0 | 18 | XvVD2 |
| 19 | VDD_IO | 19 | XEINT10 | 19 | Xi2sSDI0 | 19 | XvVD3 |
| 20 | VDD_IO | 20 | XEINT11 | 20 | Xi2sSDO0 | 20 | XvVD4 |
| 21 | XpwmTOUT2 | 21 | XEINT12 | 21 | Xi2sSDO1 | 21 | XvVD5 |
| 22 | XpwmTOUT0 | 22 | XEINT13 | 22 | Xi2sSDO2 | 22 | XvVD6 |
| 23 | XpwmTOUT1 | 23 | XEINT14 | 23 | XciBPCLK | 23 | XvVD7 |
| 24 | GND | 24 | XEINT15 | 24 | XciBVSYNC | 24 | XvVD8 |
| 25 | XspiMOSI0 | 25 | XEINT16 | 25 | XciBHREF | 25 | XvVD9 |
| 26 | XspiMISO0 | 26 | XEINT17 | 26 | XciBFIELD | 26 | XvVD10 |
| 27 | XspiCLK0 | 27 | XEINT18 | 27 | XciBMCLK | 27 | XvVD11 |
| 28 | XspiCS0 | 28 | XEINT19 | 28 | XciBDATA0 | 28 | XvVD12 |
| 29 | XspiMISO1 | 29 | XEINT20 | 29 | XciBDATA1 | 29 | XvVD13 |
| 30 | XspiMOSI1 | 30 | XEINT21 | 30 | XciBDATA2 | 30 | XvVD14 |
| 31 | XspiCLK1 | 31 | XEINT22 | 31 | XciBDATA3 | 31 | XvVD15 |
| 32 | XspiCS1 | 32 | XEINT23 | 32 | XciBDATA4 | 32 | XvVD16 |
| 33 | XuRXD0 | 33 | XEINT24 | 33 | XciBDATA5 | 33 | XvVD17 |
| 34 | XuTXD0 | 34 | XEINT25 | 34 | XciBDATA6 | 34 | XvVD18 |
| 35 | XuCTSn0 | 35 | XEINT26 | 35 | XciBDATA7 | 35 | XvVD19 |
| 36 | XuRTSn0 | 36 | XEINT27 | 36 | XciAPCLK | 36 | XvVD20 |
| 37 | XuRXD2 | 37 | XEINT28 | 37 | XciAVSYNC | 37 | XvVD21 |
| 38 | XuTXD2 | 38 | XEINT29 | 38 | XciAHREF | 38 | XvVD22 |
| 39 | XuCTS2 | 39 | HDMI_CEC | 39 | XciADATA0 | 39 | XvVD23 |
| 40 | XuRTS2 | 40 | HDMI_HPD | 40 | XciADATA1 | 40 | AC97_BCLK |
| 41 | Xmmc2CLK | 41 | XciADATA2 | 41 | AC97_RST | ||
| 42 | Xmmc2CMD | 42 | XciADATA3 | 42 | AC97_SYNC | ||
| 43 | Xmmc2CDn | 43 | XciADATA4 | 43 | AC97_SDI | ||
| 44 | Xmmc2DATA0 | 44 | XciADATA5 | 44 | AC97_SDO | ||
| 45 | Xmmc2DATA1 | 45 | XciADATA6 | 45 | XuRXD1 | ||
| 46 | Xmmc2DATA2 | 46 | XciADATA7 | 46 | XuTXD1 | ||
| 47 | Xmmc2DATA3 | 47 | XciAMCLK | 47 | XuCTSn1 | ||
| 48 | KP_COL0 | 48 | XciAFIELD | 48 | XuRTSn1 | ||
| 49 | SPEED | 49 | Xmipi2LSDP1 | 49 | Xi2cSDA0 | ||
| 50 | LINK | 50 | Xmipi2LSDN1 | 50 | Xi2cSCL0 | ||
| 51 | ETX+ | 51 | Xmipi2LSDPCLK | 51 | Xi2cSDA1 | ||
| 52 | ETX- | 52 | Xmipi2LSDNCLK | 52 | Xi2cSCL1 | ||
| 53 | ERX+ | 53 | Xmipi2LSDP0 | 53 | XuRXD3 | ||
| 54 | ERX- | 54 | Xmipi2LSDN0 | 54 | XuTXD3 | ||
| OS | Item | Feature | Description |
|---|---|---|---|
| Android4.0/4.2.2/4.4.4 | Bootloader | Uboot-2010-12 | Main functions: 1.Support iNand erase/write/read 2.Support USB download Image 3.Support print, set, save Environment Variables 4.Support memory contents display/compare/modify 5.Support bootm, bootargs setting |
| Kernel and drivers | Kernel version | Linux 3.0.15/3.5 | |
| Drivers | RTC, 7-inch LCD( LVDS/TTL) Capacitive Touch Screen, USB Device, Audio, Keypad, DMA, 2D, 3D, IIC, SPI, MFC, PWM Backlight, HDMI, Camera, GPS, 3G, SD/MMC/SDIO, JPEG | ||
| File System | File System | Ext4 File System | |
| Application | Clock, Browser, Calculator, Camera, Phone, Email, ES File Explorer, Messaging, Music, Gallery | ||
| Cross compiler Environment | Arm-2009q3.tar.bz2 | ||
| Debug Tools | DNW V0.60C, SecureCRT.exe, VmWare7.0 +Ubuntu10.04 | ||
| OS | Item | Feature | Description |
|---|---|---|---|
| Linux3.5 | Bootloader | Boot | Start up system, supporting one Key to update Bootloader, Kernel, rootfs, and one Key to configure parameters of Linux. Also can be configured the board booting from EXT2/3/4 |
| Sdfuse | one-key burn images use sdfuse function | ||
| File system | EXT2/3/4 | ||
| Kernel | Support writing kernel image into eMMC and kernel parameter setting | ||
| Etc. | Support via USB and Serial Interface to download application to flash debug | ||
| Kernel | Version | Linux kernel 3.5 | |
| File system | RAMFS/EXT2/3/4 | ||
| RS232/RS485 | serial driver | ||
| 10/100M Ethernet | DM9000AEP | ||
| RTC | RTC driver | ||
| USB Host | USB Host, USB Slave driver | ||
| Buttons | User buttons | ||
| LCD | Coming with driver for4.3", 7" 10.1”TFT LCD | ||
| Touch panel | Resistive touchscreen/capacity touchscreen | ||
| SD card | SD card driver | ||
| Sound | WM8976 | ||
| Camera | CMOS Camera driver | ||
| KEY | 6x Keys | ||
| WCDMA Module | Using WCDMA Module to dial-up to Ethernet | ||
| Embedded GUI | Qt/Embedded | Qtopia 2.2.0 and Qtopia 4.7 | |
| Application | Servfox | The application is running under Console platform, it controls the USB Camera by internet and displays the picture taken by camera on the LCD. It can be taken as net monitor when the application works with USB Camera. | |
| Spcacat | It is a camera picture capture application under Console platform | ||
| Snapshot | It is a LCD picture capture application under Console platform | ||
| Rz and sz | It is a application that transfer and receive file by serial port | ||
| Madplay | It is a MP3 player | ||
| Network protocol | TCP/IP | TCP/IP protocol | |
| Telnet | Telnet server, telnet remote login | ||
| File transfer | FTP Client/server | ||
| Web server | BOA Web Server | ||
| USB port supported Devices | U-disk, portable hard-disk, USB mouse, USB Keyboard, USB HUB, USB Camera and so on. | ||
| Command | cat, chmod, discard, echo, flashsd, flashwrite, free, genhtml, hostname, init, kill, loader, ls,mkdir, mount, ps, reboot, rm, smanaged, sysconf, yes, insmod, lsmod, rmmod | ||
| Tools | busybox | ||
MINI4412 Pin Definition (123KB)
Samsung ARM cortex-A9 Exynos4412 User Manual (6.32MB)
If you order the System-on-Module or any question, please feel free to contact us at market@armdesigner.com
