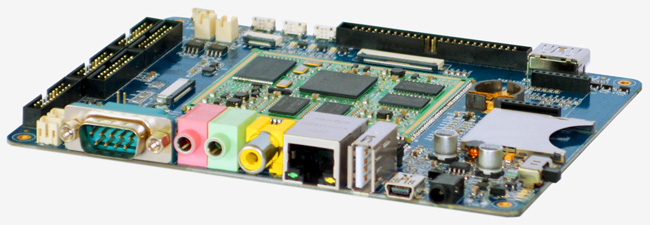

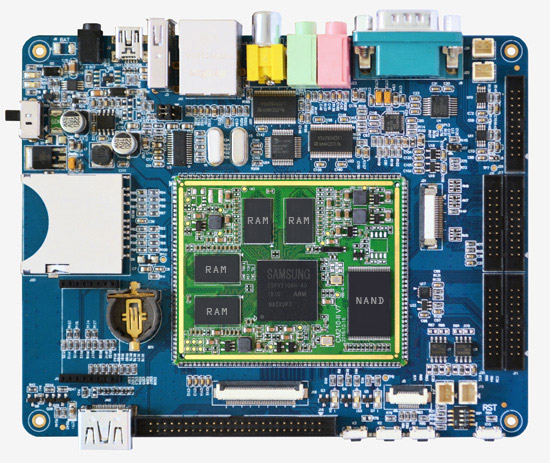

Android210 is a Single Board Computer (SBC) based on a Samsung S5PV210AH-A0 at 1GHz ARM Cortex-A8 CPU. An internal 64-bit bus provides a standard set of high-end on-board peripherals. The Android210 features 512MB DDR2 and 512MB high-speed NAND flash. It is an ideal solution for applications requiring cost-effective, low power and high performance.

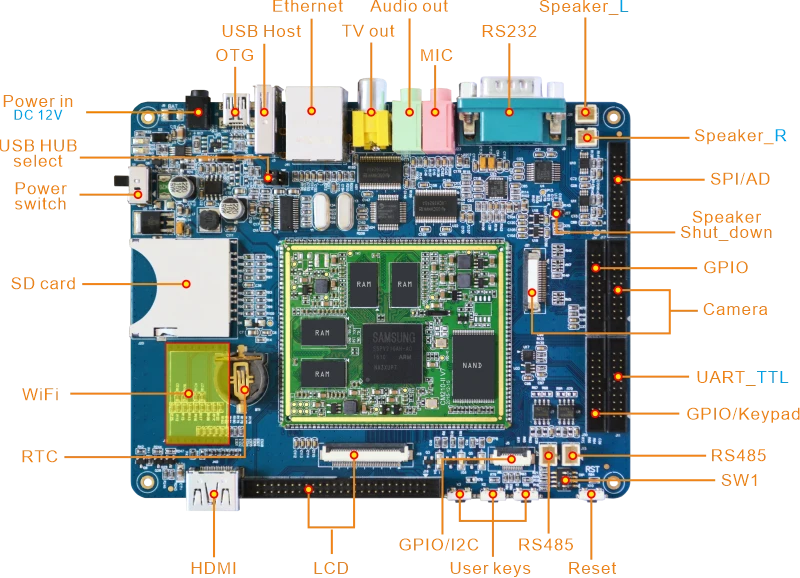

To reduce total system cost and enhance overall functionality, Android210 allows development of multi-function embedded applications through its multiple peripheral interfaces, which include 10/100 Ethernet port, USB Host2.0, USB OTG2.0, serial ports, SD card socket, general I/O lines, RTC, audio codec and speaker, touchscreen, and TFT 24-bit true color LCD interface.
Android210 runs Android4.0 which uses an improved Linux 3.0 kernel (currently 3.0.8 version) that allows bootup from NAND flash and provides driver support for all on-board hardware in a short time.

Equipped with the high-end processor, rich peripheral interface and open-source code, Android210 is ideal for embedded applications such as MID, Netbook, Learning machine, AD player, IPC, PDA, GPS, Vehicle equipment, Visual telephone, MMT, HMI, Monitoring equipment, and Teaching laboratory equipment.

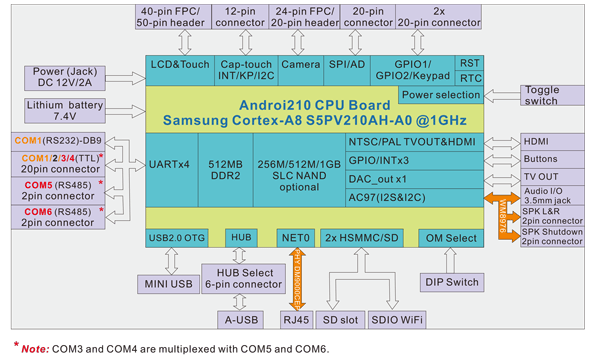

 Block Diagram

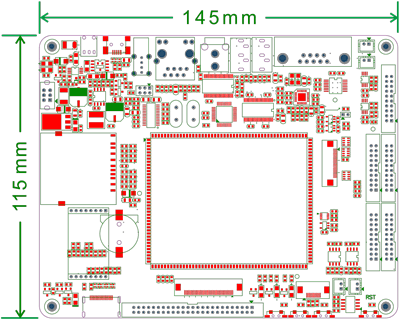

 PCB Dimension

 Samsung ARM Cortex-A8 S5PV210 Datasheet (28.8MB)

Expansion Module	Module Detail	Android
WiFi Module	USB WiFi Module, supports IEEE 802.11b/g/n, 802.3, 802.3u	√
CMOS Camera	2 Megapixel, Himax HM2055 Chipset	√
GPS Module	VPN1513S, WGS-84	√
3G Module	Huawei E1750 WCDMA module	√
Bluetooth Module	USB Bluetooth	√

If you order the Development Kit or any question, please feel free to contact us at market@armdesigner.com
