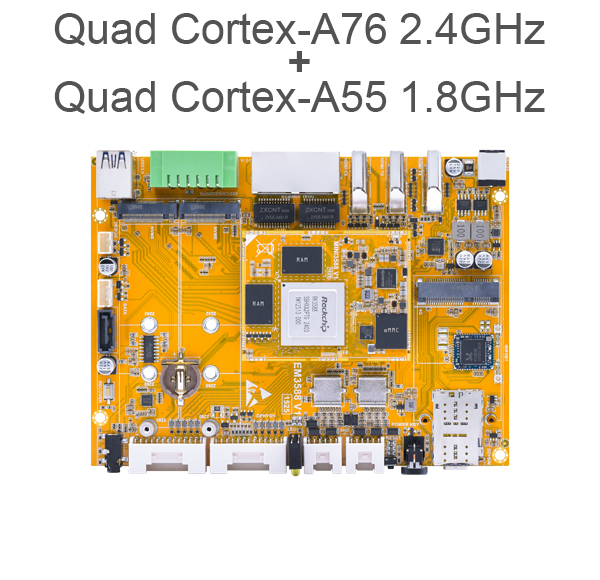

* Processor: Rockchip RK3588. 4x Cortex-A76 cores @ 2.4GHz + 4x Cortex-A55 cores @ 1.8GHz
* NPU: 6 TOPS
* RAM: 8GB/16GB
* Storage: 32GB/64GB/128GB/256GB
* Interfaces: RS232, Debug, 2x USB3.0 Host, USB3.1 Type-C, 2x Ethernet, RS485, CAN, 2x Speaker, Headset, 8x AHD, mPCIe, Micro SD, 3x HDMI, 2x MIPI DSI, 2x M.2 (PCIe3.0), SATA3.0
* Dimensions: 155 x 115 mm
* Operating system: Android 14, Debian 12, Buildroot
* Expansion Module: 4G, Camera, WiFi, 10.1-inch LCD

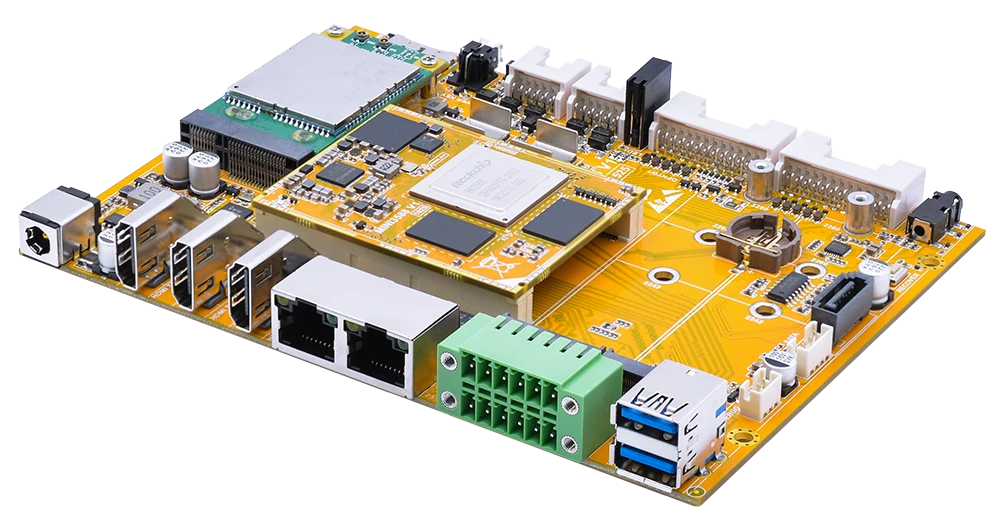

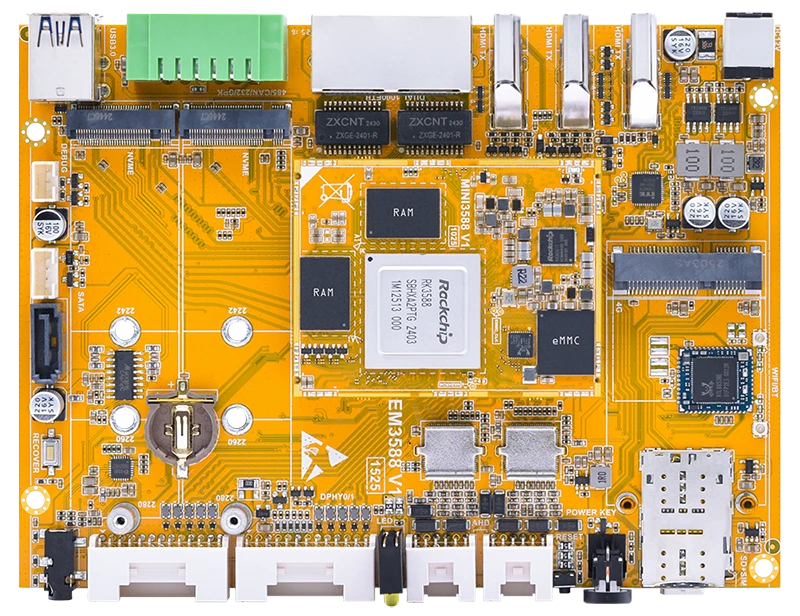

The EM3588 is a cutting-edge computing platform designed to deliver exceptional performance and versatility across a wide range of applications. The board is powered by the Rockchip RK3588 processor, featuring a high-performance octa-core architecture with 4x Cortex-A76 cores running at 2.4GHz and 4x energy-efficient Cortex-A55 cores at 1.8GHz, ensuring seamless multitasking and optimized power consumption. The integrated 6 TOPS NPU enables advanced AI and machine learning capabilities, making it ideal for edge computing, computer vision, and intelligent automation tasks.
With configurable RAM options of 8GB or 16GB and storage capacities ranging from 32GB to 256GB, the EM3588 SBC provides ample memory and storage flexibility to meet varying project requirements. Its comprehensive I/O and module support includes RS232, RS485, and CAN for industrial communication; dual Gigabit Ethernet for high-speed networking; USB3.0 Host and USB3.1 Type-C for versatile peripheral connectivity; and 8x AHD camera interfaces for multi-camera surveillance systems. Audio I/O is facilitated through dual speakers and a headset jack, while video output options include 3x HDMI, and 2x MIPI DSI for high-resolution displays.
For storage expansion and wireless connectivity, the board features a Micro SD slot, optional 4G LTE (via mPCIe), 2x M.2 PCIe3.0 slots, and SATA3.0 for additional storage devices. Advanced wireless capabilities are provided by integrated WiFi 6 and Bluetooth 5.2, ensuring fast and reliable wireless communication.
The EM3588 SBC supports multiple operating systems, including Android, Debian, and Buildroot, offering developers the flexibility to choose the ideal environment for their specific use case. Whether deployed in industrial automation, smart retail, digital signage, robotics, or multimedia applications, the EM3588 SBC delivers robust performance, extensive connectivity, and AI-driven intelligence in a compact and reliable form factor.
Specifications | ||
---|---|---|
SoC | Rockchip RK3588 Octa-core processor. 4x Cortex-A76 @ 2.4GHz, 4x Cortex-A55 @ 1.8GHz |
|
NPU | 6 TOPS | |
GPU | ARM Mali-G610 MP4 with support for OpenGL ES 1.1/2.0/3.2, OpenCL 2.2, Vulkan 1.2 | |
VPU | 8K@60fps H.265/ VP9/ AVS2 video decoder 8K@30fps H.264/ H.265 video encoder |
|
Memory | 8GB LPDDR4X (up to 16GB) | |
Storage | 32GB eMMC flash (up to 256GB) MicroSD card slot 1x SATA3.0 socket 2x M.2 SSD socket (M-Key) |
|
Power Supply | 12V/3A DC input jack | |
USB | 1x USB3.1 Type-C 2x USB3.0 Host |
|
Connectivity | 2x Gigabit Ethernet RJ45 port via Realtek RTL8211F-CG controller PCIe 2.4G/5G 2T2R WiFi (802.11a/b/g/n/ac/ax) with Bluetooth5.2 Mini PCIe socket with Nano SIM card port to support 4G LTE module |
|
Serial | 1x Serial port for debug, 3-pin connector 1x RS232, 12-pin pluggable terminal block 1x RS485, 12-pin pluggable terminal block |
|
Video | Output | 2x HDMI 2.1, up to 8Kp60 DP to HDMI2.0, up to 4Kp60 2x MIPI DSI, up to 4Kp60 |
Input | 2x MIPI CSI, for 8x AHD cameras | |
Audio | 3.5mm audio I/O jack 2x Speaker via 12-pin pluggable terminal block 8-channel audio via HDMI |
|
Keys | Recovery, Reset, Power | |
Other features | RTC with battery connector, CAN | |
Dimensions | Based board - 155 x 115 mm; CPU module - 62 x 48 mm |

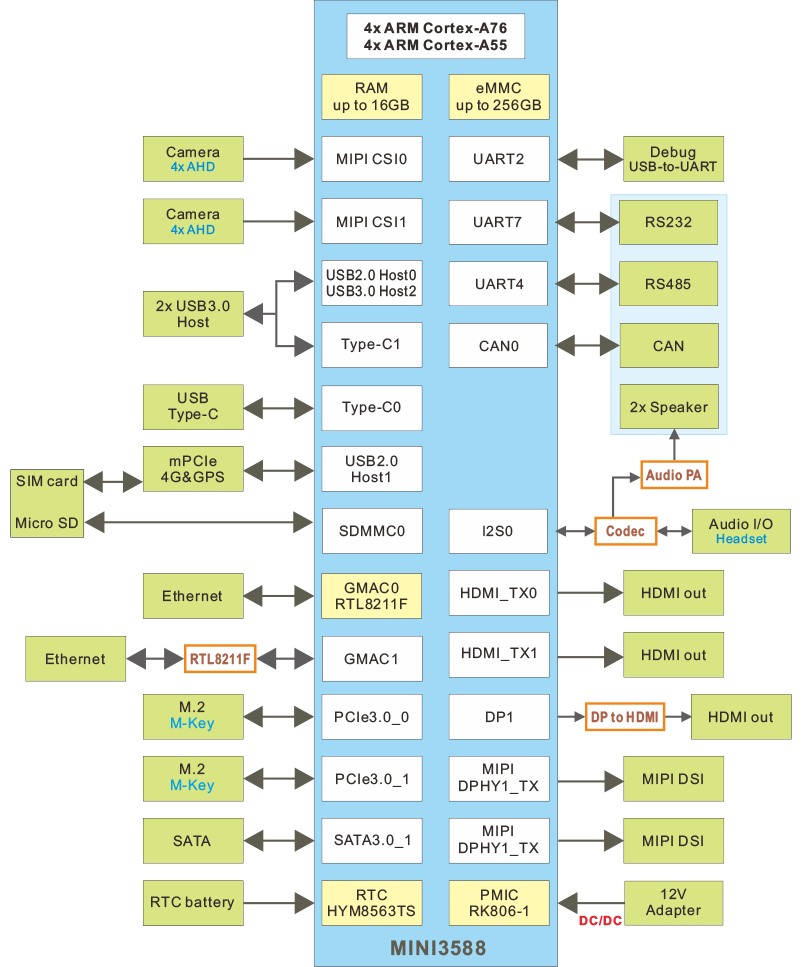

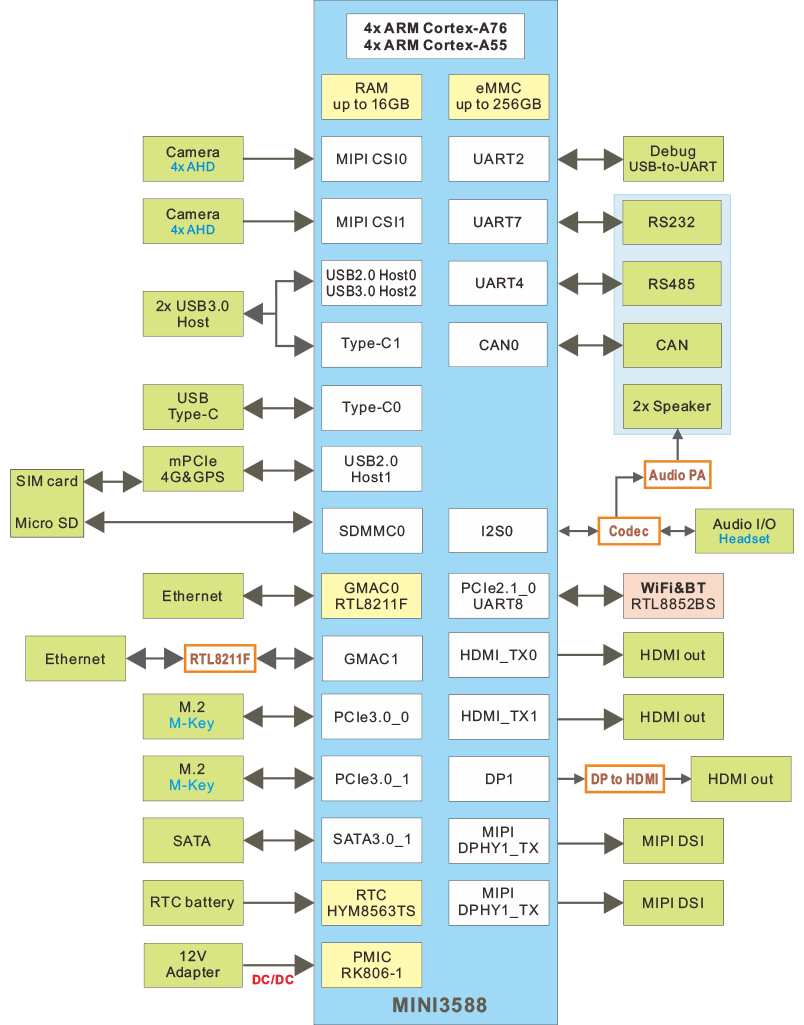

Block Diagram

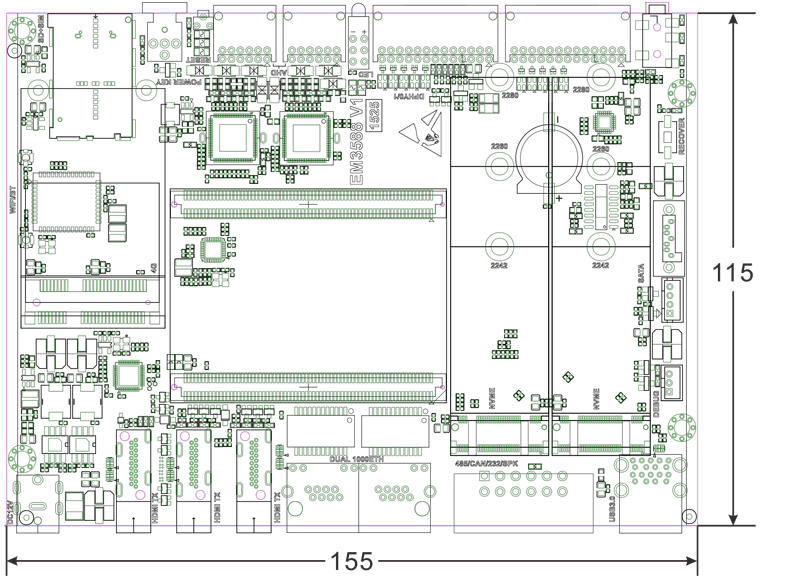

PCB Dimension
OS | Item | Feature | Description |
---|---|---|---|
Android 14 | Boot | U-Boot 2017.09 | rk3588_spl_loader_v1.18.113.bin |
Kernel | Version | Linux 6.1.99 | |
Drivers | eMMC | eMMC5.1 | |
LCD | 2x 10.1-inch MIPI LCD, 1280 x 800 | ||
HDMI | - 2x HDMI2.1, up to 8K@60fps - 1x DP to HDMI2.0, up to 4K@60fps |
||
Audio | - Headphone input/ output - 2x Speaker |
||
USB | - 2x USB3.0 Host - 1x USB3.1 Type-C (ADB/USB3.0/DP) |
||
Ethernet | 2x Ethernet, 10/100/1000 Mbps | ||
Camera | 8x AHD | ||
4G&GPS | EC20 module | ||
WiFi&BT | - 2T2R 802.11a/b/g/n/ac/ax - Bluetooth 5.2 |
||
SATA | SATA3.0 | ||
SD | Micro SD | ||
Serial Port | - 1x Debug (TTL) - 1x UART (RS232) |
||
RS485 | support | ||
CAN | support | ||
RTC | HYM8563 | ||
Keys | Recovery, Reset, Power/Sleep/Wake_up | ||
Cross-compiler Environment | Ubuntu22.04/openjdk11.0.4 | ||
Tools | Debug | SecureCRT, ADB | |
upgrade | AndroidTool.exe |
OS | Item | Feature | Description |
---|---|---|---|
Debian 12/ Buildroot (Linux 6.1) |
Boot | U-Boot 2017.09 | rk3588_spl_loader_v1.18.113.bin |
Kernel | Version | Linux 6.1.99 | |
Drivers | eMMC | eMMC5.1 | |
LCD | 2x 10.1-inch MIPI LCD, 1280 x 800 | ||
HDMI | - 2x HDMI2.1, up to 8K@60fps - 1x DP to HDMI2.0, up to 4K@60fps |
||
Audio | - Headphone input/ output - 2x Speaker |
||
USB | - 2x USB3.0 Host - 1x USB3.1 Type-C (ADB/USB3.0/DP) |
||
Ethernet | 2x Ethernet, 10/100/1000 Mbps | ||
Camera | 8x AHD | ||
4G&GPS | EC20 module | ||
WiFi&BT | - 2T2R 802.11a/b/g/n/ac/ax - Bluetooth 5.2 |
||
SATA | SATA3.0 | ||
SD | Micro SD | ||
Serial Port | - 1x Debug (TTL) - 1x UART (RS232) |
||
RS485 | support | ||
CAN | support | ||
RTC | HYM8563 | ||
Keys | Recovery, Reset, Power/Sleep/Wake_up | ||
Cross-compiler Environment | Ubuntu22.04 | ||
Tools | Debug | SecureCRT, ADB | |
upgrade | AndroidTool.exe |
Datasheet |
|
|
Tools |
Expansion Module | Module Detail | Android | Debian | Buildroot |
---|---|---|---|---|
![]() |
Quectel EC20 Mini PCIe Multi-mode LTE Module | √ | √ | √ |
![]() |
BL-M8852BS2 module. 2.4/5G WiFi + Bluetooth 5.2 | √ | √ | √ |
![]() |
SW-MA2024HP model, 2-Megapixel | √ | √ | √ |
![]() |
800*1280 Pixels. MIPI interface | √ | √ | √ |
