Vehicle Tracking Device

* Processor: Freescale/NXP i.MX6 UltraLite applications processor with ARM Cortex-A7 core @ 528MHz
* RAM: 512MB
* Storage: 4GB
* Interface: UART, USB OTG, USB Host, CAN, GPS antenna, GPRS antenna, SIM card slot, Audio I/O, Lithium power in, etc.
* Operating system: Linux 3.14.52

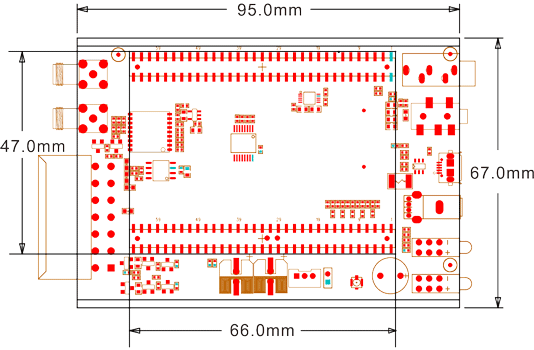

* Board size: 95 x 67 mm
* Power input: 6V ~ 55V

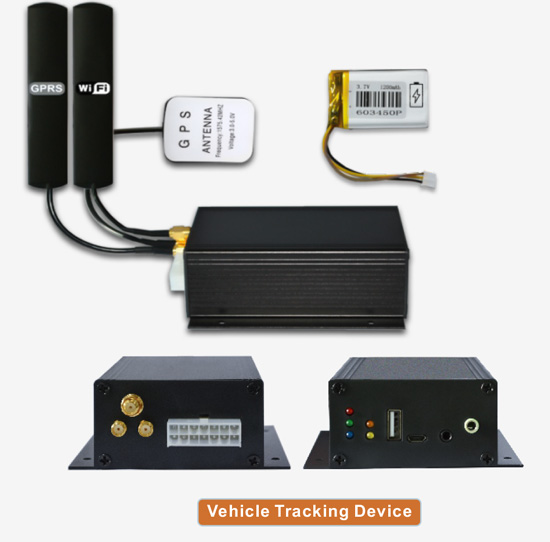

Vehicle Tracking Device

A vehicle tracking device is an electronic device that is usually installed somewhere around the dashboard in business vehicles. With today’s advanced capabilities in cellular and satellite communication, you can use GPS tracking devices for trucks, vans, vehicles, barges and equipment to better manage your mobile resources, no matter where they are located.
Boardcon Embedded Design offers vehicle tracking solutions customized specifically to your business needs. It is ideal for the companies that have specific reporting requirements and the resource to manage the software.
Boardcon vehicle tracking device is powered by Freescale/NXP i.MX6 UltraLite applications processor with 512MB DDL3 RAM and 4GB eMMC flash by default.

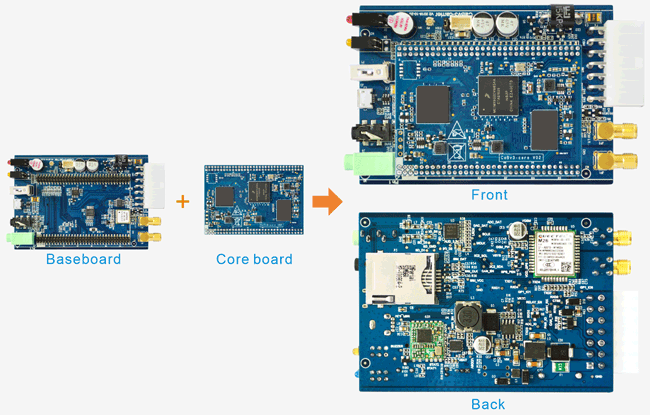

The device is comprised of a baseboard and a CPU board. Boardcon provides support for Linux for the board. A wide range of accessories and modules are also offered with the board including serial, USB OTG&Host, GPRS, GPS, WiFi, etc…


Vehicle Tracking Device
